Gridfinity Skadis T-Nut Mount
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~48 g
- Print time
- ~2.6 h
- Express shipping
- $20
More information

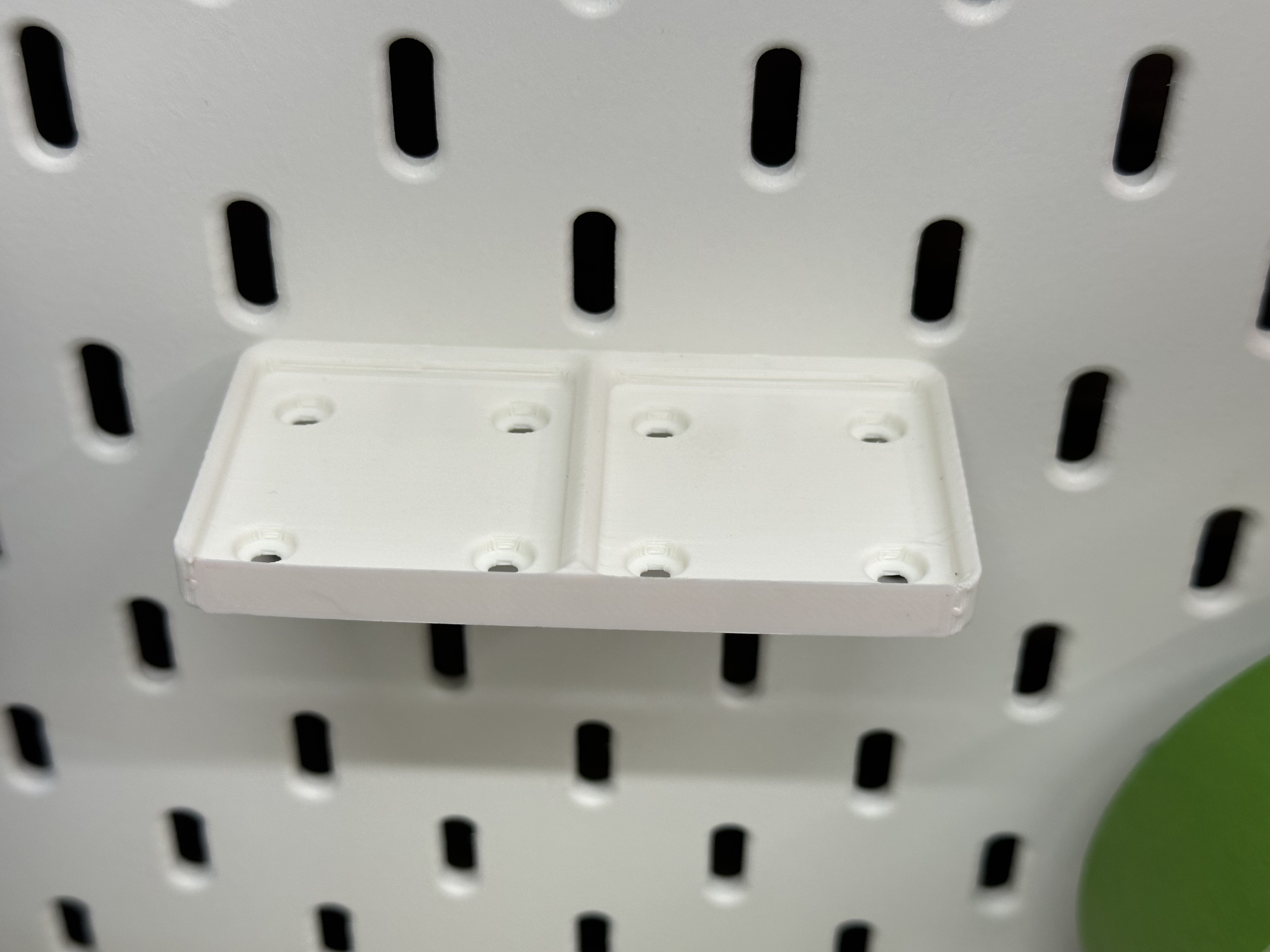

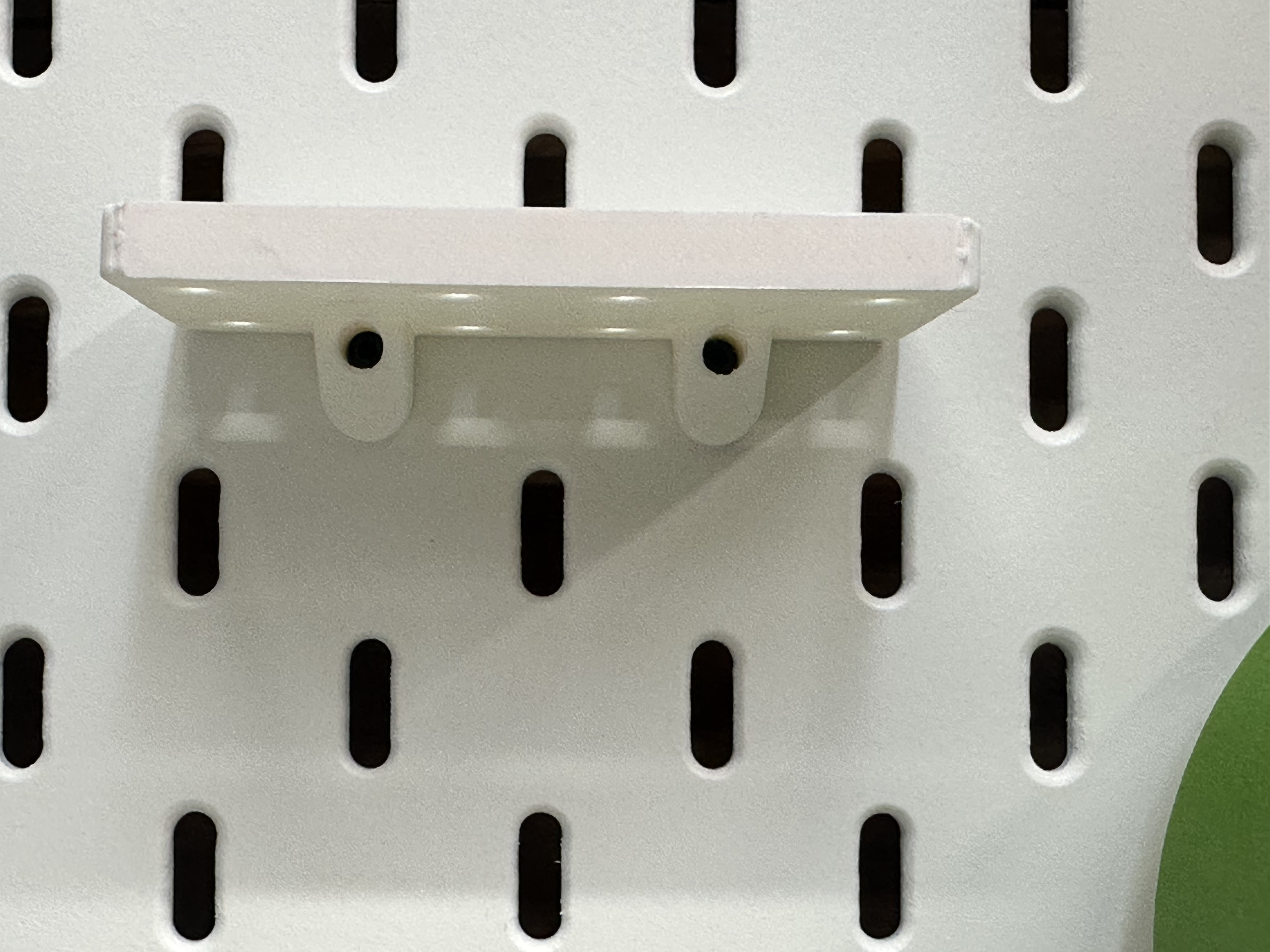

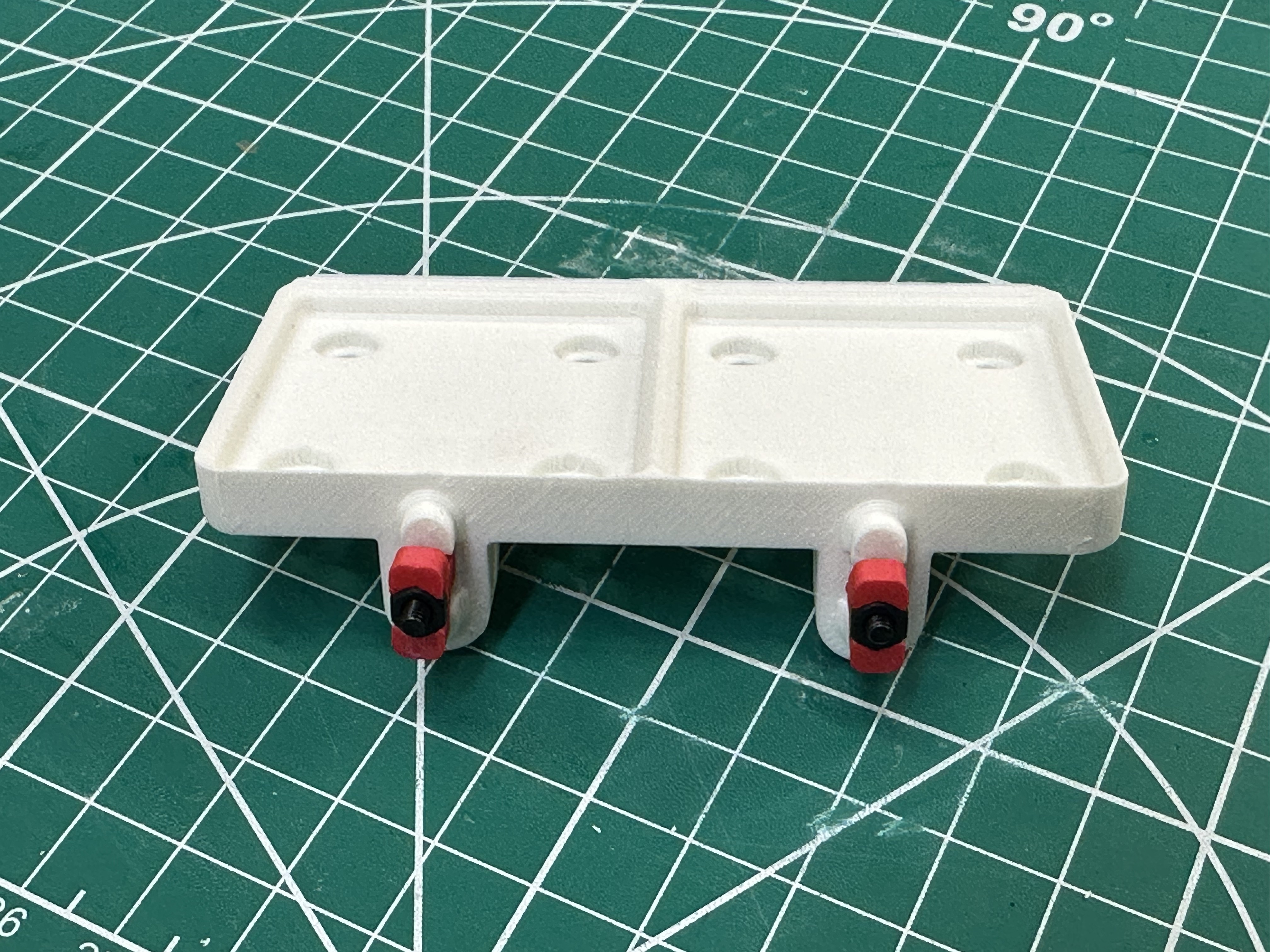

There are a couple of Gridfinity/Skadis mounting options out there but I wanted one that reduced wasted space. This one uses the Skadis T-Nut system: https://www.printables.com/model/228663-skadis-t-nuts-mounting-system-for-ikea-skadis-pegb with M2.5 screws to keep wasted space to a minimum. The mount is flush against the board and only the space needed for the T-Nut system is consumed below the mount.

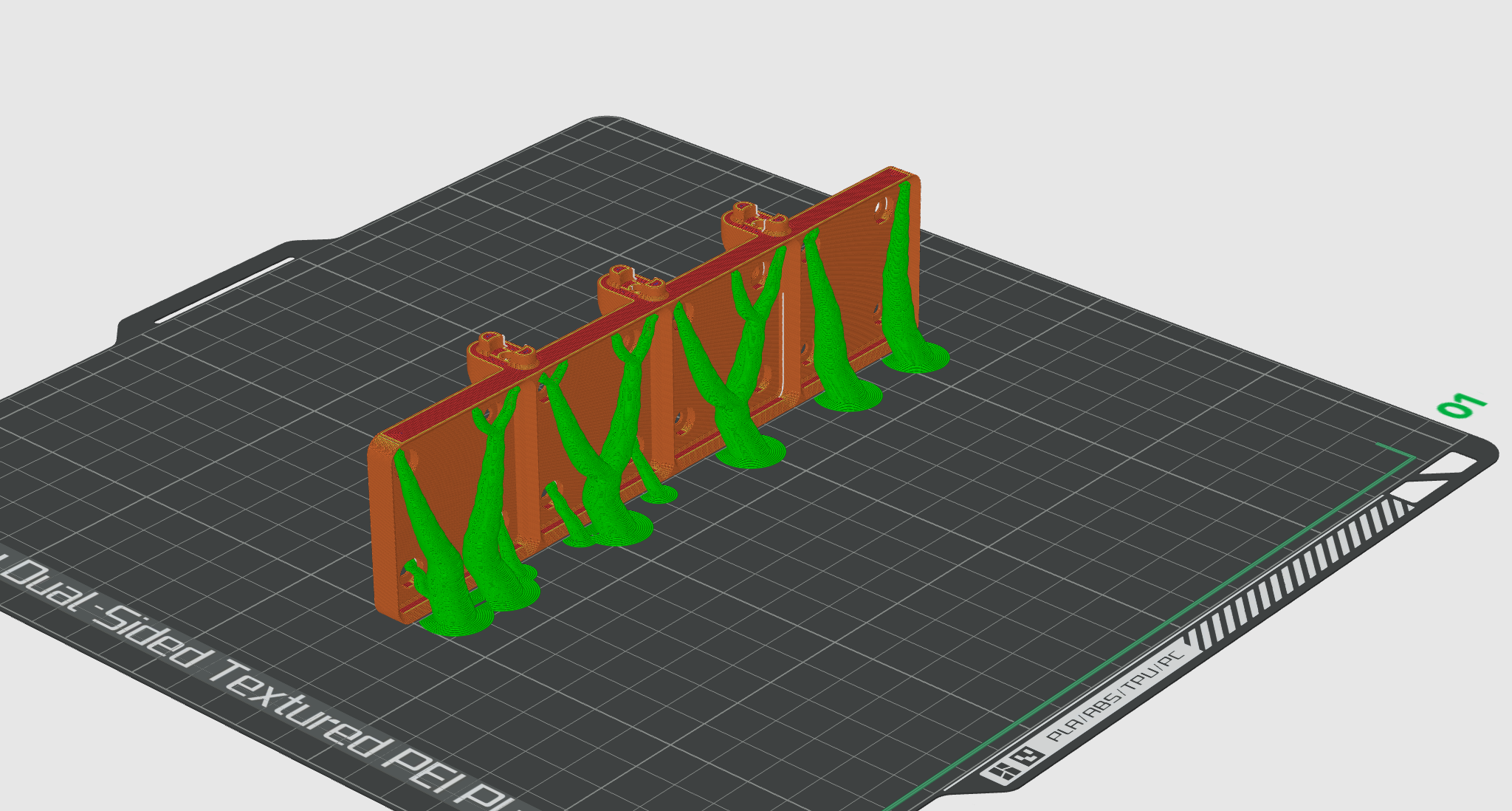

You'll probably want to print this vertically (with the nut mounting points aligned up). See info on the Skadis T-Nut to see how to attach it. You'll need M2.5 nuts and screws and of course the printed T-Nut gizmos.
I've included 1x2, 1x3, and 1x4 variants of the mount and may add 2xX variants later if have a need for them.
Onshape link here: https://cad.onshape.com/documents/07bd016342e5f864ada9b670/w/bf840f520f9cbc735f1da83e/e/cffd81b79eff691fd5aabfcf?renderMode=0&uiState=6413bbd5fdbd7c18958ea0b8
Design and description by schwa , licensed CC0.
More 3D printed IKEA Skadis accessoriesMore 3D printed Gridfinity bins and baseplates
Frequently asked
How long does shipping take?
Gridfinity Skadis T-Nut Mount is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
