Hanging Storage Bins

This is addition project to my previous one of small Storage Box: https://www.printables.com/model/611468-hanging-small-storage-box-for-honeycomb-wall-or-an

02.07.2024 Update Added Rail hanger bars for Multiboard. 2 versions, Short and Long for Both Types of Boxes. You can find them in folder “For_Multiboard” in Files section

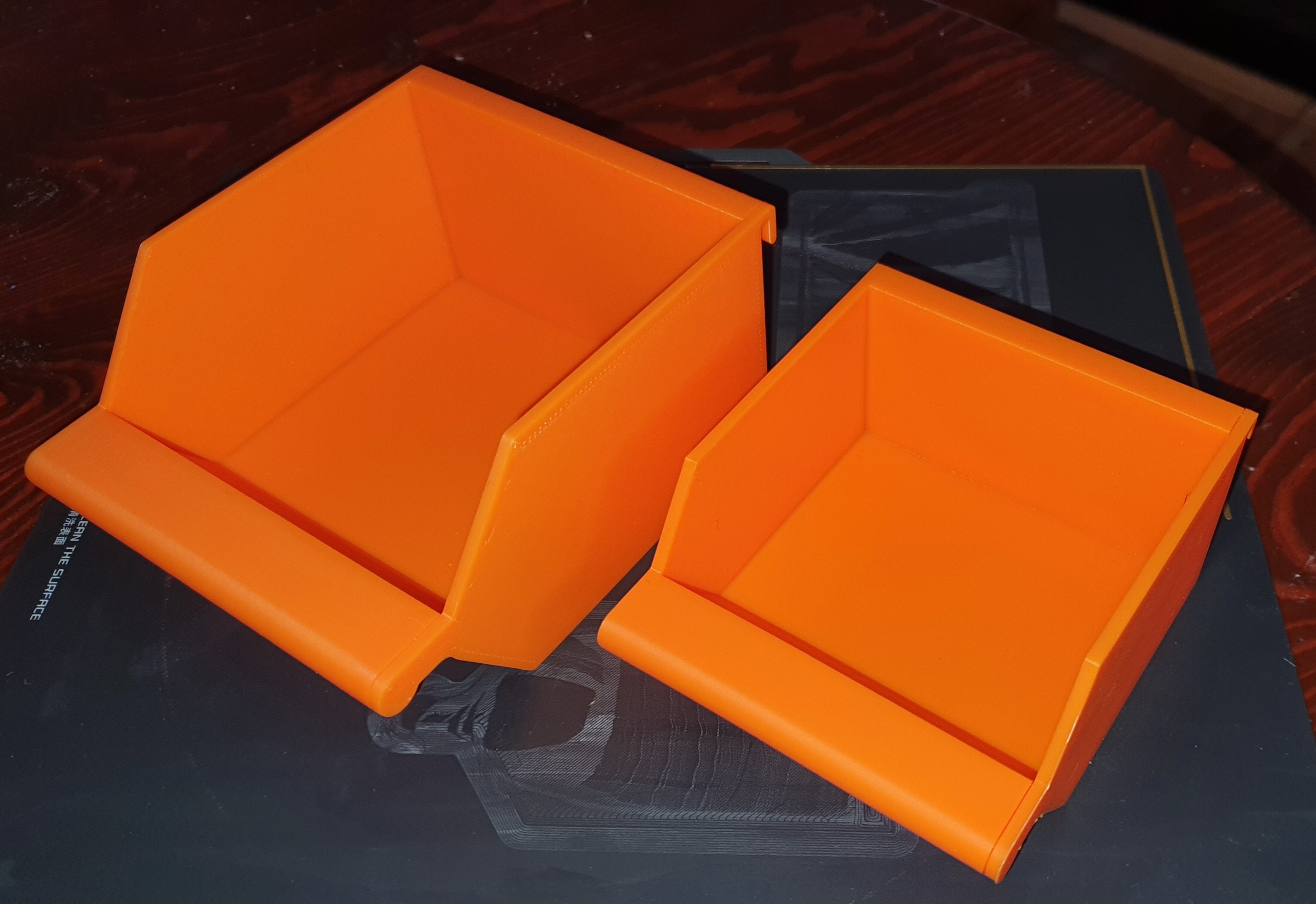

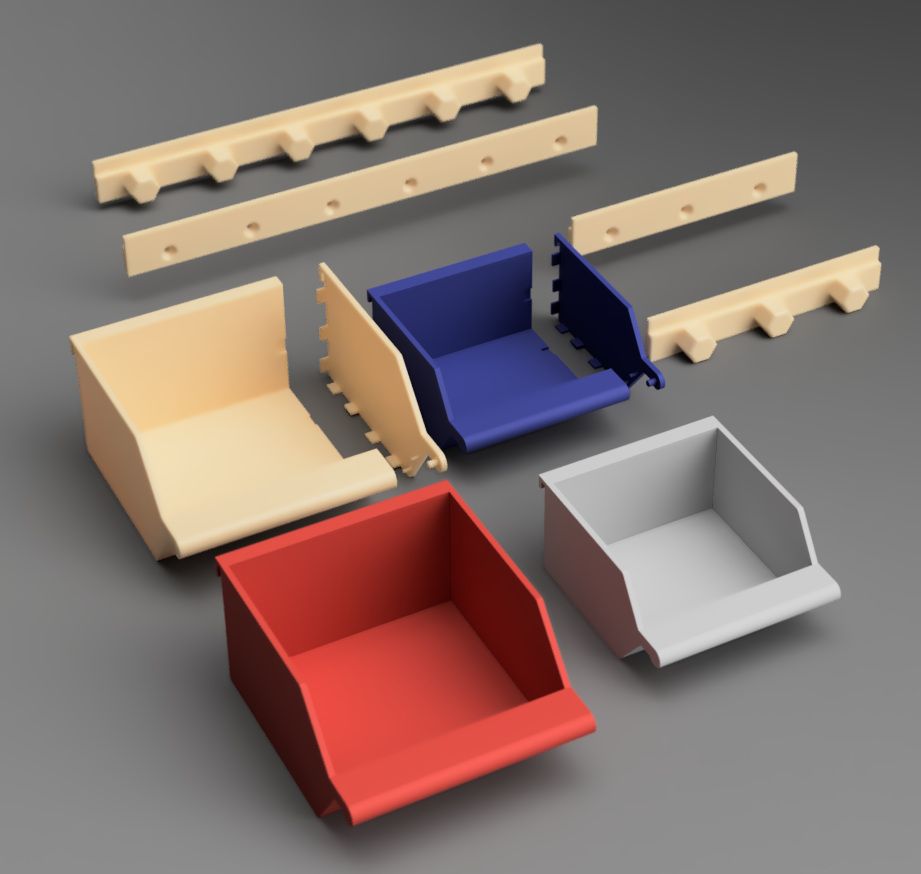

Ok so here are Medium and Large Sized versions of first one. Little bit tweaked and as I think - a bit improved as well. I'm calling them as Medium and Large even if they are not very large. But I think make them larger are not really productive. Basic sizing of those Bins are given in PDF file I have given here. As in first model, I'm giving 2 versions of Bins.

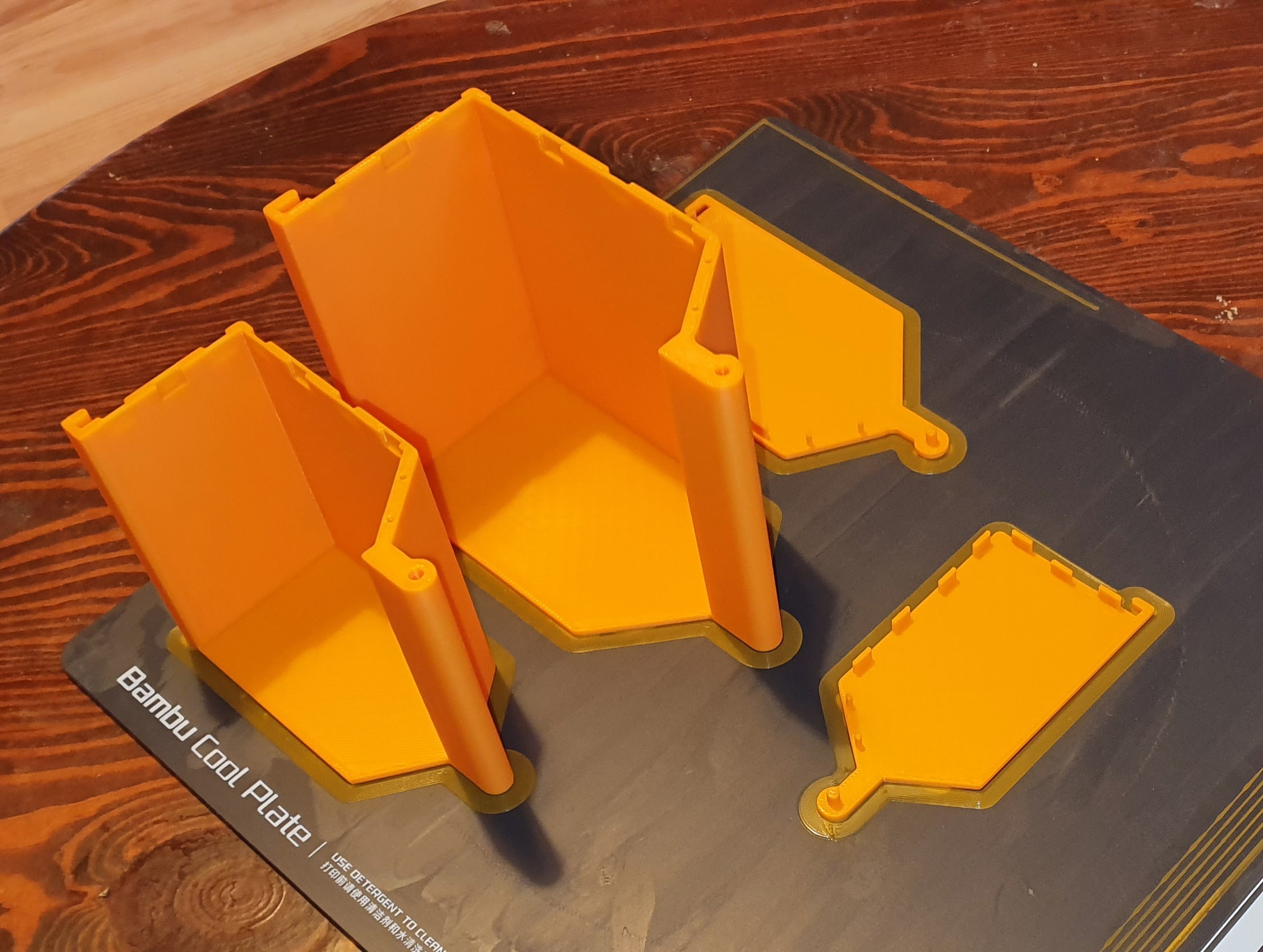

• Solid one piece, where you will need to use some supports printing and, • Supportless version where Bin is splitted in 2 pieces and You will need to use a bit of glue. Or maybe not, you will see. I found this version holds together quite good even without glue. However I didn't designed them that way so it's up to you.

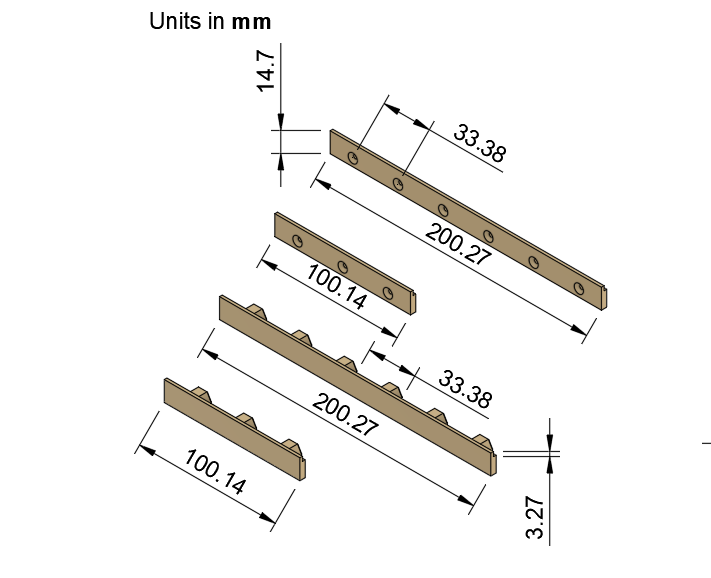

For them Bins here are hanger rails made to be used on HSW Honeycomb Storage wall as well as for any other surface where you can crew them on. It can be a bit confusing at first as there are many of them , but actually it is quite easy. So there are:

• Four different MiniRail ones. They are to be used on Small Box from first project and Medium Bin Here. Difference between four of them is just different length and fittings (Hex for Honeycomb wall and Screw for Honeycomb wall screw fittings and any other surface you may want) • Four RailLargeBox ones to be used for Large Bins and the same rest of differences).

You can Buy me a coffee if You feel good doing so :) (And very big Thank You For interest in my work) https://www.buymeacoffee.com/warlogh

Design and description by Warlogh , licensed CC-BY.
