Honeycomb Storage Wall Isopropyl Alcohol Bottle Holder

I wanted a shelf built specifically to fit my bottle of isopropyl alcohol for the Honeycomb Storage Wall. Both of the bottles I had in my house were ~ 80mm square, so I made this as a 84mm square to give an “easy fit” (with some sexy fillets in the corners of course).

My bottle was sorta heavy I felt, and a bit wide, so I made it connect into two honeycomb holes so it would be a solid and stable fit in there. Field test results: it is indeed solid and stable!

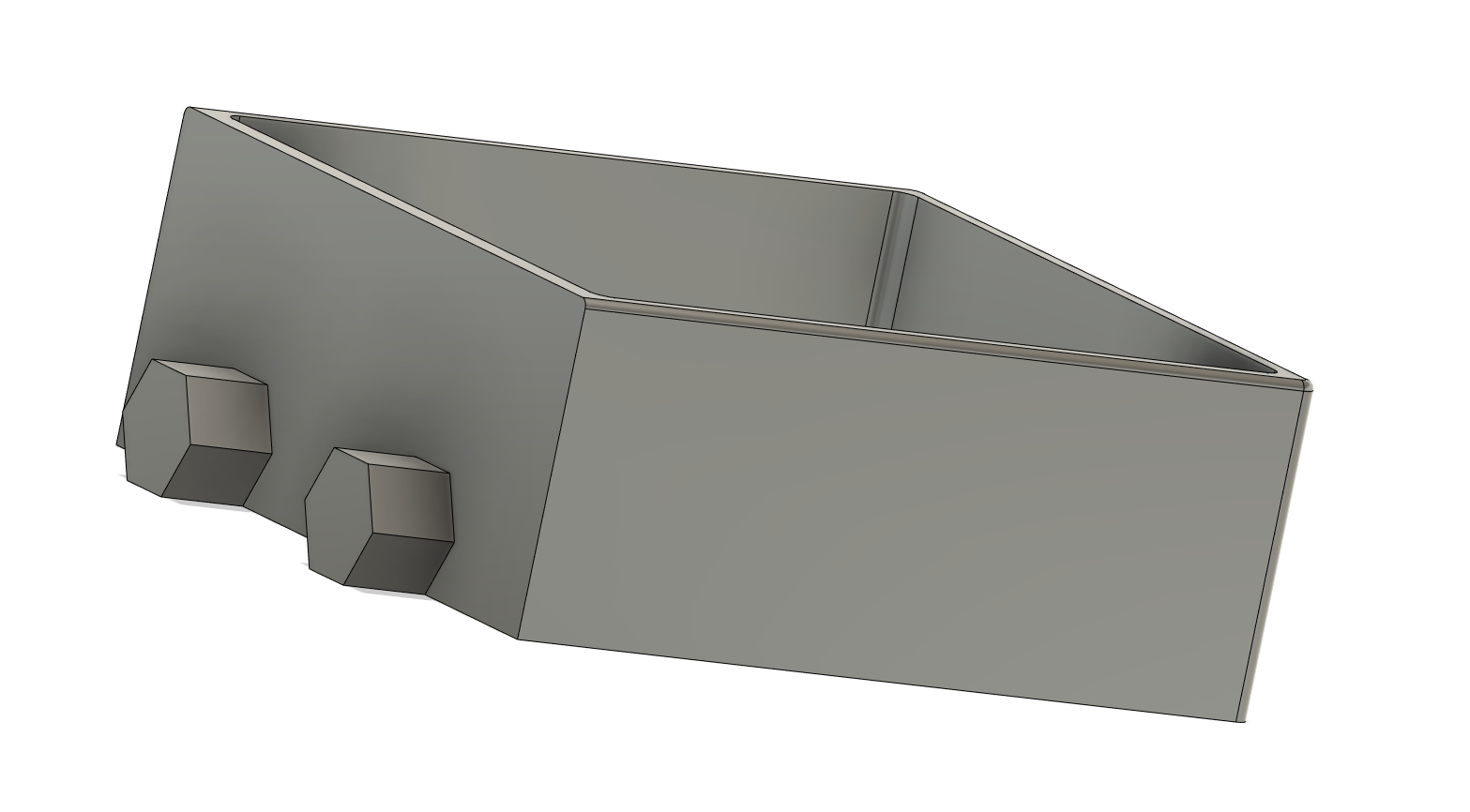

I've uploaded two models, one that has the snap in inserts and one that should snuggly slip into the hollow inserts (in case you wanna move it around later).

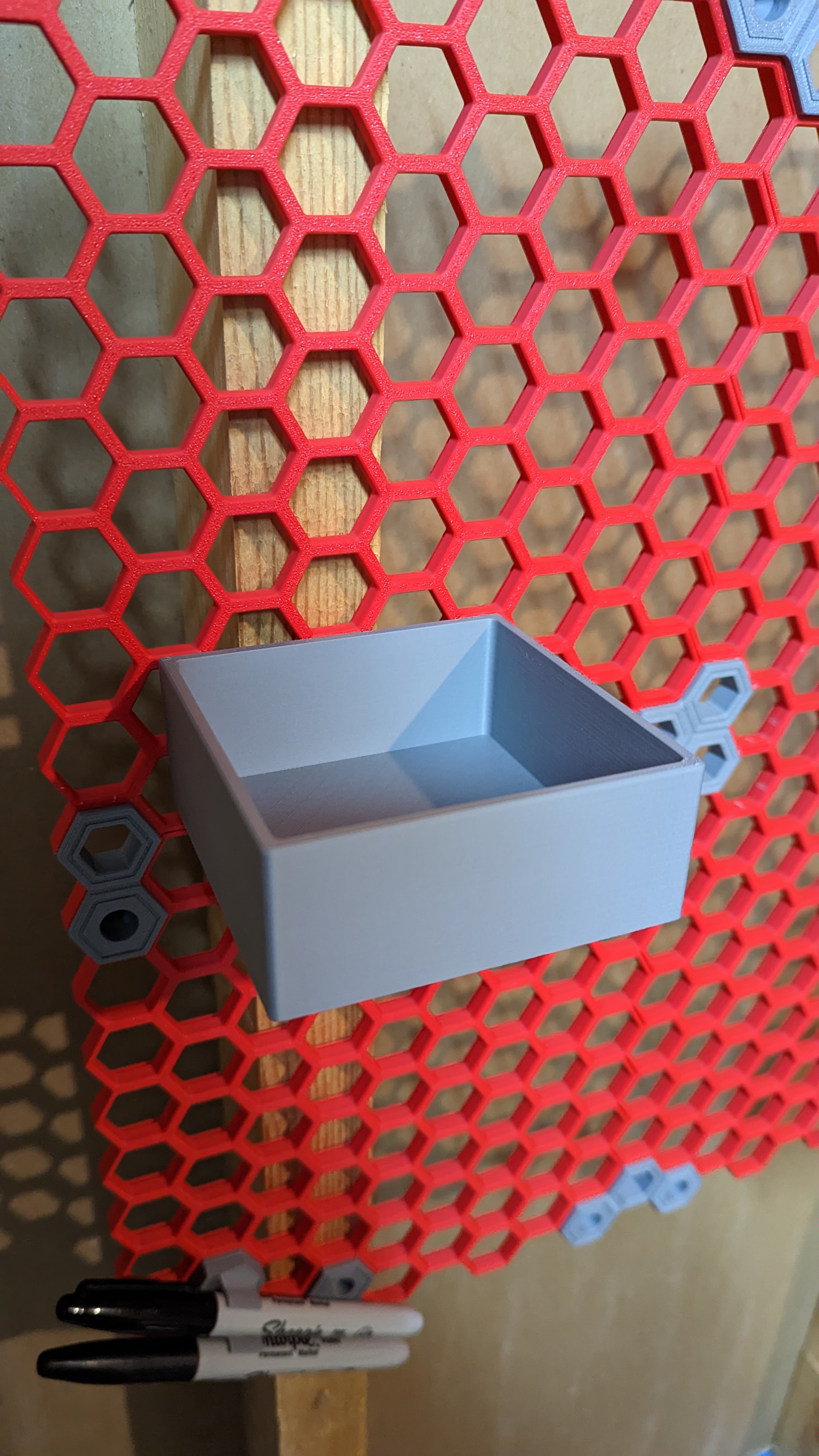

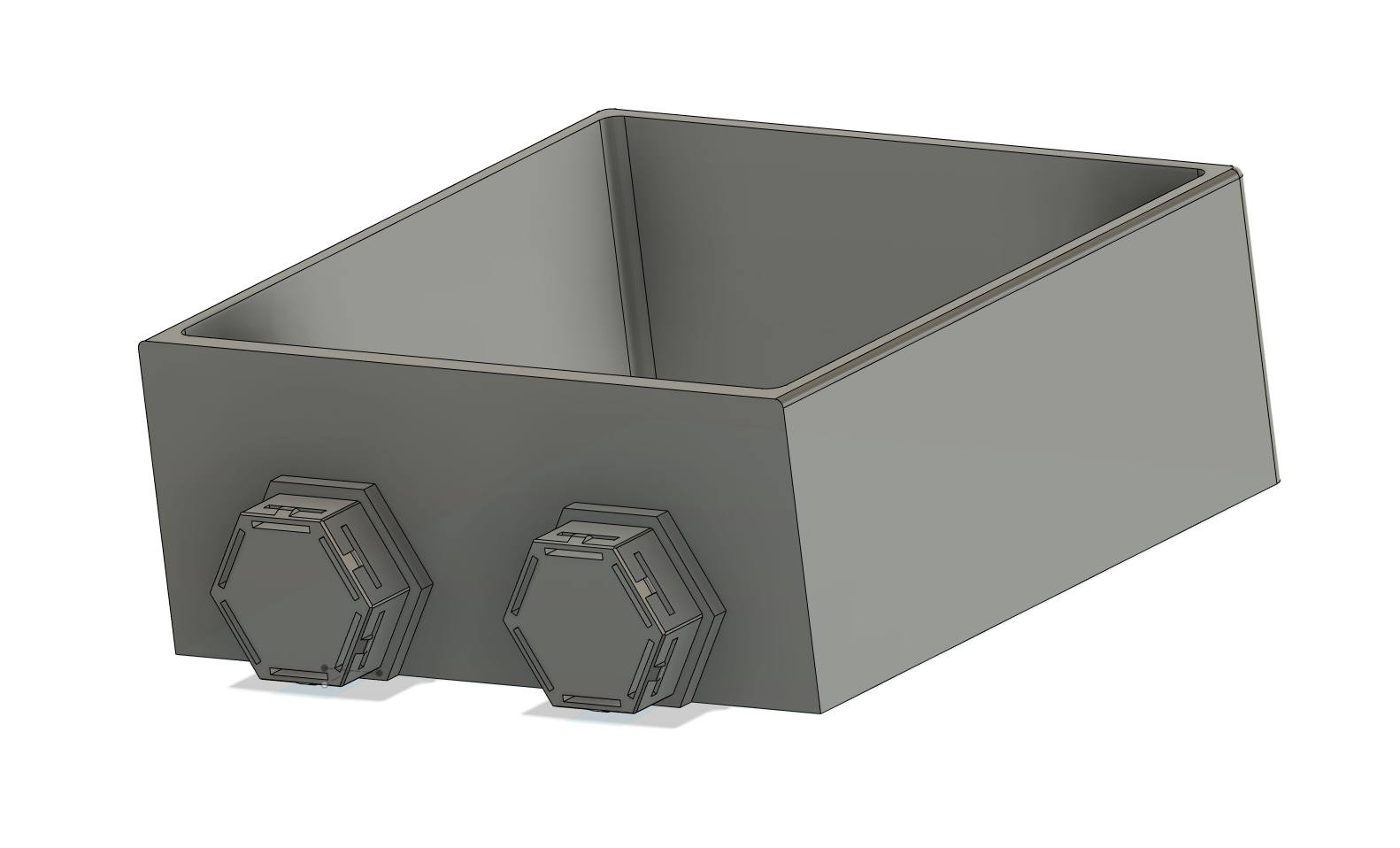

* Pictured is the snap in version, I've not printed the slip in version, but it's the same model as the snap in so I'm pretty confident it'll work (in fact I drew the slip in first the changed my mind \_(ツ)_/ ). If you print the slip in one and she just won't fit, let me know!

flip it to the bottom in your slicer and you'll be good to go. I printed some painted on supports for the snap in version in a few areas but you shouldn't need any for the slip in.

• Printed on Bambu X1 • 0.2 mm layer height • PLA • I did use a brim to avoid any warping, but you know your printer better than I do

*One more note. The slip in version still needs the snap in hollow inserts. those provide a lot more surface area to hold the thing solid. It will not fit into the honeycomb alone.

Design and description by brad.b3 , licensed CC0.
