HP G2 Z4 Tower PSU Clamp fan bracket mount to cool PCIe area
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~10 g
- Express shipping
- $20
More information

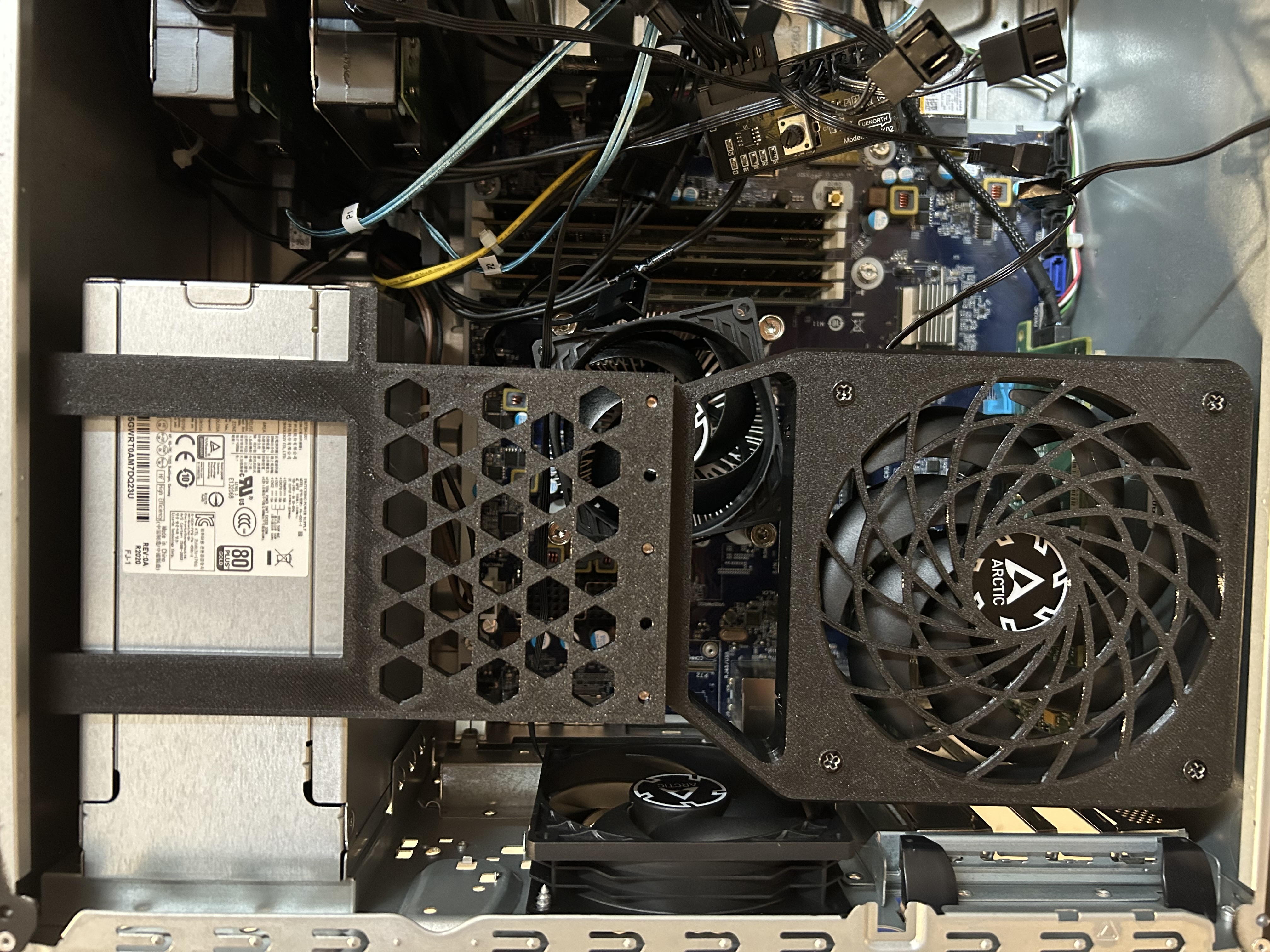

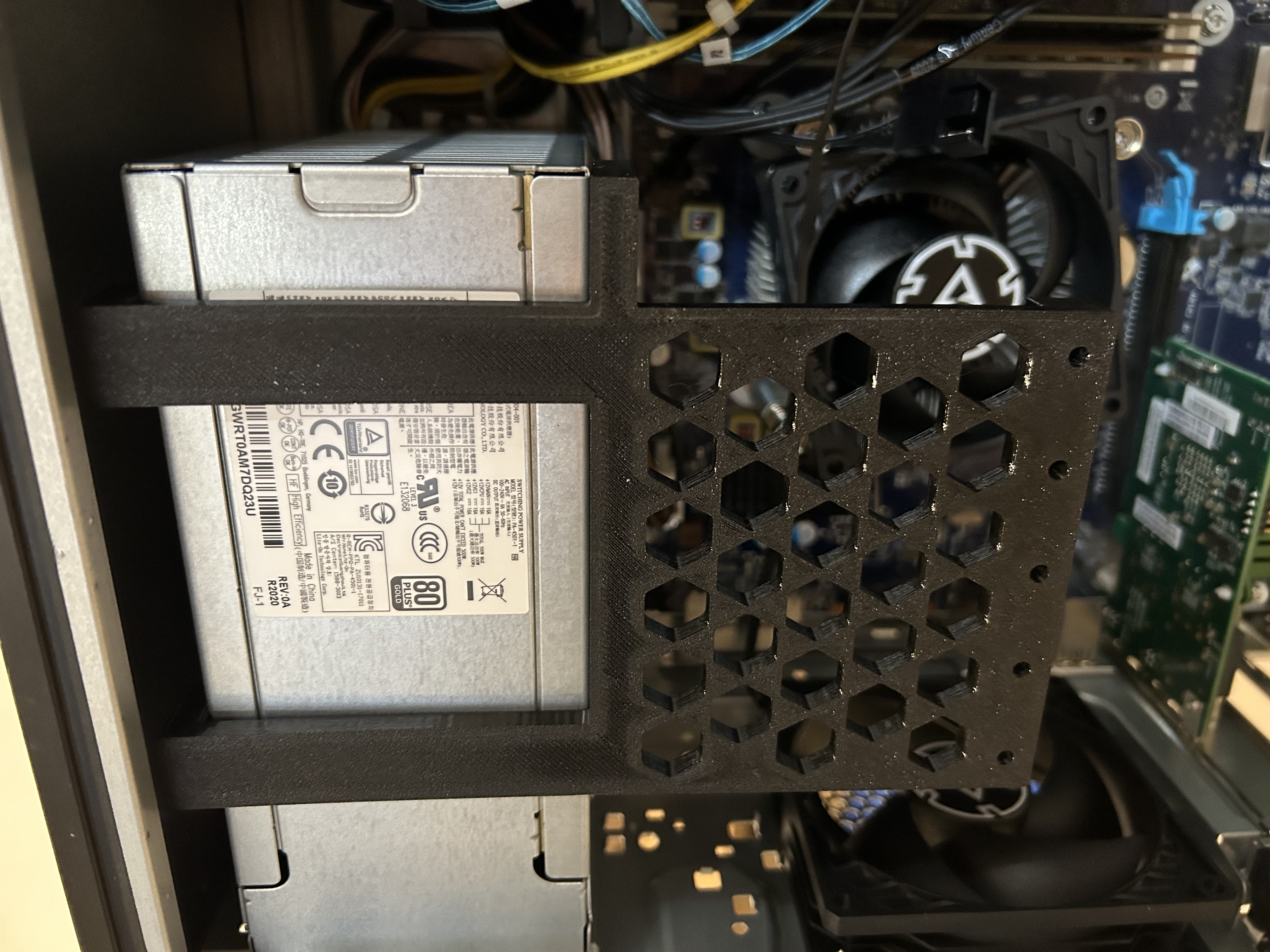

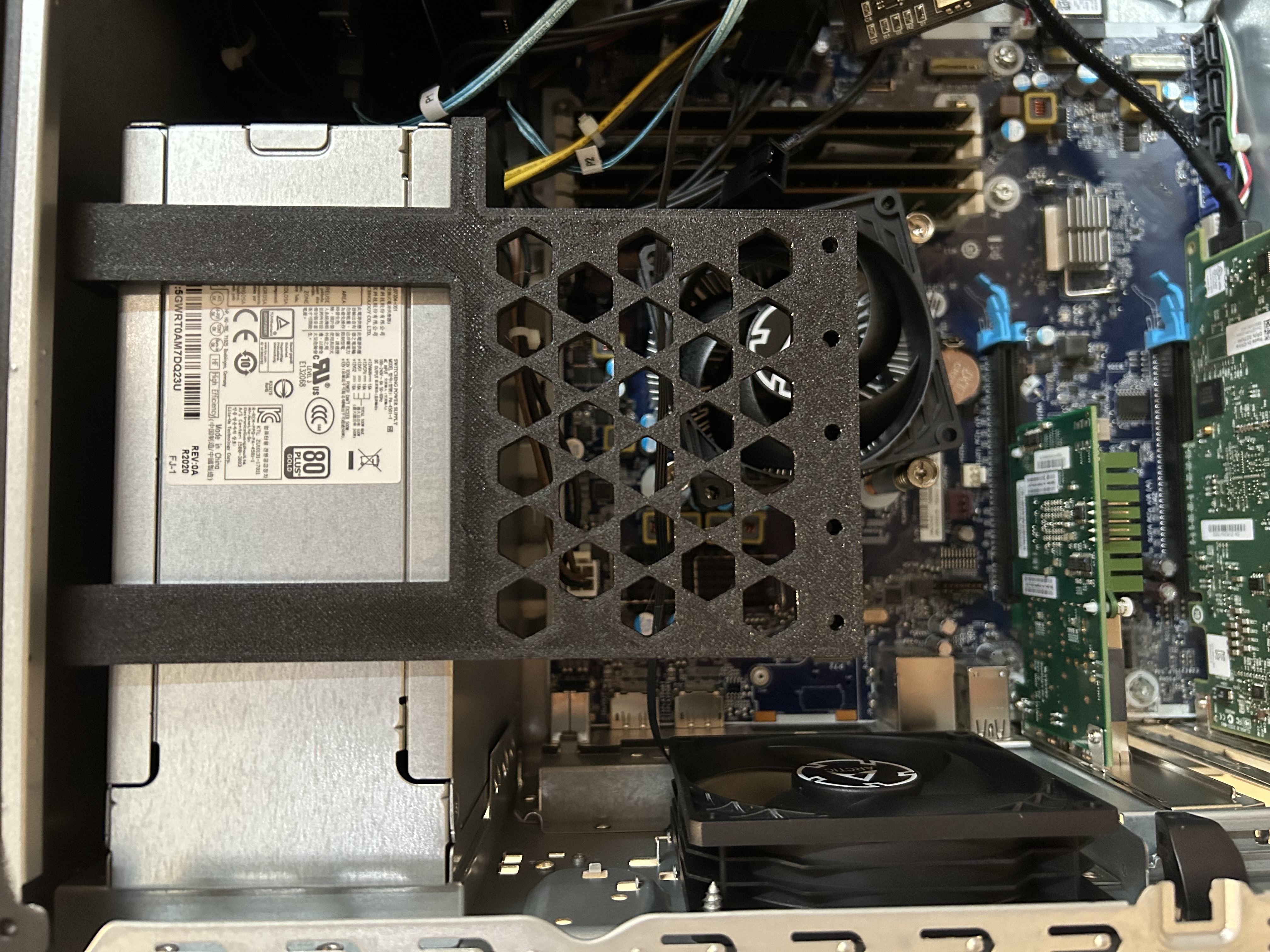

This piece allows for @Gustavo_2073's "PCI bracket for 120mm FAN" to be mounted in a way that the fan pushes air directly to the area where the PCIe cards of the HP Z2 G4 Tower are. It clamps to the PSU and secures itself using the metal notch that's on the bottom of the PSU, and has matching holes to be attached to the fan bracket.

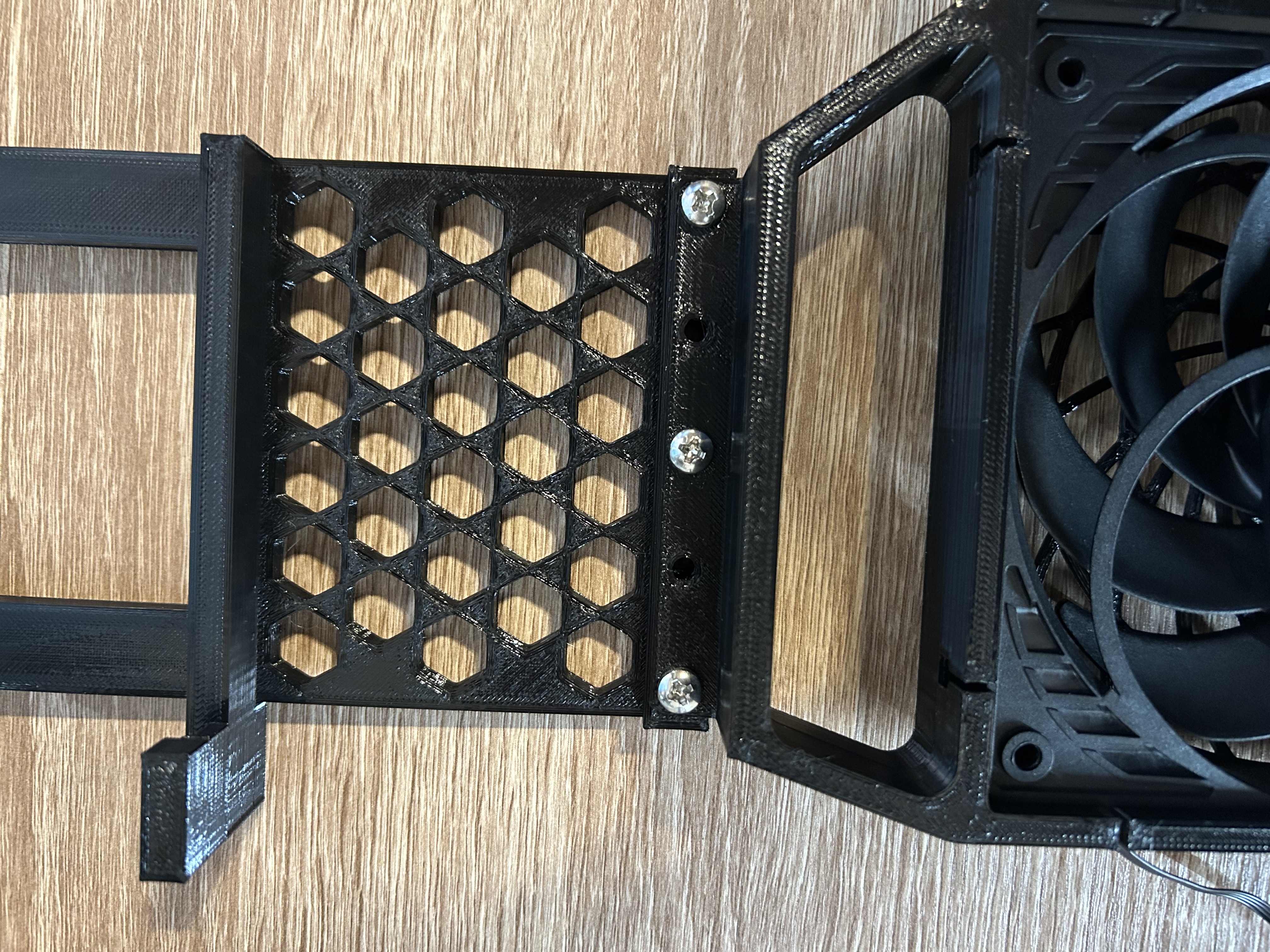

Use M4x10 (or longer) screws to put the pieces together. Can be printed without supports as the overhang for the securing hook is fairly short. There's enough clearance to the side (where the case 92mm fan is) and the bottom of the case so that vibrations won't cause noise, and it sits far enough from the cover for the fan to be able to produce enough airflow.
I really like the fan mount but the PCI bracket it comes with is not compatible with the HP Z2 G4 Tower ones. This piece solves that problem.
This is the first model I make from scratch so it's probably not great. The OpenSCAD source code is posted here so feel free to make any improvements and post your remix, we'll all benefit from that!
Design and description by SmoothOp , licensed CC-BY-SA.
