IKEA 365+ 10.6l Filament Storage with deisccant box

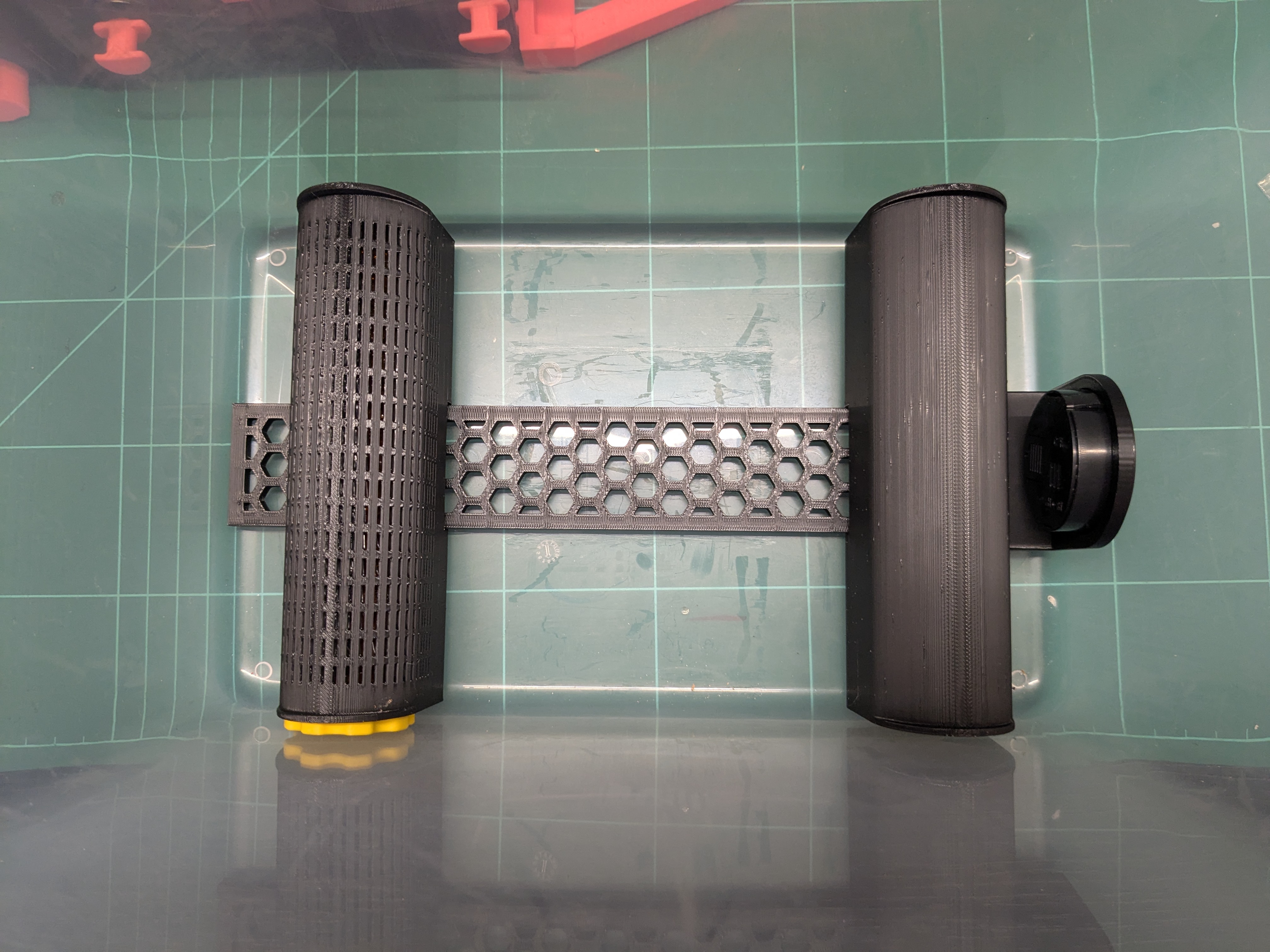

I use Ikea 10.6l containers, to store all my filaments, and this model, helps keeping them in place, and not wobble around.

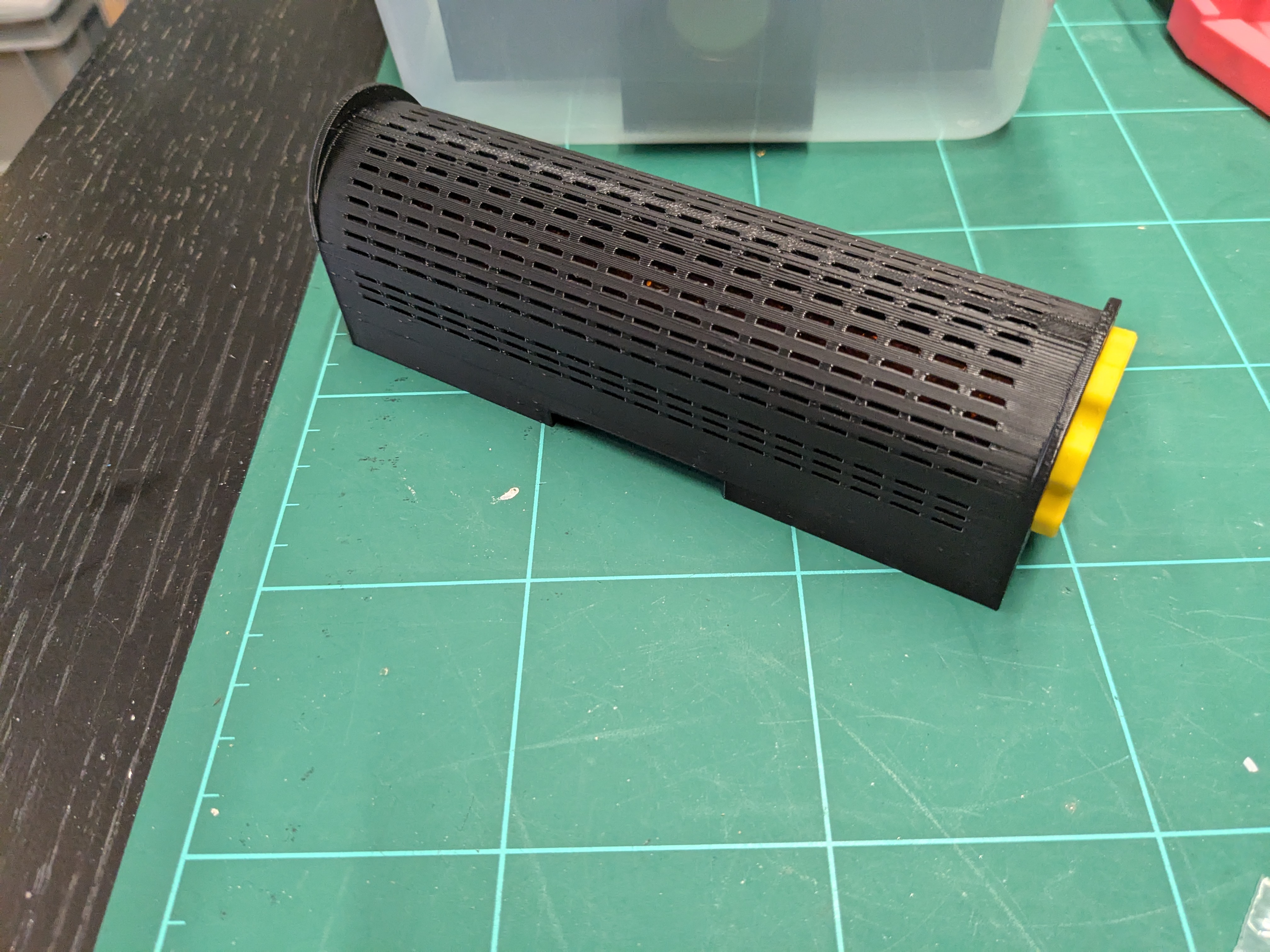

I really liked the original model, but wanted to use some of the desiccant beads I have, to keep the filament dry, but not keep them in a bag, or additional print that I'd have to add to the box, so I created an additional holder, that has a screw lid, and is hollow.

As I created a new holder, I had to recreate the hexagonal grid, and just decided to redo all the models, and include my step files in this upload.

Print settings

I've printed it in PLA, using 0.2mm layer height, and 5% infill, that's solid enough.

If you want to dry the desiccant beads without removing them from the holder, I recommend to print at least that holder in a more temperature resistant material.

Customization

If you want to add other holders using the same base, it's using a polygon with a side length of 4.6mm, and set apart by 3mm.

To make the fits snug, I've used the base to cut from the other models, and offset the faces by 0.18mm.

Design and description by peschmae , licensed CC-BY.
