Imperial Screw Gauge
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~46 g
- Print time
- ~2.5 h
- Express shipping
- $20
More information

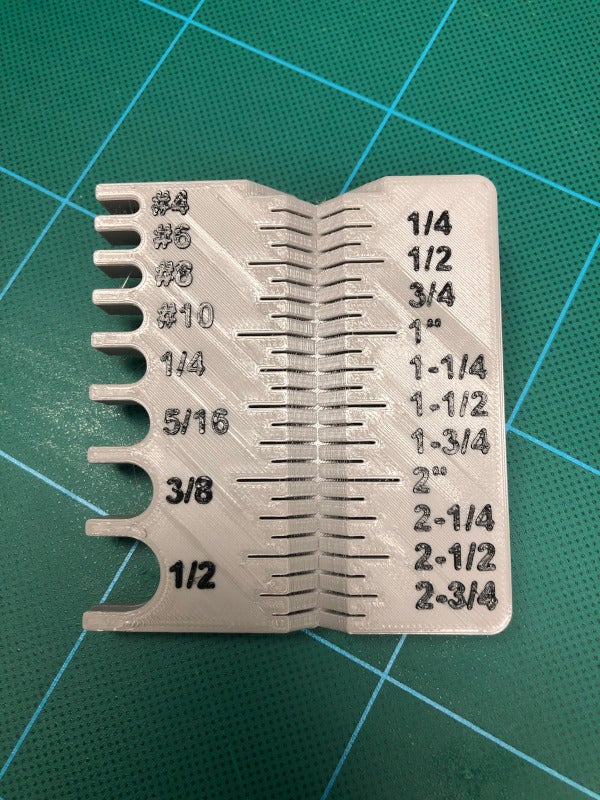

An imperial/SAE screw gauge to help sort or measure unknown screws or bolts. Inspired by many others similar designs, this one has raised text to allow a colour change on the top two layers for added contrast.
Use the side cutouts to gauge the diameter. Use the "V" groove scale to measure the length. Measures screws of common sizes up to 1/2" diameter and 3" length.
Print instructions
Category: Tools Summary
An imperial/SAE screw gauge to help sort or measure unknown screws or bolts. Inspired by many others similar designs, this one has raised text to allow a colour change on the top two layers for added contrast.
Use the side cutouts to gauge the diameter. Use the "V" groove scale to measure the length. Measures screws of common sizes up to 1/2" diameter and 3" length.
Print Settings
Notes
Set a colour change on the top two layers to print the numbers in a different colour for better contrast.
Design and description by RJay , licensed CC-BY.
Frequently asked
How long does shipping take?
Imperial Screw Gauge is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
