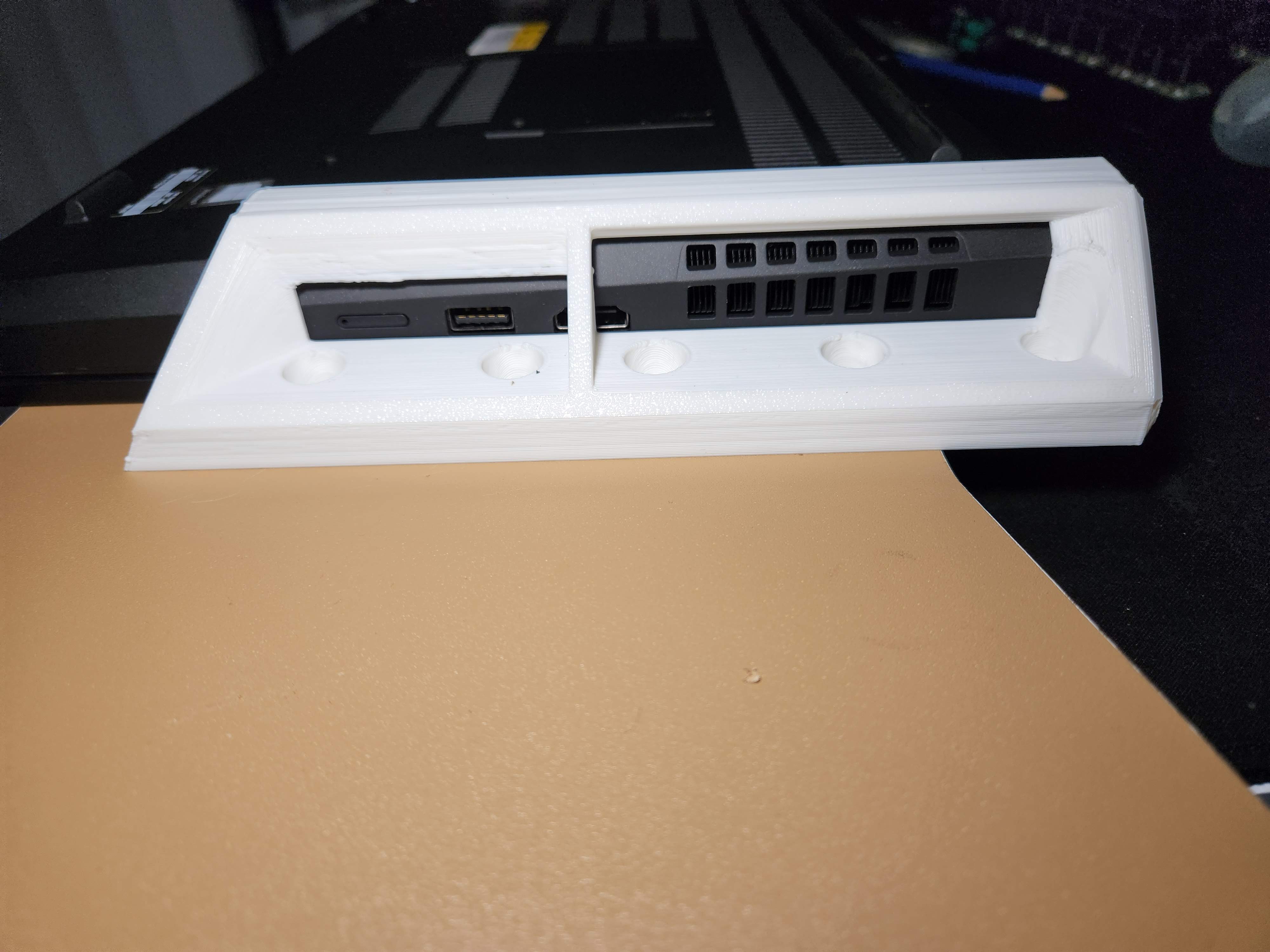

Lenovo ThinkPad P15 and P52 laptops under desk/shelf bracket mount. Optimized for 3D printing.

*Added .STEP file for editing, enjoy!

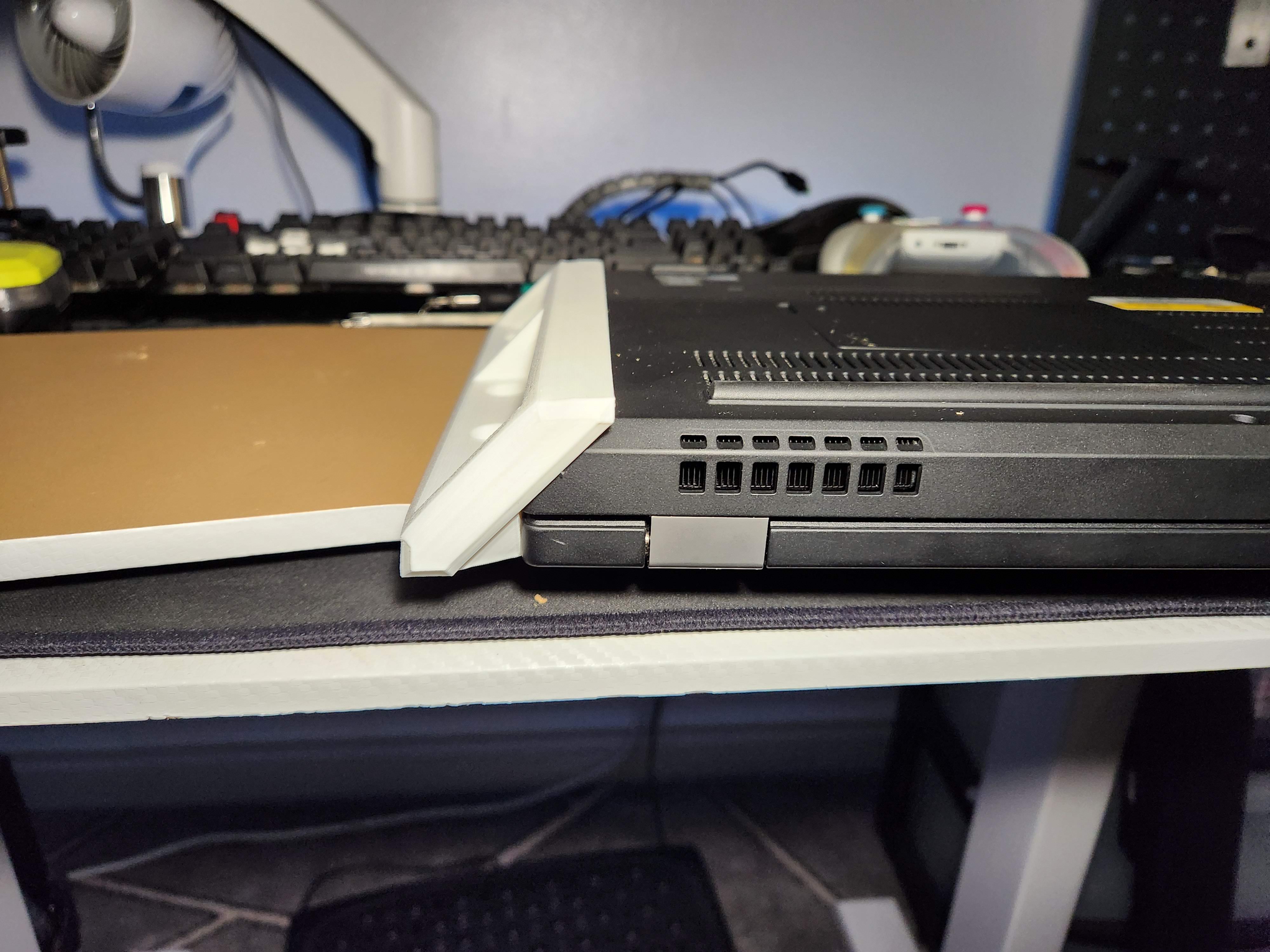

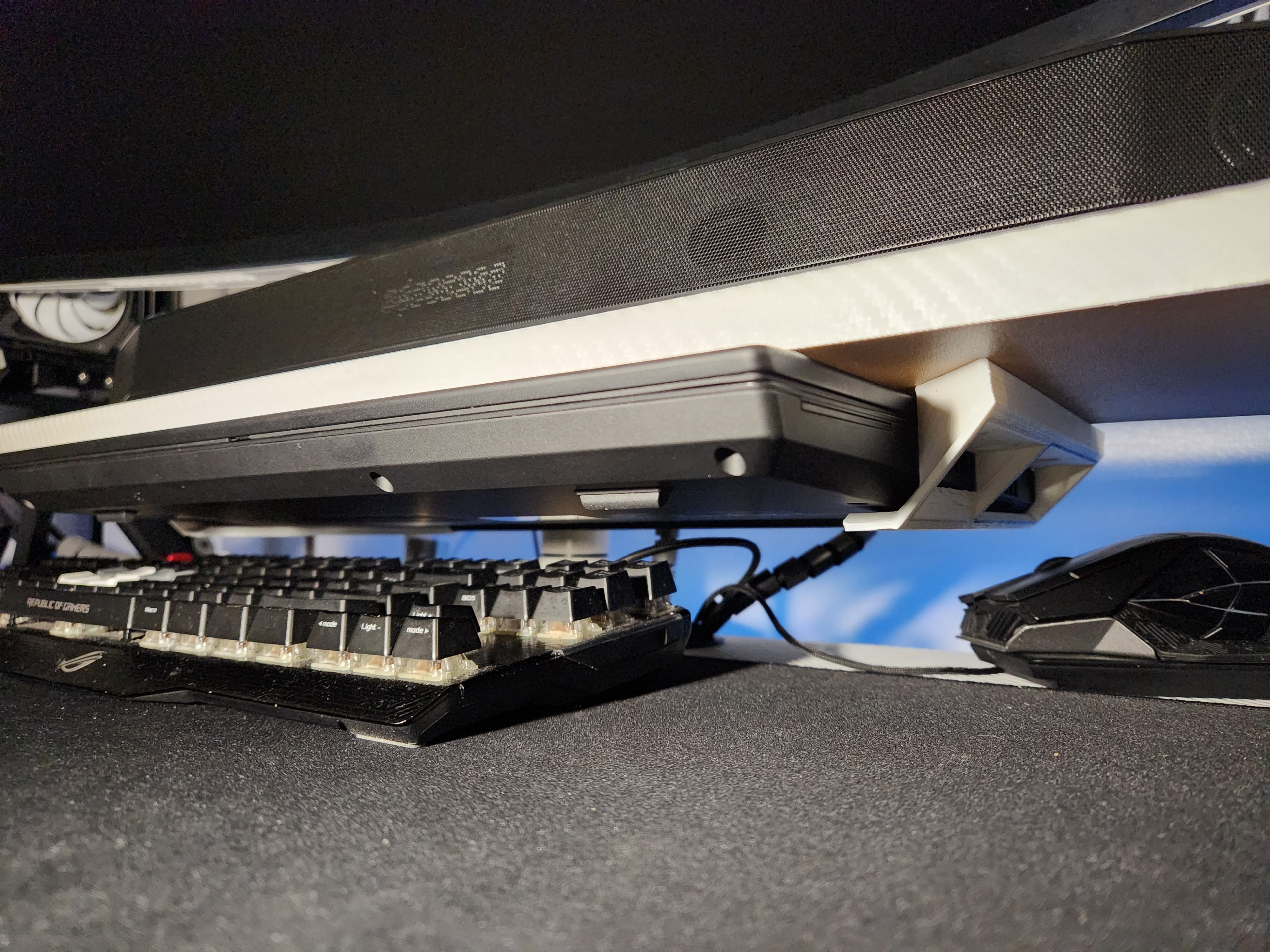

Designed this to store away my work laptop when I'm done for the day to clear space so I can slide-out my personal keyboard+mouse. My configuration allows to keep the laptop connected to power, USB hub and monitor when deployed or stowed. Another use can be to stow semi-permanently under the desk out of the way.

Features

• Mounts a ThinkPad P15 as close to the surface as possible, it can also fit a P52 but a couple of mm looser. • Wide beveled opening to slide the laptop in with little guesswork • Clearance for ventilation and ports • Contoured to follow the laptop's side chamfer • Back stop that prevents slide-out • Mounts with bolts/screws up to 3.5mm dia • Chamfered design that reflects the laptop's design • No, it will not make a taco but the money saved by printing this instead of buying one will allow you to buy more tacos

Designed for FDM 3D printing first:

• Big footprint with little surface contact. first layers will print faster and removal will be easier while keeping the print on bed when printing • No supports required, the saved print orientation rotates all horizontal walls 45deg which most 3D printers should be able to print without support • Increased stiffness across the bracket “bends”, this print orientation allows to maximize layers along them • Length adjusted to fit 250mm beds (most common 3D printer size)

This is my second iteration for an underdesk/undershelf laptop storage solution, attribution/credit greatly appreciated when sharing/remixing/selling/etc., please feel free to add any thoughts/makes of it, thank you for looking!

Design and description by L21Degrees , licensed CC-BY.
