Light C-Clamp
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~75 g
- Print time
- ~4.1 h
- Express shipping
- $20
More information

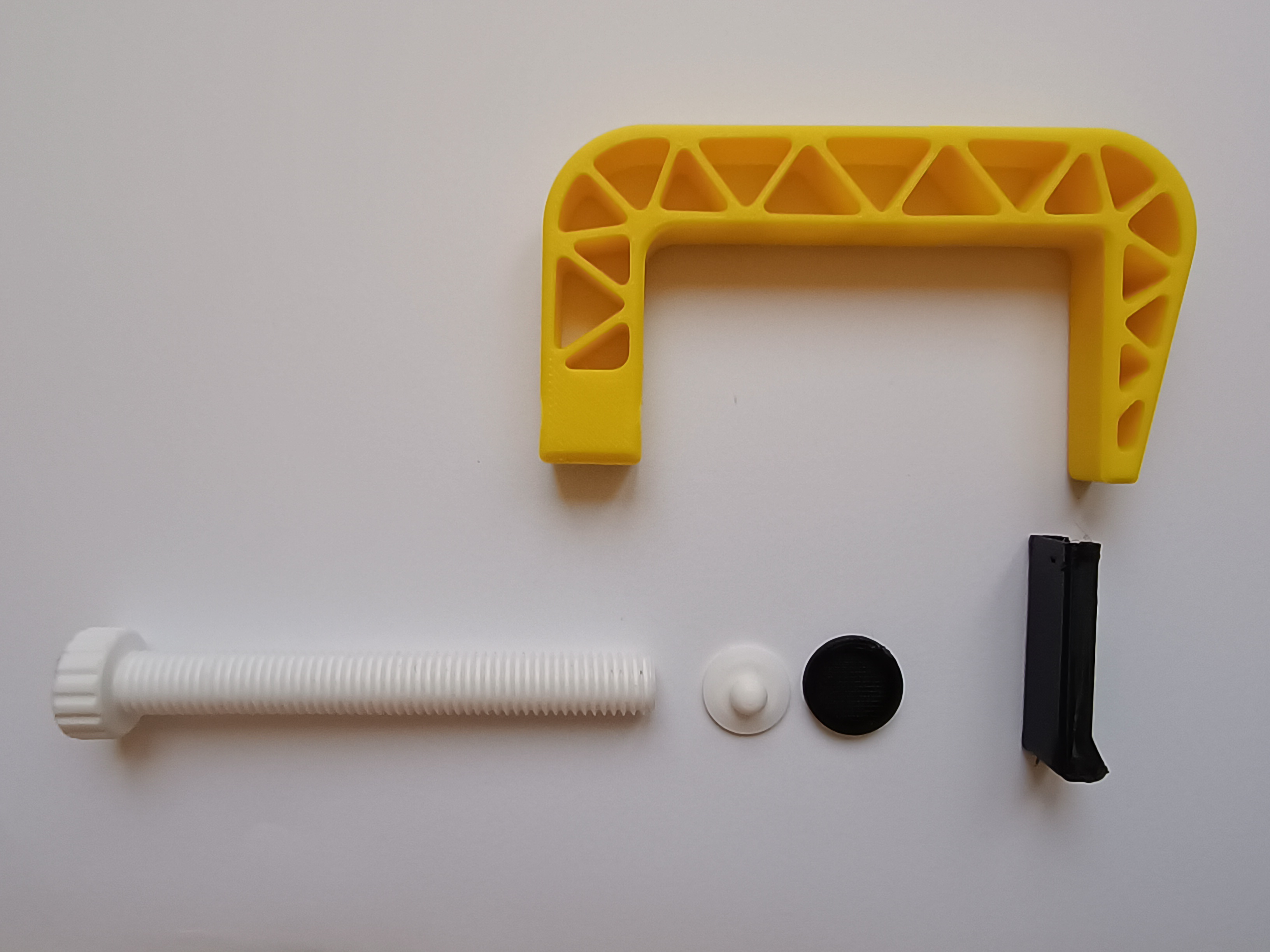

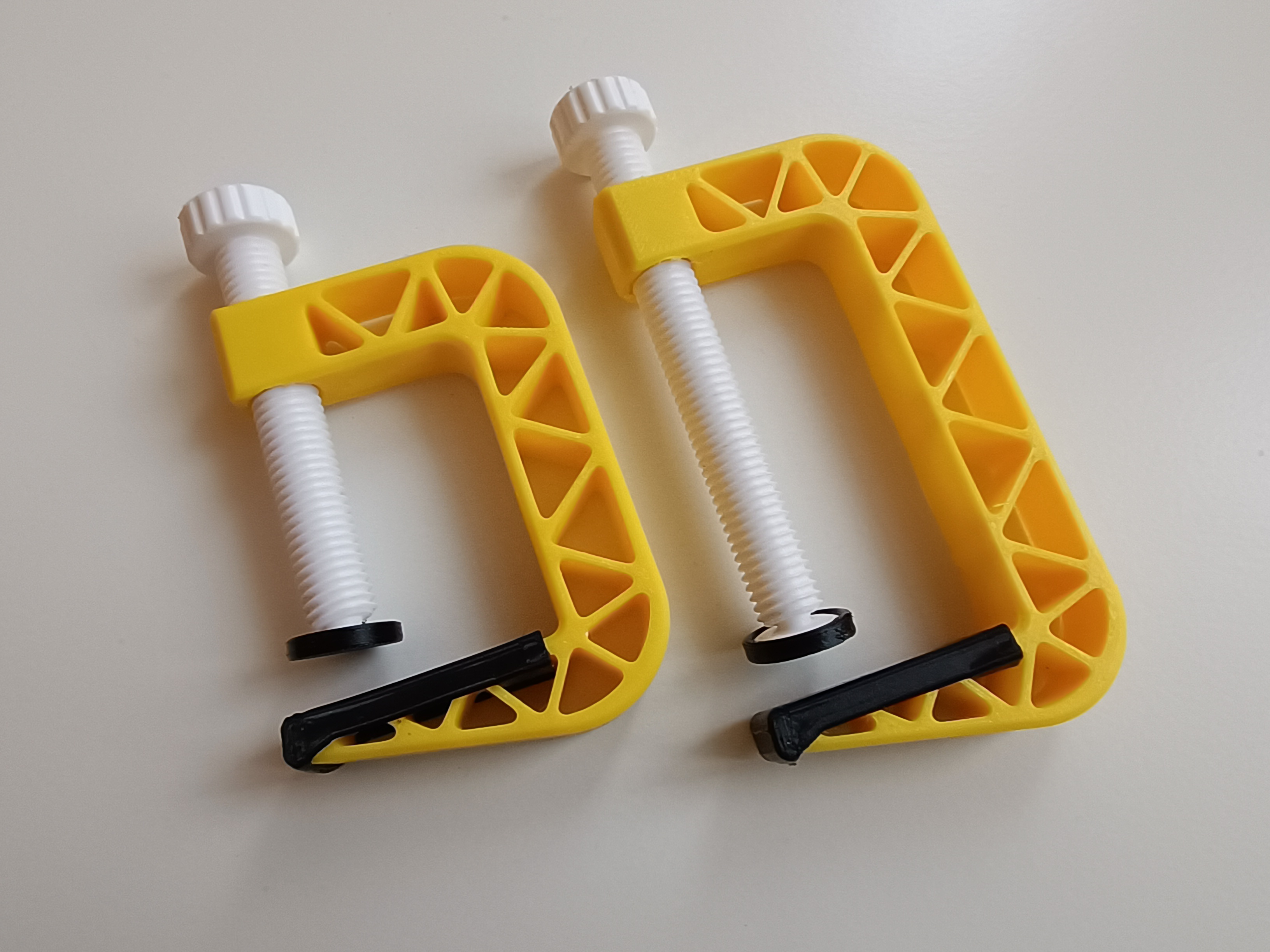

Lightweight C-clamps designed for lower load applications, provided in two sizes: 45 mm and 65 mm. Clamping depth – 35 mm. The weight of the 65 mm clamp is 23 g, and the weight of the 45 mm clamp is 21 g. The clamps use a standard M10 thread. They feature a swivel head for even pressure distribution and can be fitted with snap-on caps; the caps shown in the images are printed from TPU.
For smooth operation of the threads and the spherical surface of the swivel head, a layer height of up to 0.12 mm is recommended. If the thread fit is tight, it can be improved by repeatedly threading in a standard steel bolt or by using a thread tap.
The model shown is printed in PETG, snap‑on caps in TPU.
Clamp body: 0.10 mm layer height, 4 wall loops
Threaded screw: 0.12 mm layer height, srew 80mm 3 wall loops Swivel head: 0.08 mm layer height Snap‑on caps: 0.20 mm layer height
Design and description by BAI , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
Light C-Clamp is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
