Lithophane Stand Light Box LED

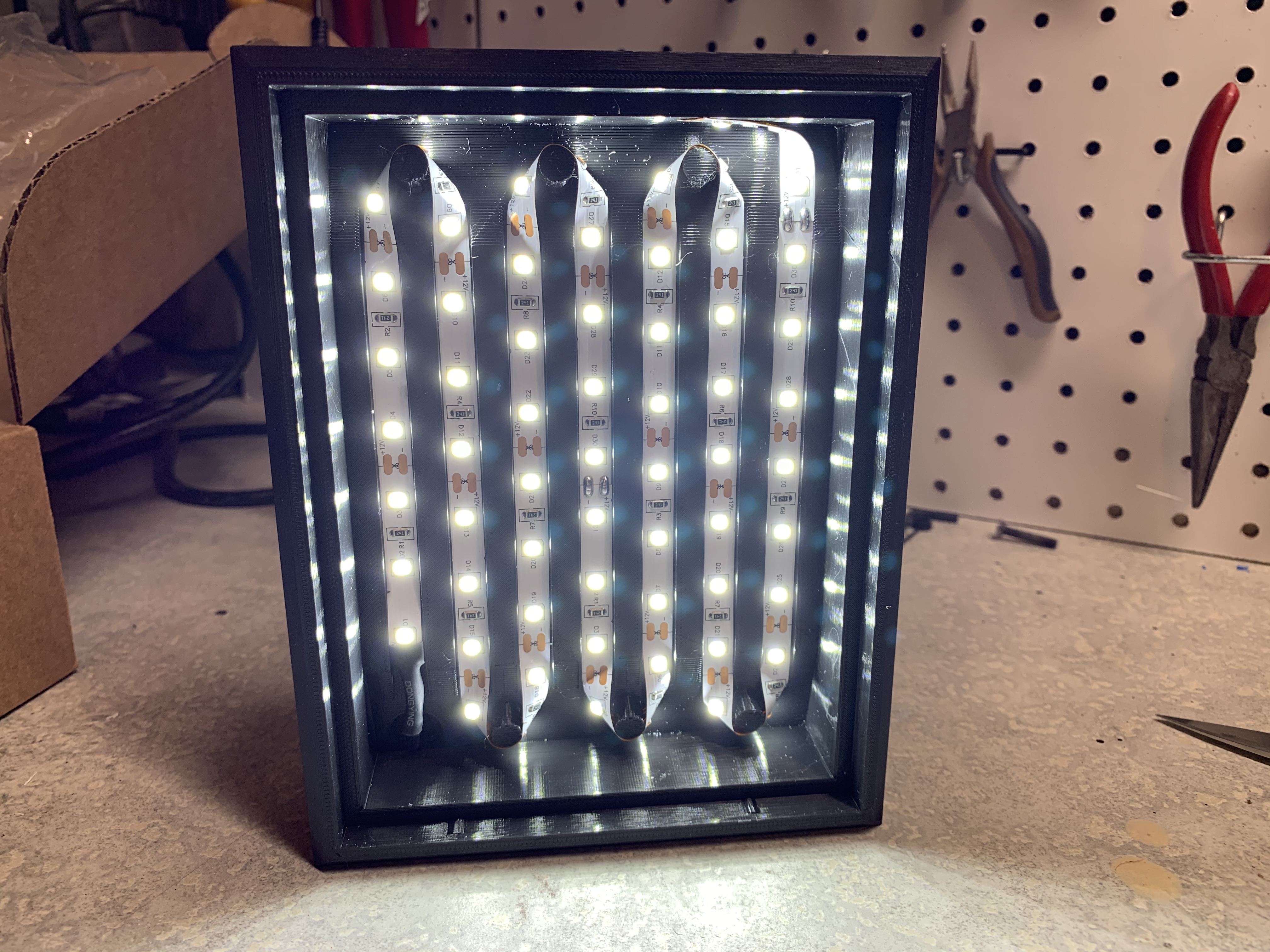

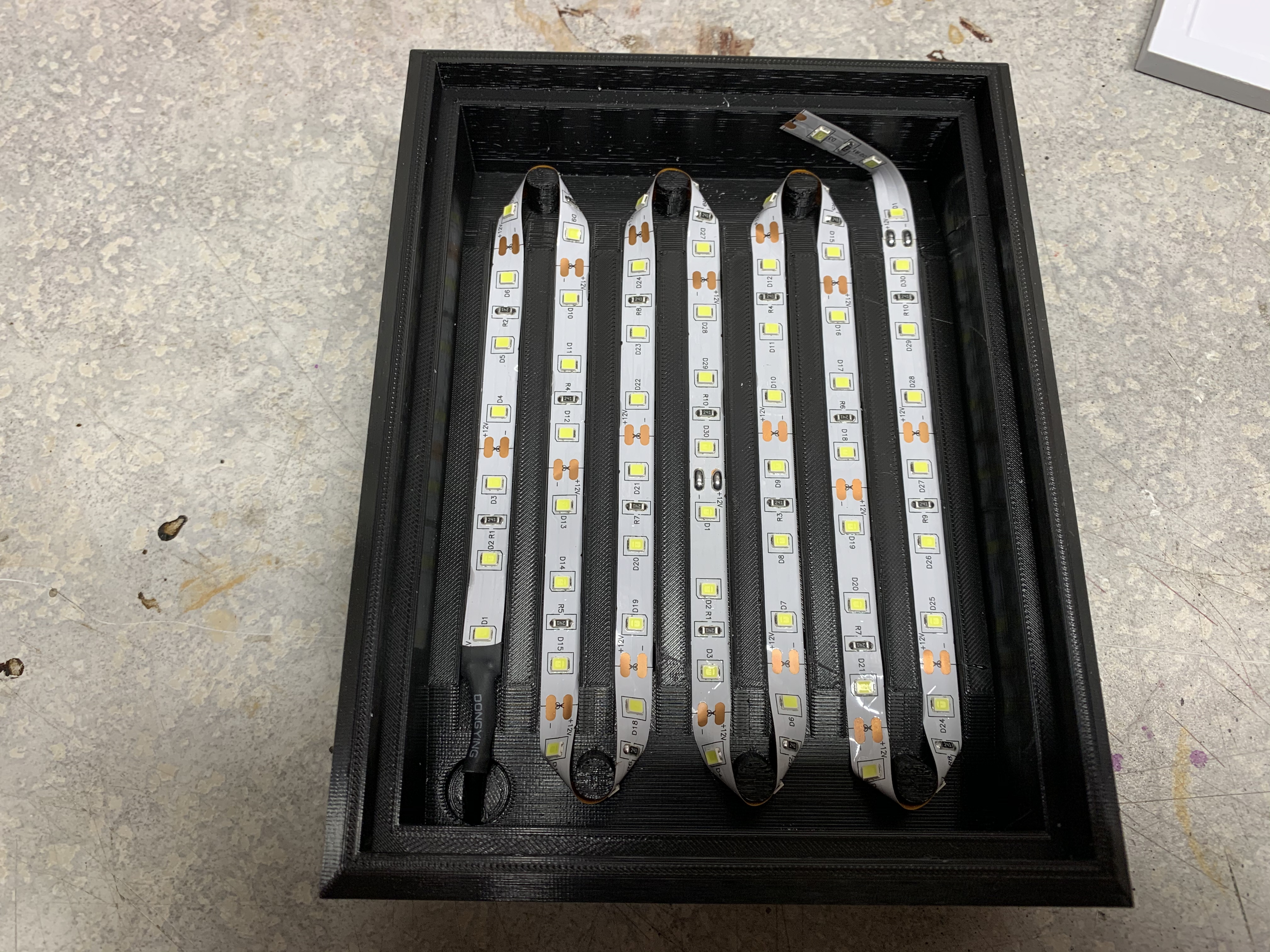

This is a lithophane light box that I designed in order to use flexible LED strip lights as the lighting source. The inside of the box has channels for routing the lights to get even back lighting on your lithophane. I add a few drops of super glue in addition to the adhesive tape on the lights to make sure they stay in place over time.

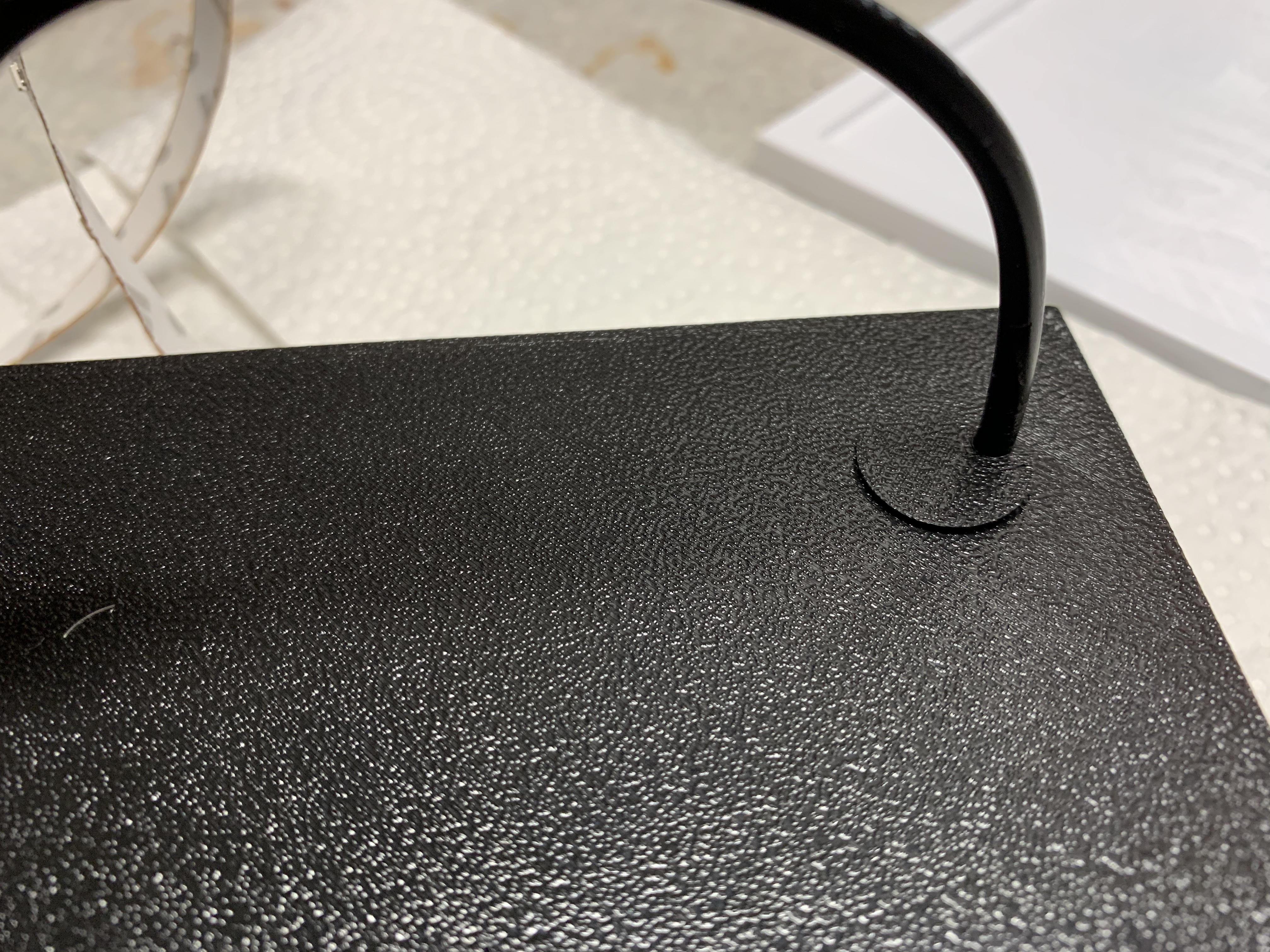

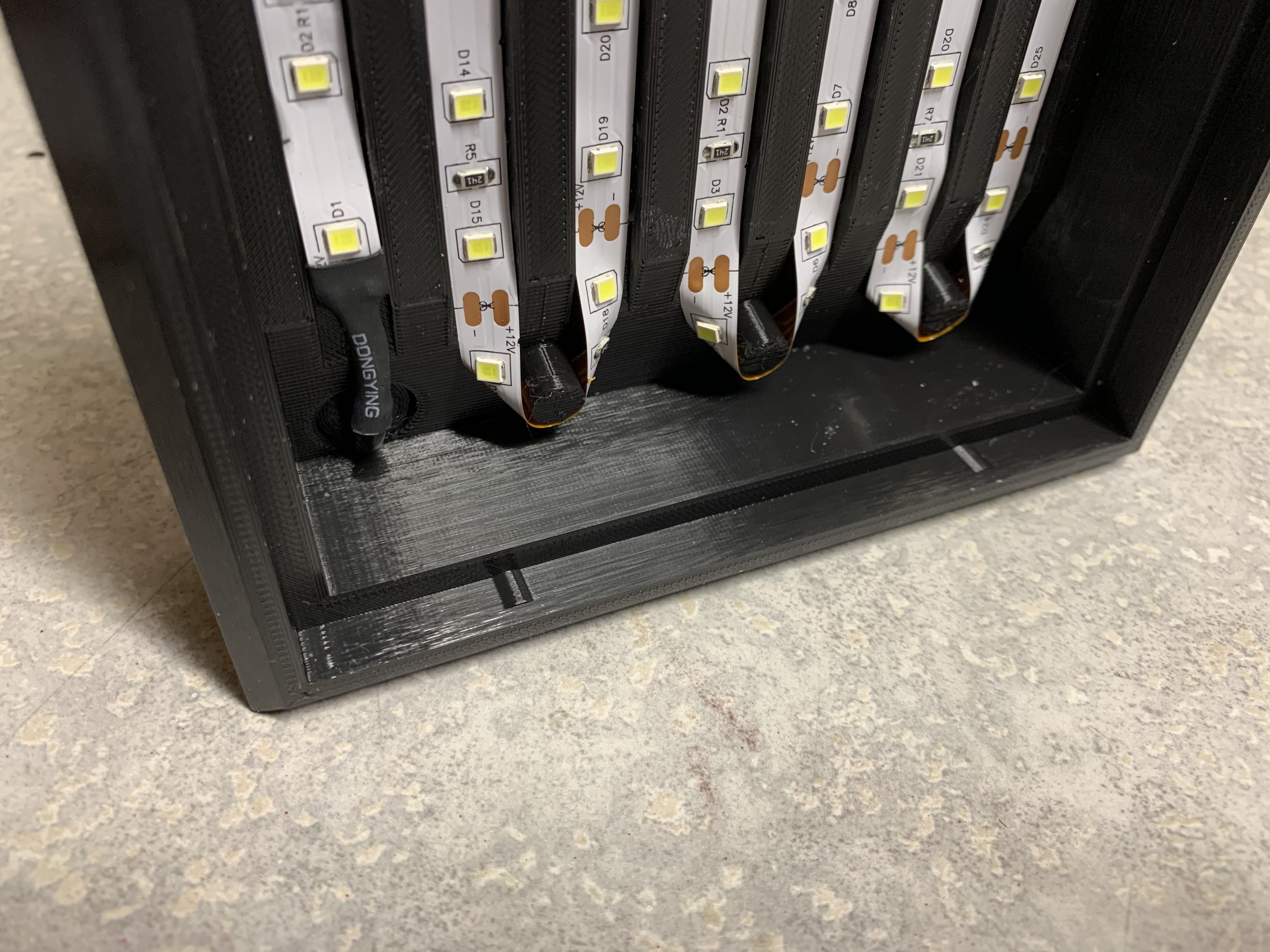

The cord relief is a press fit into the back and helps prevent the lights getting stressed if the cord is pulled on. The lithophane fits into the frame tightly as there are 2 small bumps at the bottom to hold it in place.

Lithophanes created using Flat Lithophane Maker

https://lithophanemaker.com/Framed%20Lithophane.html

Width=120

Height=160

Depth=7.5

A couple lights I have used:

https://www.amazon.com/gp/product/B07T489JHF/ref=ppx\_yo\_dt\_b\_asin\_title\_o03\_s00?ie=UTF8&psc=1

https://www.amazon.com/gp/product/B015JV9QJK/ref=ppx\_yo\_dt\_b\_asin\_title\_o03\_s01?ie=UTF8&psc=1

Print instructions

Unassociated tags: light box, lithophane box

Category: Art Print Settings

Printer Brand: Prusa

Printer: I3 MK3S

Rafts: No

Supports: No

Resolution: 0.2

Infill: 15$

Filament: E-Sun PLA+ Black

Notes

I used 3 perimeters to help prevent light showing through, depending on the filament color.

Design and description by HoytDesign , licensed CC-BY.
