Locksmith door jig - Adjustable width self centering 2 3/8" and 2 3/4" backset
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~31 g
- Print time
- ~1.7 h
- Express shipping
- $20
More information

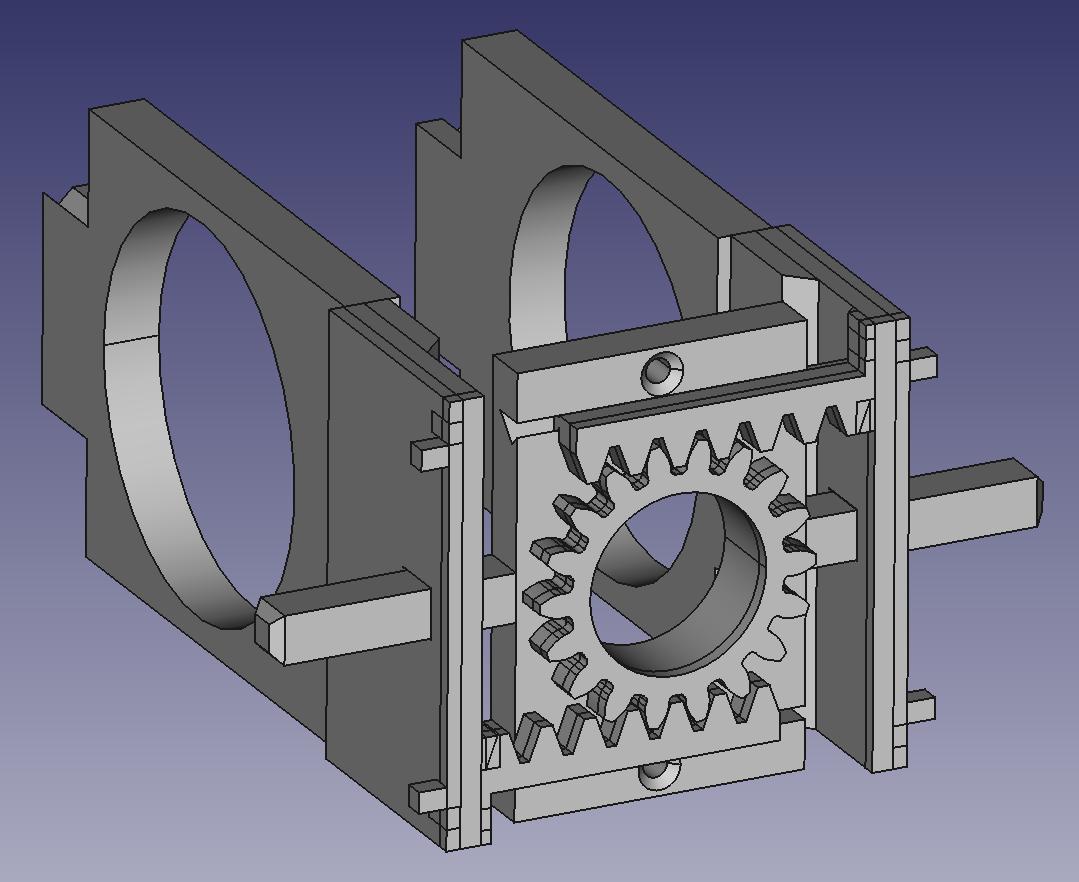

Each part is easy to replace and relatively fast to print. The entire thing only uses ~60g of filament. A bunch of other cheap jigs are plastic but you can't replace parts that wear out from touching the drill bit. The center gear as well as each of the adapter legs can quickly and easily be switched if they wear out.
Has 2 holes to screw into the edge of the door. Holes are 3mm in size so use some small screws. Can use 2 rubberbands to help keep the legs against the front and back of the door but not necessary.
Supports: No
Material: Tested in PETG but PLA should be fine
Strength: I used 3 walls and top/bottom layers
Print:
1x BasePlate
1x Gear
2x Rack
2x Adapter
BOM:
2x small screws
OR
2x rubberbands
Design and description by LockManipulator , licensed CC0.
