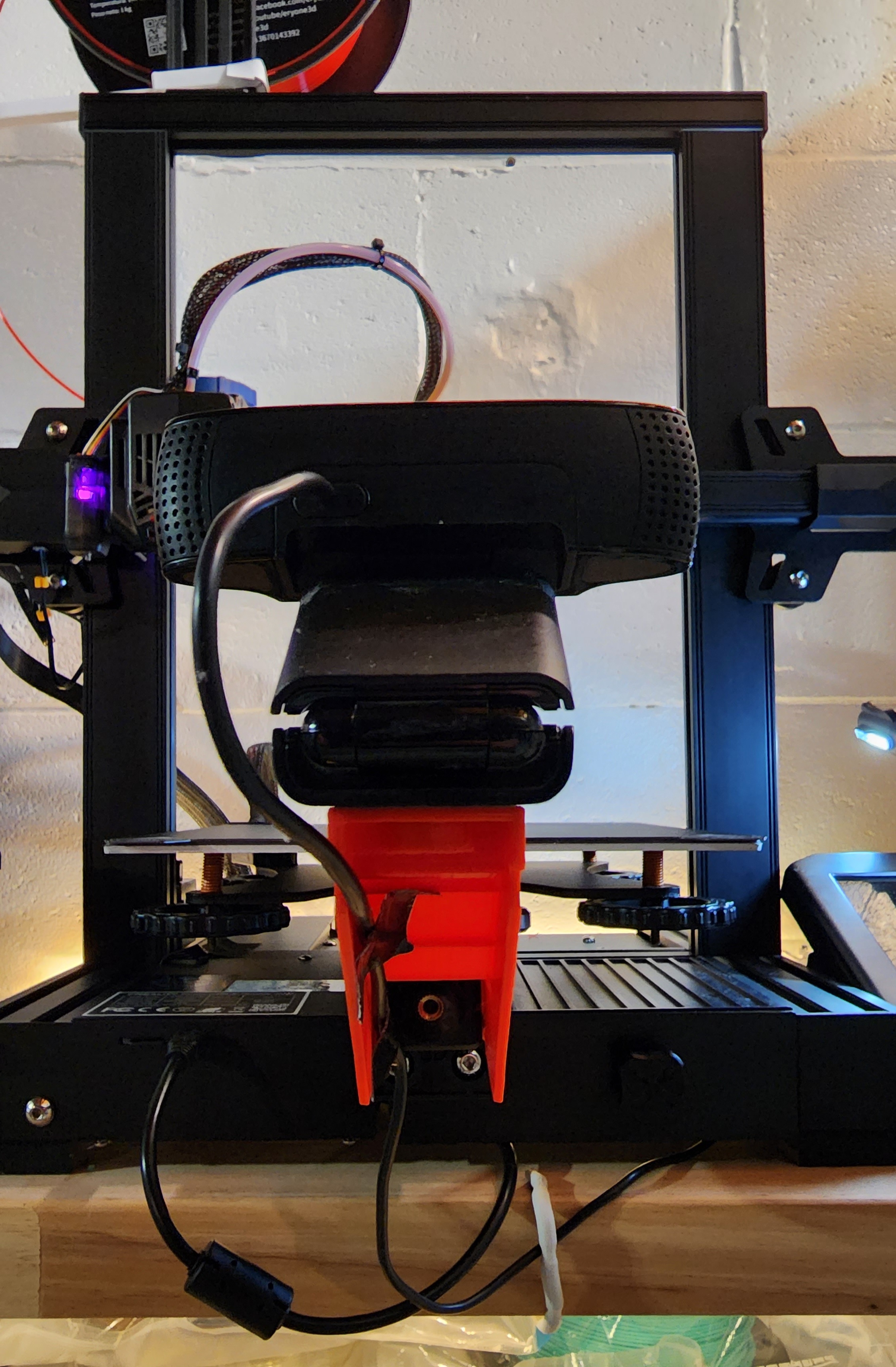

Logitech C920 Mount - Ender 3 V2 Neo

Fits on a Creality Ender 3 V2 Neo, and older models with similar Y axis design.

I initially tried corner mounts that go between the bed and the springs underneath, but it kept ruining the bed leveling since it's very easy to bump into and ruin the tension.

But then I discovered that with Octolapse it doesn't matter if the bed moves with the camera or not. It stabilizes the print videos, so here's where a mount on the Y axis comes into play.

Easy to install, stable, doesn't cause the camera/video to vibrate, doesn't require fiddling with screws and ruining the bed leveling whenever you bump into the camera mount!

Original design was okay, but it was a bit far from the bed, and slightly low.

I shortened the arm and raised it around 15mm. You can also raise the camera itself -after mounting it- for your liking.

Print settings

Creality Ender 3 V2 Neo - using Cura + Filament Friday Extra Fast 0.28 profile with 10% infill.

Important: Print with a brim to help with adhesion. No support needed!

You can print a tripod screw if you don't have one to secure the camera on the mount.

Design and description by gamebae , licensed CC-BY-SA.
