Logitech Streamcam Mount with Joint (Remix)
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~41 g
- Print time
- ~2.3 h
- Express shipping
- $20
More information
Remix of the Logitech Streamcam Tripod Mount with Joint by Neoz3d
Rebuilt from scratch in Autodesk Fusion 360 based on Neoz3d's design.

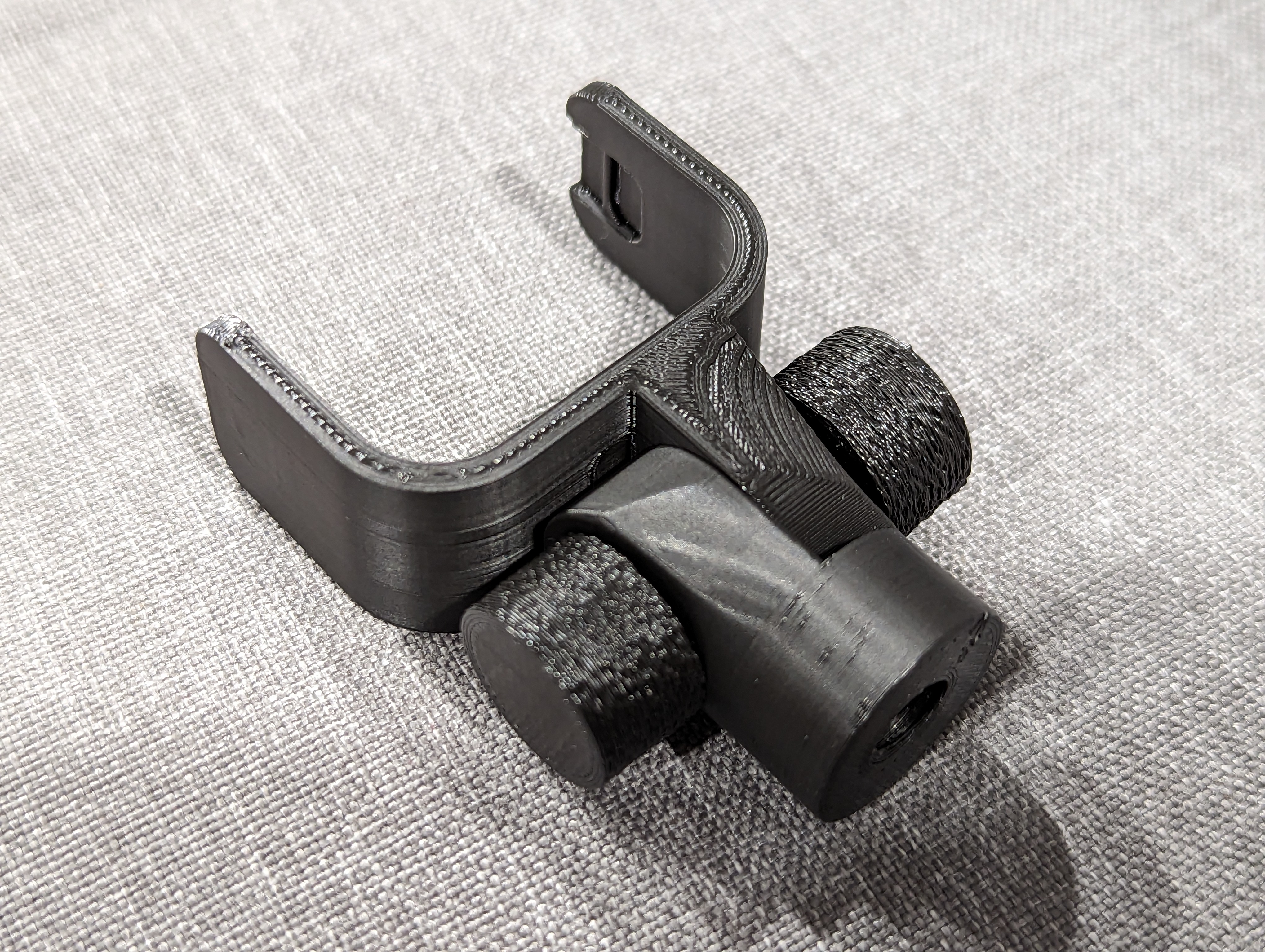

• Model is fully 3D printed. Replaced the need for an M3 nut and bolt with a printed thread and nuts suitable for manually adjustment of the joint. • The camera grip is tapered to fit the Streamcam body better, similar to the OEM grips. • The base of the joint has a female 3/8" 16 UNC threaded connector suitable for many microphone and boom mounts.
Recommended print settings
I recommend printing the parts separately. All parts can be printed without supports.

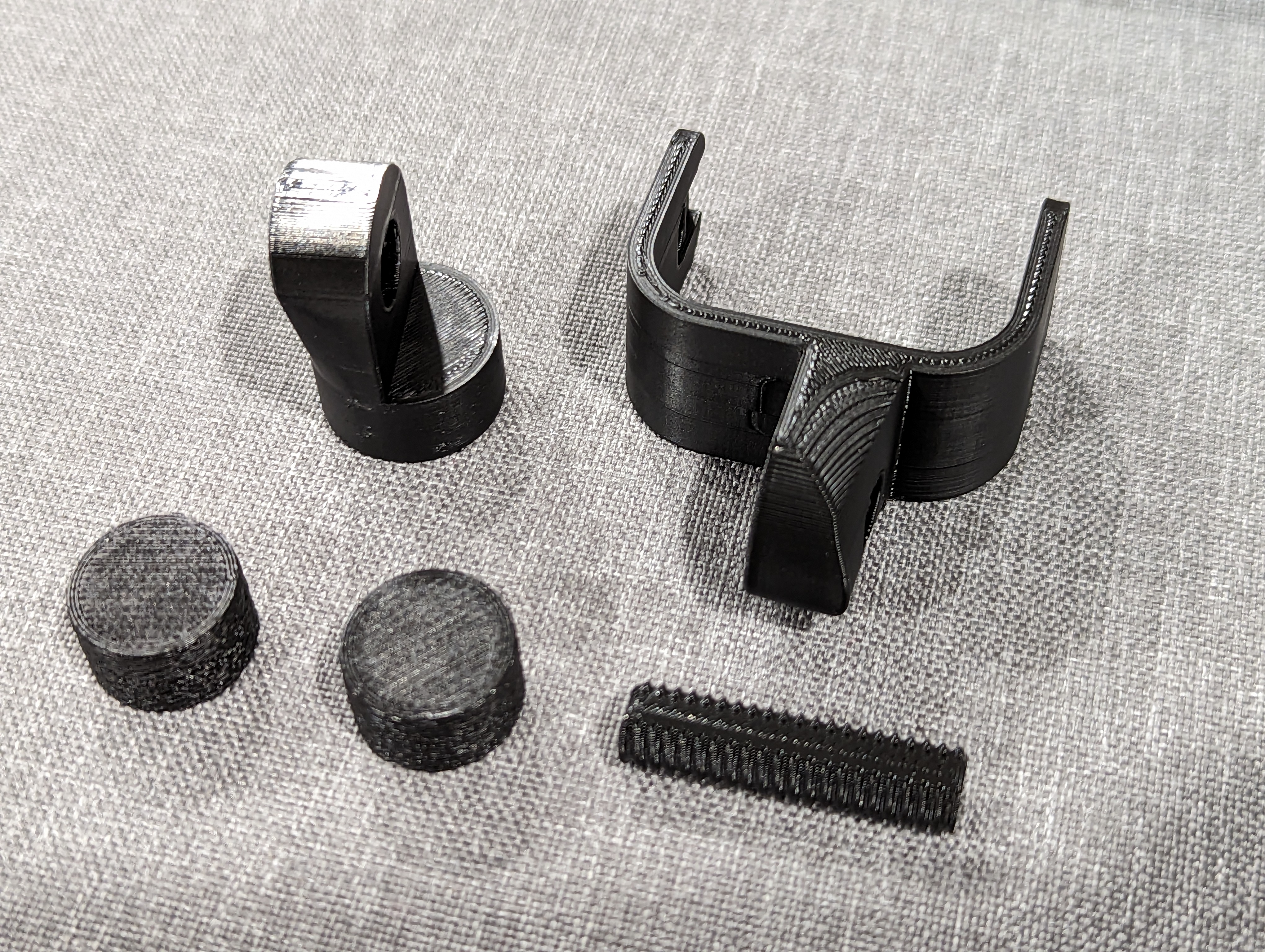

• Streamcam Mount - print with 0.2mm layer height and 3 perimeters. • Microphone Mount Connector - print with a 0.12mm layer height, or adaptive layers for the threaded base. Orient with the threaded hole at the bottom. • Nuts - print 2 of them, with a 0.12mm layer height, or adaptive layers. Use the fuzzy skin option for the outside perimeters for better grip. Orient with the threaded hole at the top. • Bolt thread - print with 0.2mm layer height. If the thread is too tight try reprinting with the printers flow rate reduced by 10%.
Design and description by scross01 , licensed CC-BY.
Frequently asked
How long does shipping take?
Logitech Streamcam Mount with Joint (Remix) is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
