Lowpoly Ikea Skadis tray with hooks or T-Nuts, solid or hexagon bottom

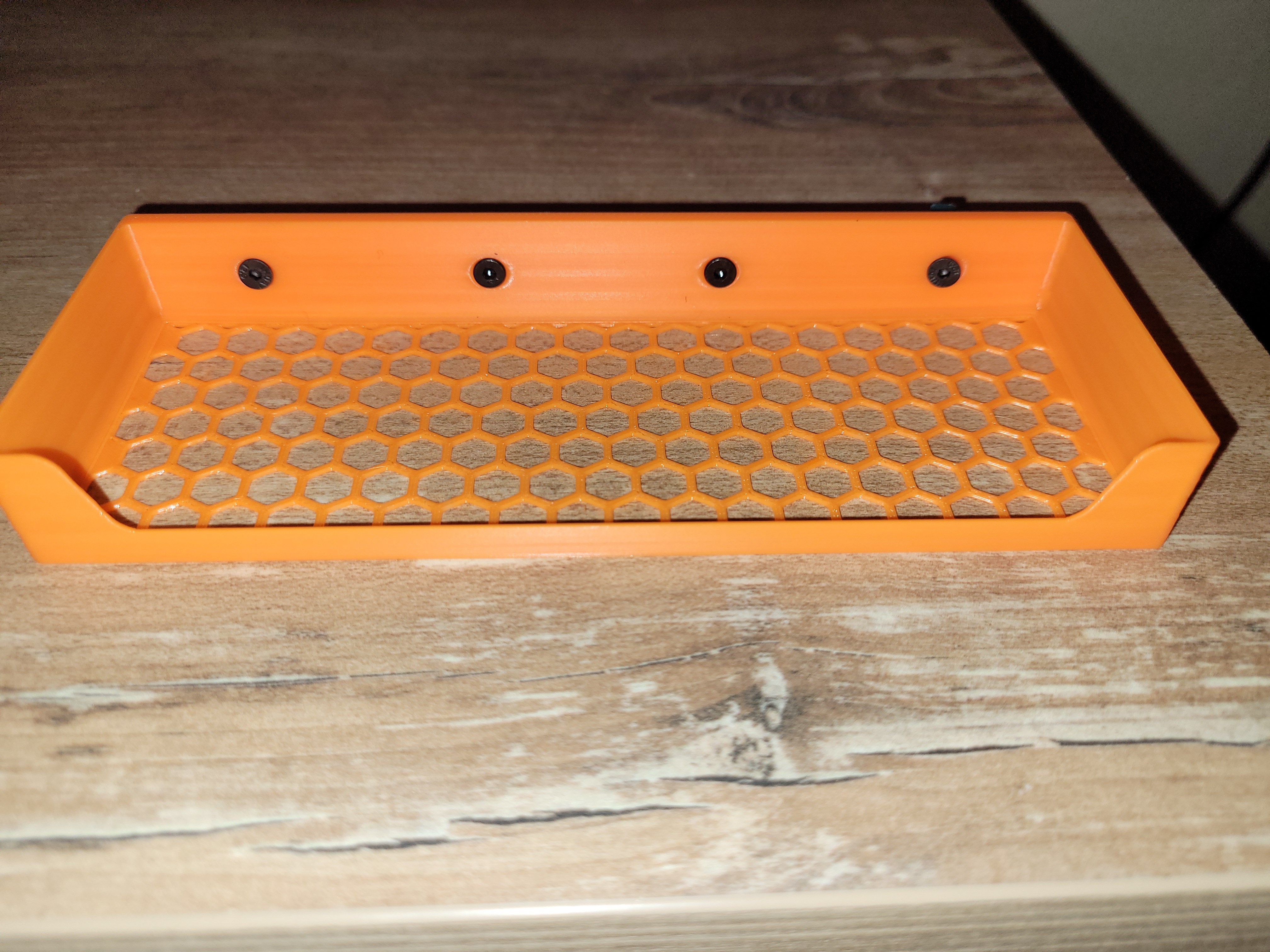

Trays for IKEA Skadis with hexagon or solid bottom, open or close front and compartments.

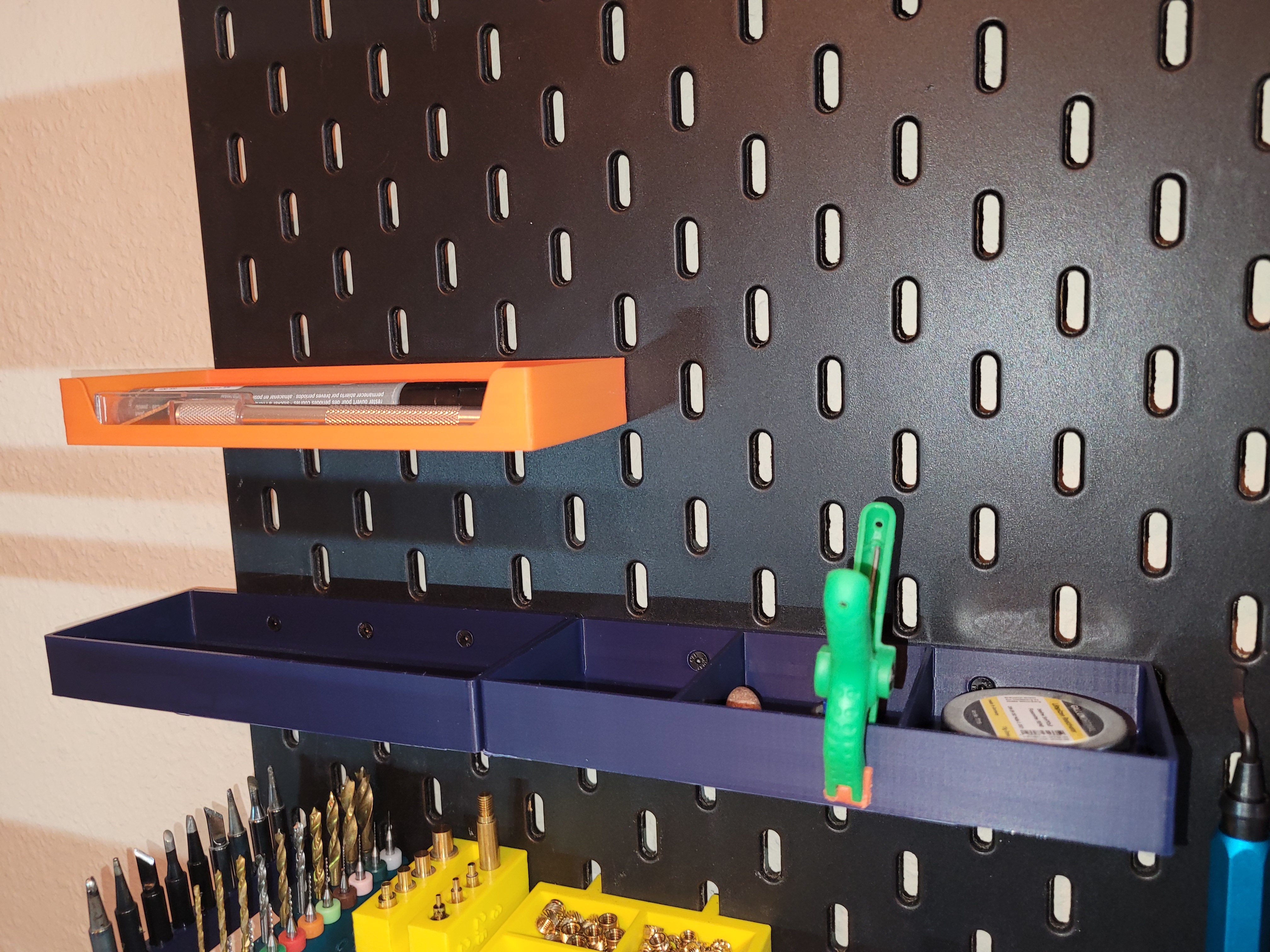

The trays are mounted to the wall via hooks or the T-Nut-system from 6d6178 (M3 screw). T-Nuts can be found at the T-Nut-System or you use other T-Nuts like e.g. the ones i designed (T-Nuts).

Dimensions (width x depth x height):

80 x 60 x 20 mm

80 x 60 x 30 mm

120 x 60 x 20 mm

120 x 60 x 30mm

120 x 80 x 20 mm

120 x 80 x 30 mm

160 x 60 x 20 mm

160 x 60 x 30 mm

160 x 80 x 20 mm

160 x 80 x 30 mm

Bottom and wall thickness: 0.8, 1.2 and 1.6 mm

Compartments: up to 12 compartments

Because this led to a lot of files you find some in the model-section, the other ones you find in the zip-folders (other files).

Let me know if you are in need of other dimensions. I will upload them here. For that i wrote a python script, which generates the stl-files from OpenSCAD in batch.

If you want to print similar boxes without any mounting have a look at my model https://www.printables.com/model/691374-stackable-box-lowpoly-many-sizes

Design and description by Ofilant , licensed CC-BY.
