Macintosh Plus - Battery door cover
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~10 g
- Express shipping
- $20
More information

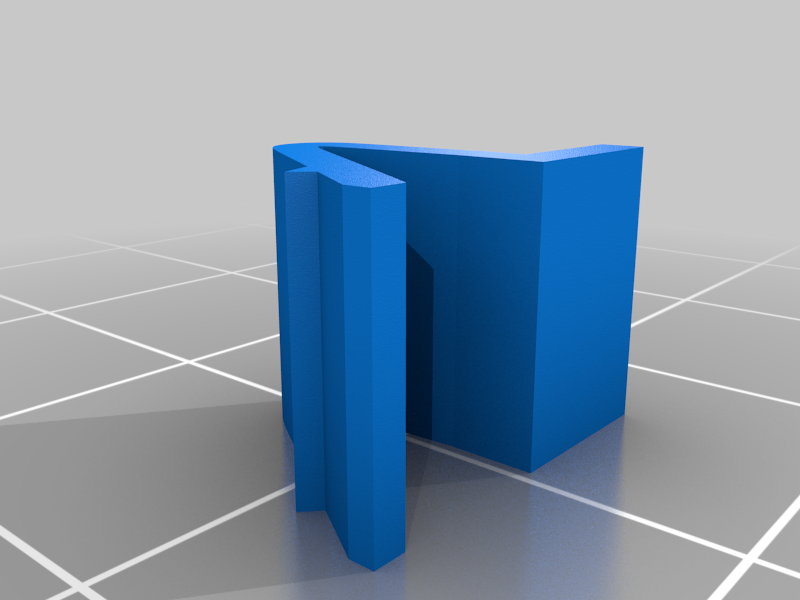

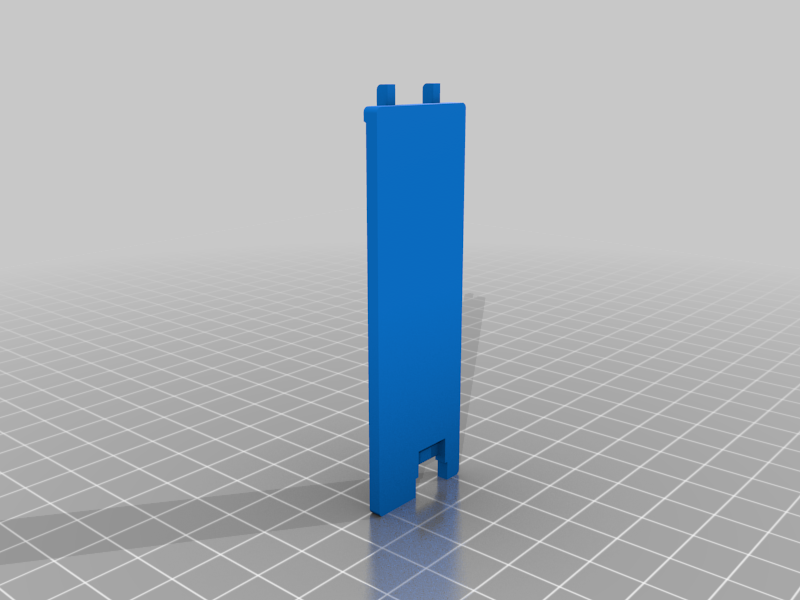

Modelled in 2 parts for Strength!
Print the hinge sideways, to make advantage of the strength of the layers, as the piece needs to bend to get into place (and printing up-right will likely result in the piece snapping off!).

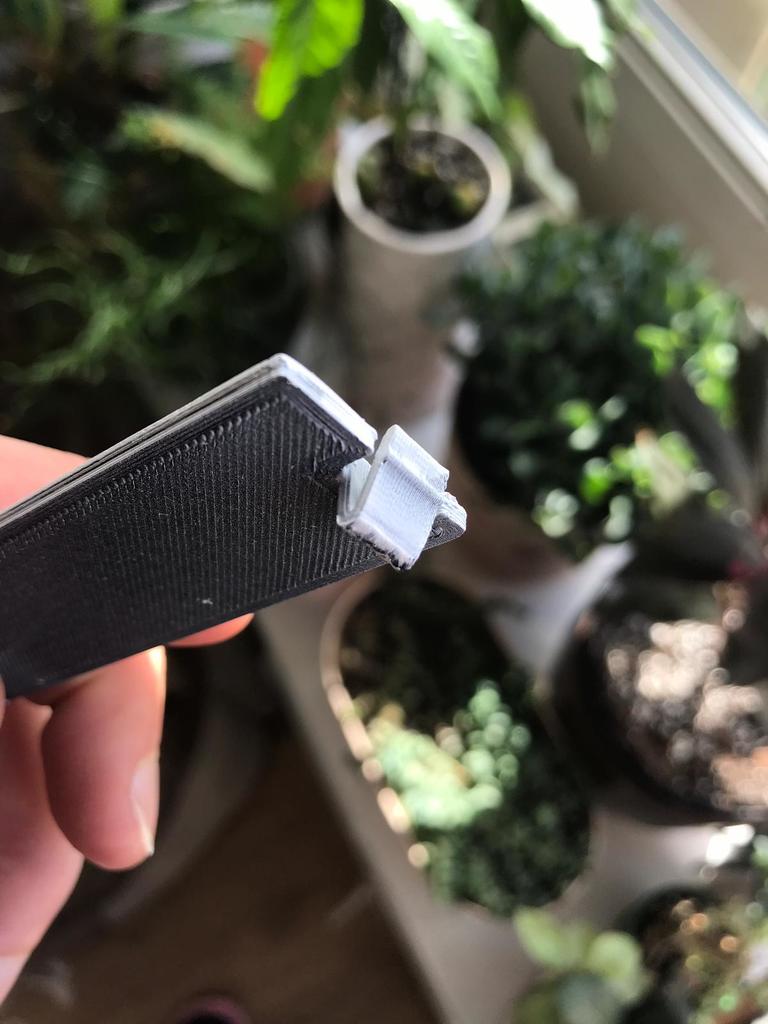

First Picture shows a glued + sanded/primed version I made.
The 2nd image shows the layer lines in the parallel direction, and how it retains strength & tension.
Remixed from: https://www.thingiverse.com/thing:3060333
Update 4/17/2020
Updated tolerances, as it was found to be quite a tight fit previously
Print Settings
Printer Brand:
Anet
Printer: A8
Rafts:
No
Supports: Yes
Resolution:
0.2mm
Infill: none Post-Printing
Assembly
Design is made in 2 parts for extra strength to the hinge, and allowing tension properly. You'll have to glue (I am using clear epoxy glue - I'm guessing superglue works as well) the pieces in place.
You might wanna consider filling/sanding the surface for a quick paintjob to make it look uniform with the rest of the housing.
Category: Video Games
Design and description by RetroGameRevival , licensed CC-BY.
