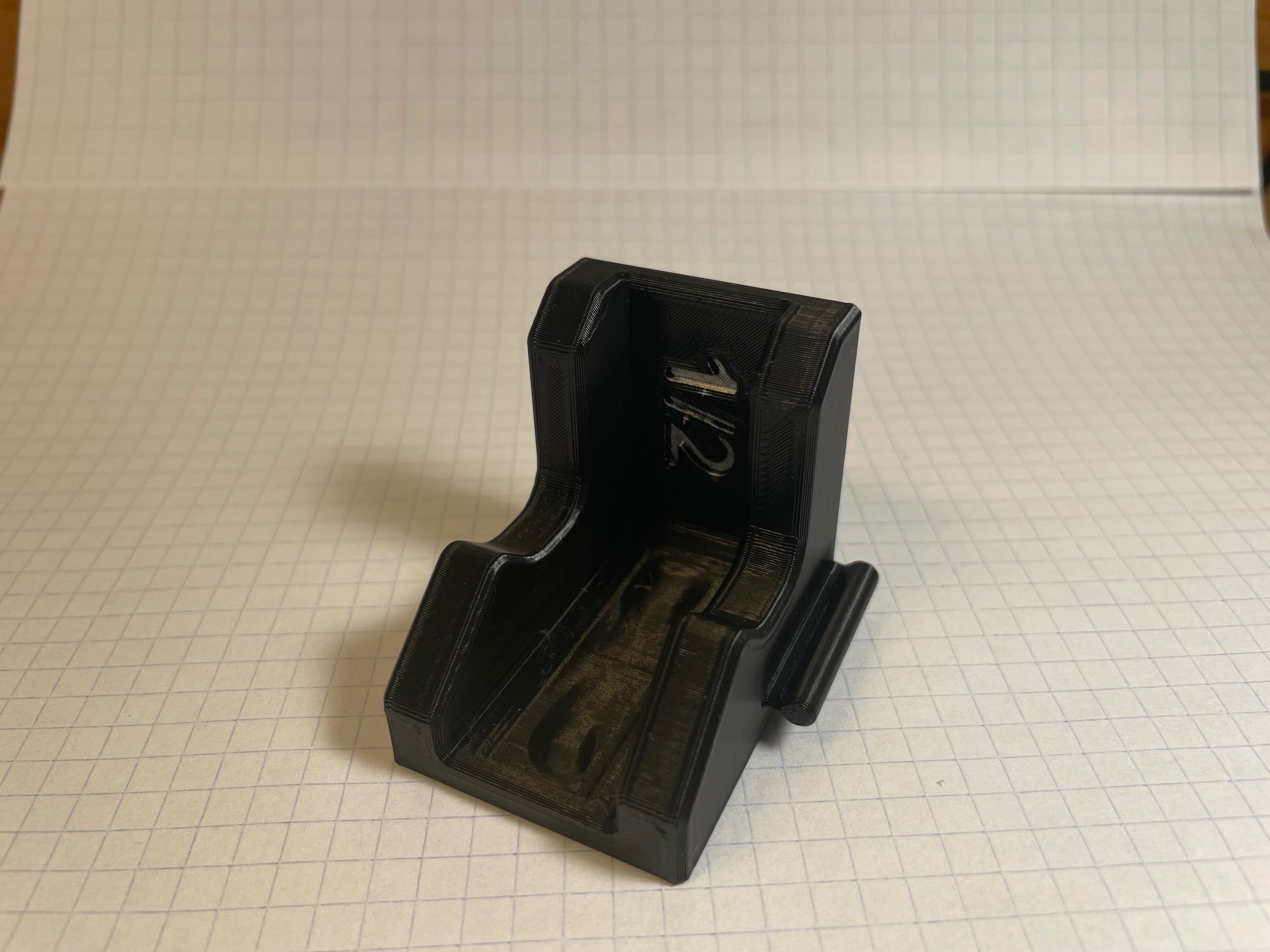

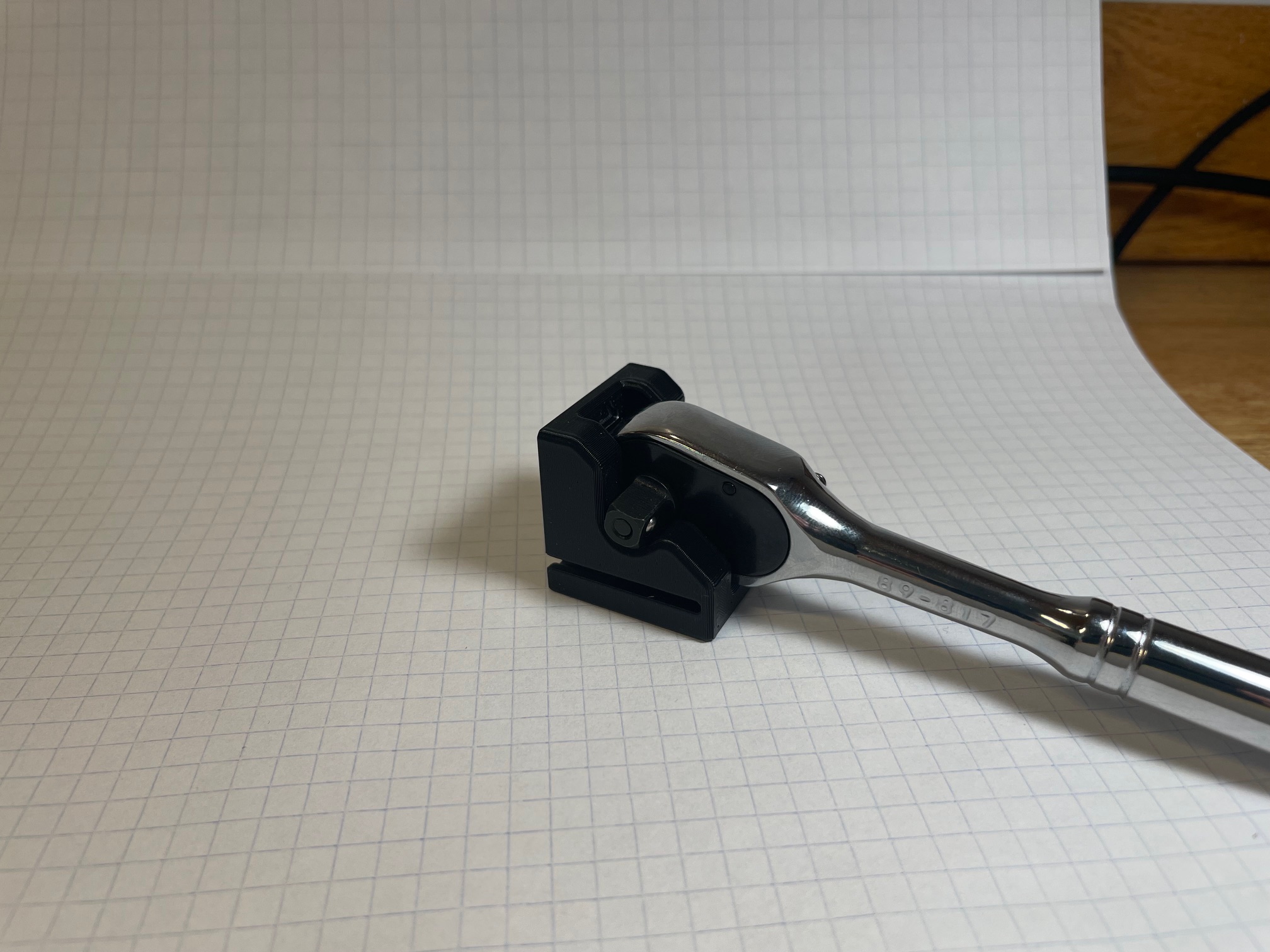

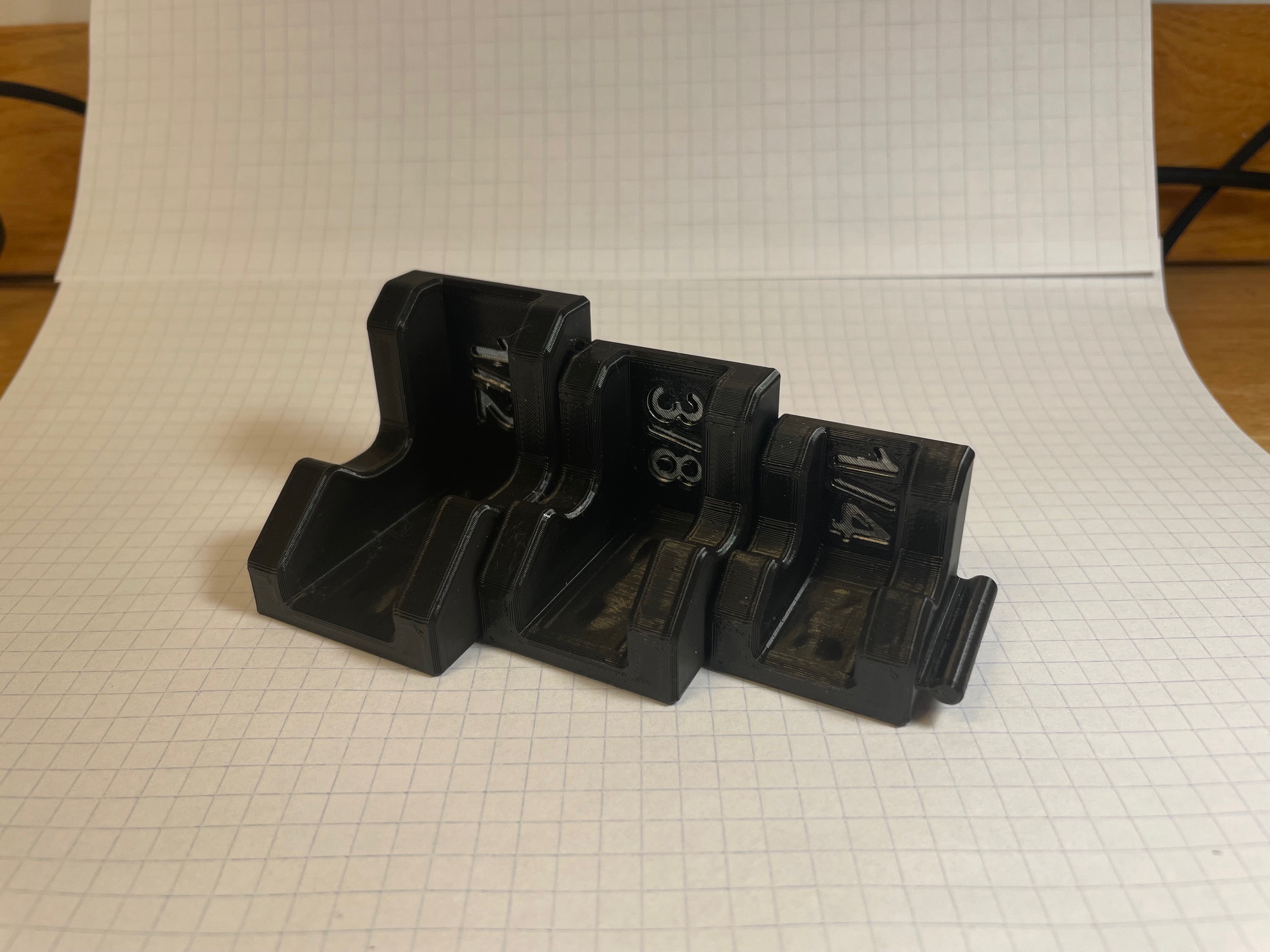

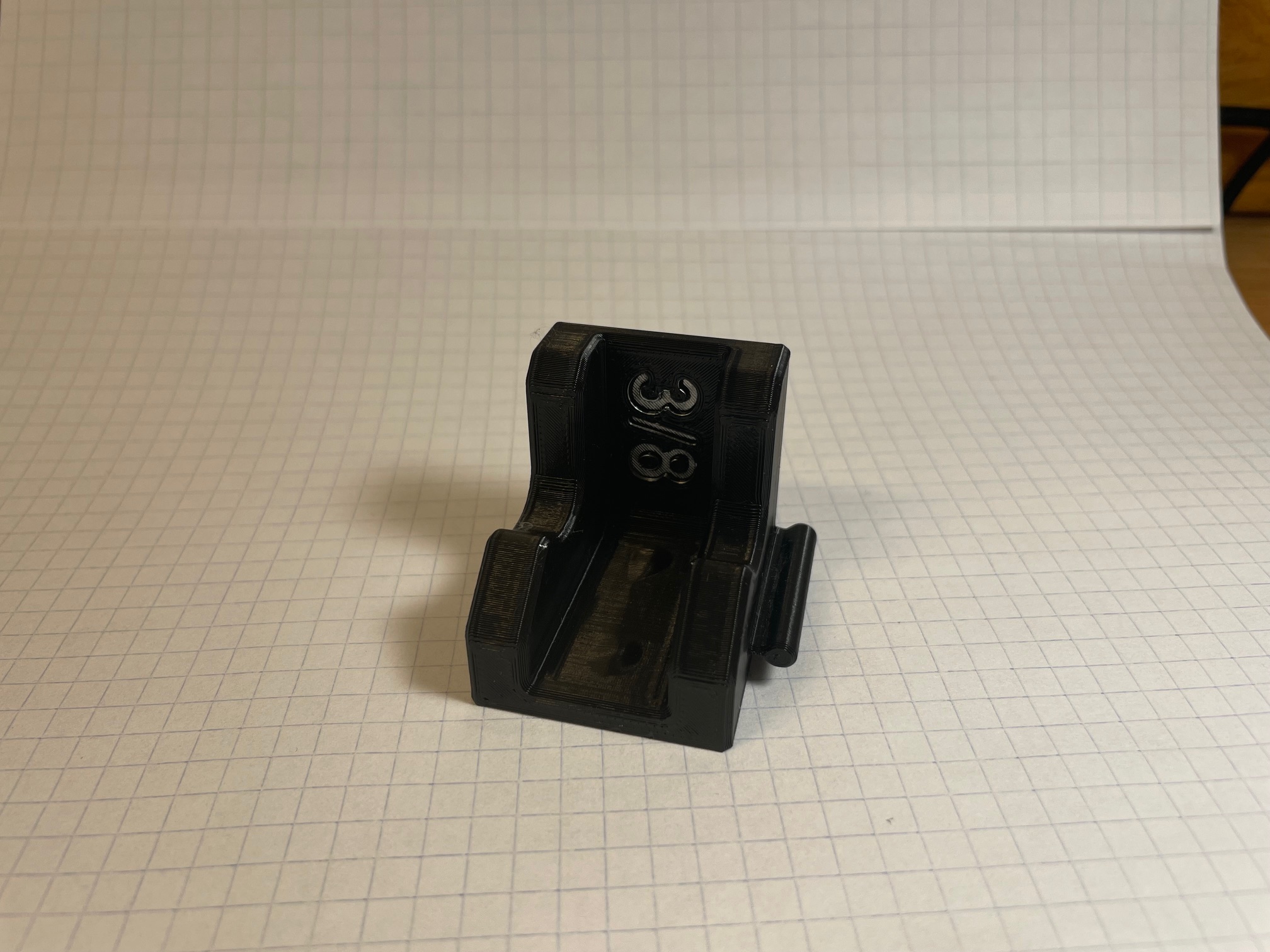

Magnetic Ratchet Organizer / Holder - Improved

Magnetic to attach to the metal bottom of a toolbox and hold the ratchet better. Modular design allows for customization to your needs. The integrated linking pin can be easily cut off with flush cutters.

Should fit most ratchets, 1/4 inch to 1/2 inch. 1/4 inch - 14 mm wide, 3/8 inch - 18mm wide, 1/2 inch - 21.5 mm wide.

Magnet slots are 12.3 x 3.3 x (25.3, 35.3, or 45.3) mm. Used 12mm x 3mm x 5mm neodymium magnets wrapped in heat shrink.

Prints without supports when orientated number side down. 0.15mm and 0.2mm tolerance versions are available. Recommend at least 3 perimeters and 20% infill for strength.

Magnets can be glued in place with super glue or other strong glue; hot glue is too weak and may warp the part. Wrapping the magnets in electrical tape or heat shrink helps with assembly and protects the magnets.

Design and description by TofuMonster510 , licensed CC-BY-SA.
