Mazda RX-8 Fan Knob Repair
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~10 g
- Express shipping
- $20
More information

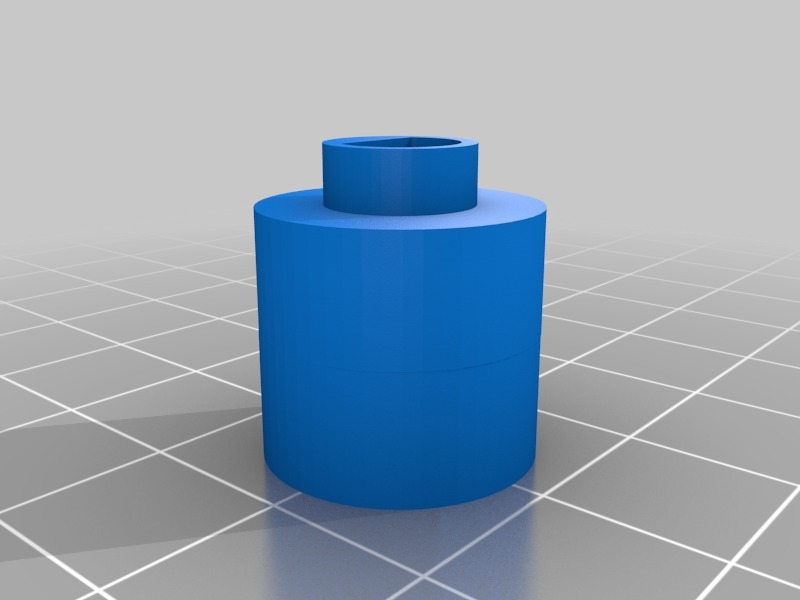

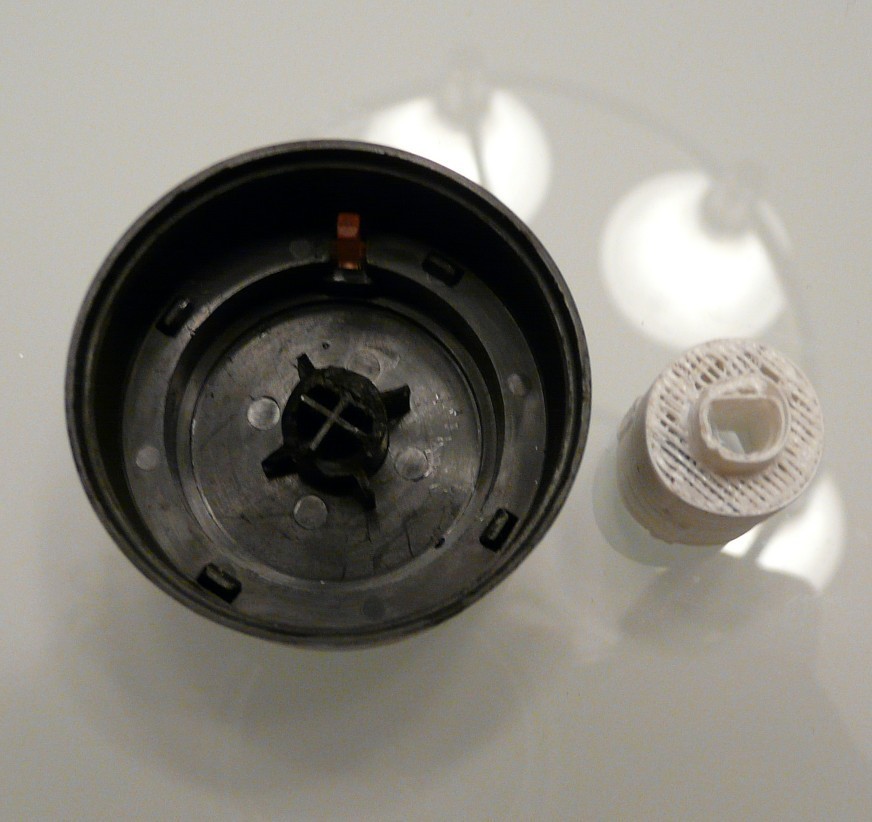

My 2004 RX-8's climate control fan knob broke right on its stem. Cost of a new one is like fifty bucks! Gluing it back together is difficult because of the small surfaces and the fact that it's HDPE. So I made this little adapter that uses a friction fit on the remaining bits to re-create the necessary mounting hardware. It may fit other years, not sure.
Instructions
Here's an attempt at a step-by-step. Watch my YouTube video to get a slightly better idea of what's going on: http://youtu.be/Ira08ukeK8A
• You need to clean up the remaining bits of the knob's stem (or stalk, whatever you wanna call it). Look down the D-shaft. You'll notice a small X inside the D-shaft. Trim the D-shaft down flush with that X.
• Print this out. I used 0.4 wall, 0.4 top/bottom, external supports, and 15% infill on Cura. I'd recommend using 0.6 wall/top/bottom if I were to re-print this; my print has gaps in the top layer as you can see.
• Go to your car. Push the print onto the shaft.
• Line up the knob and push it onto the print.
• Enjoy your newfound control over the fan!
Category: Replacement Parts
Design and description by gia , licensed CC-BY-SA.
