Minisforum DEG1 eGPU Dock Enclosure / Case / Shell
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~83 g
- Print time
- ~4.6 h
- Express shipping
- $20
More information
I have .3mf files with my settings I've used over at Makerworld.
To split the model into each individual object:
(In slicer) Right-click model → split → to object

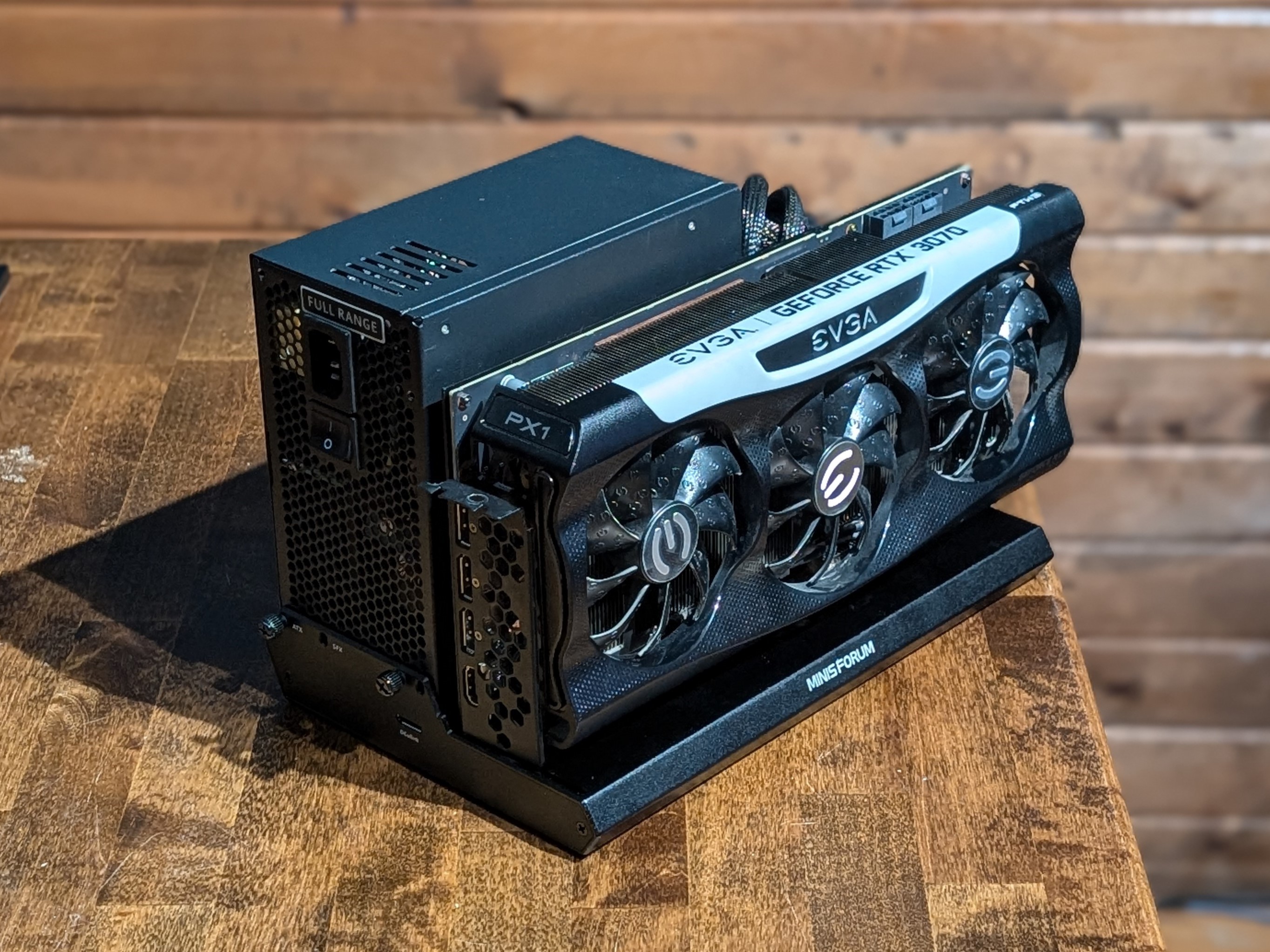

Designed for a full size ATX PSU and a dual PCIe bracket GPU

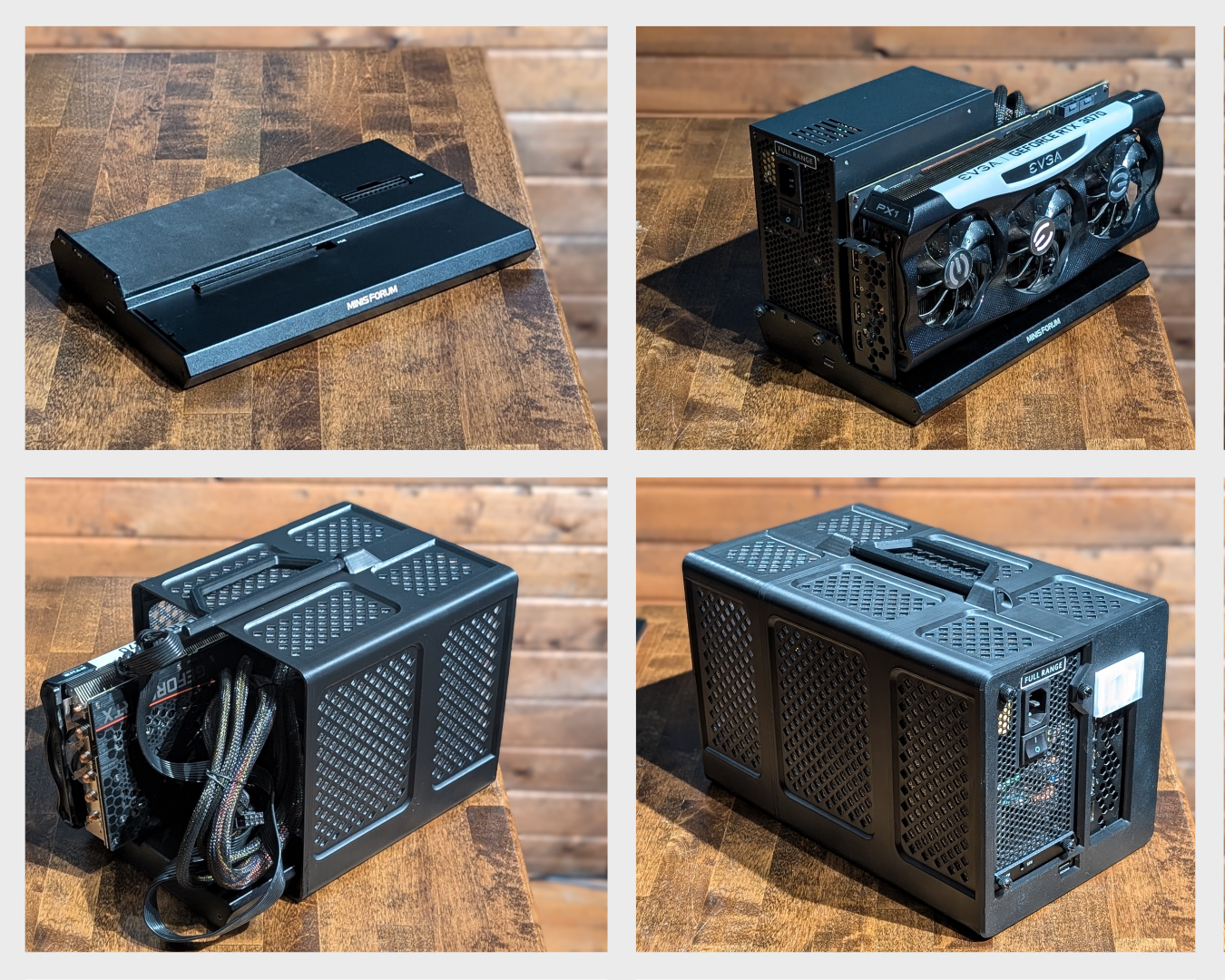

GPU size restrictions in pictures
Both enclosure halves snap-fit together
PRINT SETTINGS I'VE USED
Nozzle: 0.4mm
Layer Height: 0.2mm
(Feel free to experiment and change what you like) Any setting not listed below are assumed to be default
Enclosure
Material
ABS
I'd recommend a filament with higher heat resistance.
I used ABS just because I had some lying around but PETG among others should be fine
Walls
3
Brim Type
Outer Brim Only
I used a brim because of the ABS
Enclosure Handle
Material
ABS
I used ABS
Walls
20
The handle NEEDS to be strong.
This essentially prints it at 100% infill concentrically
PCIe Bracket Lock
Material
PETG
can be whatever
Dust Filters
Material
PETG
can be whatever
Top Shell Layers
0
required for infill pattern to be visible
Bottom Shell Layers
0
required for infill pattern to be visible
Sparse Infill Density
50%
change to your desired infill pattern
Sparse Infill Pattern
Triangles
change to your desired infill pattern
Current Version: v1.1
v1
v1.1
-Expanded oculink port to accommodate bigger oculink cables
-Longer lugs on PCIe lock
**I'm not certain if other Minisforum DEG1 eGPU docks are the same dimensions as mine. Result may vary. USE THE HANDLE ON THE ENCLOSURE AT YOUR OWN RISK. **
Design and description by Dopins , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
Minisforum DEG1 eGPU Dock Enclosure / Case / Shell is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
