Mk3s+ Side Tray

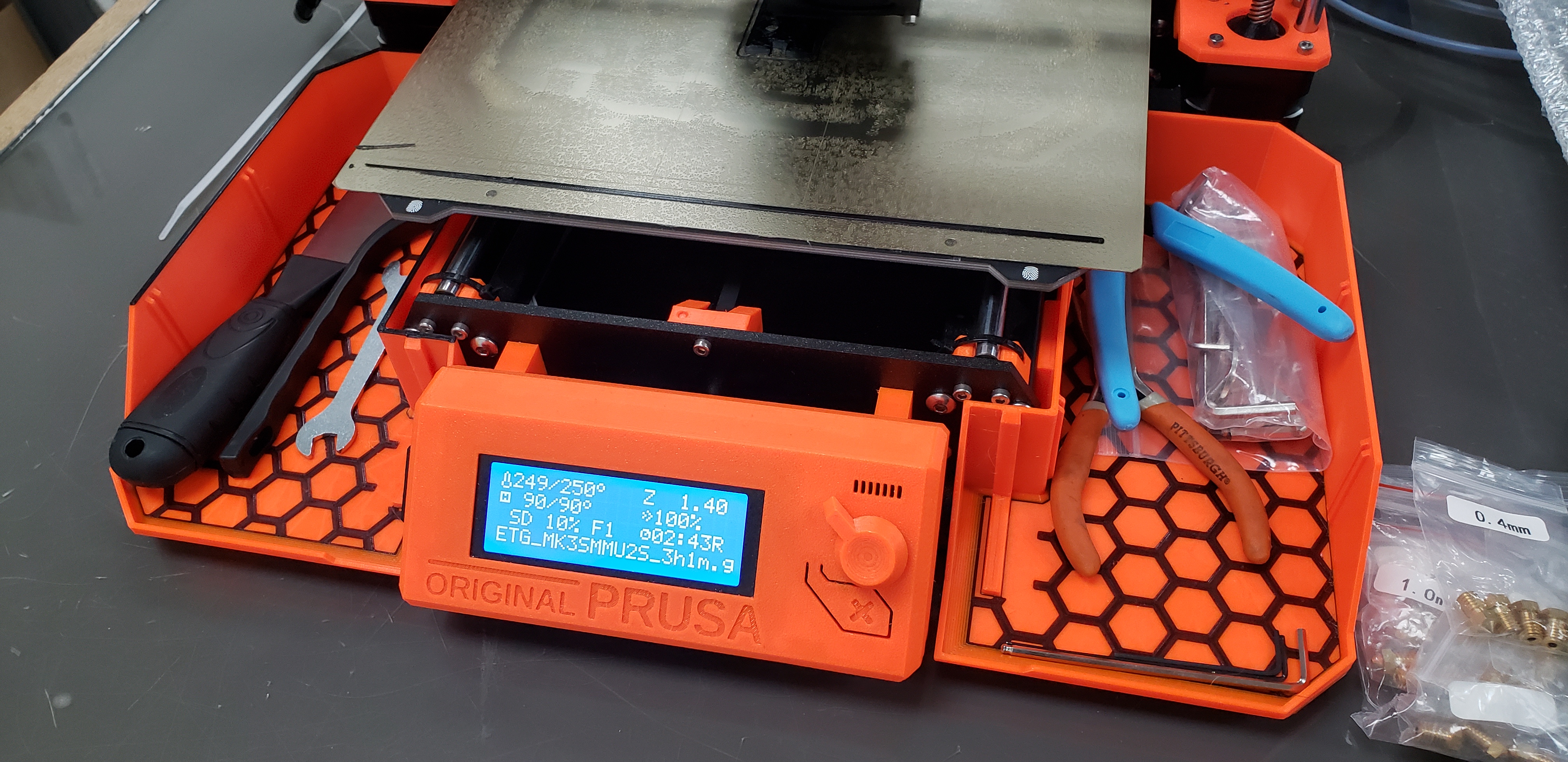

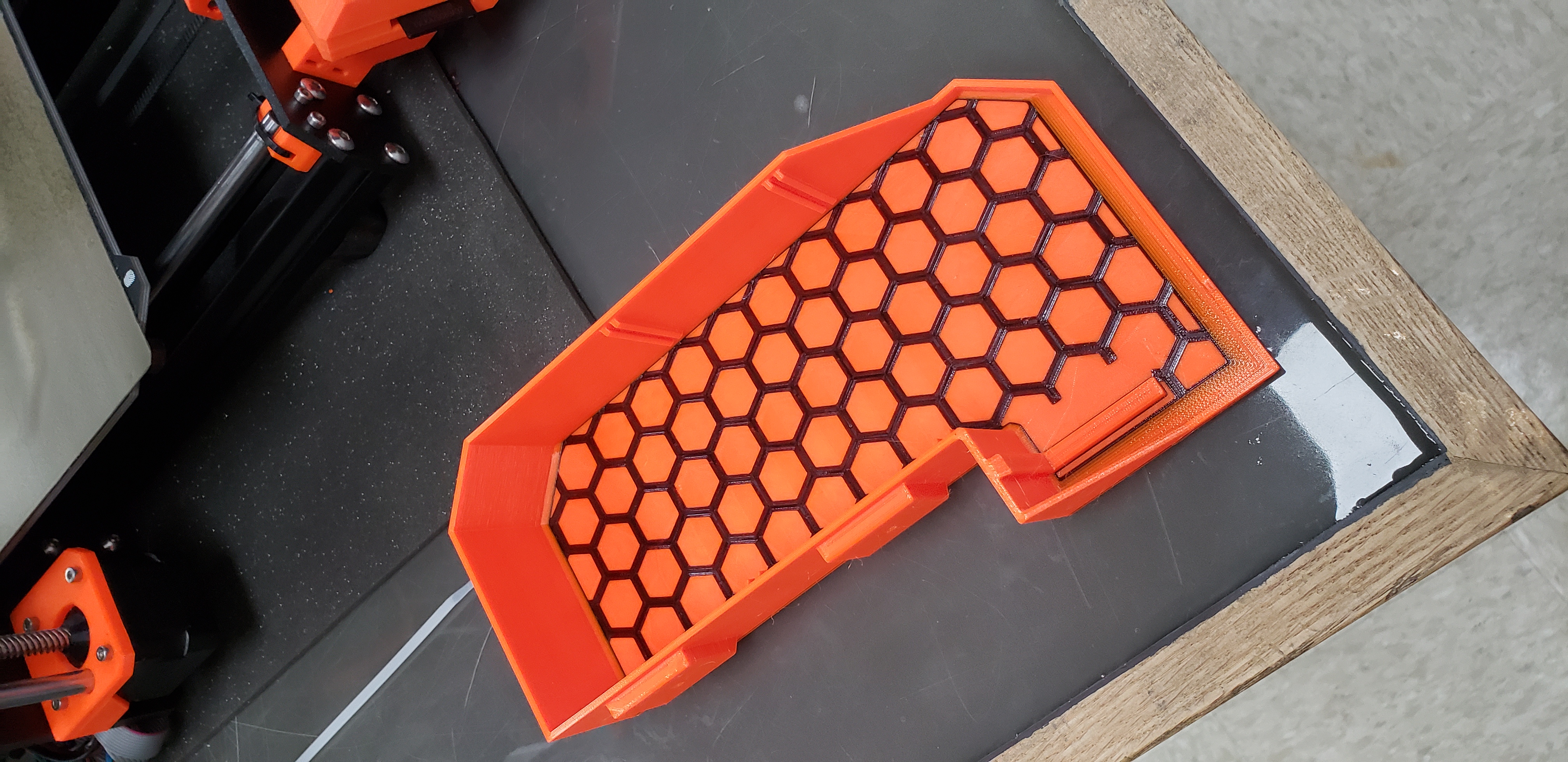

I added hexagons because they are the bestagons! The pattern is 0.2mm high and decorates the bottom of the tray. I also added a mount on the front for a nozzle holder that you may choose to use or not. It takes up very little space, though the tray is 100% functional without it.

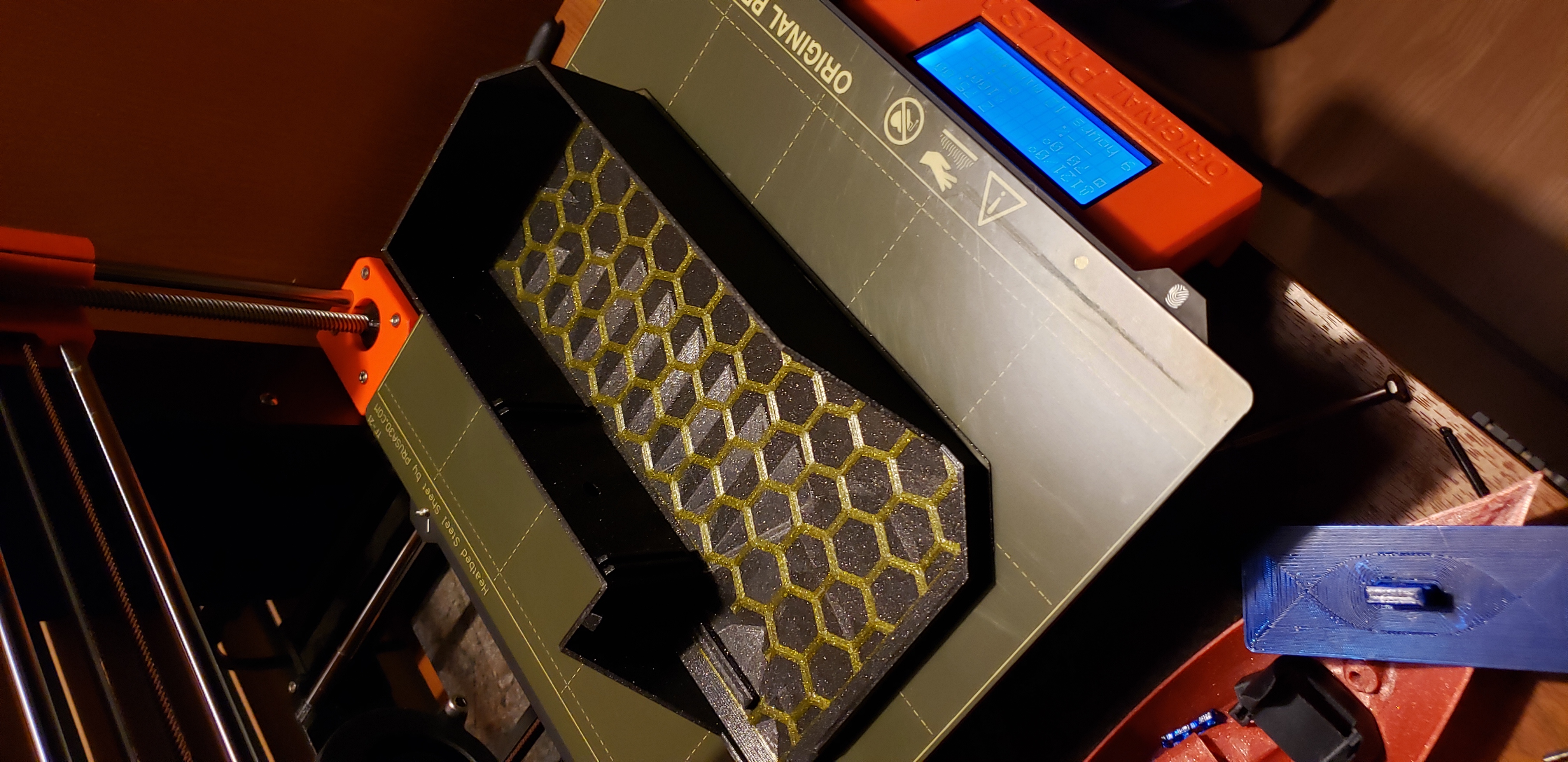

I printed mine in PETG at 0.2mm layer height, 15% hexagon infill, and 2 perimeters. I also printed it with an added color change for the hexagon pattern. Since it was just for the one layer, I only had to wait 10 or so minutes between filament changes.

I recommend printing the nozzle holder on its face, the eight holes facing down.

You will need four M3 12/13 screws and four M3 T-nuts to attach it to the frame. Two for one side and two for the other.

The colors I used are both Prusament, the Galaxy Black and Yellow Gold (pretty much all black except for one gold layer).

Notes

• The G-codes I uploaded for the trays both have color changes in them, one for the hexagon layer, one to get back to the previous color. • The G-code for the right nozzle holder is 0.1mm to give the threading more detail and make it easier to insert nozzles. • When mounted correctly, the bottom of the tray will sit lower than the stock feet, essentially carrying the front weight of the printer. A simple and fast solution is to add felt pads onto the rubber feet. If you don't like the idea of putting feet on your feet, there are many different kinds of mounting options on this website. • There is a version of the nozzle holder for both the left and right sides, please note that they are different.

I have also included blank versions of the left and right nozzle holders, in case you wish to do some tinkering of your own!

(I may add an SD card holder at some point when I have time)
