Modular clips rail storage system

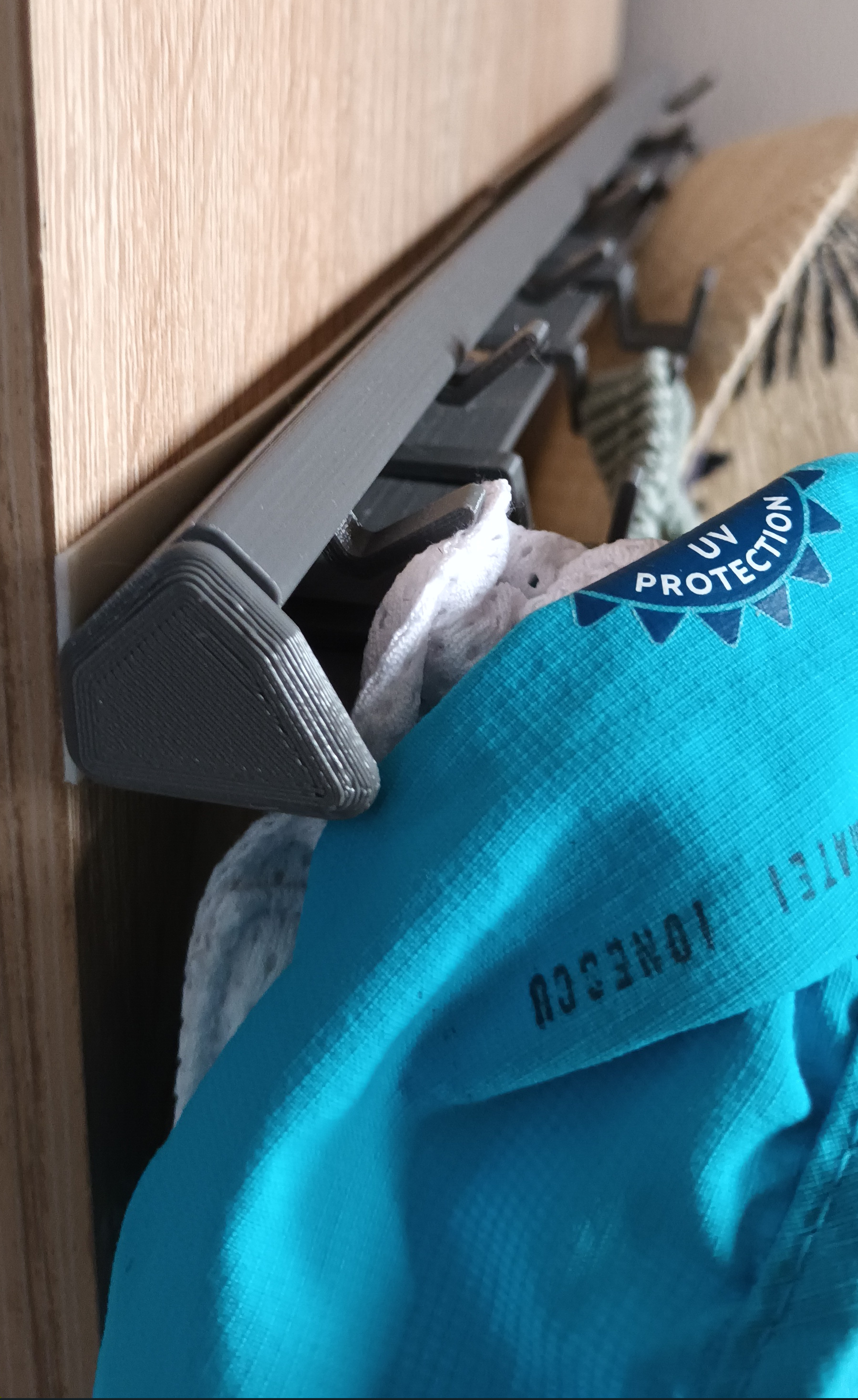

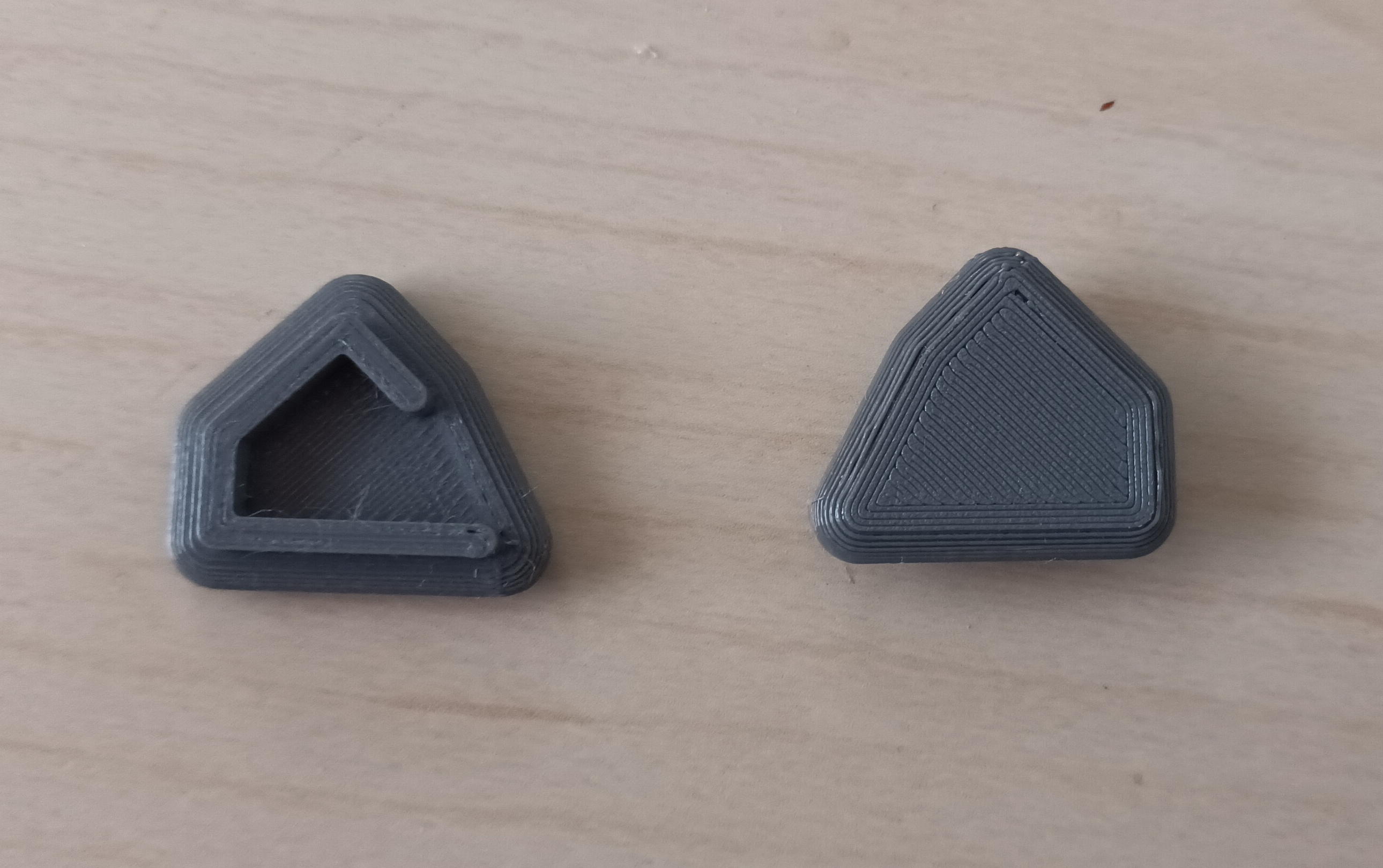

The system is composed from a rail base, with holes for wall mounting, and various clips that, well, clip into the base. Those clips can have different types of terminations, like hooks. The bases come in 2 flavors - 150mm and 250mm. More of these can be aligned together via a the thicker clip. Two left/right caps are also provided, for safety. Here's a picture:

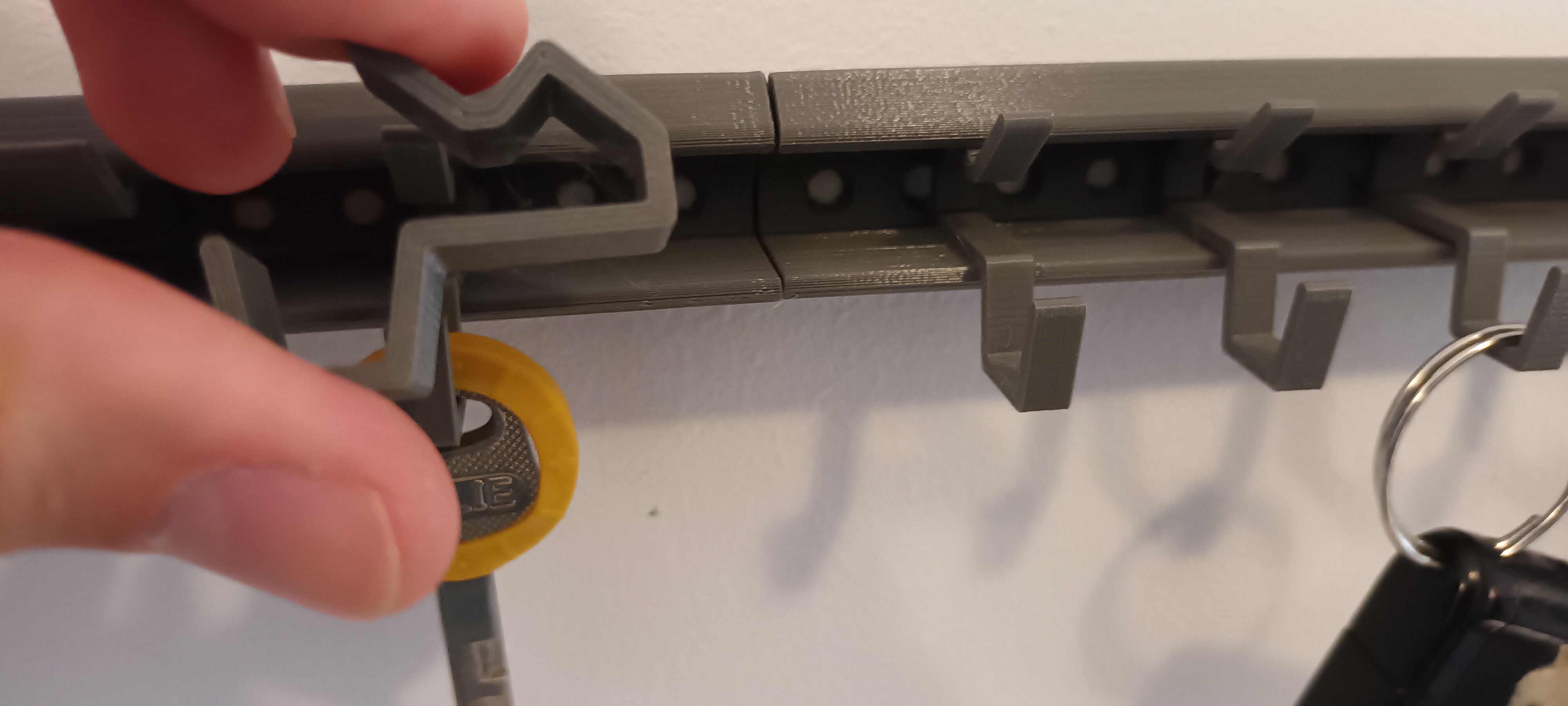

The system can be extended with clips with various terminations, as needed. For now, only a thick and normal hook clips are provided. These are just enough to hang keys, clothes, small backpacks and other not very heavy stuff.

Otherwise, the system is very sturdy, if fastened to the wall with screws, and can hold quite heavy loads.

For light loads it may hold with double adhesive tape.

The clips can be placed in any position and you can use as many as you need, making the system very flexible to one's use cases.

Printing instructions

The rails should be printed exactly in the position exported in the STL file, with a generous brim, otherwise they tend to warp. Infill: 50%

The hooks should be printed with 100% infill.

No supports are needed.

I hope you'll find it useful.

Design and description by Adr_Insc , licensed CC-BY.
