Modular HDD Mount Mk3

A small and simple Modular HDD mounting option. For Horizontal and Vertical Installation

!!Scale to 100'000% if your slicer doesn't do it automatically!!

Update (user request): Added Mk3L version for extra large drives. Max Drive Height is at 26mm.

Quantities you need to print:

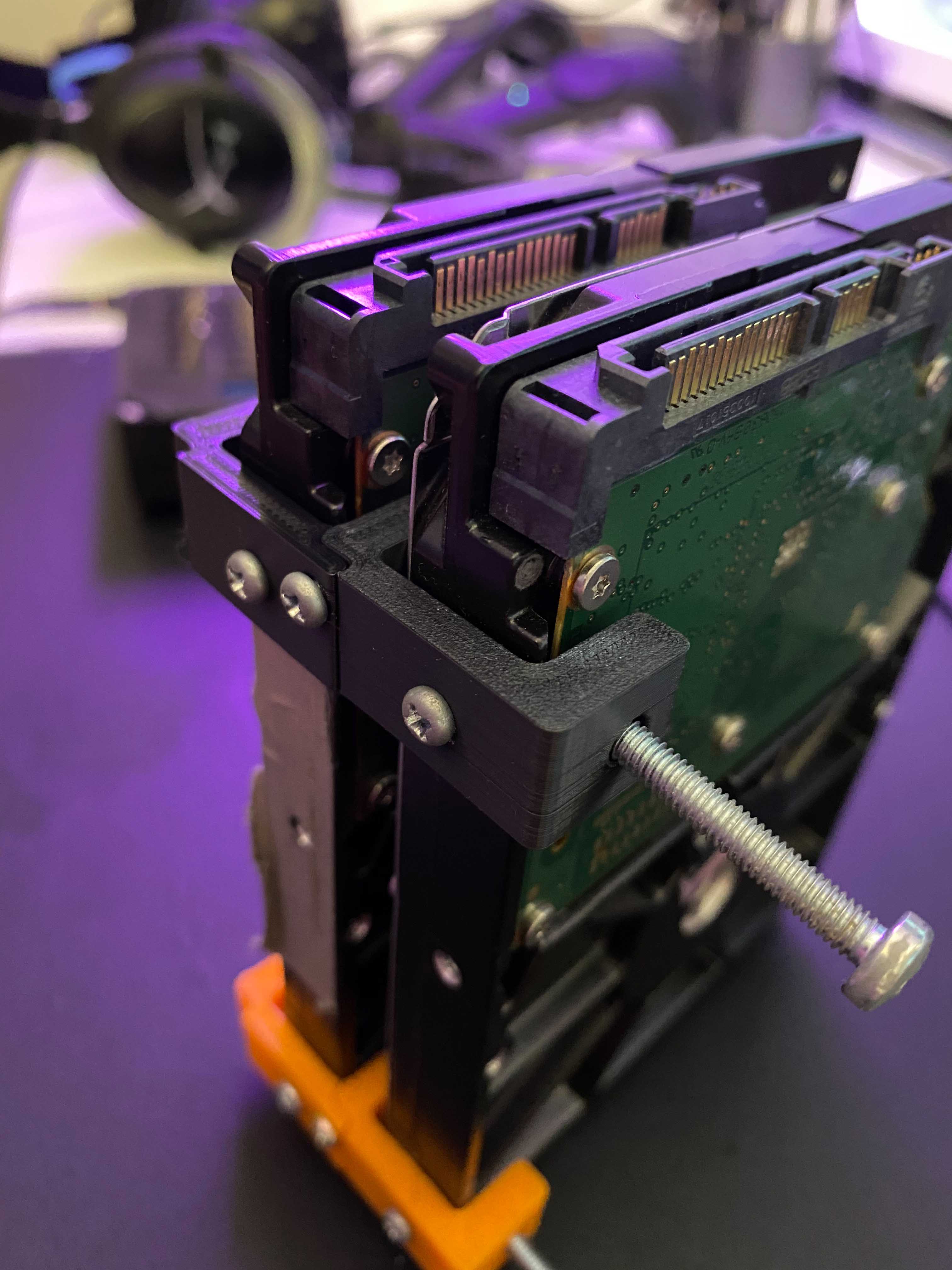

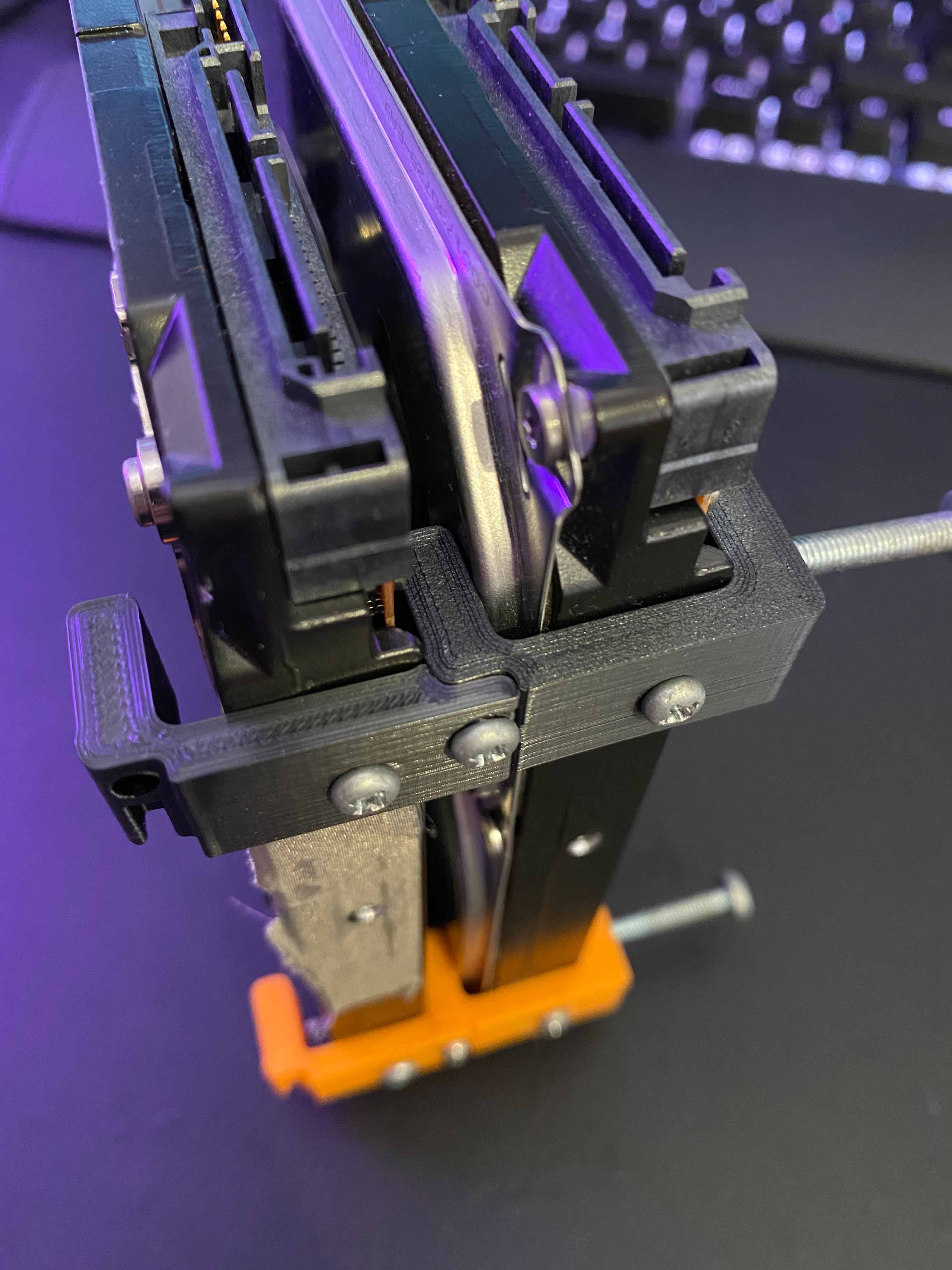

Dual Mount as seen in Pictures:

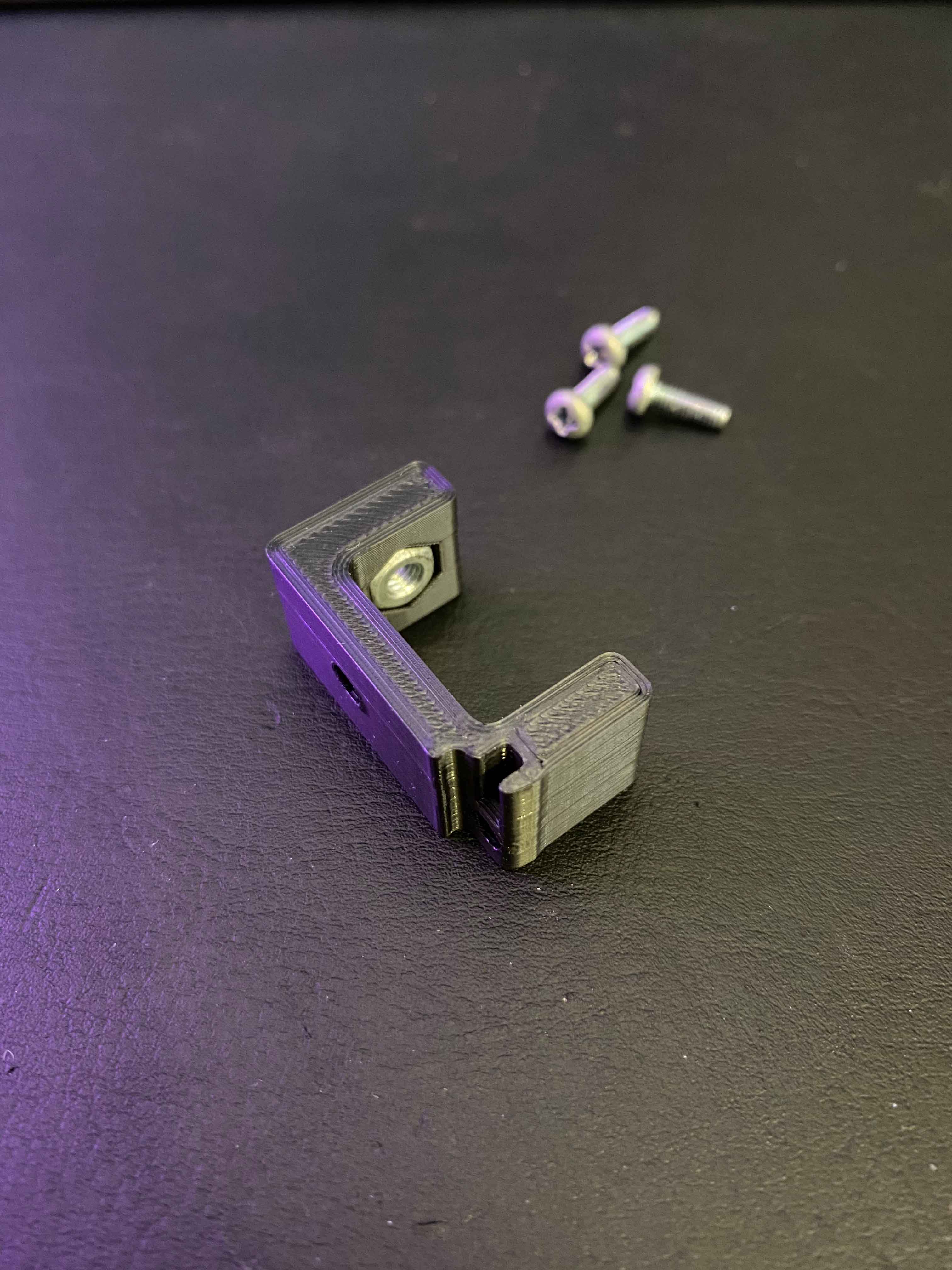

HDD_Mount_mk3_Main 2x

HDD_Mount_mk3_Extension 2x

for each additional HDD Quad Mount:

HDD_Mount_mk3_Main 4x

HDD_Mount_mk3_Extension 4x for each additional HDD

Aditional Components needed:

Dual Mount as seen in Pictures:

2x M 4 Nuts and Bolts in the appropiate length - varies per installation

+ one HDD:

2x M 3 x 8mm + each additional HDD:

3x M 3 x 8mm

Quad Mount:

4x M 4 Nut and Bolts in the appropiate length - varies per installation

+ one HDD:

4x M 3 x 8mm + each additional HDD:

6x M 3 x 8mm

##

##

Print Settings

Printer Brand:

Creality

Printer:

Ender 3 Pro

Rafts:

No

Supports:

No

Resolution:

0.2 mm Layer Height, 0.4 mm Nozle

Infill:

20%

Filament: TECBEARS PLA Black

Design and description by Noel , licensed CC-BY-SA.
