Modular REVOLving cable mount
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~19 g
- Print time
- ~1 h
- Express shipping
- $20
More information
New “lockpin” version is available here: https://www.prusaprinters.org/prints/55716-revolving-cable-mount-lockpin-edition

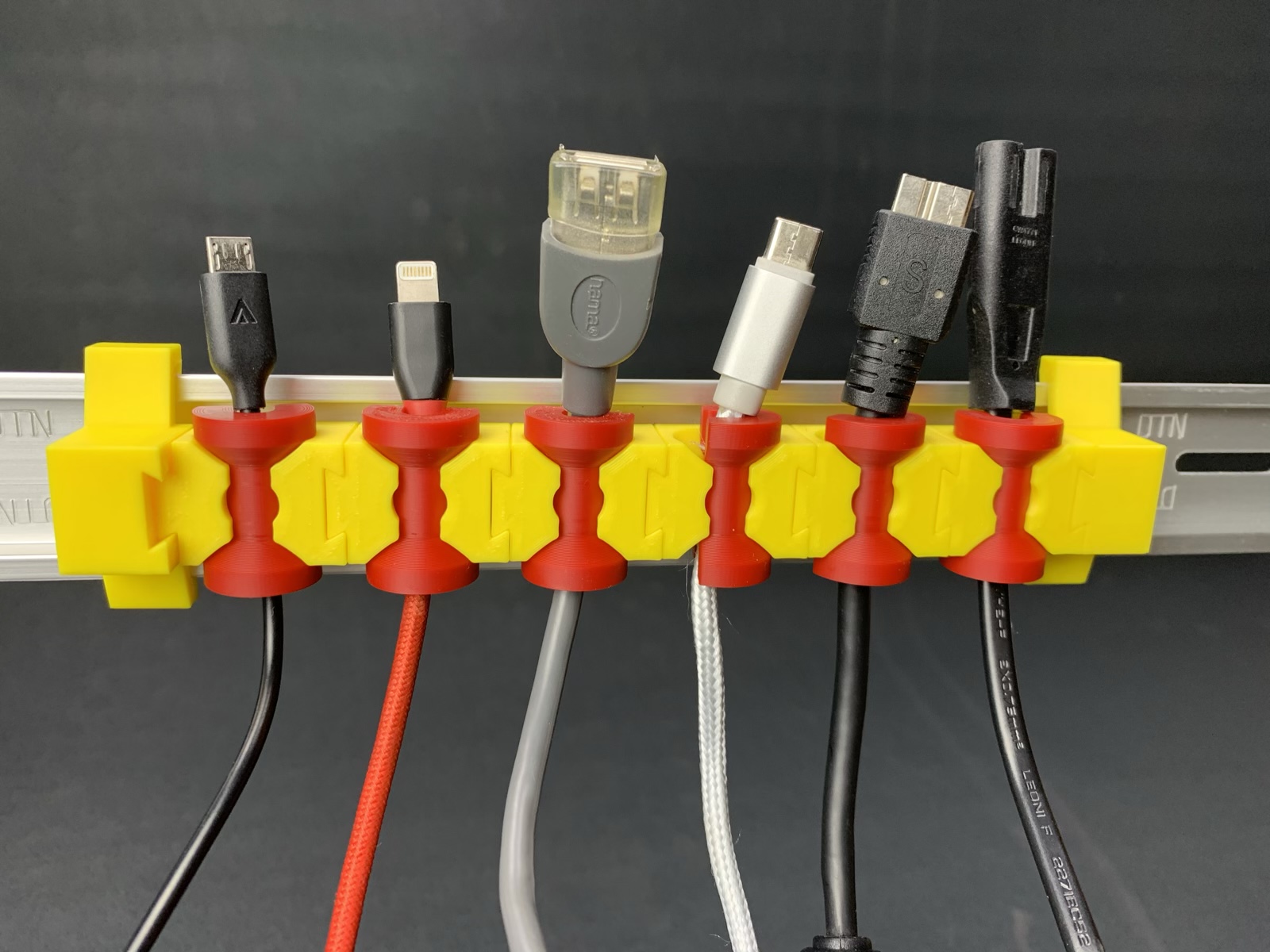

Hang your frequently used cables with this mount and forget tangling!
This is another iteration of my revolving cable mount.

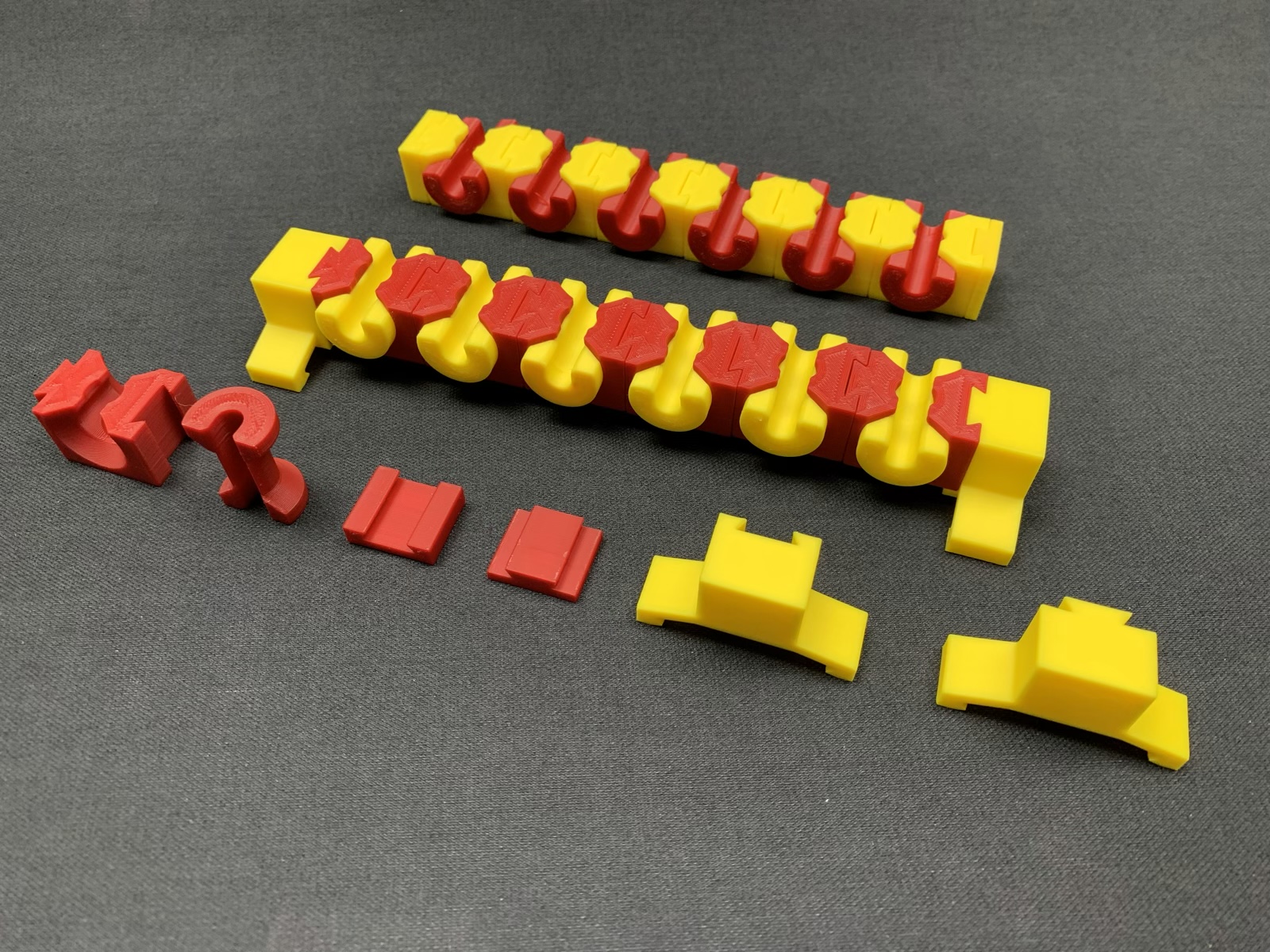

I have designed this iteration modular so you can make it as long as you would need.
To mount it you have multiple options:

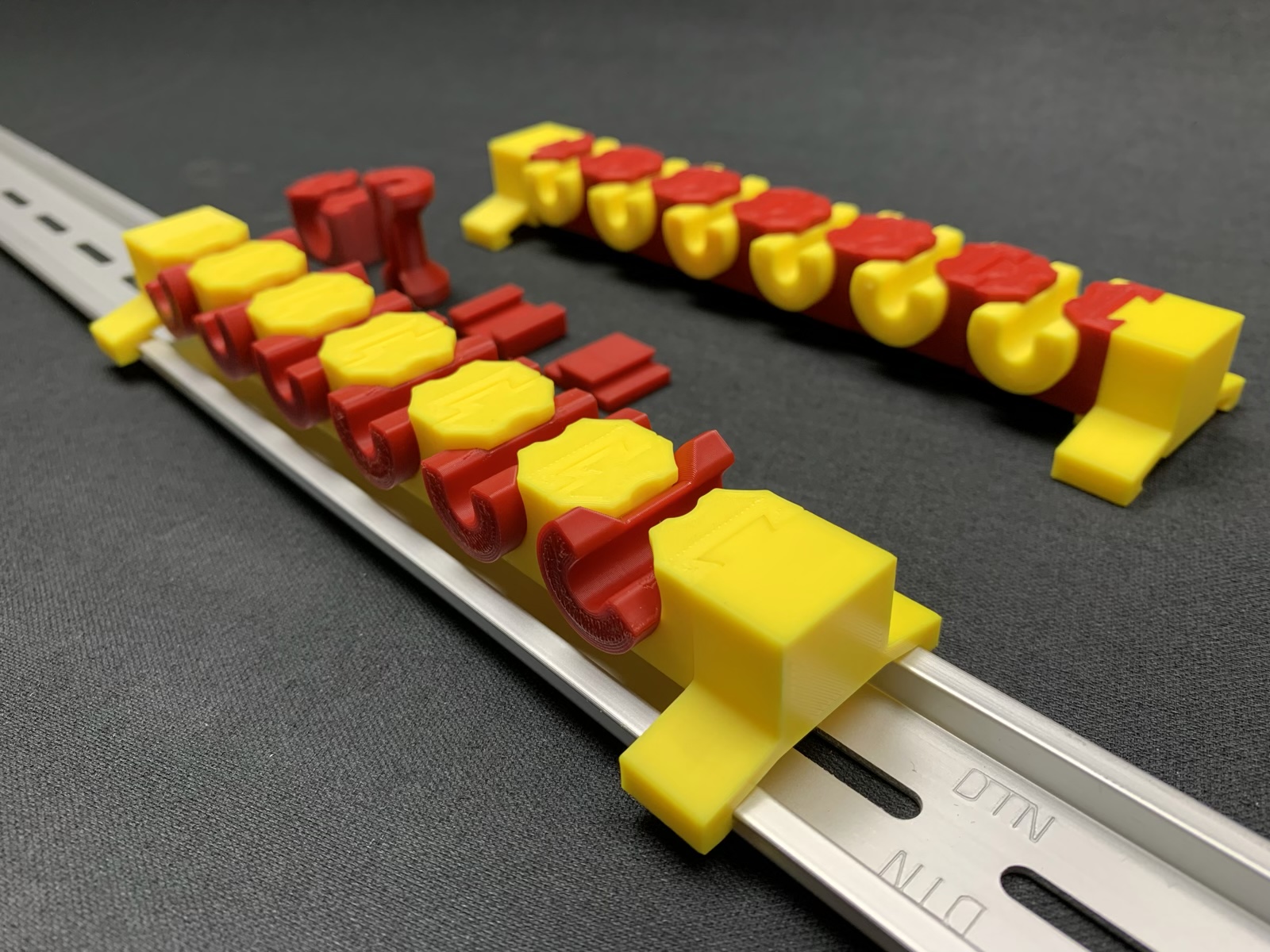

• screw with a 4 mm countersunk screw/bolt • attach with a doublesided tape or with velcro (3M's CommandTape is my favorite solution for apartments where you cannot drill a thing) • clip it to a standard DIN rail with the provided DIN rail mounts
The cable mount hole has a 6 mm internal diameter which is enough for standard USB cables as well as for the braided thicker ones.

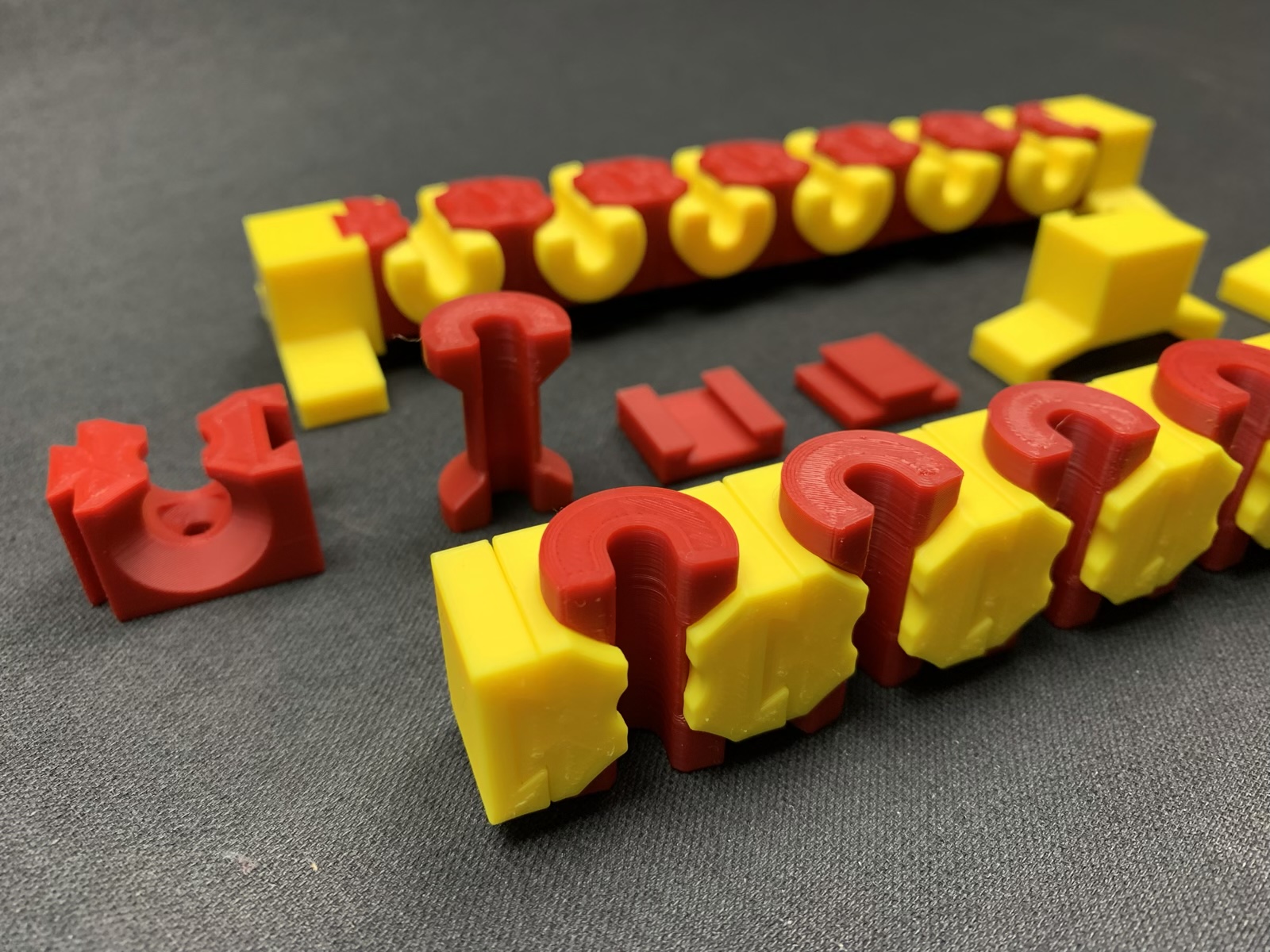

The total gap for the dovetails is 0.3 mm wide which results a perfect (=not too tight - not too loose) fit on my Prusa MINI+.
Assembly / usage HOWTO: https://youtu.be/eLzzeDvo2dI
This is my favorite hanging cable mount so far - I hope you will like it too.
Update 2021-01-12
• added optional back rail option (2 versions, with or without dovetail) to keep the components together • generated male part with 6 and 8 mm ring height (you might find the taller ones more useful in case if you have bigger hands) • added dovetail to DIN rail mount so you can use as many as you wish
Print instructions
All the parts are designed as FDM printable without supports.
Design and description by fns720 , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
Modular REVOLving cable mount is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
