Modular sanding disc storage V1

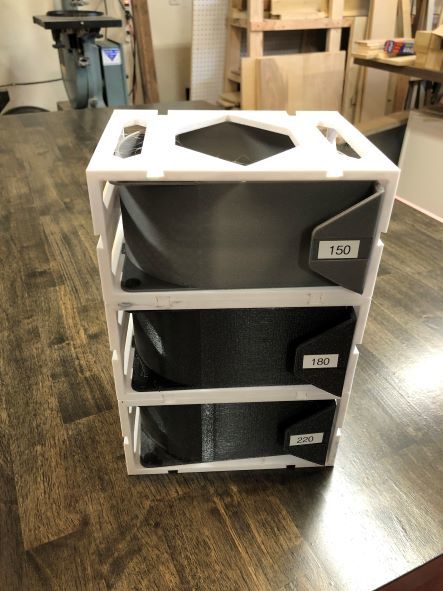

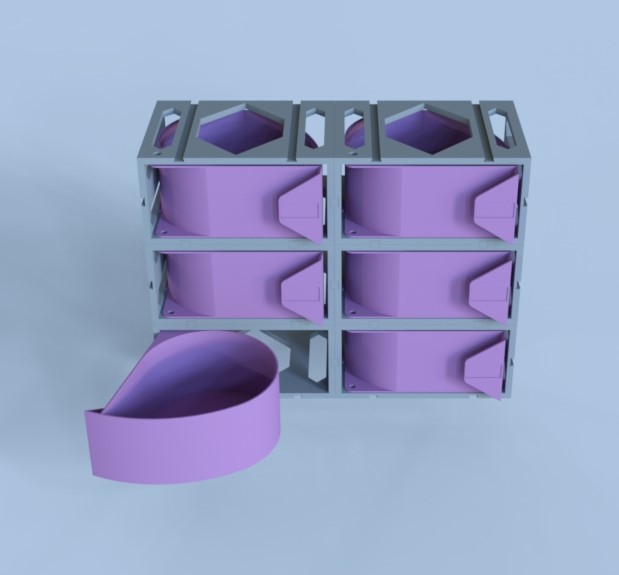

Print as many as you want to hold your 5" sanding discs or anything else you want to store. They are modular so you can attach to the top or side of any box.

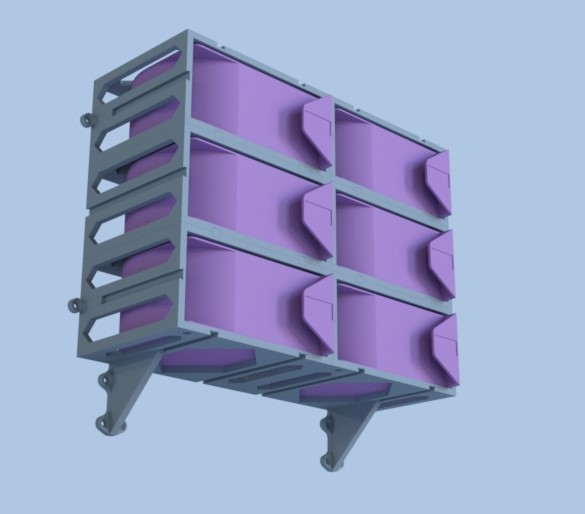

There is an area to add an label with what's inside. I've included two different mount types to mount the boxes to a wall.

For one box assembly you need

(1) sandpaper box

(1) sandpaper holder

(1) sandpaper box pin

To add a box to the top or bottom you'll need to print 2 sandpaper box keys

To add a box to the side you'll need to print 1 sandpaper box key

The sandpaper holder will need support between the flanges. After removing the supports insert and super glue the pin into the empty hole. Once cured you can squeeze the tabs and slide the holder into the box.

The keys and wall mounts should slide snuggly into the keyways. If they're a little tight try some wax to help them slide in.

Post-Printing

Category: Tool Holders & Boxes

Design and description by Hendo-designs , licensed CC-BY.
