Monitor Riser Legs / Shelf Riser

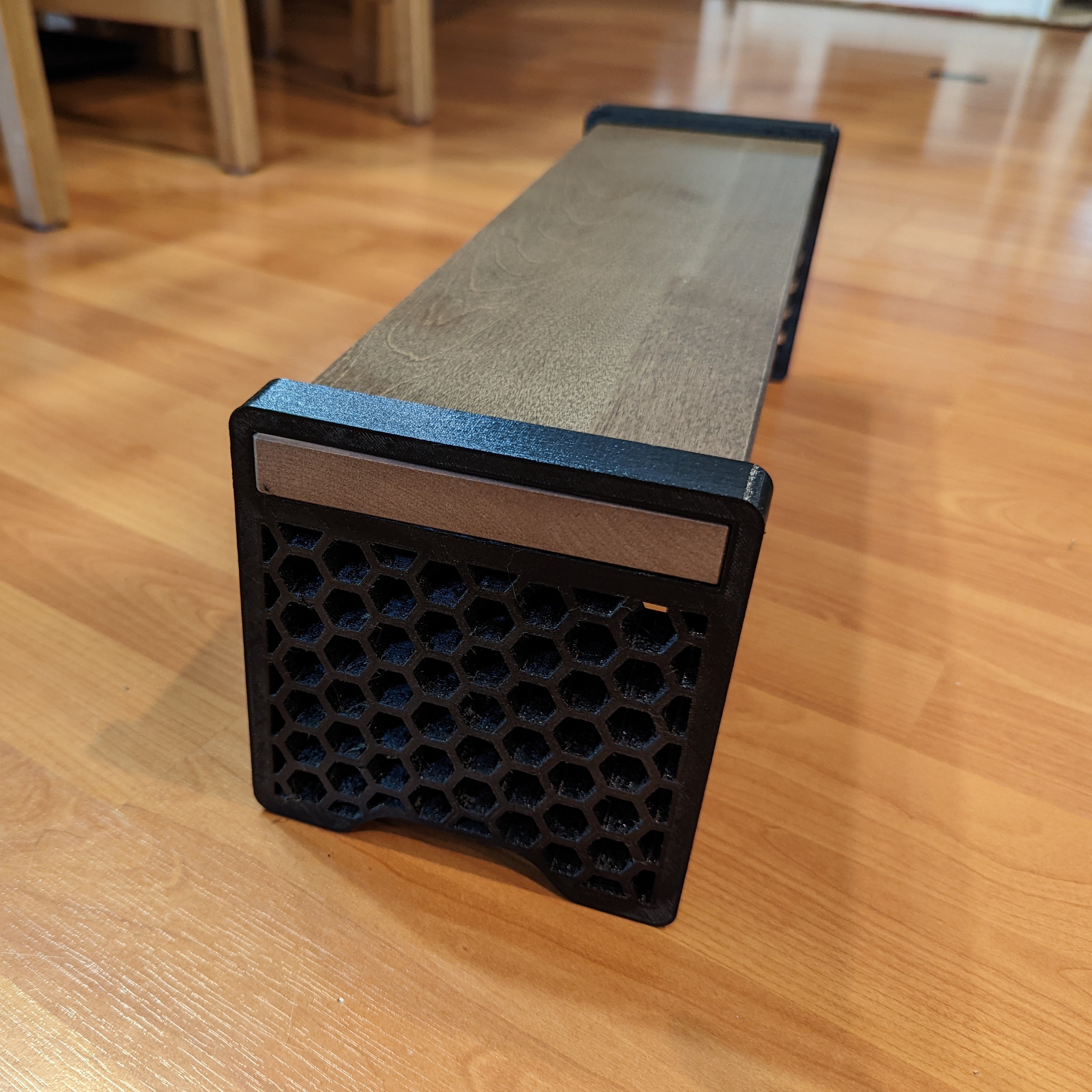

I picked up some of these IKEA GrimsLov Drawer Fronts from my local IKEA. They were SUPER cheap presumably from someone ordering too many or not liking them, no idea.

The IKEA Grimslov Drawer Front profile dimensions are roughly 124.6mm wide by 18.2mm tall.

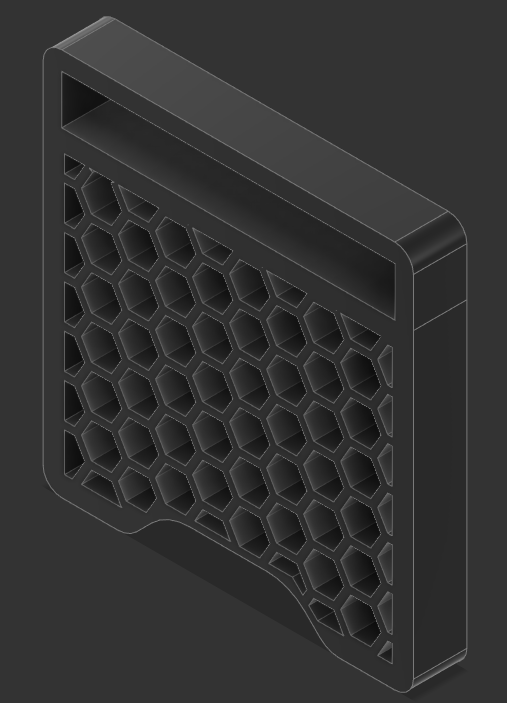

I had found numerous designs for actual IKEA shelves but obviously none would fit these drawer fronts. I whipped up this design for my use case in Fusion360.

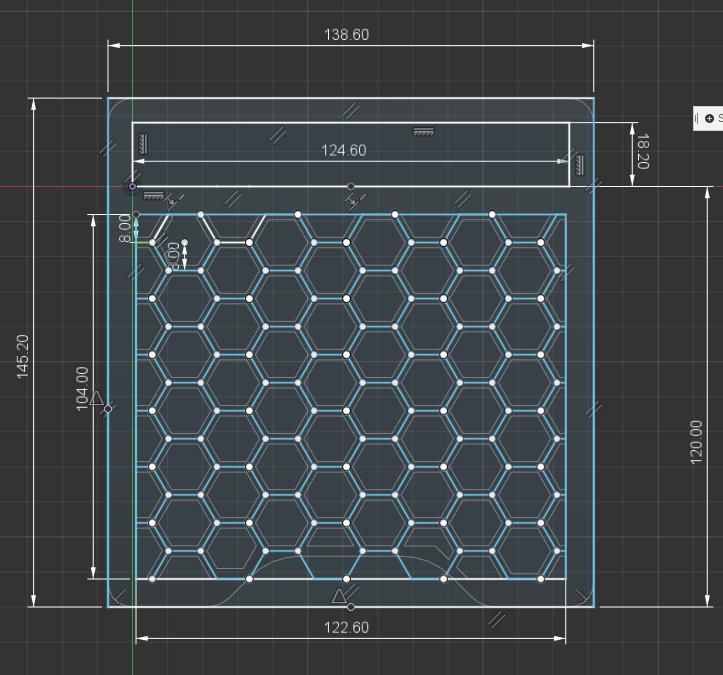

Overall Dimensions of the printed legs:

• 138.6mm wide • 145.2mm tall

These legs as modeled, will provide you with 120mm (~4.72 inches) of clearance underneath.

Ive included a model for a profile test to verify if they will fit your shelf/drawer fronts or whatever you may wish to use. I just added a blocker in prusaslicer to only print about 10mm high of the profile.

I've also included the .f3d file so as you may easily edit the opening of this riser for your shelf/wood piece you plan to use if you like my design but have different material to use.

Design and description by Shoyu , licensed CC-BY-SA.
