Motorcycle Chain Alignment Tool
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~45 g
- Print time
- ~2.5 h
- Express shipping
- $20
More information
Edit: Added a step file thats a magnetic version of the tool, so no bolts needed, just some 8mm magnets. They are a tight fit, so i recommend a dab of super glue and some flat pliers to press them into place.
This is a printable version of a chain alignment tool for motorcycles. It will help set your rear wheel alignment with the chain for proper tracking and wear.
You will need a 4mm rod and a few bolts to tighten down the tool. You can resize if you need to for bigger or smaller chains. Design based on “fotion pho” tool which i feel is unreasonably expensive for what it is.
Added a second file with a spring pin using a 6mm e clip and spring to help attach to the chain.
----New V3 is here. Changed the pin to have a deeper groove for e clips and springs. Also increased the size of the head of the pin for easier grip
E-clips can be found at McMasters p/n 98543A113

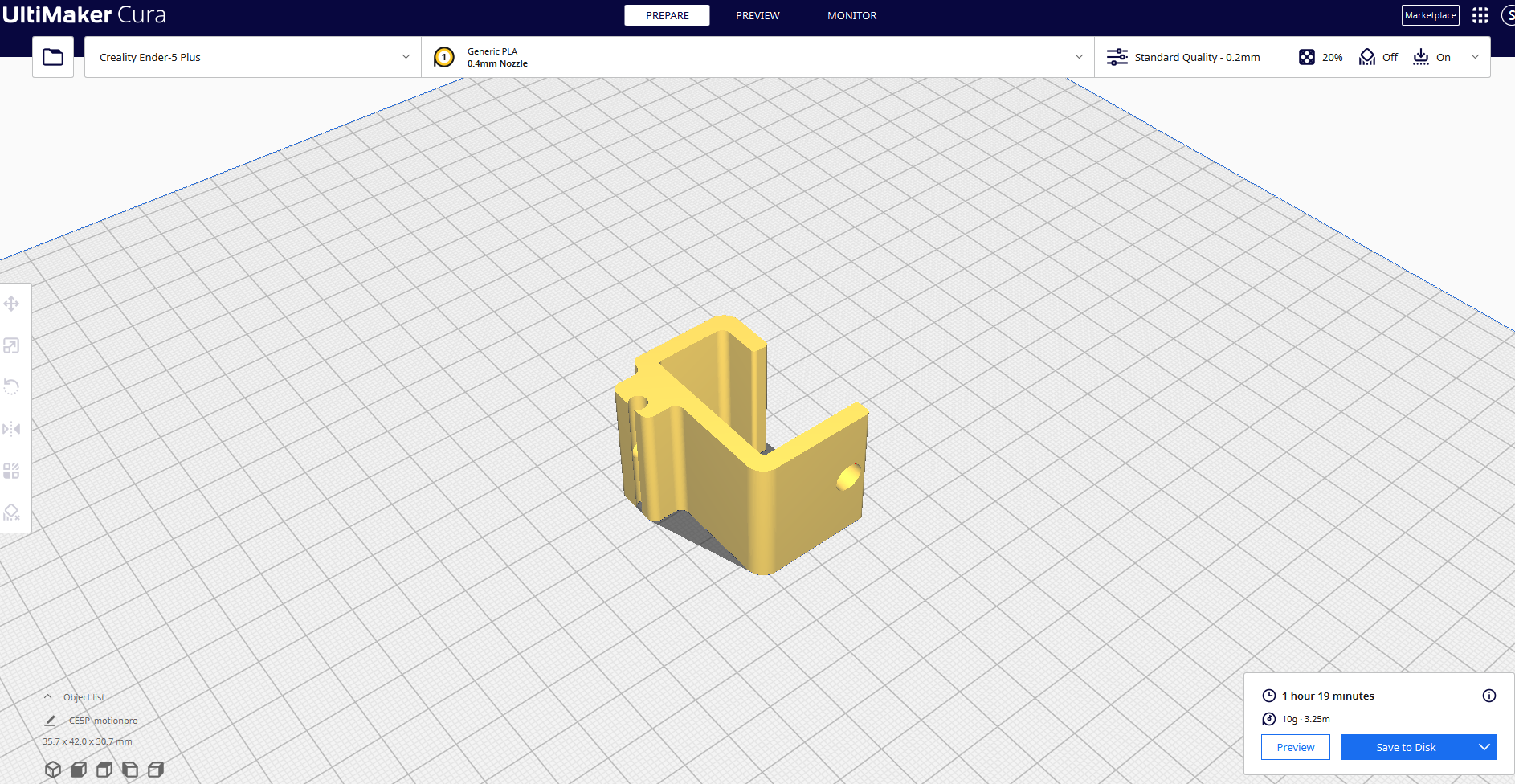

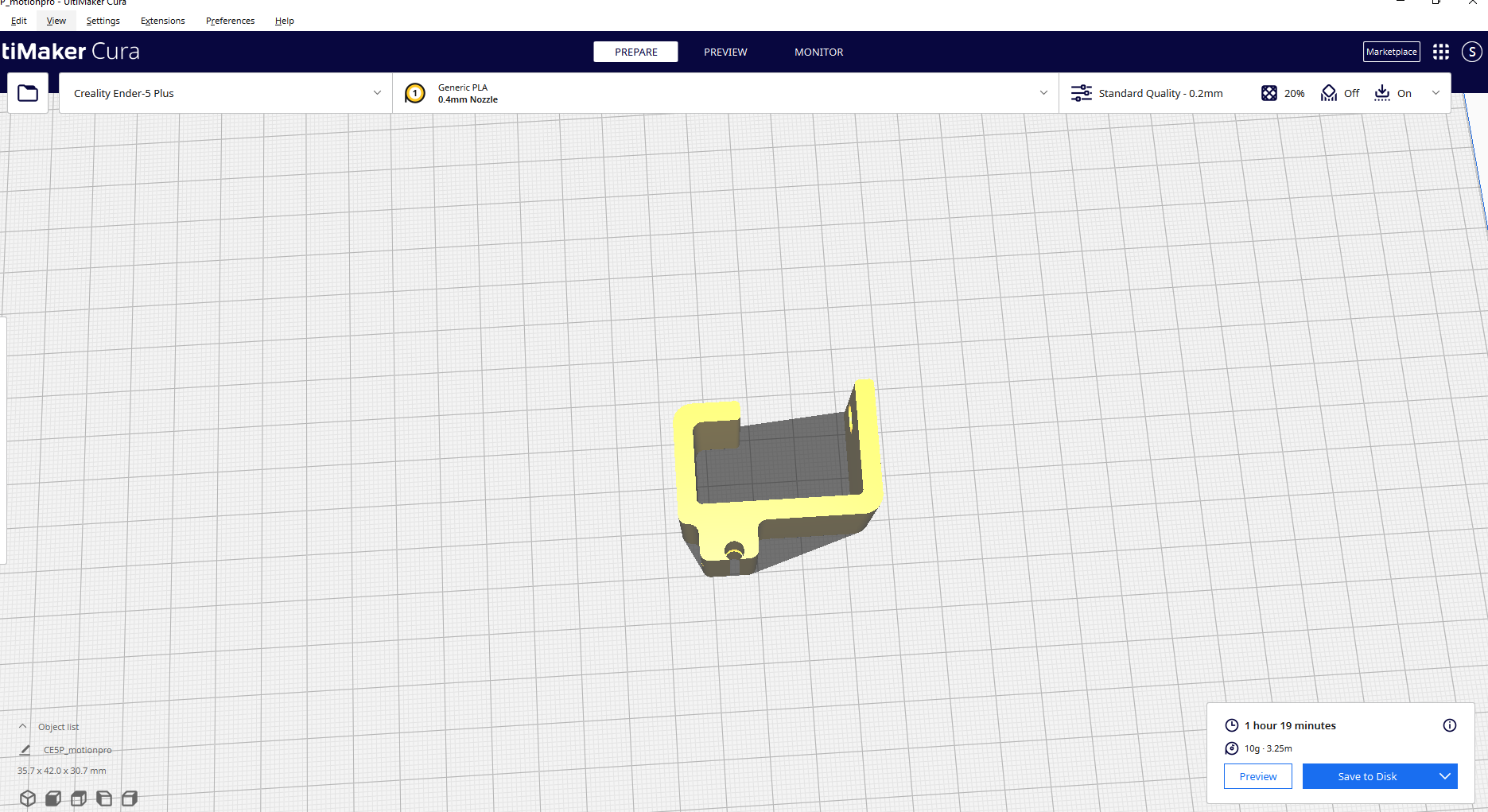

No supports needed if printed as oriented. Recommend brim for the pin.
Print speed of 50mm/s and recommend at least PLA+ at 210c/70c bed temp
30% infill for strength
Design and description by Tyler Cramer , licensed CC-BY.
Frequently asked
How long does shipping take?
Motorcycle Chain Alignment Tool is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
