Mount for magnetic door sensor (MC-51) with optional Raspberry Pi Pico W and Pico Display Pack Mount
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~28 g
- Print time
- ~1.5 h
- Express shipping
- $20
More information
I needed to build something to track a door opening and closing. I got this (https://www.amazon.co.uk/dp/B0B96LDW6P) switch off amazon and its super simple and works great.

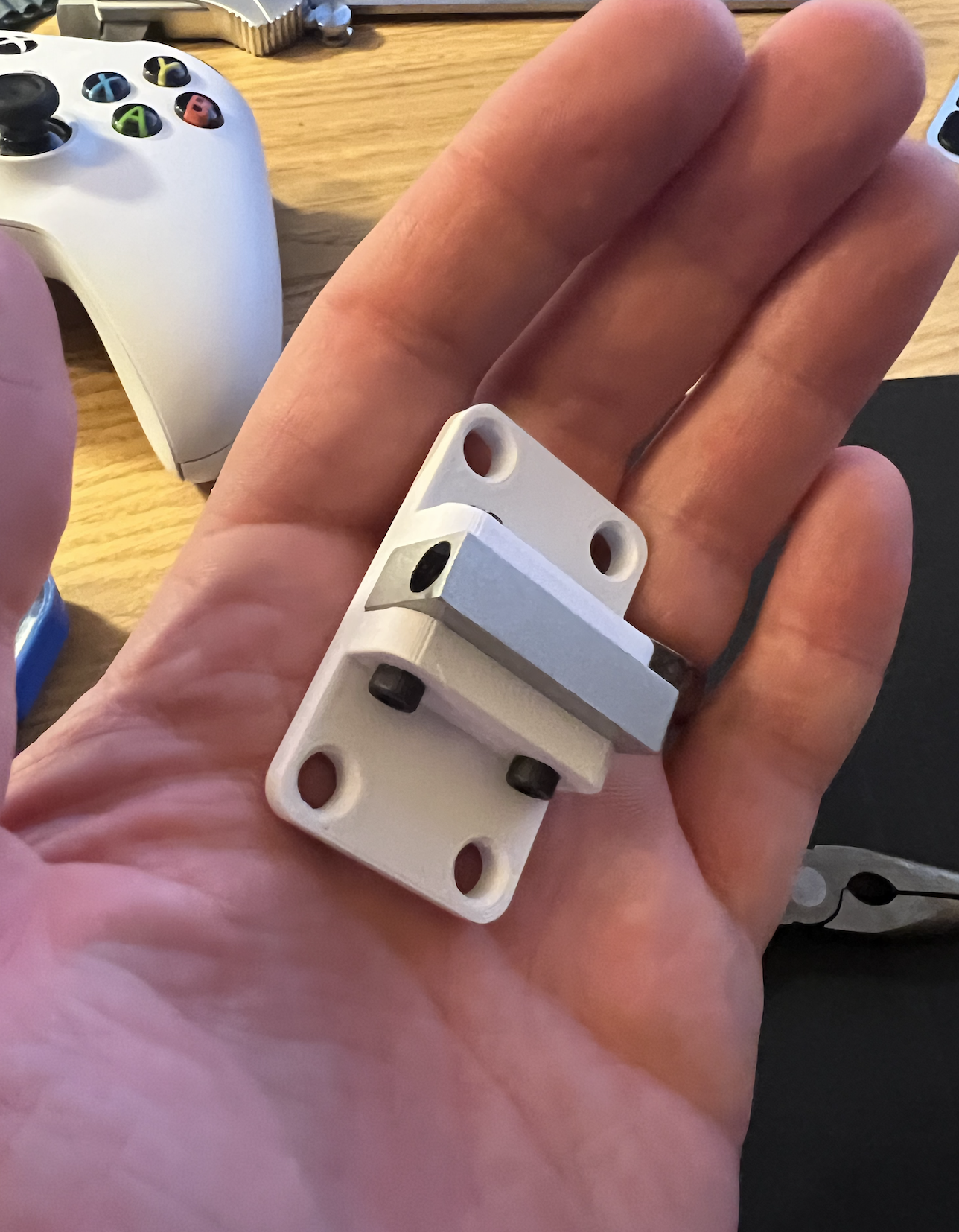

We have corniceing around all our doors so a simple flat design wasn't going to work. This extends the switch part of the sensor out enough that it can get past the door frame.

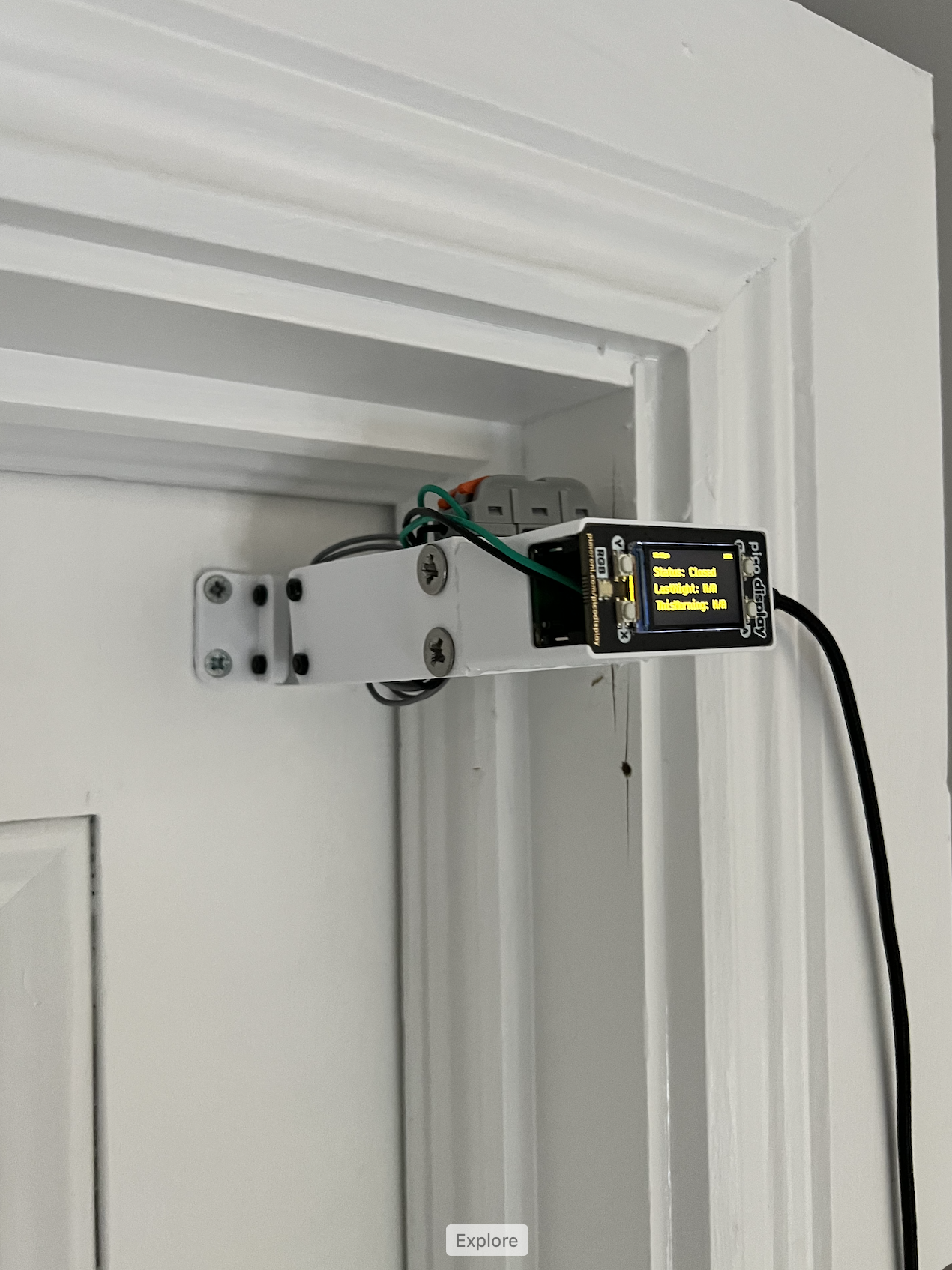

In the picture below I have used hot glue to attach a rpi pico w to switch forming a sensor. I also have a pico display pack on there, so there is also a model in here for that. I just hot glued it to the bracket as it would have been awkward to print in this orientation without supports, and its optional (you may want to just run wires to something else and not have the controller right on the door)

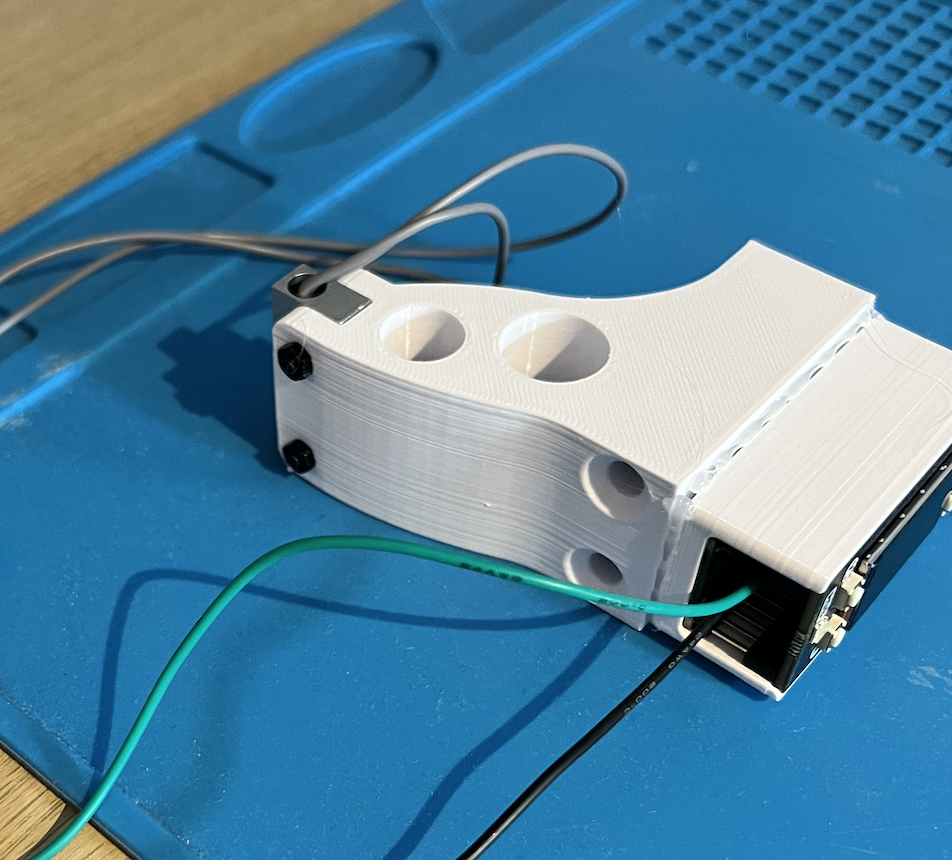

The central holes in the model (not the screw holes) are just to reduce print volume, but they also work as a little cable tidy.
Design and description by Mark McGookin , licensed CC-BY-SA.
More 3D printed Raspberry Pi cases and mountsMore 3D printed smart home mounts
Frequently asked
How long does shipping take?
Mount for magnetic door sensor (MC-51) with optional Raspberry Pi Pico W and Pico Display Pack Mount is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
