Multi-Use Case with Inserts

A small, strong case with a collection of optional inserts for different uses.

Case

Use a section of 1.75mm filament inside the hinge to connect the lid to the base. Depending on your printer/setup, this hole maybe be on the tight side or a bit loose. If tight, drilling out the hole may help. If it is slightly oversized, I suggest melting the end of the filament piece with a soldering iron or lighter.

This can be a standalone case or you can add inserts for more functionality. As requested, I have included the following lids with text to label the contents of your case:

• Blank Lid (default and easiest to print) • AA Lid • AAA Lid • 9V Lid • Digital Media Lid • Nozzle Lid

Print Settings

Base and Lid can be printed with 3 perimeters and 0% infill. Using these settings, most walls will be solid. The combined print time was just over 3 hours for me.

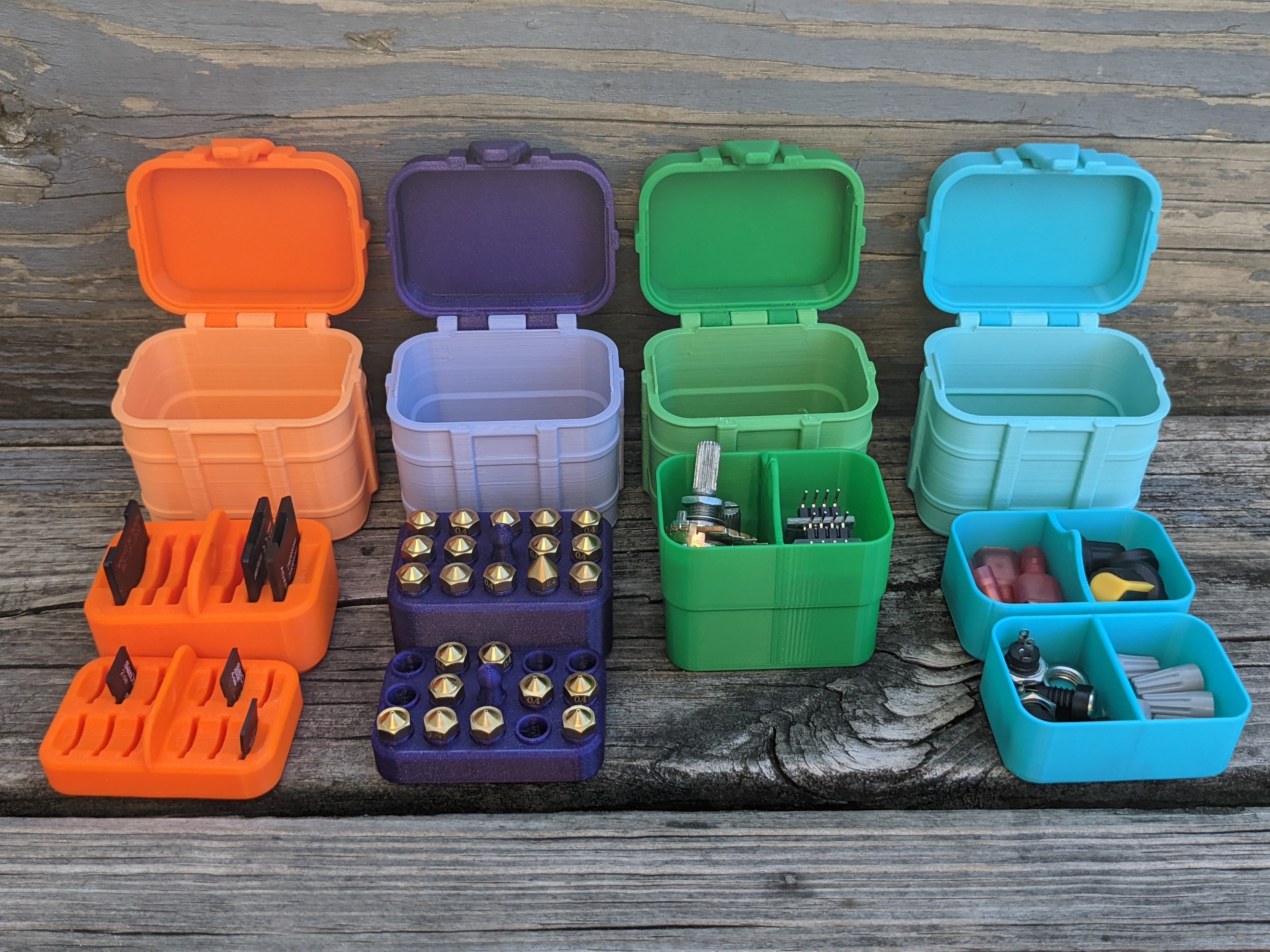

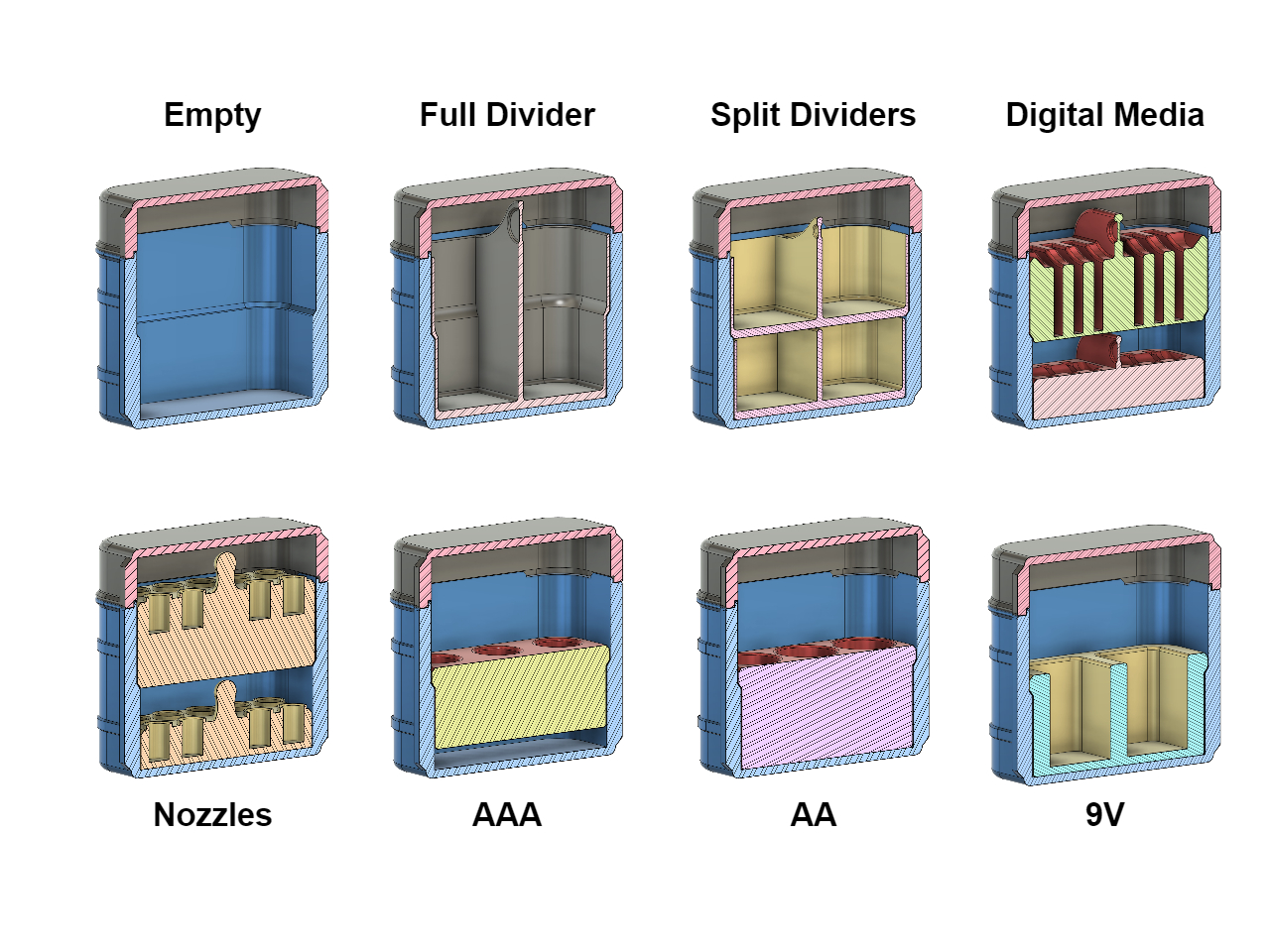

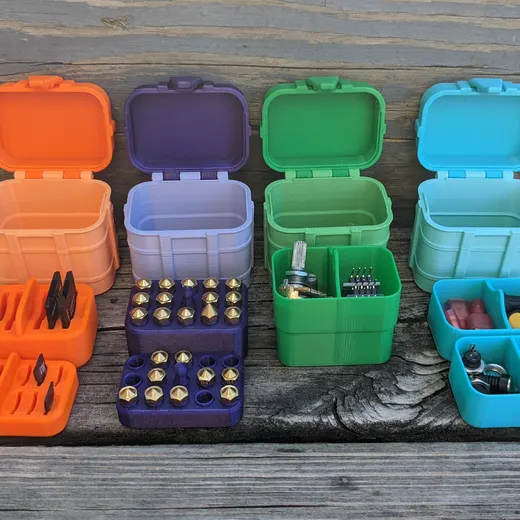

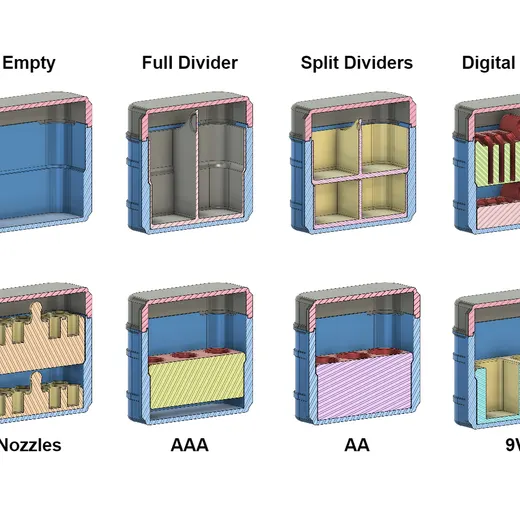

Optional Inserts

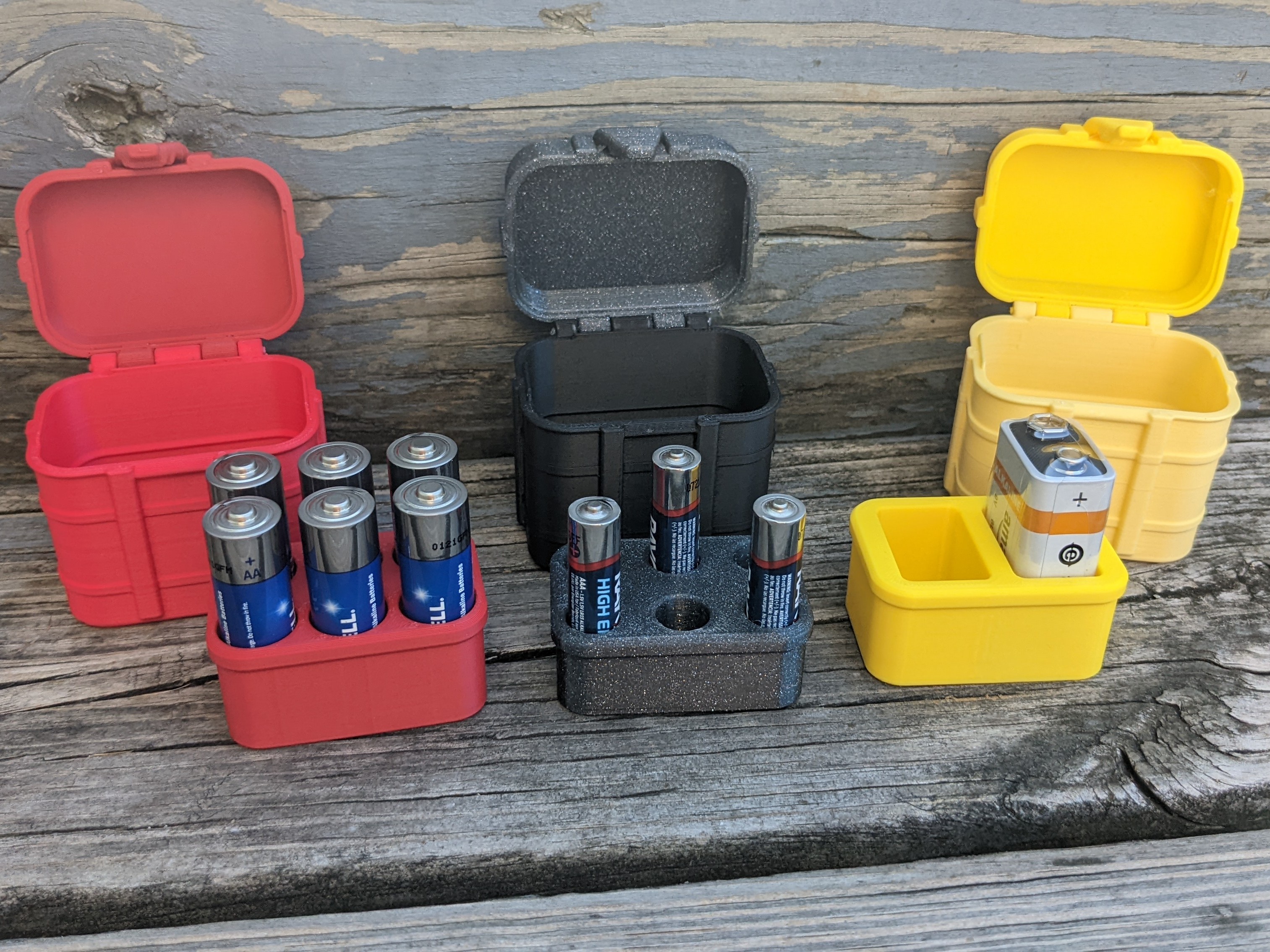

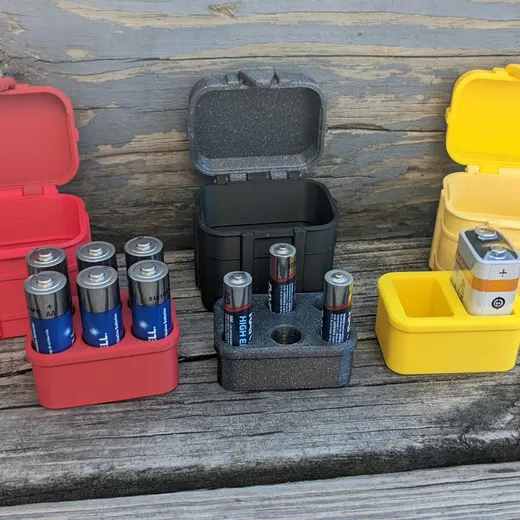

• Battery Holders • AA Holder - fits up to 6 AA batteries • AAA Holder - Version 1 fits up to 6 AAA batteries, Version 2 (currently untested) holds up to 8 batteries • 9V Holder - fits up to 2 9V batteries

• Digital Storage Holders - Can be used together or separately • MicroSD Card Holder - fits up to 12 MicroSD cards in the lower section • SD Card Holder - fits up to 6 SD cards in the upper section

• Dividers • Full Divider - Splits the entire case into 2 compartments • Upper Divider - adds 2 compartments on top - Can be used with the Lower Divider • Lower Divider - adds 2 compartments on bottom - Can be used with the Upper Divider

• Nozzle Holders - Can be used together or separately • Upper Nozzle Holder - fits 14 standard nozzles (MK8 or E3D V6) • Lower Nozzle Holder - fits 14 standard nozzles (MK8 or E3D V6)

Print Settings

No special print settings are needed for any of the inserts. I used 2 perimeters and 10% infill. Print times range from 35 minutes to 2 hours, depending on which insert(s) you choose to use.

More inserts from other users can be found here.

Buy Me A Coffee

The following filaments were used in the pictures above:

Black Case

• polymaker PolyTerra Charcoal PLA • Hatchbox Sparkle Gray PLA

Red Case

• polymaker PolyTerra Army Red PLA • polymaker PolyTerra Lava Red PLA

Yellow Case

• PrintBed Yellow PLA • polymaker PolyTerra Banana PLA

Teal Case

• polymaker PolyTerra Arctic Teal PLA • PrintBed Baja Blue PLA

Purple Case

• Prusament Galaxy Purple PLA • Fillamentum Lilac PLA

Orange Case

• CC3D Flame Orange PLA+ • Inland Orange PLA

Green Case

• PrintBed Green PLA • polymaker PolyTerra Forest Green PLA

Blue Case

• GIANTARM Matte Navy Blue PLA • polymaker PolyTerra Sapphire Blue PLA

Design and description by JamesThePrinter , licensed CC0.
