Nema 17 Stepper Motor - Bracket / Mount & Belt Tensioner
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~40 g
- Print time
- ~2.2 h
- Express shipping
- $20
More information

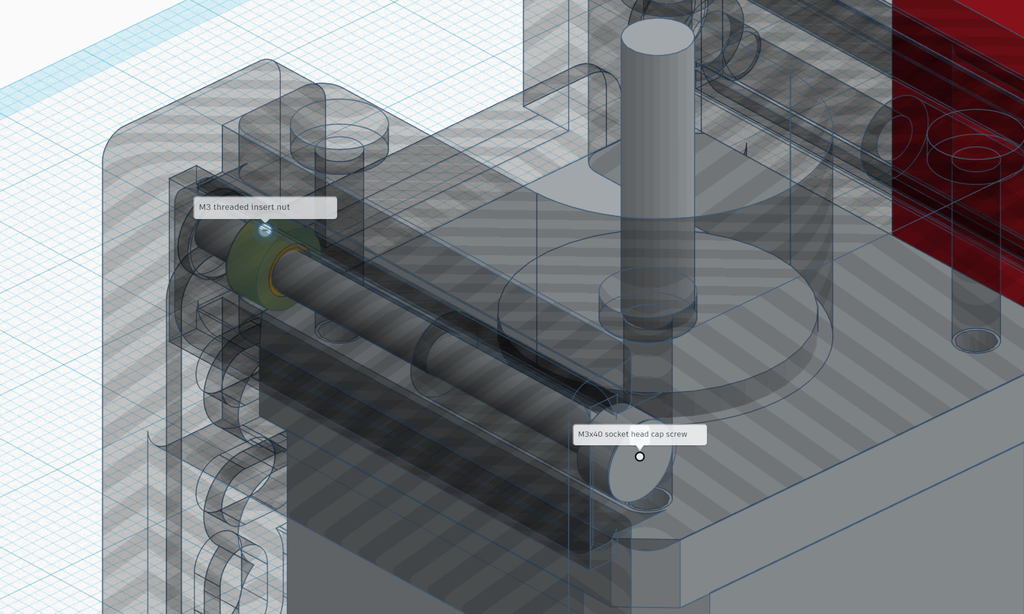

This is a bracket/mount with an integrated belt tensioner for nema 17 stepper motors. You only need the two printed parts, 2x M3x40 socket head cap screw and 2x M3 threaded insert brass nuts. Now you can fine-tune the belt tension of your printer by tightening or loosening the screws.
Here is the link to the tinkercad project - so you can modify this whole thing in any way ... top-mounted and so on. https://www.tinkercad.com/things/hF8l9LFchnq
Print Settings
Printer Brand:
Creality
Printer:
Ender 3
Rafts:
No
Supports:
Yes
Resolution:
0.2
Infill:
60
Filament: Sunlu ABS(+), ASA black
Design and description by emtrax , licensed CC-BY.
Frequently asked
How long does shipping take?
Nema 17 Stepper Motor - Bracket / Mount & Belt Tensioner is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
