nonut 3 mm clamp for aluminium extrusion

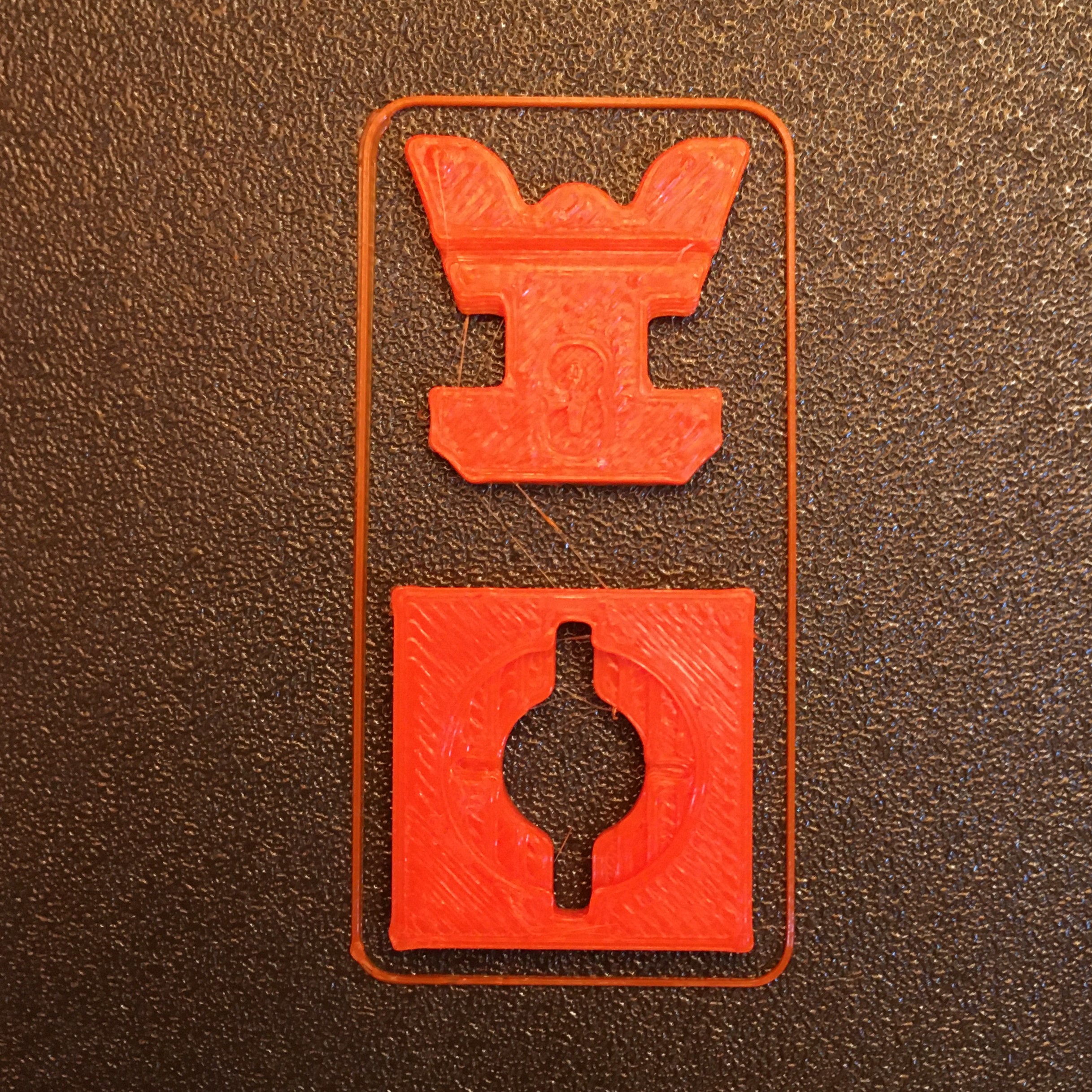

This clamp is made to fit the 30x30 mm extrusion profile of the MINI and the MK3. With this system you can mount an object of 3 mm thickness (other dimensions linked below) to your printer or wherever such an extrusion is used. It is a very quick print and capable of clamping small objects.

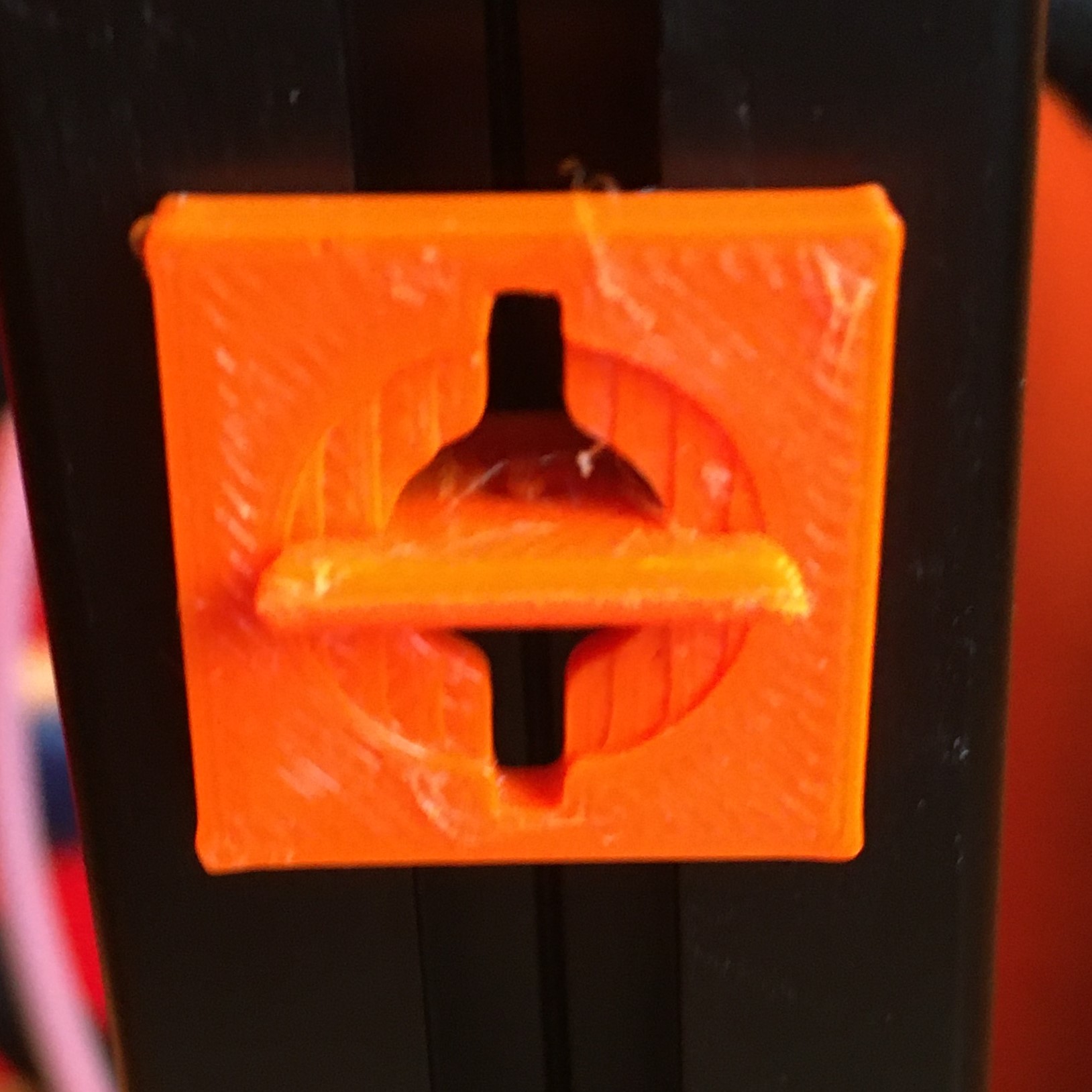

To clamp it, simply push the nonut clamp through the cut-out and turn it 90° until it clicks in place. When done so you can break off the head (see photo) to achieve a smaller overall profile. Simply bend it multiple times until it comes loose.

To use this in your own design you must include the cut-out file.

When publishing your creation using this system, please don't include the clamp itself on your project page, but link to this page instead.

1 mm version: https://www.printables.com/model/50712-nonut-1-mm-clamp-for-aluminium-extrusion

2 mm version: https://www.printables.com/model/50713-nonut-2-mm-clamp-for-aluminium-extrusion

Cover: https://www.printables.com/model/51115-nonut-cover

Examples: https://www.printables.com/model/50745-steel-sheet-compartment-mini https://www.printables.com/model/50740-simple-tool-mount-mini

Print instructions

I print in PETG with 0.2 mm layer height and 100% infill. Feel free to share your own instructions. Happy printing! :)

Design and description by sfRay , licensed CC-BY-SA.
