Ortur - Aufero Laser 2 - Super Pack - Risers - Air Assist mount - Cable Relief

A simple stackable set of Risers and mounts for your Ortur - Aufero Laser 2.

These can be mounted to a bench or work surface to allow for increased repeatability and accuracy or not mounted and left loose. Below Instructions detail mounting to a surface.

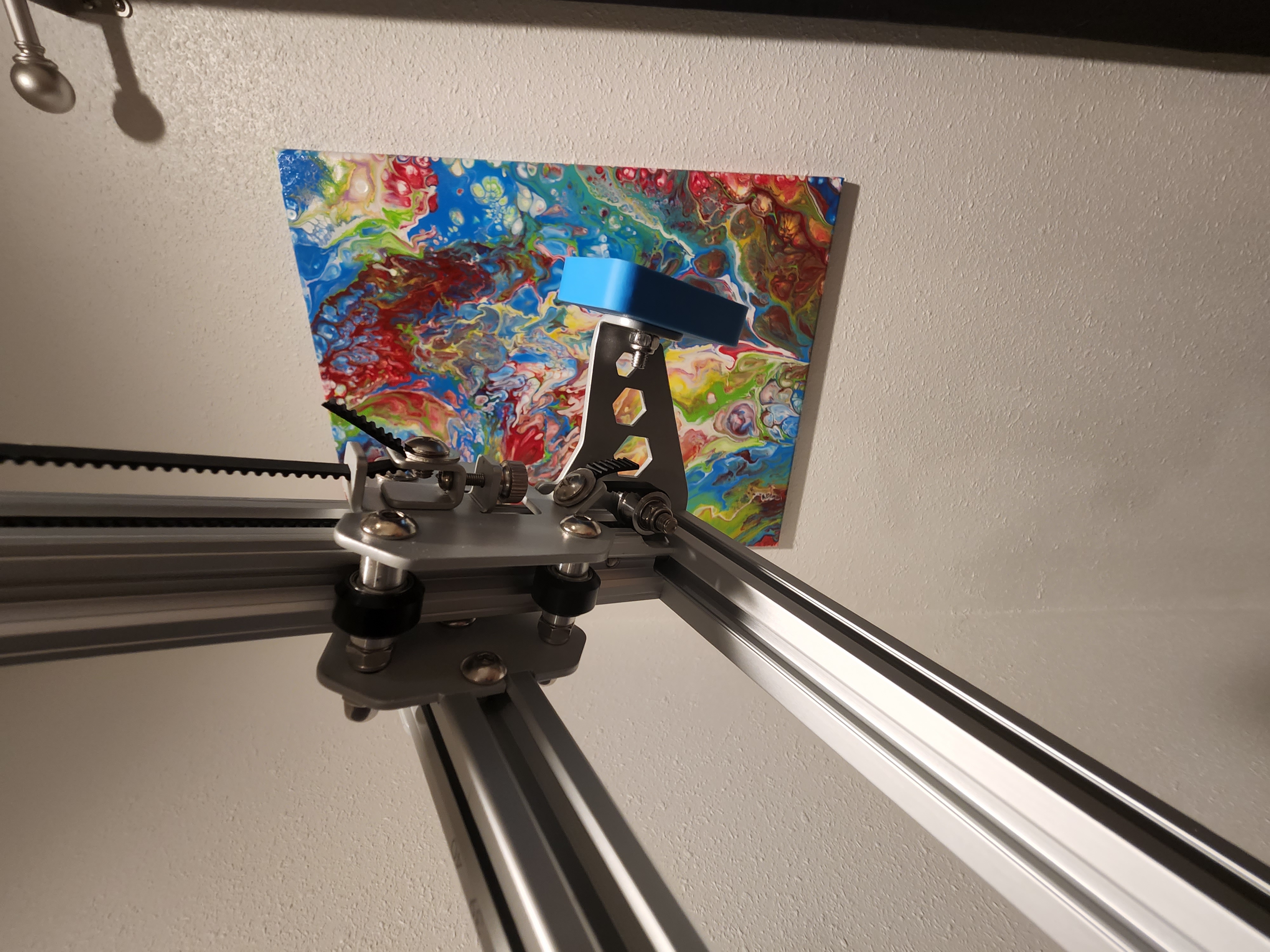

Wire Harness relief mount specifically for the 10w Long Focus Laser module and Air assist tube holder.

Z-Height Calibration tool and tool holder. Keep the original as a backup. Lightweight PLA tool is non-conductive, non marking and wont damage your materials if dropped the same as a heavy chunk of aluminum will.

Files Grouped in 5 Categories:

MK3S+ Gcode Pre-Sliced - combined : All Files to build everything pre sliced and grouped on plate.

Mini+ Gcode Pre-Sliced combined : All Files to build everything pre sliced and grouped on plate.

MK3S+ Gcode Pre-Sliced : Individual files pre sliced

Mini+ Gcode Pre-Sliced : Individual files pre sliced

Model Files : STL files of each part

Print Settings :

.15mm quality

Gyroid infill @ 15%,

3 Perimeter walls

PLA

No supports Needed.

YMMV

Tools:

3mm hex key (Allen Wrench)

7mm socket, wrench or plyers

2mm Hex Key (Allen Wrench) - for Laser Harness Relief and Air Assist Tube Holder Install

Hardware :

(4) M4X12-16 Hex Socket Bolts

(4) M4 Nylon Lock Nuts

https://www.amazon.com/dp/B073SW4S6C?ref_=cm_sw_r_cp_ud_dp_GY4R5NVXVBZ8M7C8DCQV

(4) drywall or wood screws

https://www.amazon.com/dp/B09P3S3THS?ref_=cm_sw_r_cp_ud_dp_Q57C4969FRF015DR2XS9

Instructions:

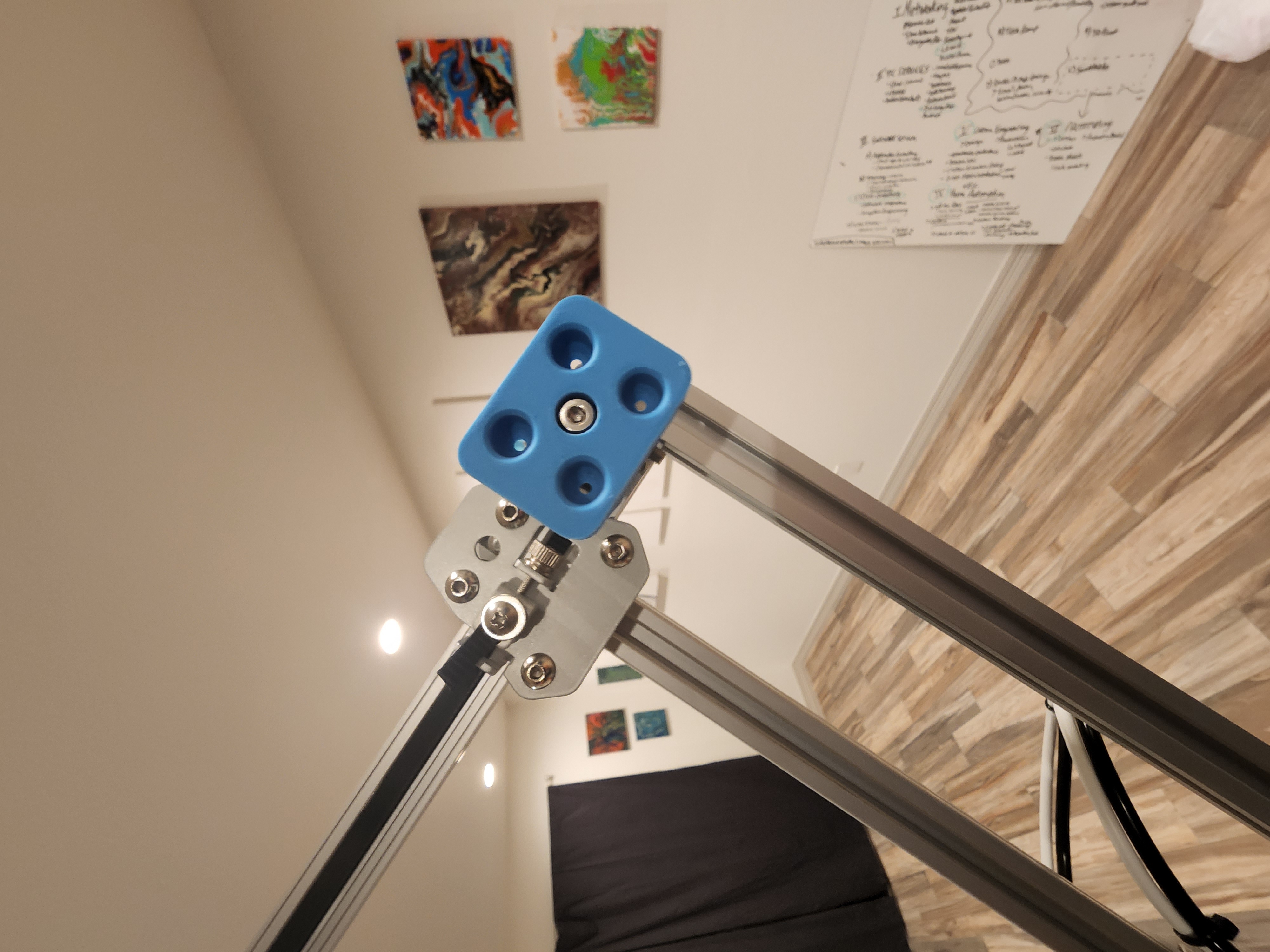

• Bolt the (4) “Laser Riser Mounts” to the feet of your laser frame using M4X12-16mm Hex Socket bolts. Nylon nuts recommended. mount running longways along the Y-Axis

2. Next set the feet on the (4) “Laser Riser Base” parts.

3. Set this assembly on the work surface you wish to mount to.

4. Trace the outline of the “Laser Riser base” with a pencil.

5. Remove the Laser assembly from the workspace

6. Align the “Laser Riser Bases” inside the traced outlines you created in step 4.

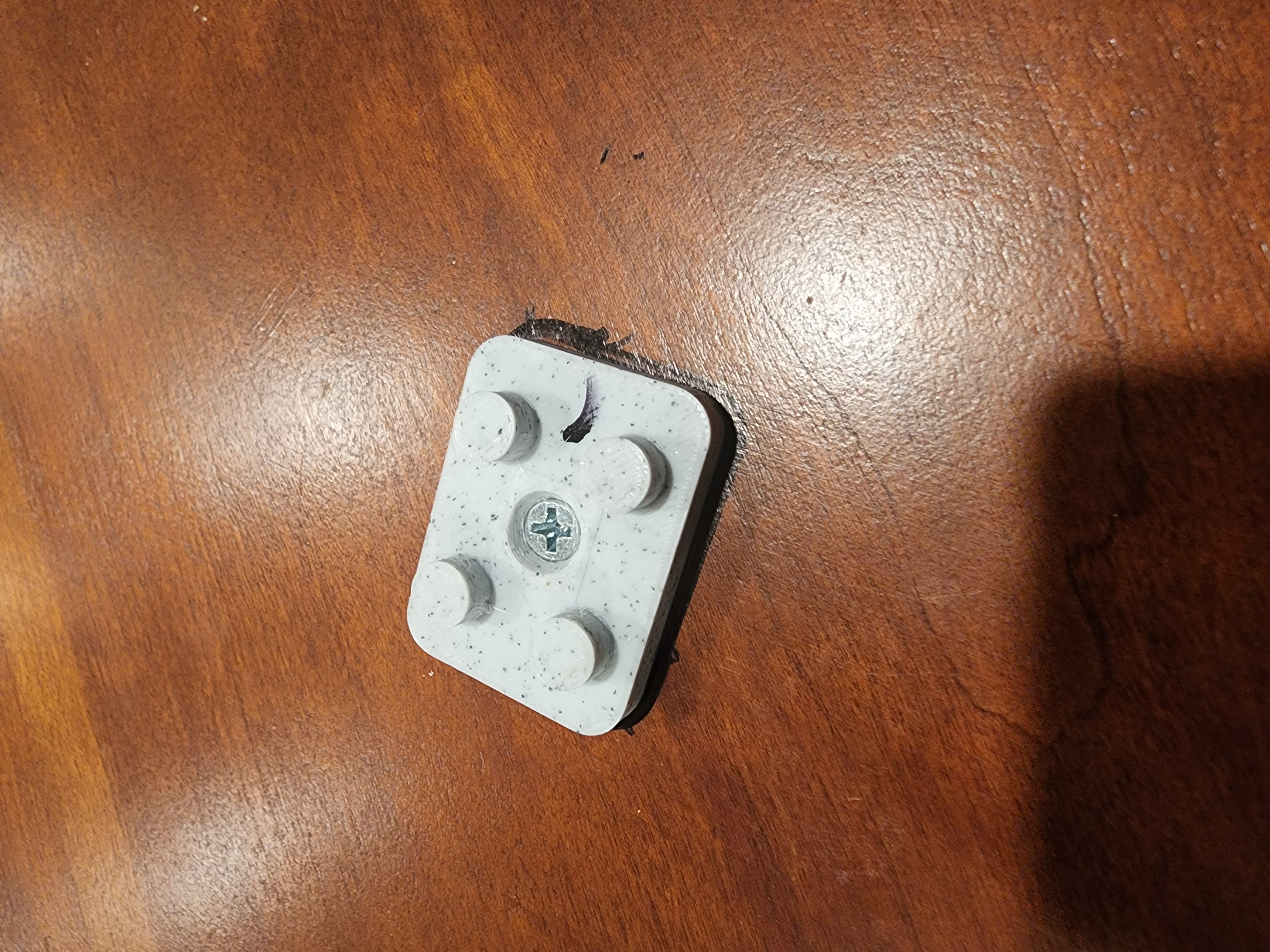

7. Run a single screw through the countersunk hole in the middle of each of the “Laser Riser Base” parts.

TIP: if possible, pre-drill these 4 holes with an appropriate drill bit for best results prior to screws.

8. Set the laser assembly over the rises bases. it should fit over them just like Legos. if adjustments are necessary just cheat your screws one way or the other.

9. Add different height riser blocks as need.

Cheers! Enjoy a beer or gummy bear.

Design and description by Enduro512 , licensed CC-BY.
