Parametric Bar Mounting Clip - Quad Lock Compatible
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~21 g
- Print time
- ~1.2 h
- Express shipping
- $20
More information

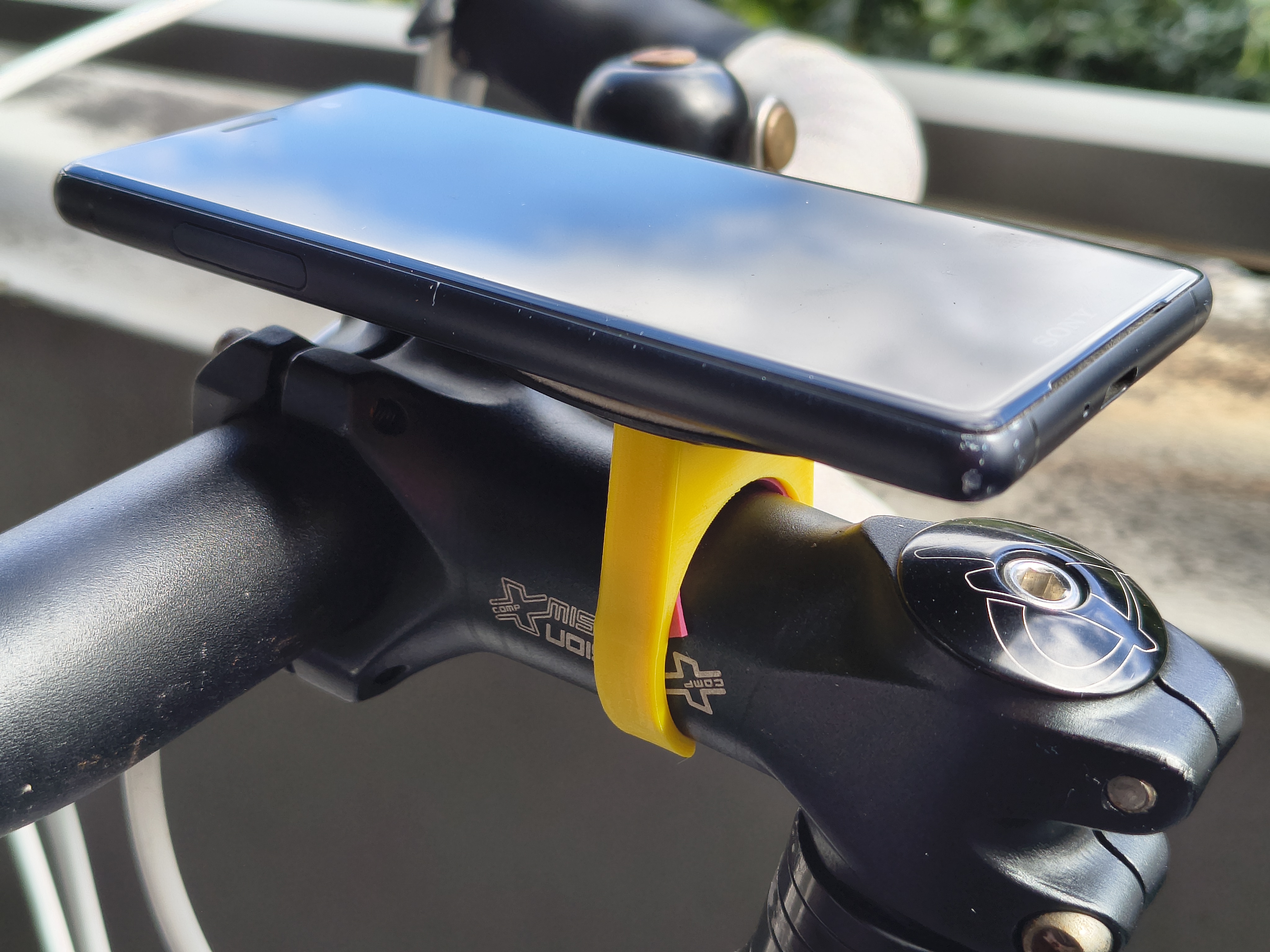

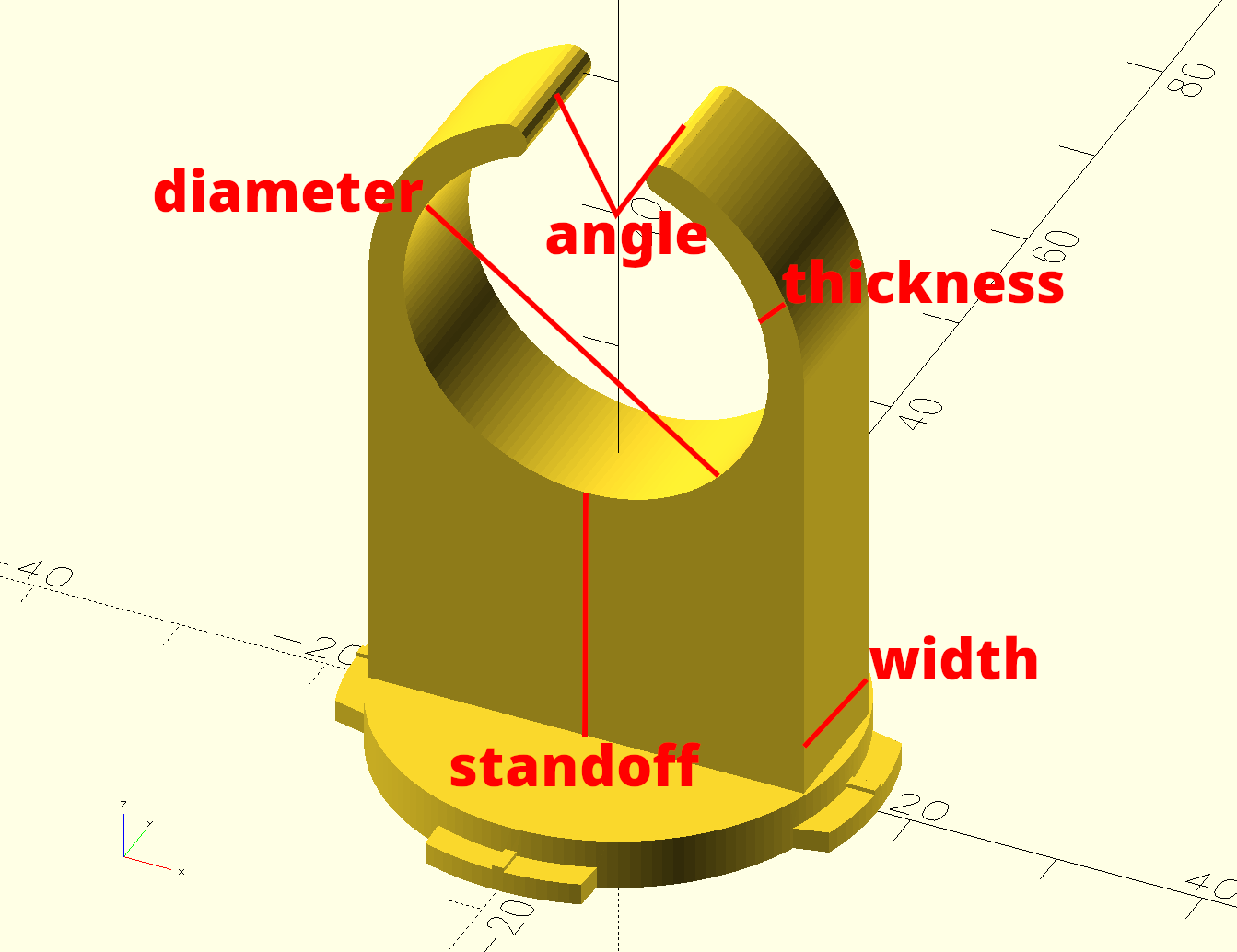

This model is fully customisable for your bike - the example .stl file included fits on mine but you can tweak all the dimensions using OpenSCAD to suit your needs. A bit of experimentation may be needed to get the fit just right, but it's a pretty quick and easy print (about 6g / 25 mins).
Compatible with all first-party Quad Lock sockets (phone cases, universal adaptors, etc.). If you need to model and print these yourself, I have models on my page you can use: https://www.printables.com/model/1393412-quad-lock-male-female-adaptors-universal-mount-for/files
Printing tips:

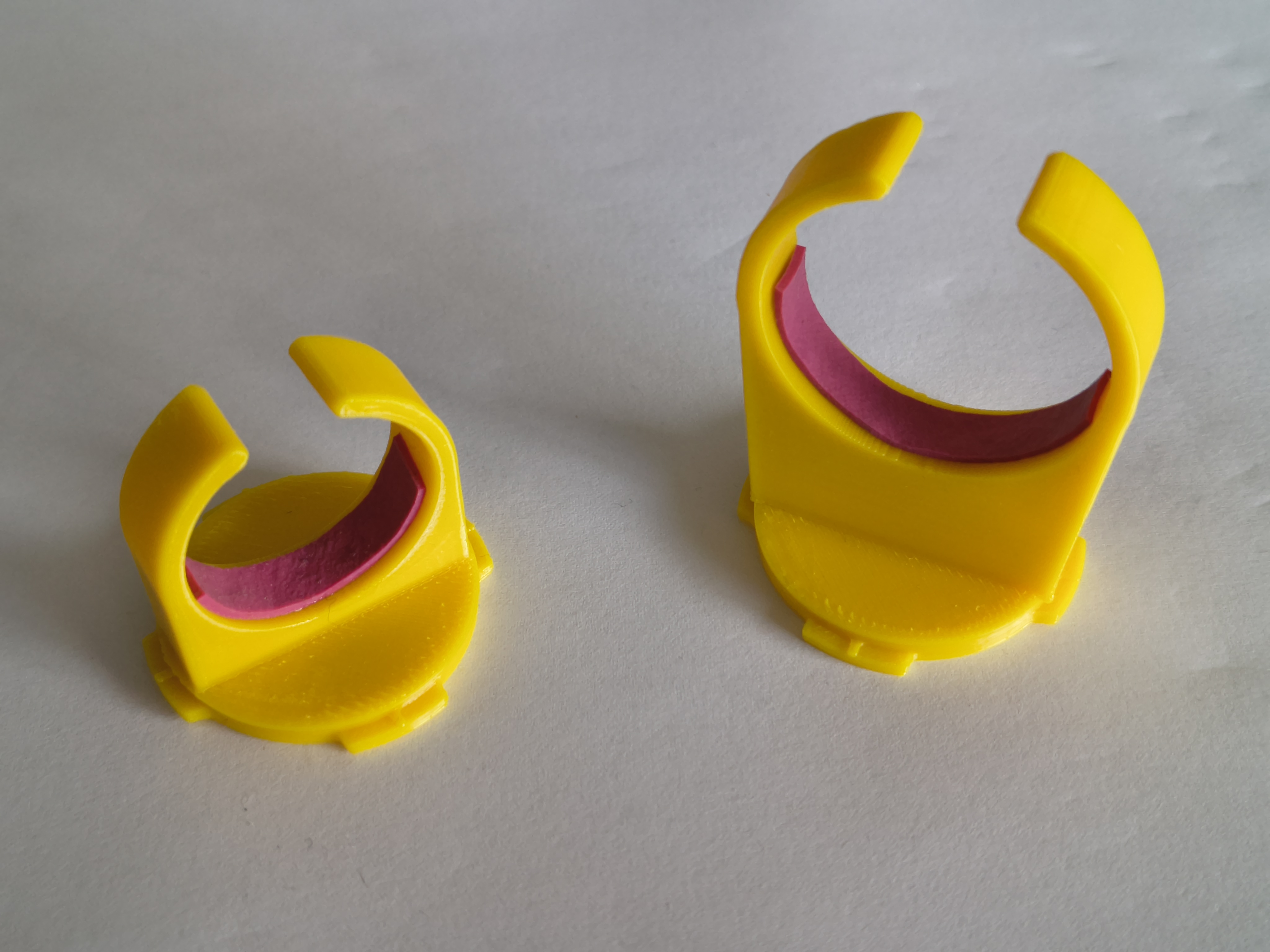

• Strongly recommend printing in a less brittle filament than PLA (PETG is a good option) • The model should be printed in the orientation that the OpenSCAD file outputs • Supports shouldn't be needed if the clip opening is large enough • Layer height ≤0.16mm to ensure the locking pins have sufficent detail: at 0.20mm only one layer is printed which makes a slightly loose fit in the socket • Glue a piece of rubber band on the inside to prevent the clip rotating too much.Glue a piece of rubber band on the inside to prevent the clip rotating too much.
Design and description by Awesomesocks , licensed CC-BY.
Frequently asked
How long does shipping take?
Parametric Bar Mounting Clip - Quad Lock Compatible is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
