Parametric Box/Tray for Ikea Skadis Pegboard

A parametric box/tray for all your Skadis needs!

This model uses the clever T-Clip System by Line Arc Line, I've included the T-Clip I used for my unpainted Skadis. If you have a painted variant or there are any fitment issues go to the T-Clip System page for a selection of T-Clips. Thank you to Line Arc Line for the cool system!

Included is a selection of pre-generated boxes/trays in various dimensions. Sorry for the somewhat arbitrary sizes I just based them off of the minimum dimensions for 2, 3, and 4 clip locations.

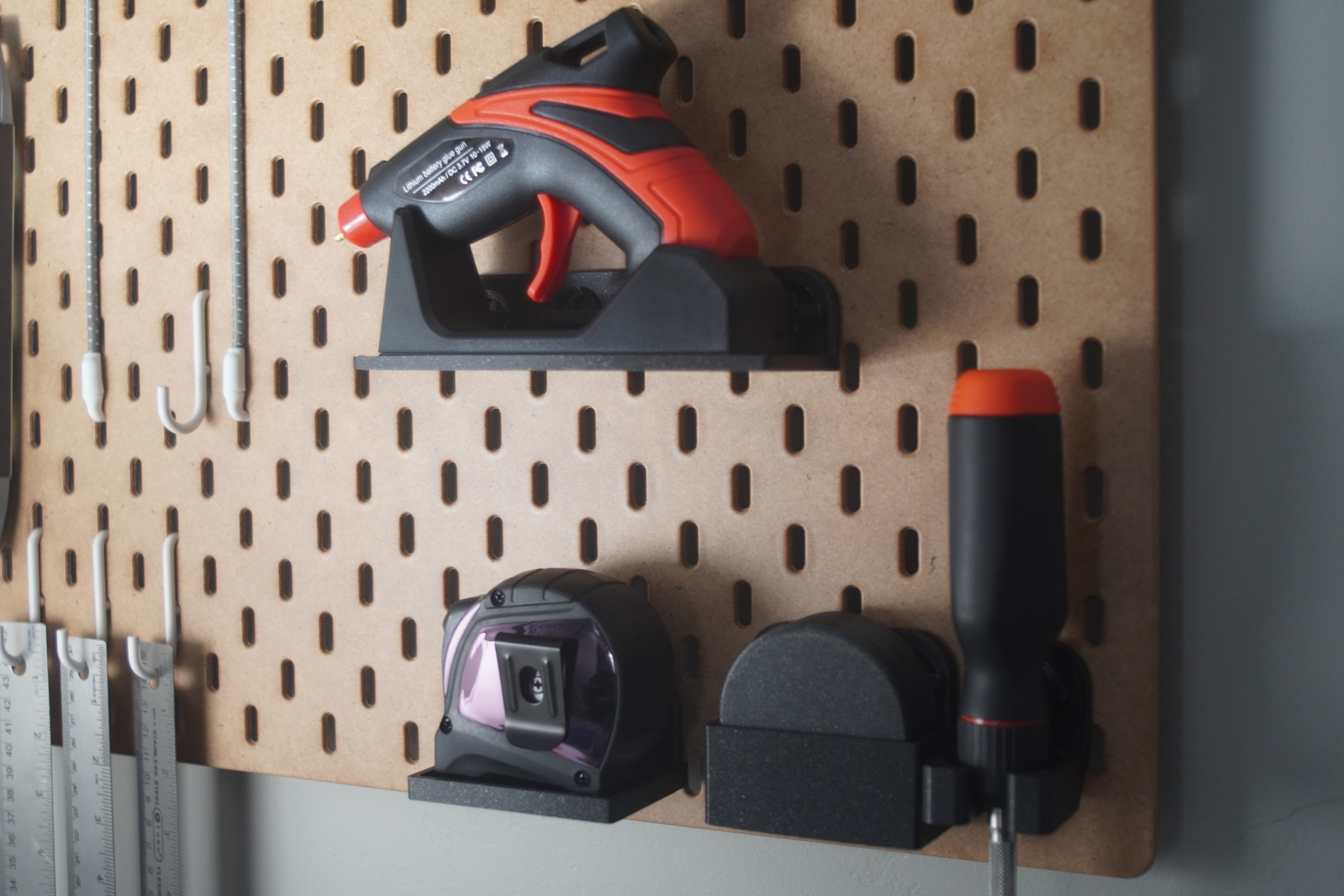

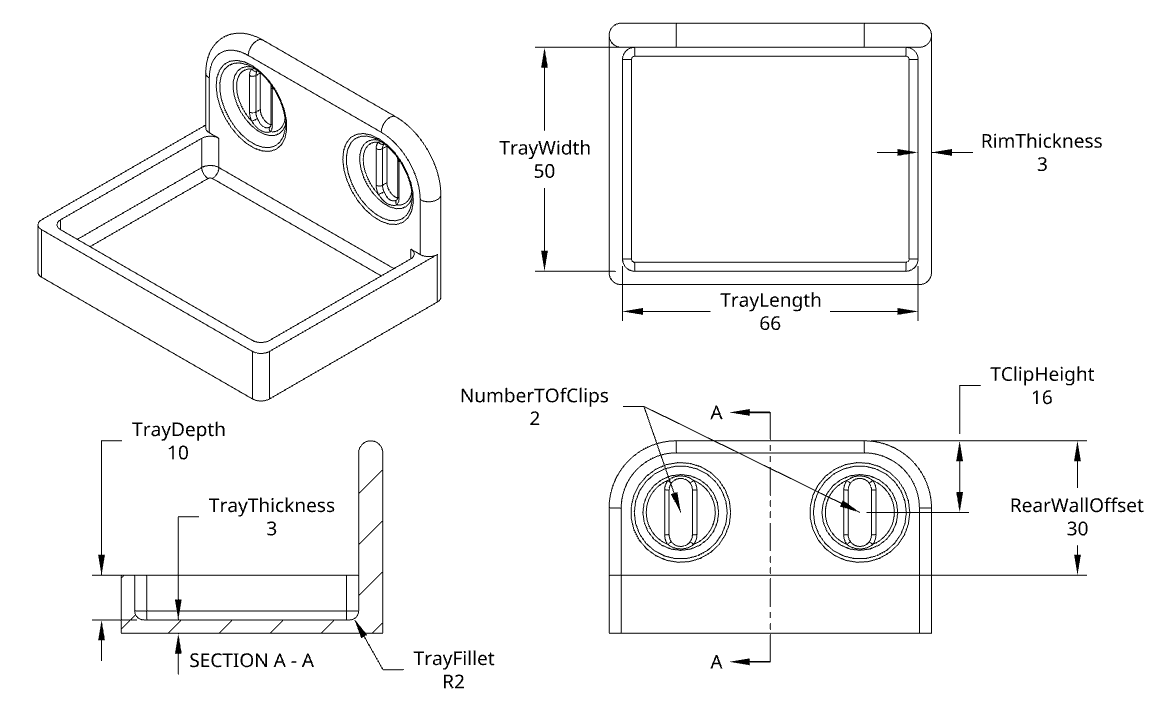

If you wish to generate your own you can do so using the OnShape Document I made. Just create a free OnShape hobbyist account and make a copy of it to edit. All critical dimensions are controlled by the Variables table accessible in the bottom tabs bar of the Document. The second image in this post shows what each variable controls. This is my first publicly shared parametric document so if there are any problems leave a comment and I'll see if I am able to rectify it.

NOTE: I recommend a minimum of 2 clips just for stability. It does appear the model can generate trays/boxes with only 1 hole (definitionally an intentional feature and not an accidental success of my equations) so you can if you want to risk it.

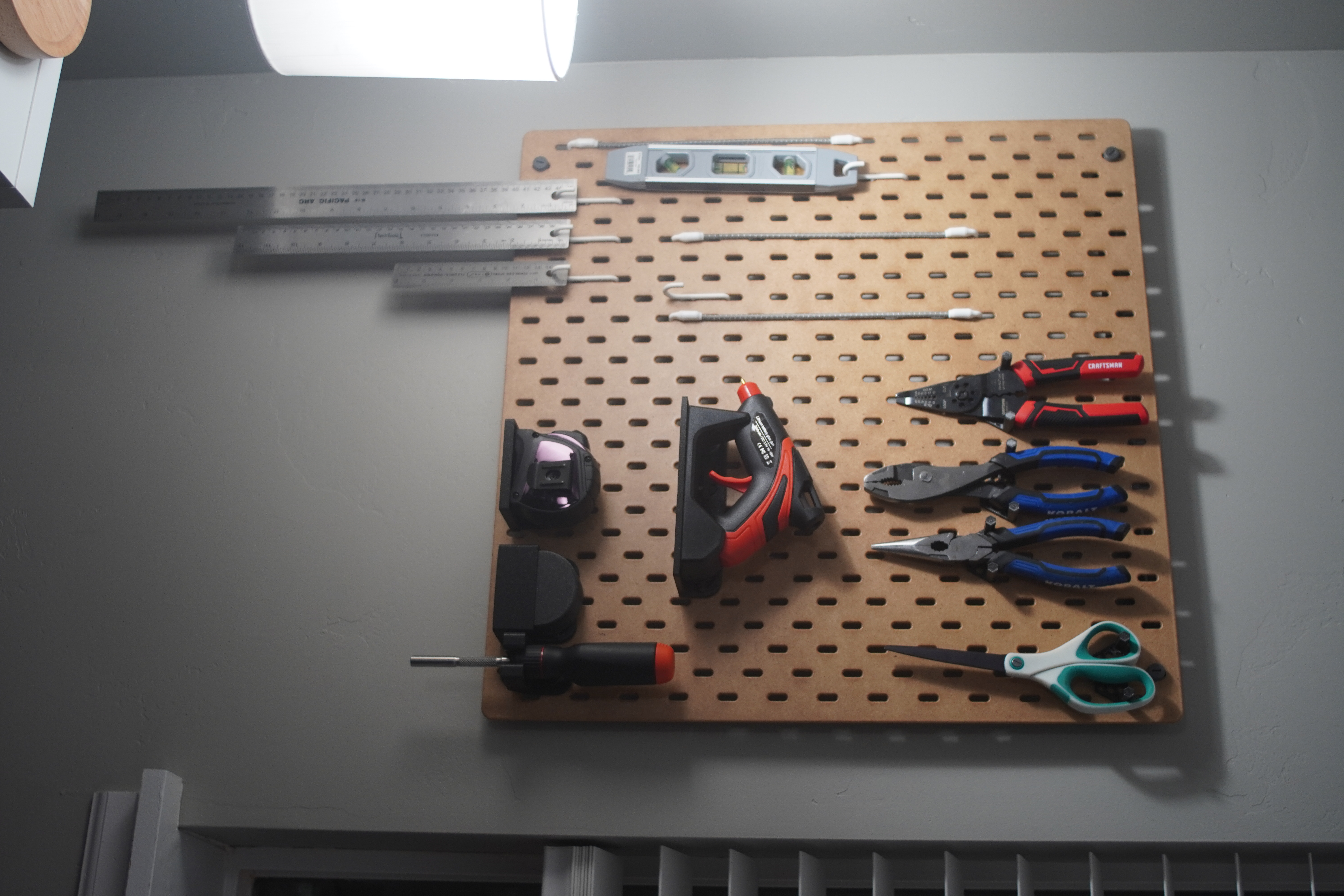

I hope you enjoy this model and may it bring order to your setups!

All included models can be printed without supports.

Design and description by Saphira , licensed CC-BY-SA.
