Parametric Stackable Tray (Spiral Vase Mode)
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~19 g
- Print time
- ~1 h
- Express shipping
- $20
More information

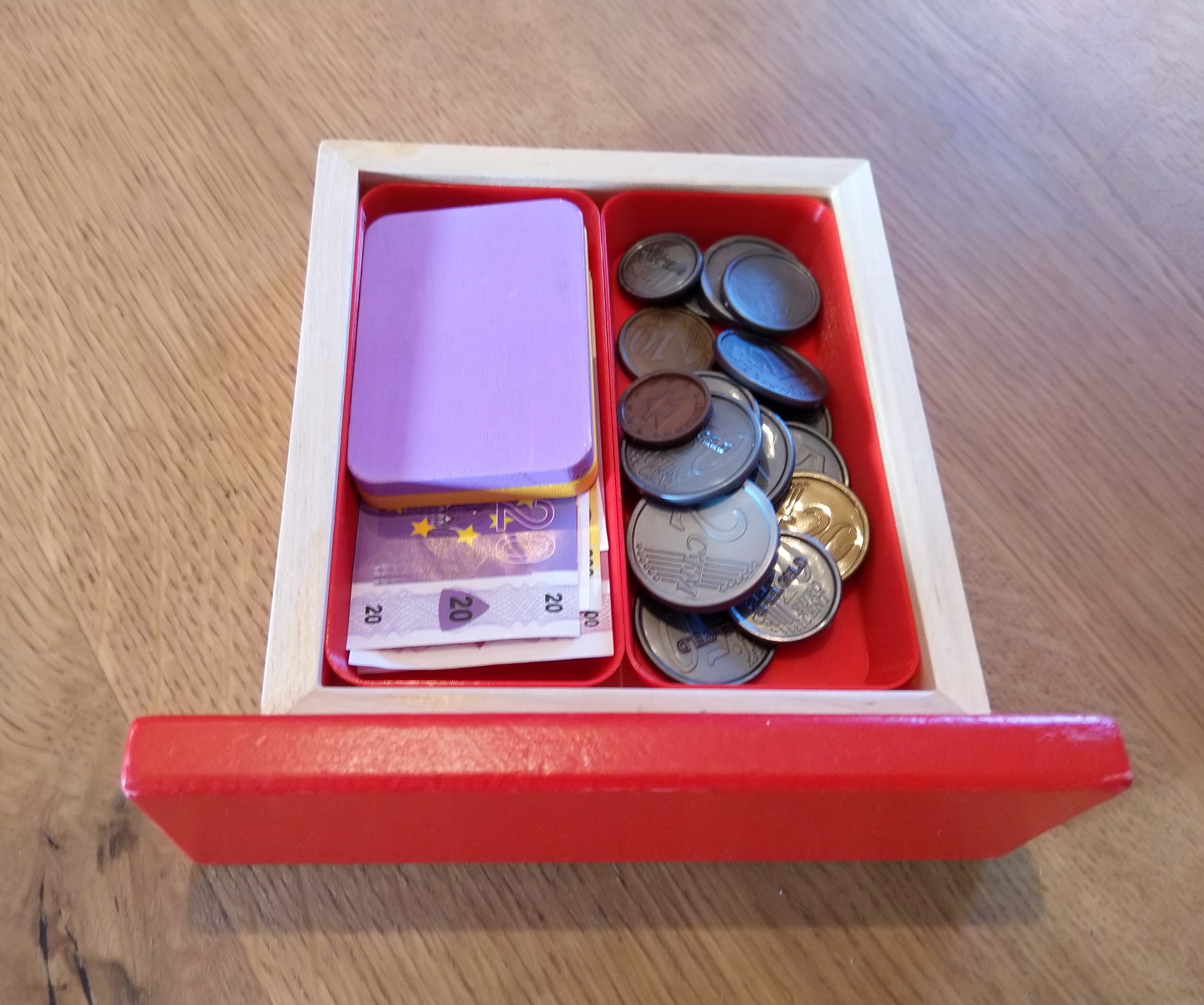

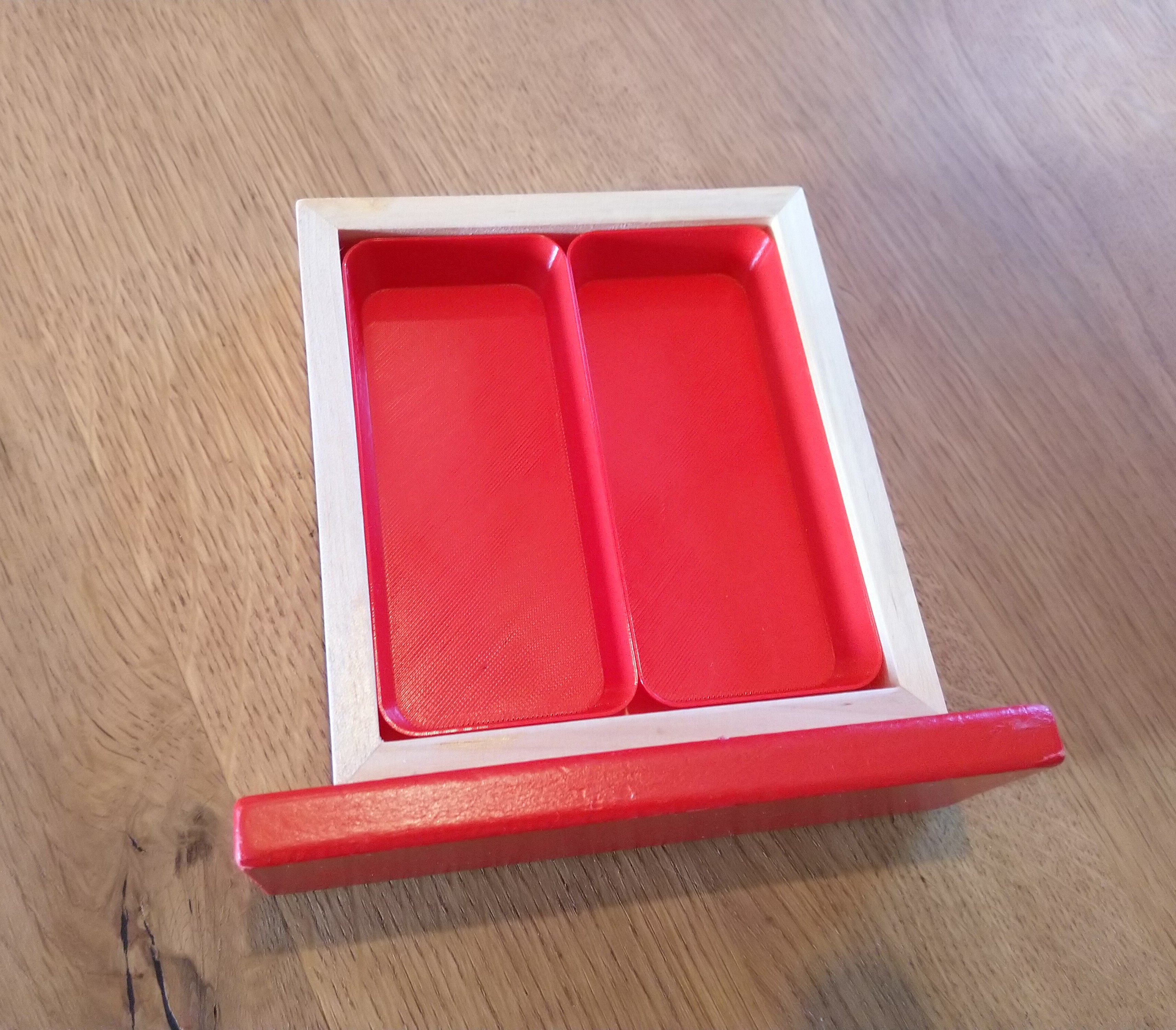

I needed a tray for my kids cash register, so I designed one.

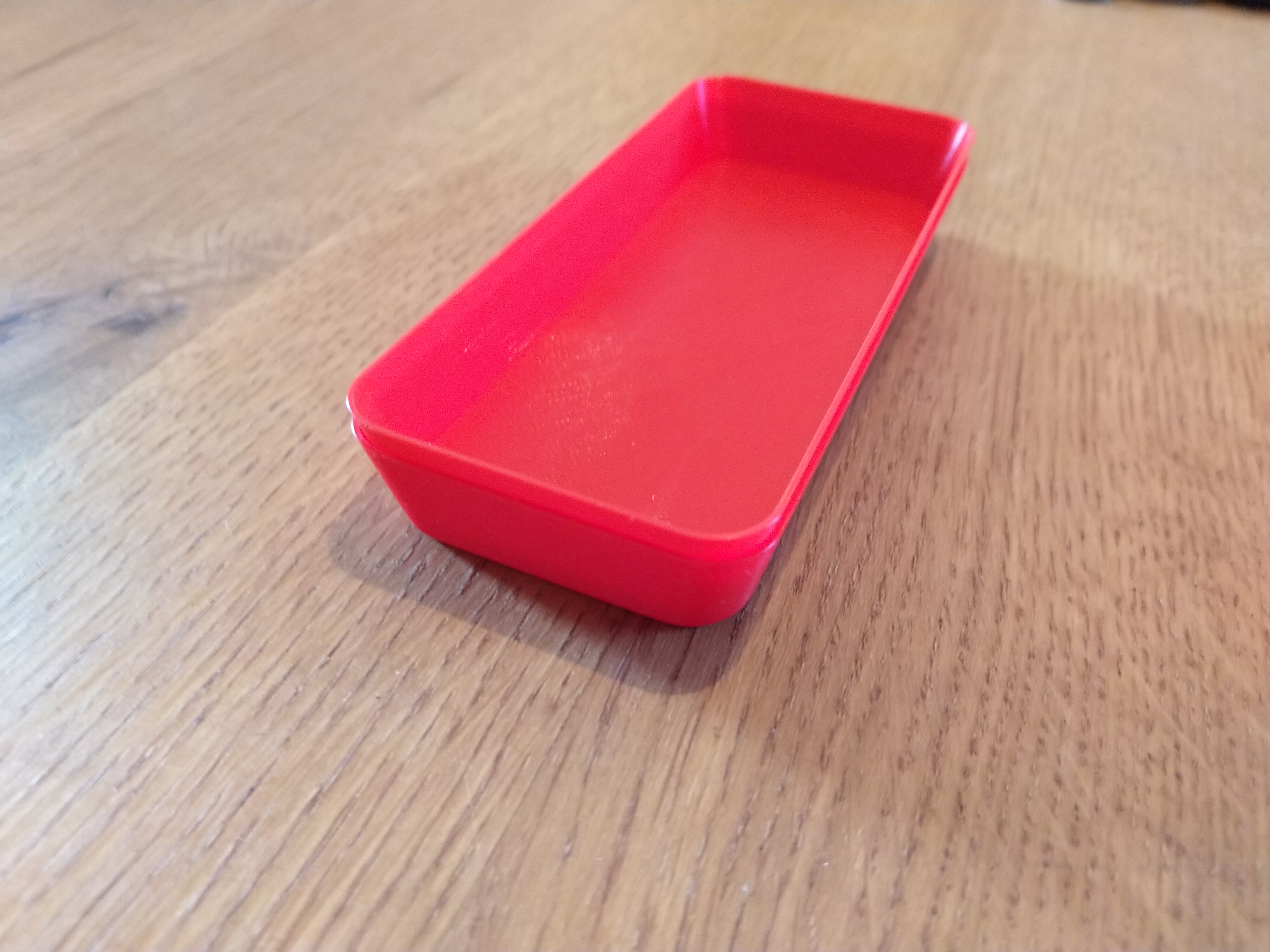

It is intended for spiral vase mode print for fun and profit. (Well, saving time and filament that is).
The attached FreeCAD file can be parameterized via the data spreadsheet. Besides length, width, height and bottom and side radius, the “steepness” of the box can be controlled via the Wall Gap parameter, i.e., the delta between the top dimensions and bottom dimensions on each side. See the attached drawing for more details.
I've attached the .3mf from PrusaSlicer with the settings I used for my print. I basically enabled “Spiral vase” in the “Printer Settings”, accepted all suggested changes and changed the “Extrusion Width” (Advanced Settings) modified the “Perimenter” and “External Primenter” to 0.8mm. Printed with a 0.4 nozzle in PLA.
Design and description by Zapster , licensed CC0.
Frequently asked
How long does shipping take?
Parametric Stackable Tray (Spiral Vase Mode) is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
