Pi Zero/Zero 2 W 2040 Extrusion Mount
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~10 g
- Express shipping
- $20
More information
Summary

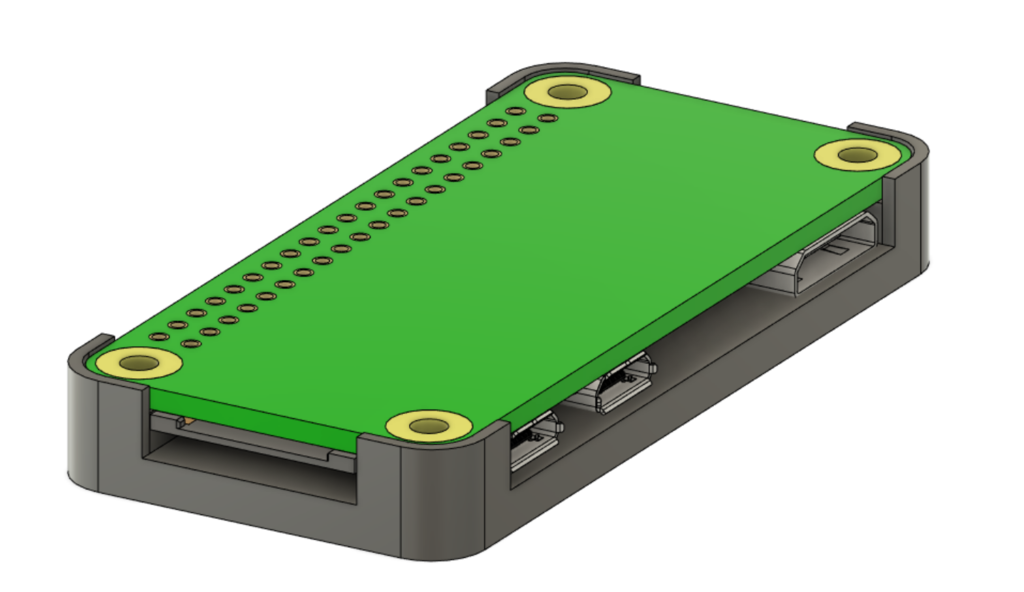

Minimalist Raspberry Pi Zero / Pi Zero 2 W mount for 2040 extrusion (also works on 2020).
Print with a 4 perimeters for extra strength.
Instructions:

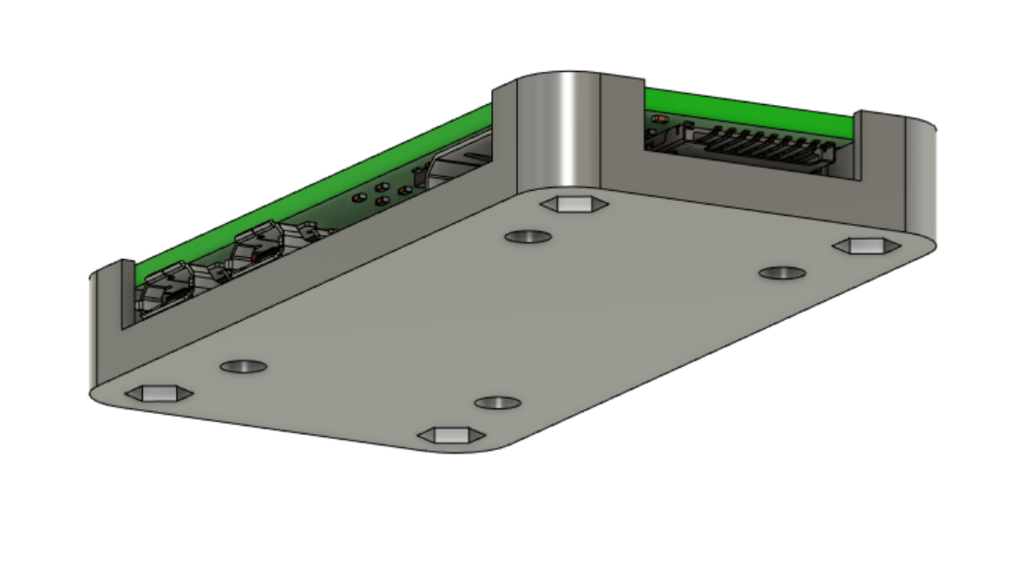

• Print • Insert M2 Nuts into slots on underside • Insert M3 T Nuts and M3x6 Flat Head bolts loosely • Align T nuts to V Slots and attach to extrusion. • Attach Raspberry Pi Zero/Zero 2 W (works both upright or upside down according to your preference) and attach with M2x6 bolts
It is not necessary to use all 4 M3 Bolts/T-Nuts to attach to to frame, 2 is more than sufficient.
note: The holes for the nuts/screws holding the raspberry pi down are intentionally filled with a single sacrificial layer. This allows your printer to bridge over the holes for the nuts, rather than needing supports or trying to print over nothing. This layer is easily removed, and leaves your printer looking significantly cleaner.
Design and description by jamon , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
Pi Zero/Zero 2 W 2040 Extrusion Mount is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
