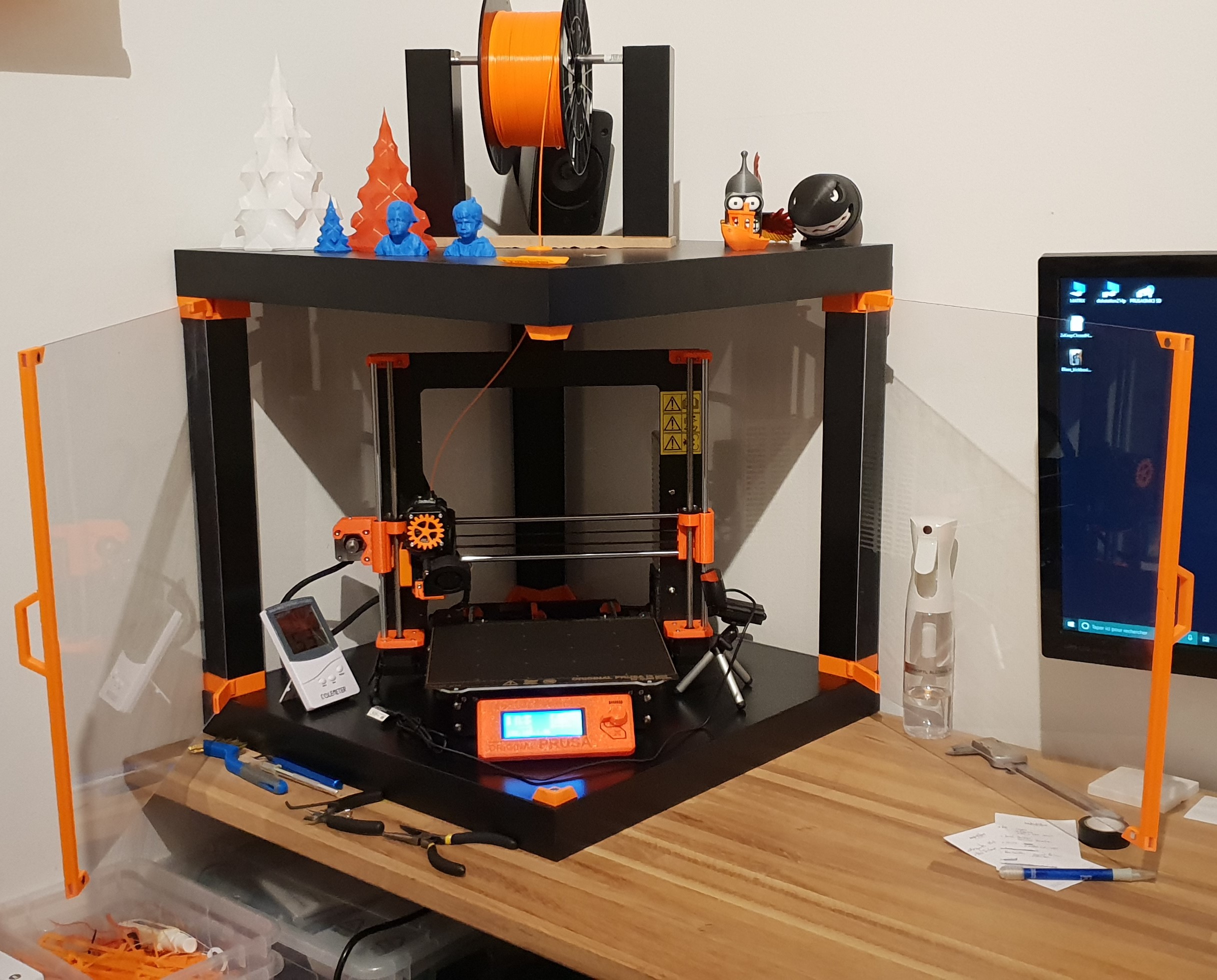

Prusa i3 MK3 Corner ENCLOSURE - Ikea LACK table

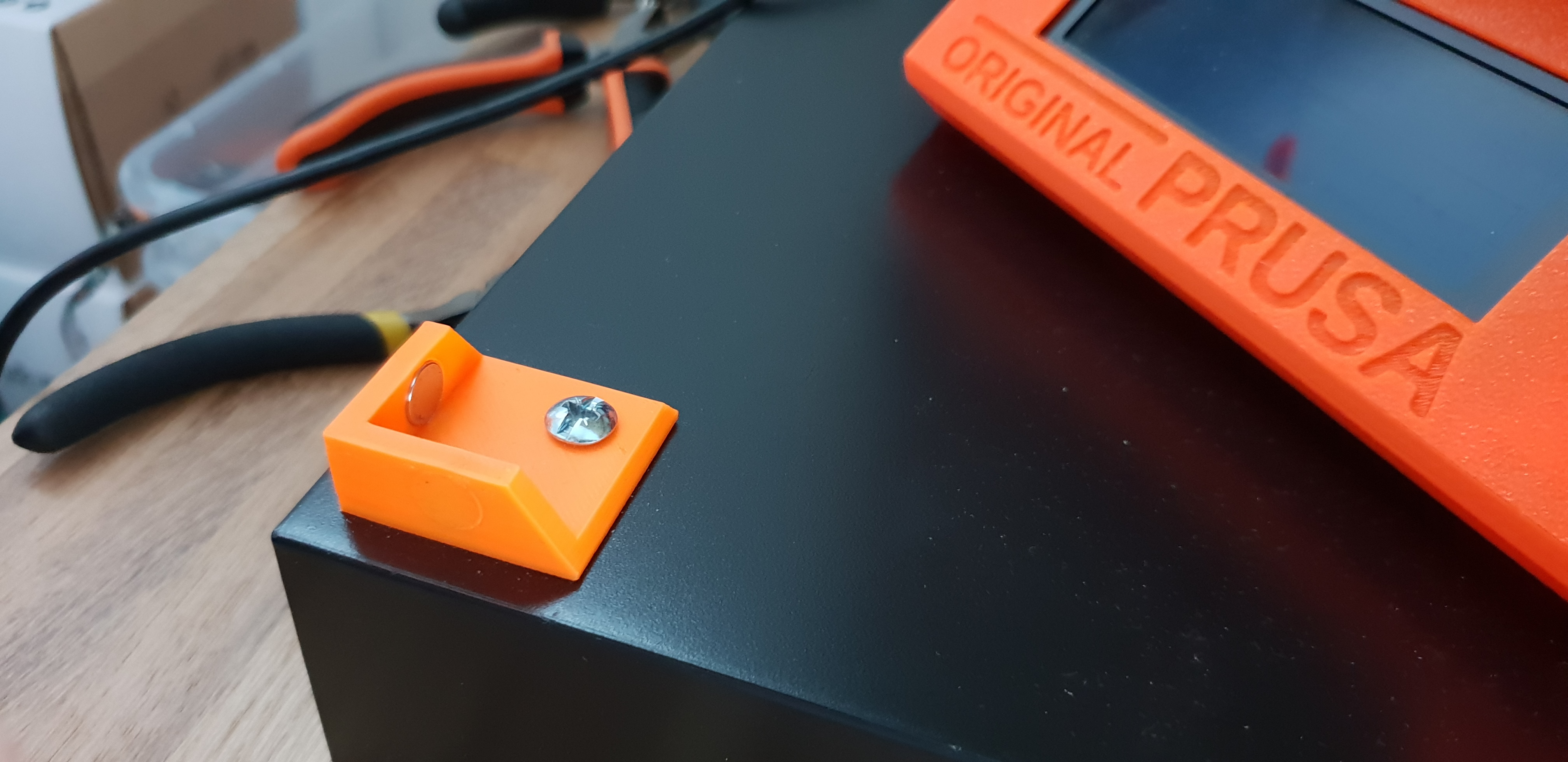

Top Corners inclueds brackets that allow you to use the original screws that came with the Lack table.
The second Bottom table is screwed to the legs througt the Bottom Corners parts.
I made the gaps a bit tighter so the Plexi won't slip out.
Let me know if it is good, too tight or too loose..
What you'll need :
Print :
1x Prusa_Enclosure_Top_Corners_2.5mm or 3mm version
1x Prusa_Enclosure_Bottom_Corners_2.5mm or 3mm version

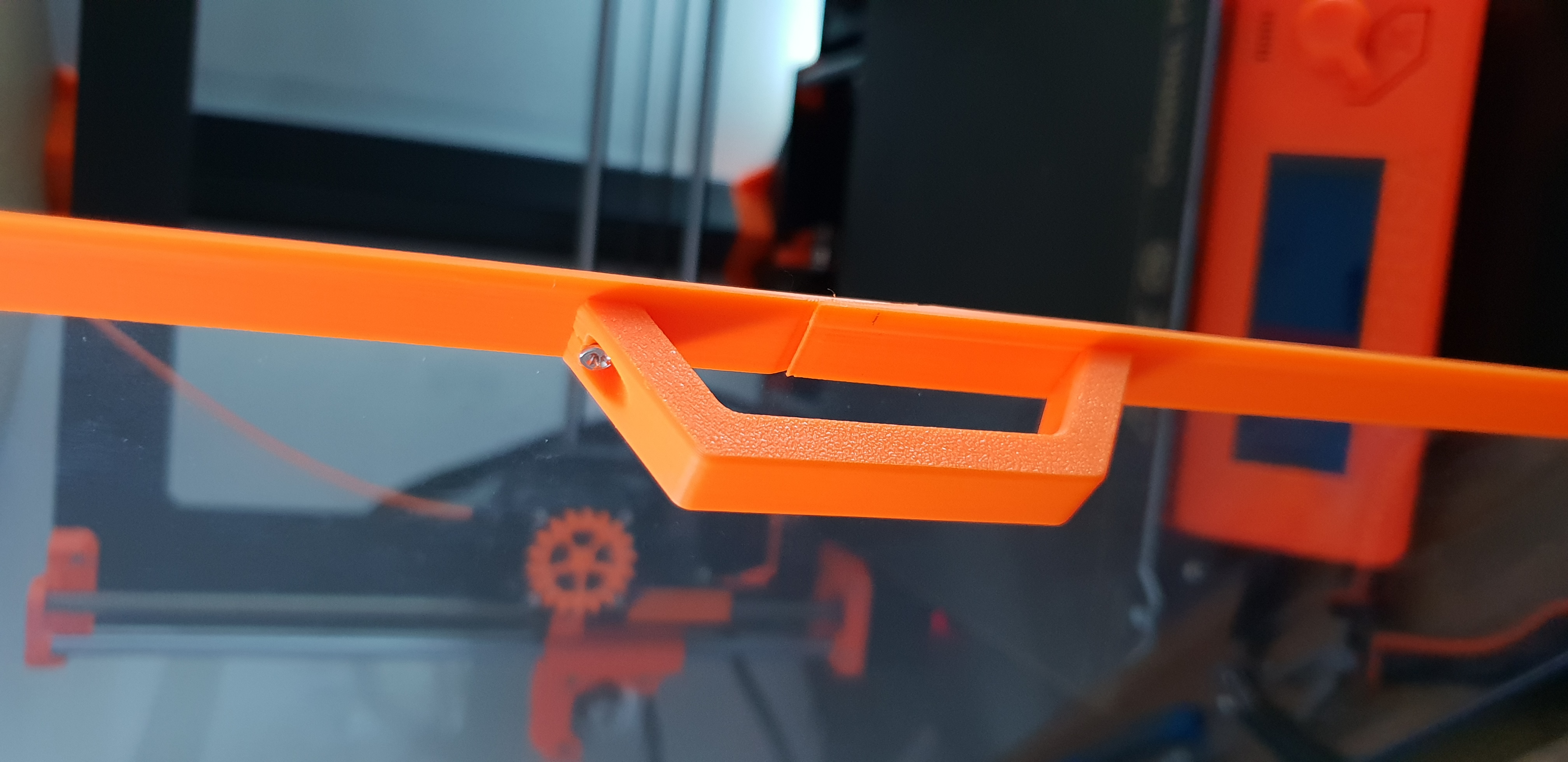

2x Prusa_Enclosure_Door_2.5mm or 3mm version
1x Prusa_Enclosure_Filament_guide
Plexiglass dimensions:
2pcs: 435 x 440 mm, thickness 2.5mm or 3mm
2pcs: 435 x 495 mm, thickness 2.5mm or 3mm
Neodyme Magnets
8pcs: N52 disk 8x3mm
Screws
3pcs : Original Ikea Lack screw
3pcs : 5x120mm screw
2pcs : 5x1.5mm screw
Tools :
4mm & 5mm wood drill
16mm chamfer milling drill
Philips screwdriver
With the 4th Leg, il build a Spool Holder on top of the enclosure.
You'll need :
The 4th Leg
2pcs 5x120mm screw
1 10mm thick rod
Files used and modified :
• Door Handle keep closed - https://www.thingiverse.com/thing:36465
• Original Prusa i3 MK3 ENCLOSURE -Ikea Lack table - Prusa Research - https://www.thingiverse.com/thing:2864118
Print instructions
Printer Brand: Prusa
Printer: i3 MK3
Rafts: No
Supports: No
Resolution: 0.2
Infill: 20%
Design and description by Inglord , licensed CC-BY.
