Prusa MK3S nozzle camera mount (no support required)
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~3 g
- Express shipping
- $20
More information
A simple, easy to print holder for an endoscope/borescope. Will accommodate 7.5mm diameter camera, should work ok with smaller ones (eg, 5.5mm) too thanks to clamping screw.
Retains the camera position geometry from the original, but redesigned to use just one mounting bolt (M3x25) and to print without support. Also has a simple hole to self-tap an M3 (eg M3x6 or M3x10) to clamp the camera. Carefully work an M3 bolt into the clamp hole in and out a couple of times to tap the thread before you mount the holder onto the E-axis. Don't overtighten either of the bolts (as per usual Prusa mantra) to avoid cracking the mount arm or damaging your camera.
I was asked to add the source F360 file, which I've done. However, it was a bit of a hack as I started from an brep to get the main geometric relationship, then had to work with odd angles to get the right printing orientation - lots of construction planes etc. And then I had to fill in under unprintable overhangs. I just wanted to get it done, not do it "properly". So it's a mess and not my usual standard of design work!
Print instructions

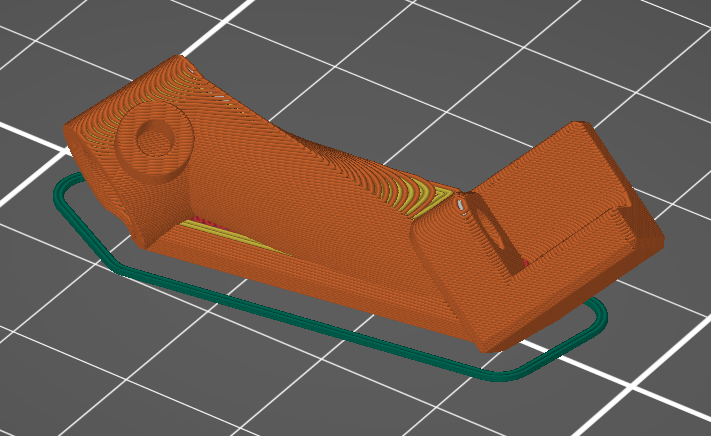

Use PETG or any filament that can take the heat from the print bed (not PLA). 3 perimeters, 20% infill, 0.15mm layers.
Design and description by tg73 , licensed CC-BY.
Frequently asked
How long does shipping take?
Prusa MK3S nozzle camera mount (no support required) is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
