Quick Release Tube Clamp for 24mm BAM Mount
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~78 g
- Print time
- ~4.3 h
- Express shipping
- $20
More information
This clamp has a 24mm mounting ball compatible with several other mounting options such as this one: https://www.thingiverse.com/thing:3500920 It is intended to clamp onto a 16mm tube/pipe/pole, however, if you need other sizes, you can use the linked OnShape document as a starting point to create them.

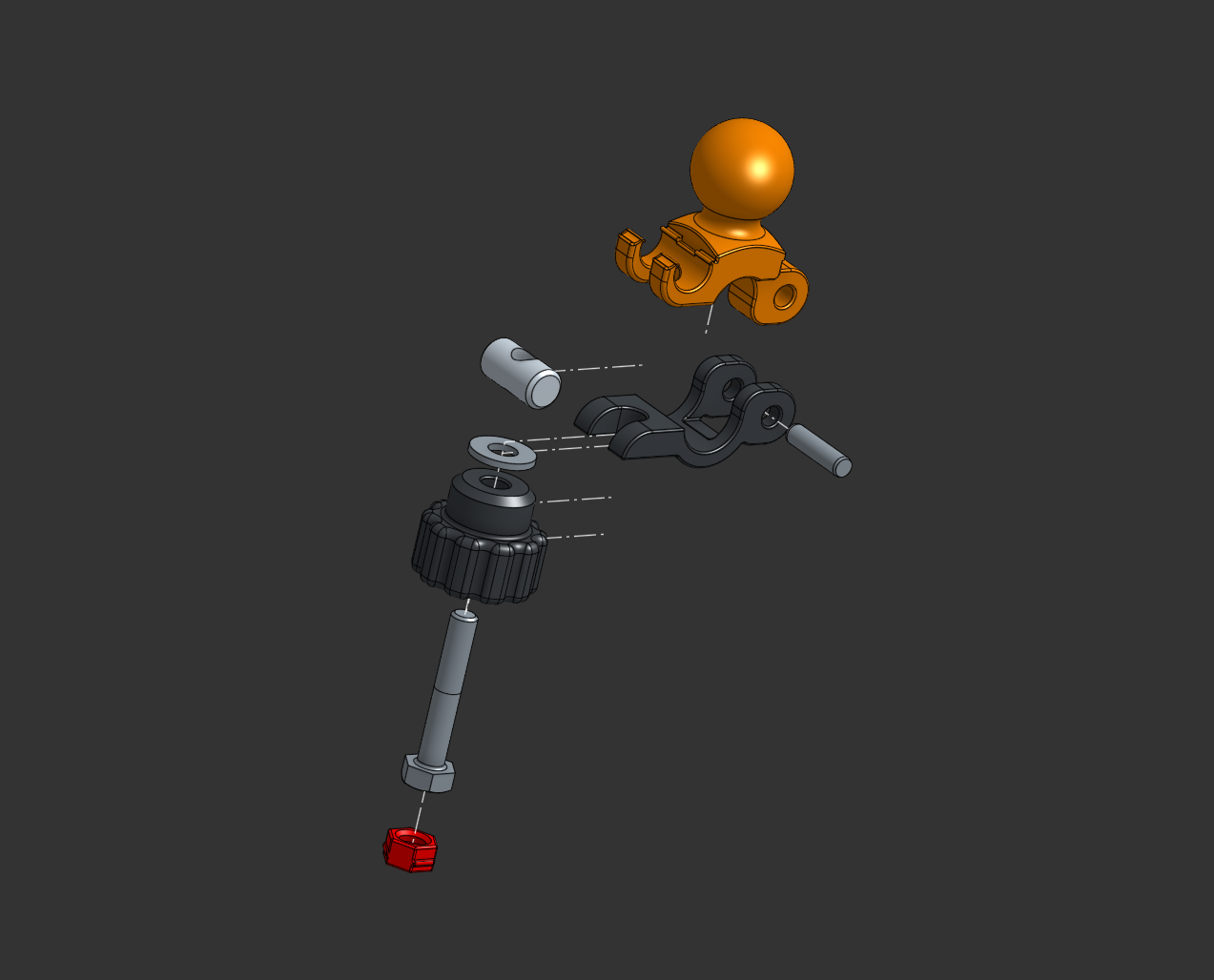

The hinge pin is designed for M5 x 20mm steel pins which are easy to find on Amazon, or you can use an M5-0.80 x 40mm bolt and nylon locking nut. The clamping hardware used is a M6 x 40mm bolt with a washer and a M6 x 20mm cross dowel nut, also from Amazon. The OnShape document also has a configuration for 1/4-20 hardware available from Home Depot.
The ball has a flat side so it is easy to print without supports for the ball, resulting in a smoother ball. The hinges still do need supports.
Recommended Print Settings
• 5 outer walls
• 40% infill
• 3d Honeycomb infill pattern
• Organic tree supports
I've also included a compatible knob for convenience.
Configurable OnShape model: Tube Clamp - Quick Release
Check out my Configurable Bolt Knob to create knobs for this and other projects!
Design and description by YourRobotOverlord , licensed CC-BY.
Frequently asked
How long does shipping take?
Quick Release Tube Clamp for 24mm BAM Mount is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
