Raspberry Pi 3B+ Case

Update 2: I've added multiple versions with slots for the camera cable and display cable. This means that now all possible usage combinations for GPIO, display and camera can be used. The .STL files indicate what slots are present in that design.

Update: I added a second version of the top part of this case, which has a cut-out for those who want to use the GPIO pins. The .STL file is included with the thing files. There's also an extra image that shows the cut-out with the official 3B+ technical drawing as an overlay, on which I based the location of the cut-out.

This design is based on 0110-M-P's design: https://www.thingiverse.com/thing:922740

There are several changes in this model (compared to the original design):

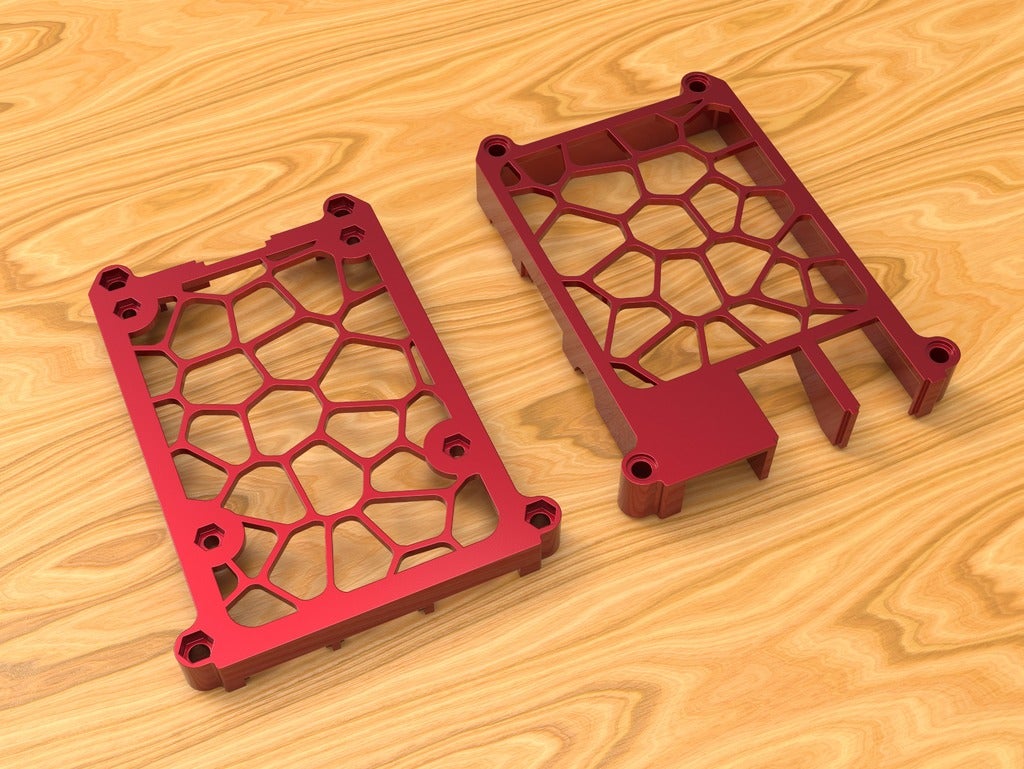

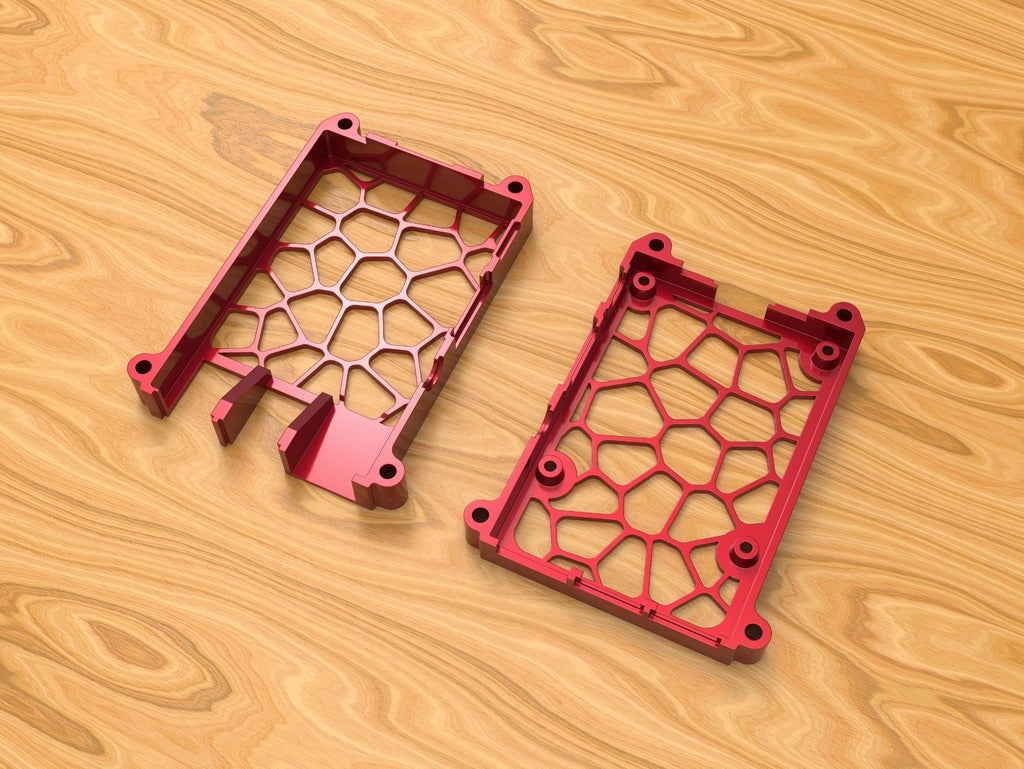

• Voronoi pattern cutouts in the top and bottom piece, allowing the chips on the Raspberry Pi to radiate their heat. • Removal of the mounting holes on the bottom part of the enclosure. • Thicker mounting standoffs for increased strength and durability. • Hexagonal cutouts on the bottom part of the enclosure, which allows you to close the case with M3 nuts and bolts. The Raspberry Pi can be mounted using M2.5 nuts and bolts. • Increased hole diameter, which means you no longer need to tap the plastic. However, this also means that you have to use nuts to close the case and mount the Raspberry Pi

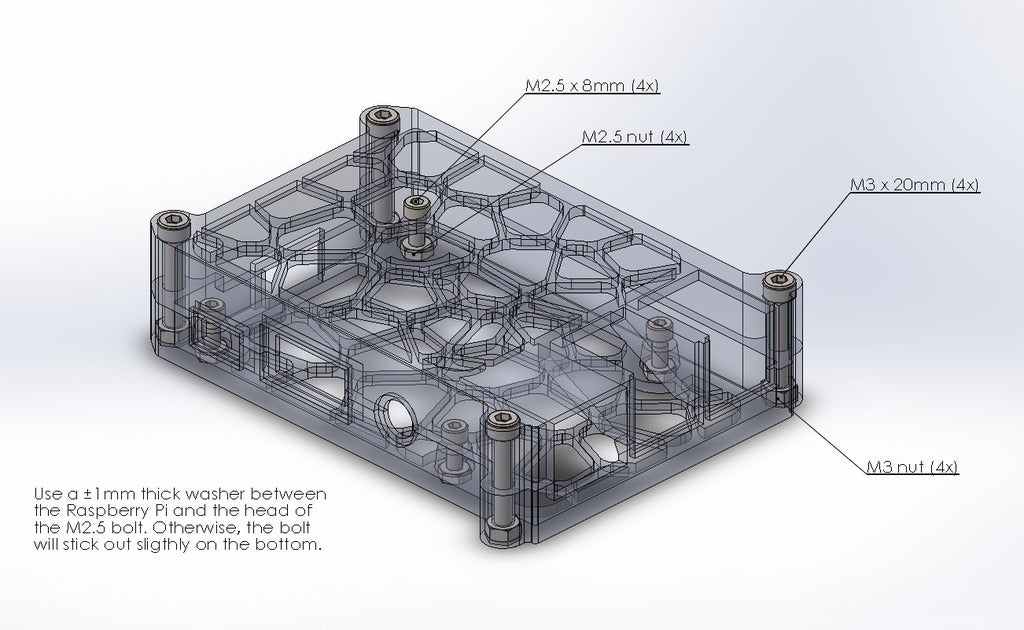

The fourth image shows exactly what hardware you need to mount the Raspberry Pi and to close the case.
