Raspberry Pi 4B Mount for Prusa MK3/S (Octopi/Octoprint)
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~20 g
- Print time
- ~1.1 h
- Express shipping
- $20
More information

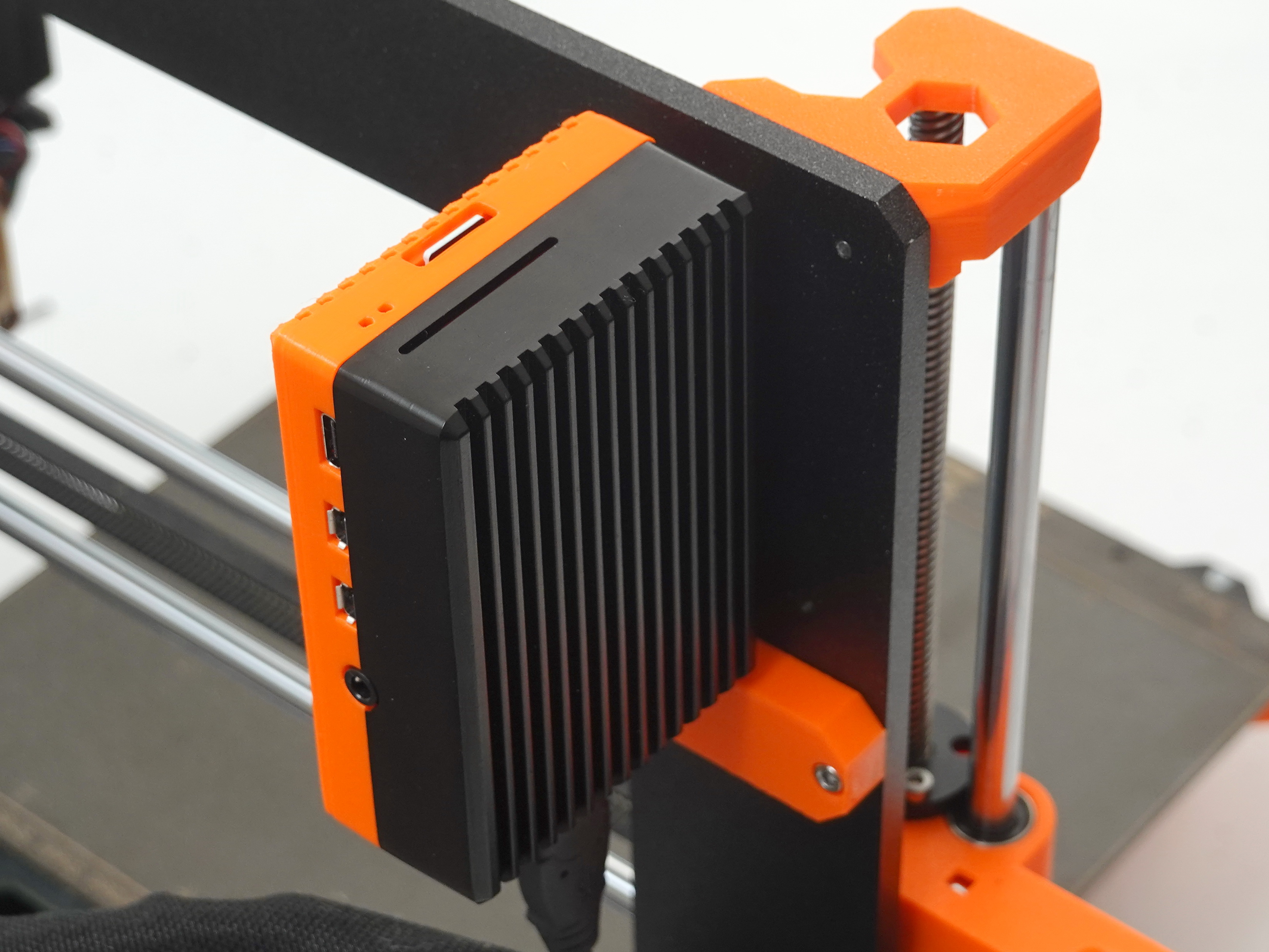

This item is a replacement for the bottom of a Geekworm Heavy Duty Aluminum case for RPi4 which mounts to the back on a Prusa MK3/S frame above the electronic box.
The Geekworm Case (Amazon US) is a generic, inexpensive aluminum case for the RPi4, meant for passive cooling, with the top of the case contacting 4 chips on the RPi4 board and serving as a big heatsink.

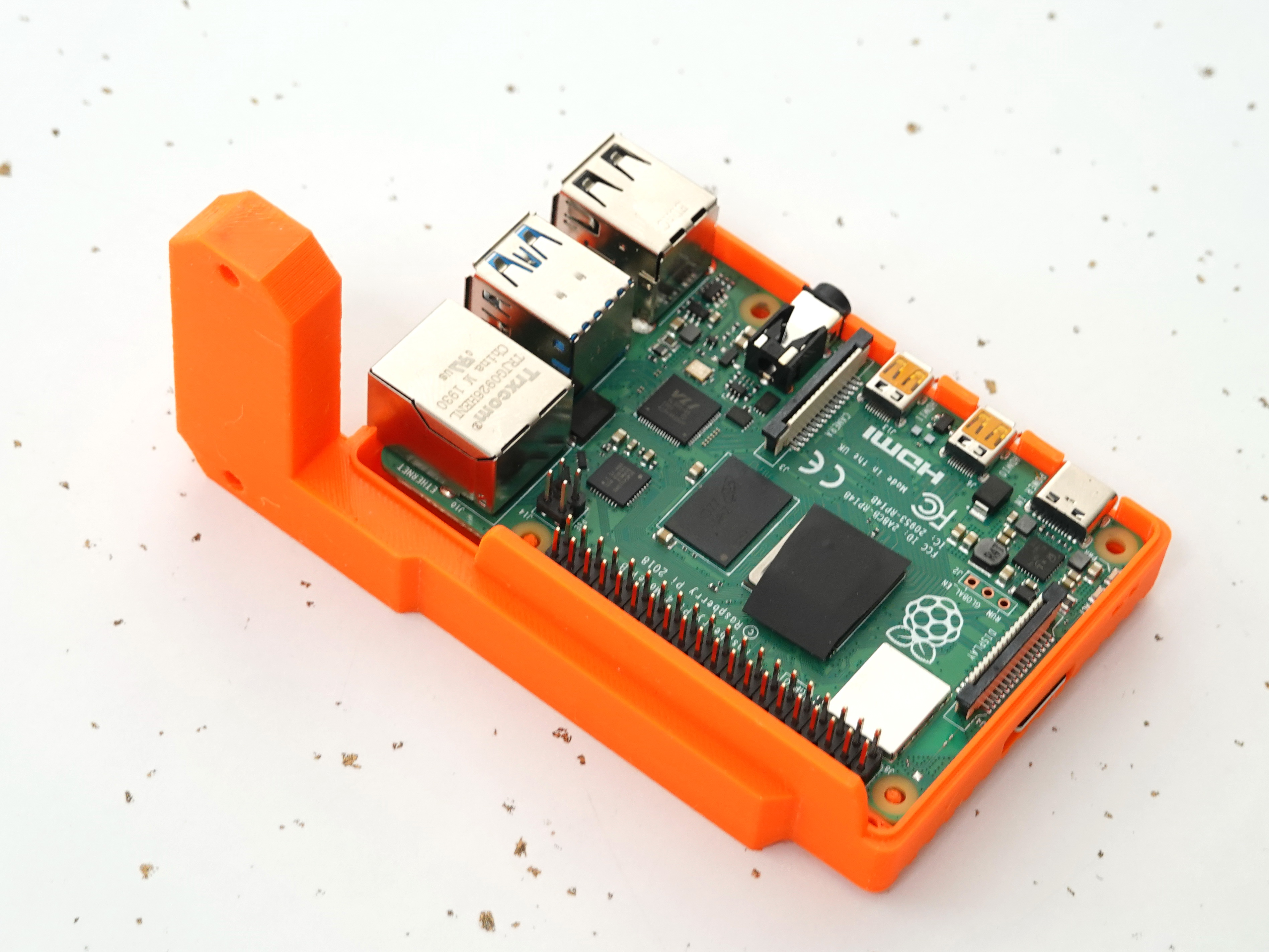

This project replaces the bottom of the case with a near-identical design, adding a mount for the MK3/S frame, combining the thermal performance of the passive cooling aluminum top with the matching integrated mount at the bottom.
Two screws are required to mount the case to the frame:
• Original version: The total thread depth with frame is 13.2mm, so a M3x12 is best. M3x10 will work in a pinch and M3x14 will stick out a bit but will clear all moving parts.
• Lowered version: The total thread depth with frame is 9.2mm, so a M3x8 is best. M3x6 will work in a pinch and M3x10 will stick out a bit but will clear all moving parts.

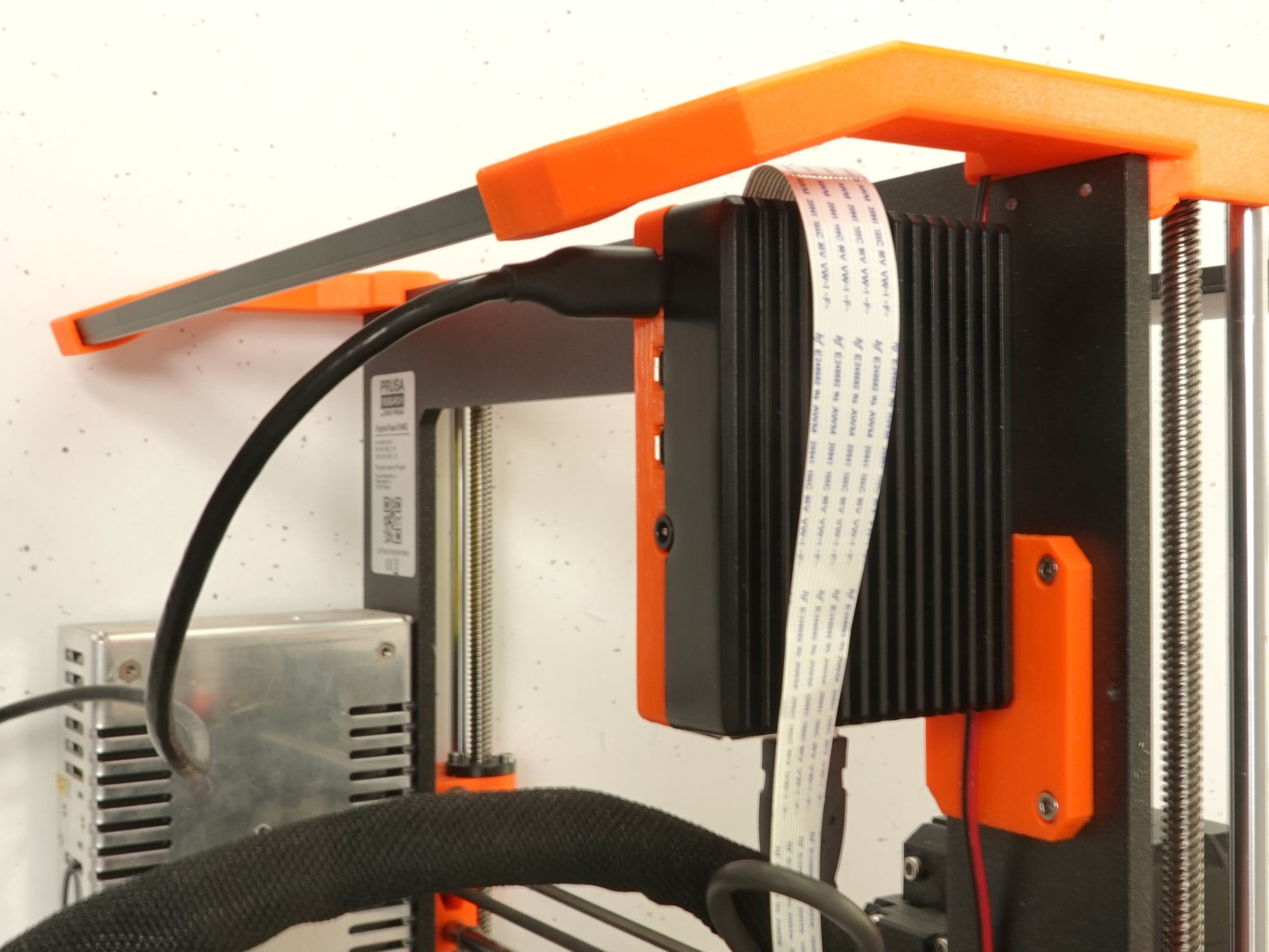

April 2021 Update: Added a version sitting lower on the frame to clear the excellent LED Light Bar Prusa i3 MK2/MK3. The mount uses different screw holes and looks a bit different. The rest is identical.
Print instructions
The bottom get can get a bit hot so I recommend printing it in PETG or higher temperature material.
The bottom is designed to print without support at 0.2mm layer height. It should work with other settings.
Design and description by Laurent's Lab , licensed CC-BY-SA.
More 3D printed Raspberry Pi cases and mountsMore 3D printed Prusa accessories
Frequently asked
How long does shipping take?
Raspberry Pi 4B Mount for Prusa MK3/S (Octopi/Octoprint) is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
