Raspberry Pi HQ Camera Mount for the Articulating Camera Mount
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~6 g
- Express shipping
- $20
More information

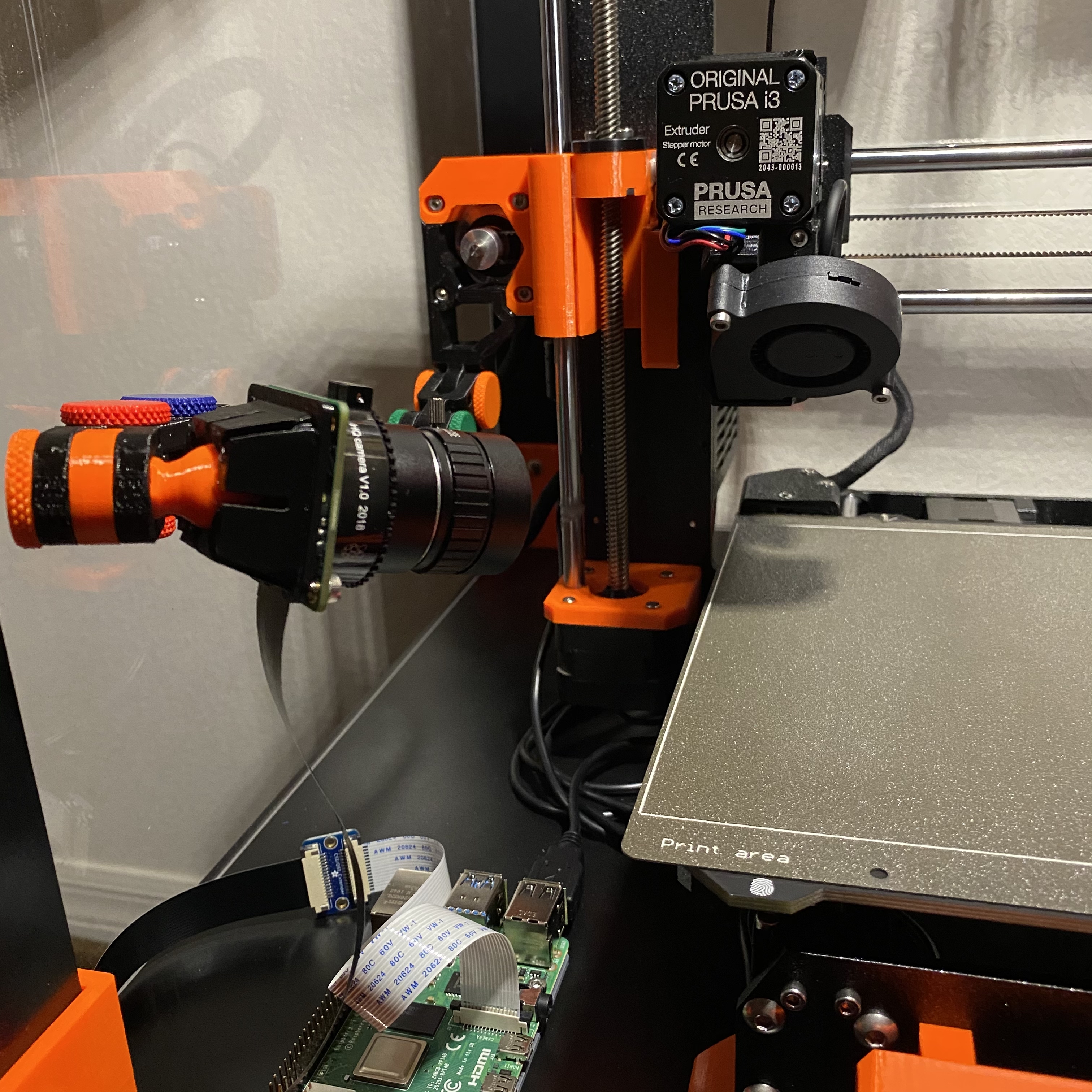

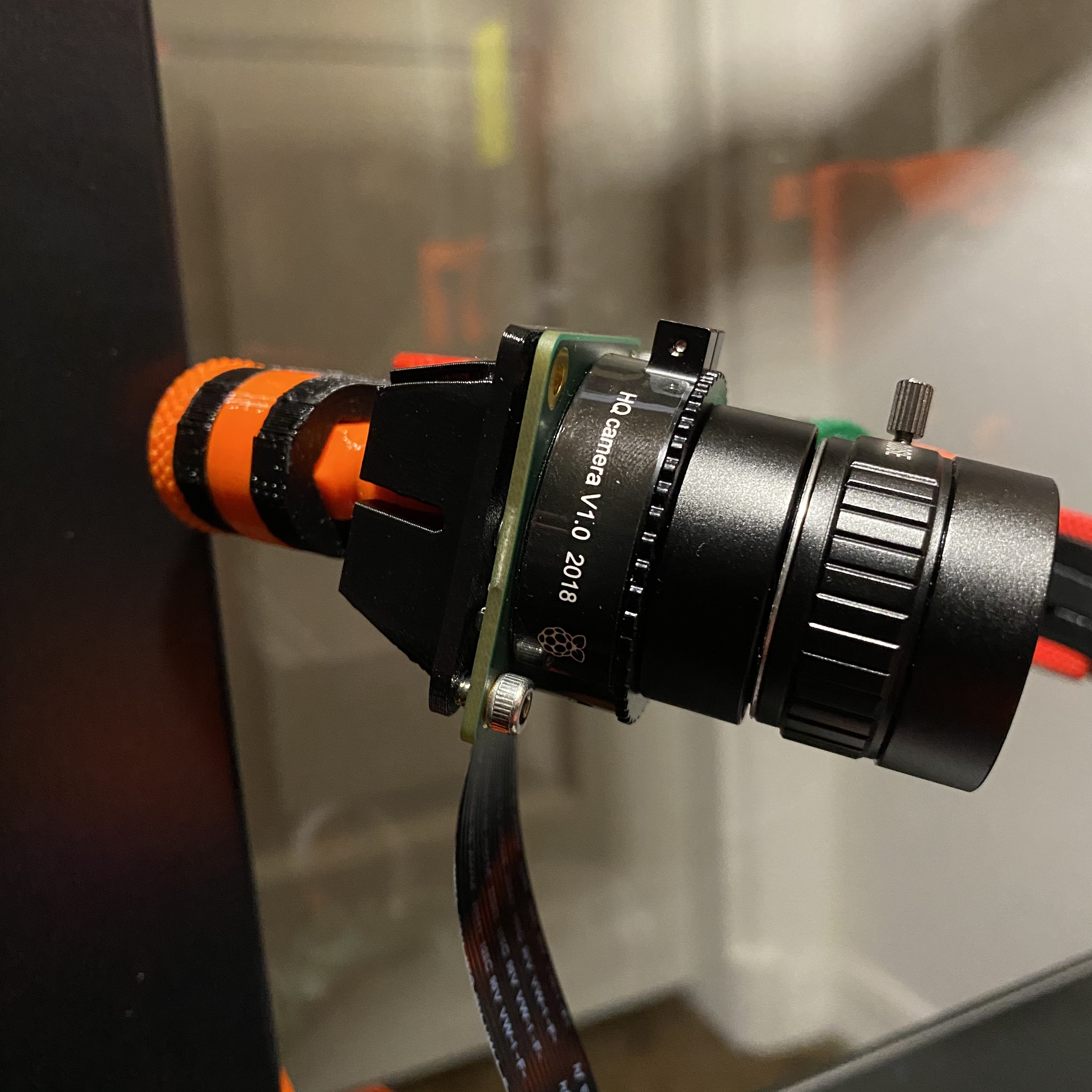

This is an adaptation of the camera back from the Articulating Raspberry Pi Camera Mount for Prusa MK3 and MK2, inspired by and simplified from the Raspberry Pi Hi Quality Camera Case Adapter.

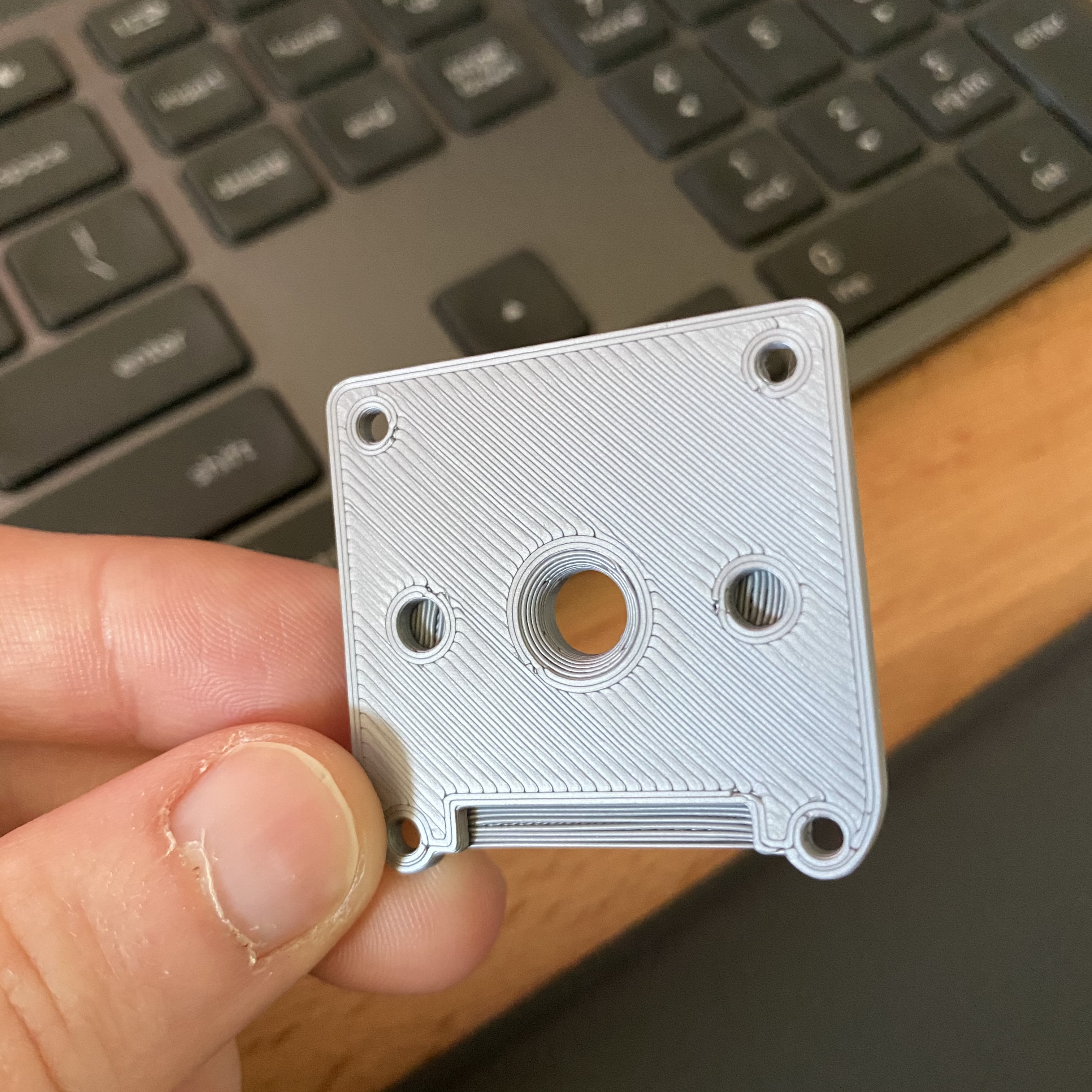

I've adjusted the back plate of the original mount to allow space for both the screws on the back of the camera module, as well as the ribbon cable connector at the bottom. The edges of the mount were expanded to be flush with the sides of the camera's PCB, but if you need to access the pins/solder pads opposite the ribbon connector, just message me and I'll make the edit to get the casing out the way. Or feel free to do it yourself; I've provided both the Fusion 360 and STEP files for further remixing.
The best part about the holes for the screws and connector is that they are just the right size to allow the mount to connect to the camera, without putting any pressure on the delicate top-soldered components of the board. Plus, I left clearance around the ribbon connector so as to facilitate making the connection with the cable.
##
Print Settings
• Layer height: 0.2mm • Supports: None • Infill: 10% • Prototypes were printed in PLA; final print was done in Prusament PETG. Both secured just as well as the other, so material choice is up to you!
Assembly Notes
• The mount fits rather securely onto the back of the camera without any screws to keep them together, but I have not tested this with the vibration of the printer • For a safer connection, use 2-4 M3x5 screws to connect the PCB to the mount via the 4 holes at the corners. The screws will carve their threads into the PCB, as well as the plastic of the mount, so make sure you're going in straight so as not to cross-thread. • If you don't have M3x5 screws, longer variants will work of course, but shorter might not grip very well. Also, I haven't tried this with M2 screws at all, but they might work okay. For reference, the diameter of the holes on the PCB and the mount itself is 2.5mm.
Happy printing!
Design and description by br4in , licensed CC-BY.
