Raspberry Pi Pico Header Soldering Jig
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~13 g
- Express shipping
- $20
More information

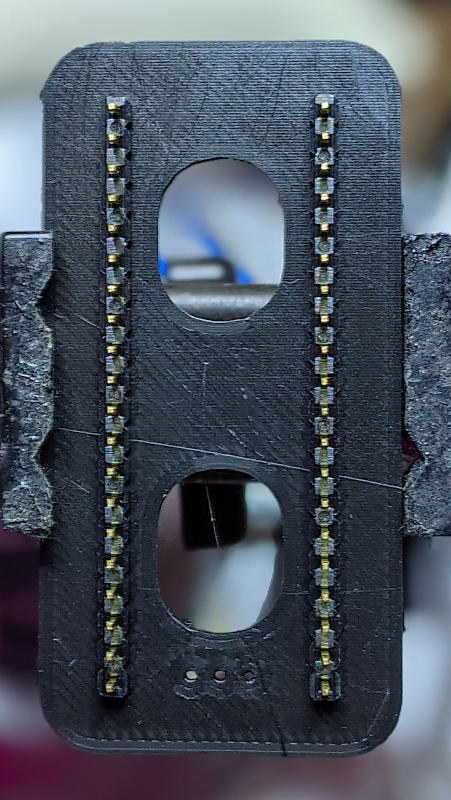

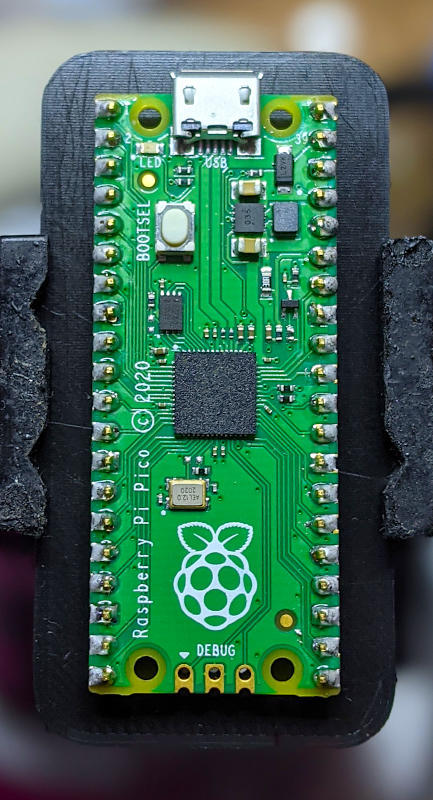

Since the Raspberry Pi Pico doesn't come with headers soldered, you're going to have to get used to doing this. This quick-to-print jig holds the pins in just the right place for the board.
It's really hard to print fine-pitch details like 2.54 mm headers. There's a modification you can make in the OpenSCAD code to make the holes larger if your printer is closing them up.
Includes holes for the three SWD headers, even though you may want to attach them on the other side or use 90° “STM32 Tailpipe”-style headers.
// dimensions from mechanical drawing, p.7 // Raspberry Pi Pico Datasheet - 2021-02-01, v1.2 // https://datasheets.raspberrypi.org/pico/pico-datasheet.pdf
Print settings
==============
Printer Brand:
Prusa
Printer: I3 MK3S
Rafts:
No
Supports: No
Resolution:
0.3 mm
Infill: 20%
Filament: Filaments.ca Canadian Maker Series - Low Sheen TOUGH PLA Black
Notes
Print time: 17 minutes
Filament: 4 g
Category: Electronics
Design and description by scruss , licensed CC-BY-SA.
More 3D printed Raspberry Pi cases and mountsMore 3D printed soldering and electronics tools
Frequently asked
How long does shipping take?
Raspberry Pi Pico Header Soldering Jig is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
