Remixed for 6x2mm magnets - Prusa Core One magnetic nozzle storage

Hello! Found Stefan's model for Core One nozzle storage, and wanted to print it myself. The only problem, I've got cylindrical magnets! So I modified it for my magnets, and Stefan replied to my make saying I should share it. So here it is!

The new holes are designed for 6x2mm circular/cylindrical magnets. Two magnets may be enough to hold the mount in place, but I went ahead and made it with four just in case.

NOTE! Being that we're all buying bargain bin magnets, they may not have the same tolerances. I'd suggest printing the tolerance test, and see how easy it may or may not be to fit the magnet into the hole. The test print has a 6.06mm bore. You can use that to decide if you should print the full piece with 6.03mm, 6.06mm, or 6.09mm holes. Make sure to print in the orientation it loads in (The hole should be at a 45° angle), and to print with the same settings you plan to print the full piece in so that you know it will fit.

Should you need a bigger, smaller, or differently shaped hole, I've included a Fusion360 .f3d file that should make it easy to modify. Just open the sketch and input the diameters you need, then export the model.

It's not the original design file. Just was easier to get a clean and symmetrical modification in f360 than in TinkerCAD. I found that 6mm exactly worked, but was a tight fit. While 6.05mm allowed for removal of the magnet if you used extras to help pull it out. I printed in freshly dried Jessie PETG, on a MK4S with a .4mm nozzle at .2mm structural using the Prusament profile.

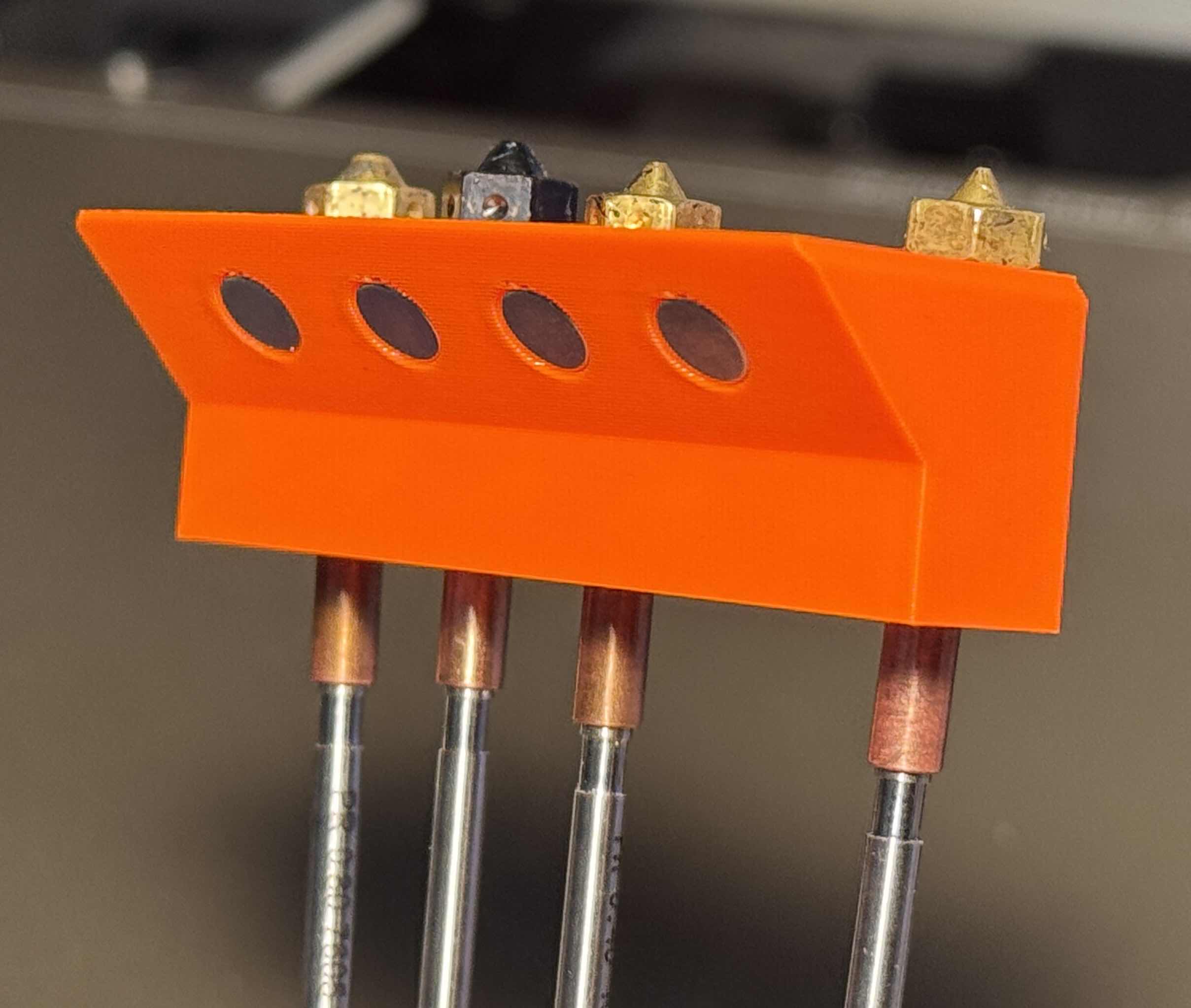

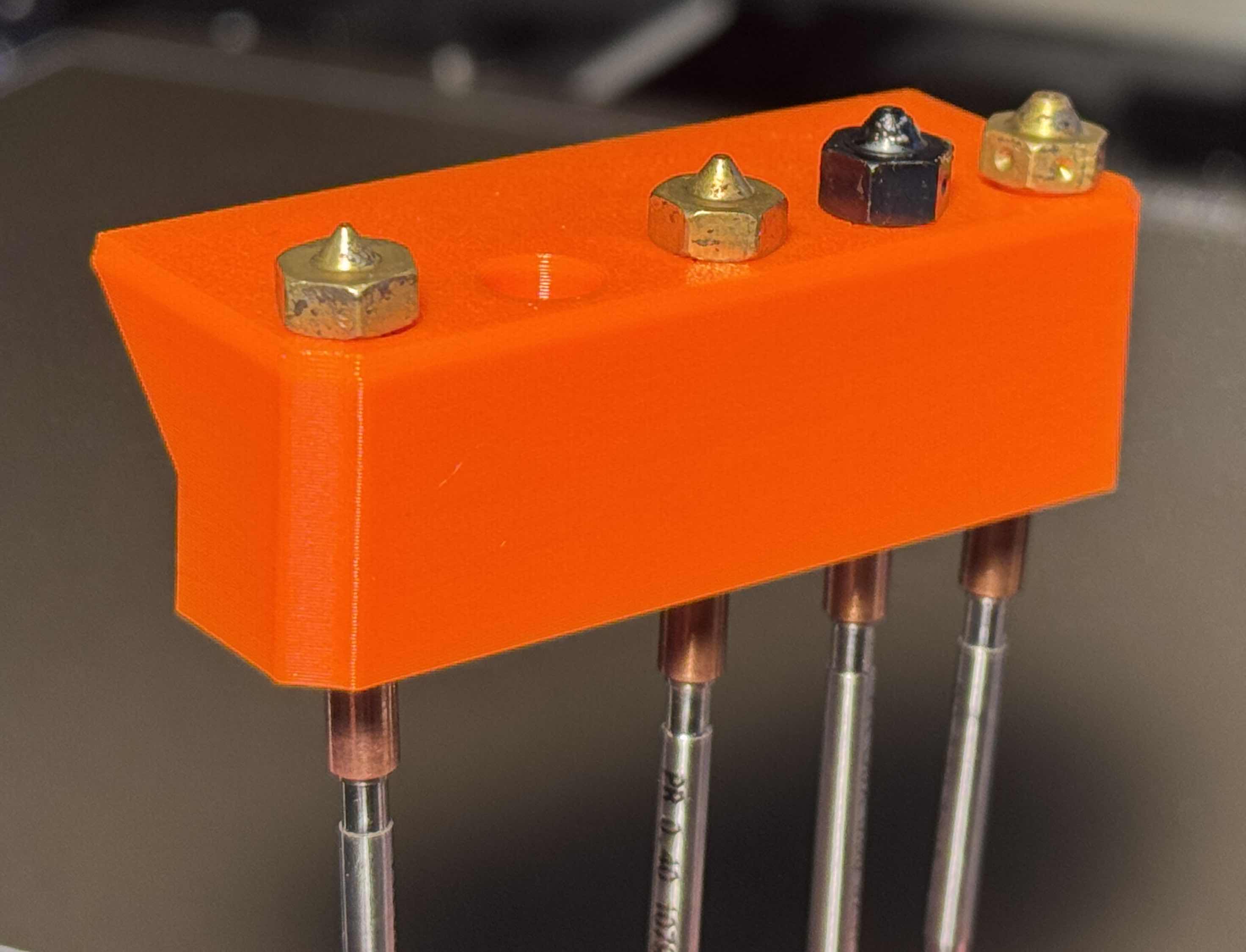

Finally got mine built! Was able to take a photo and add it as the new cover photo ^-^

Design and description by Hachiro , licensed CC-BY.
