Reolink D20 mount
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~36 g
- Print time
- ~2 h
- Express shipping
- $20
More information

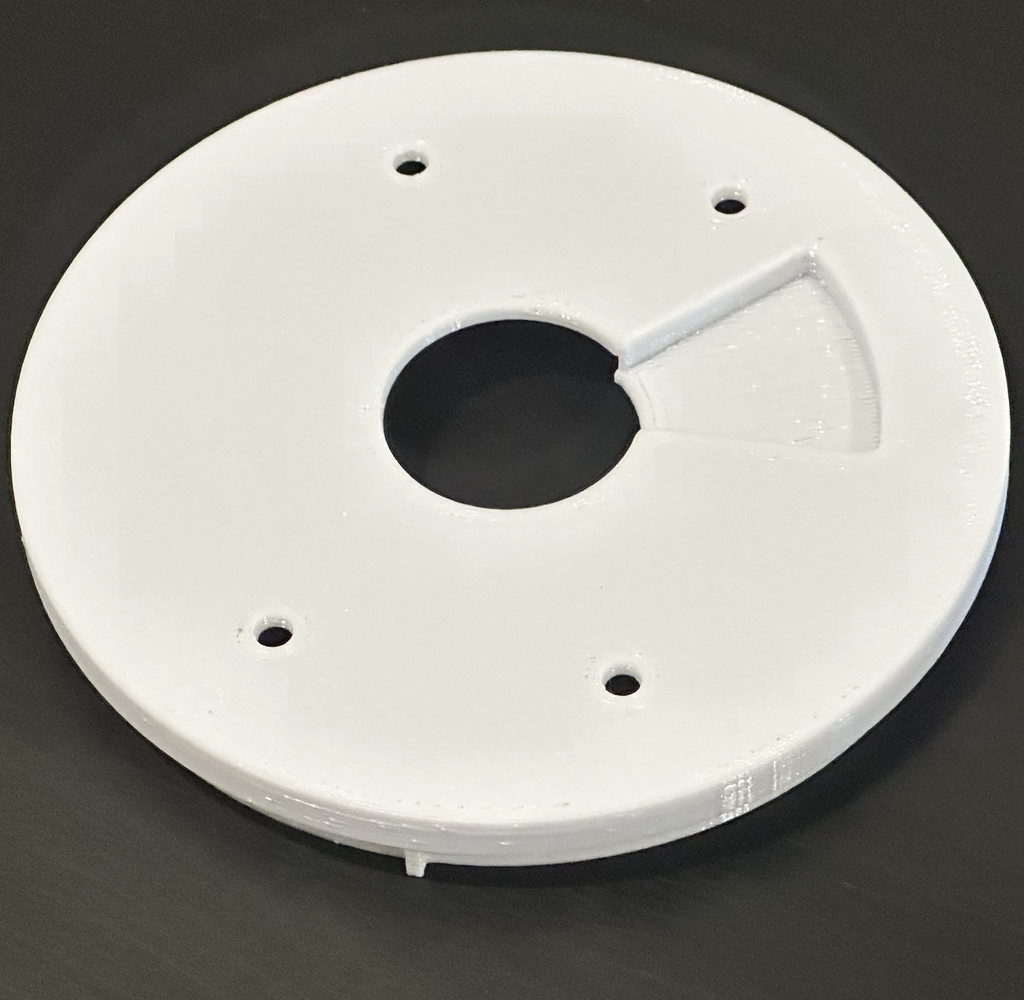

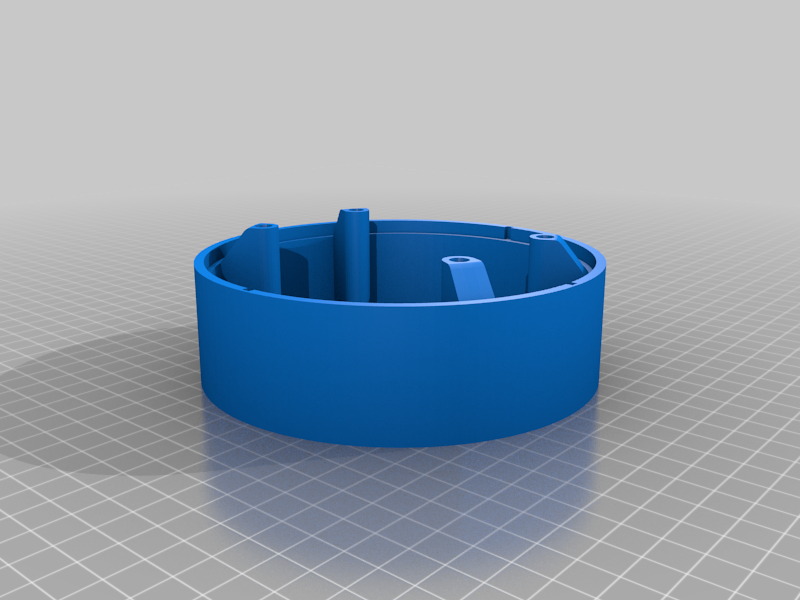

Didn't want to buy more D20 mounting boxes, this won't fit all cameras, but does fit the RLC-842A and RLC-422.
If you need different mounting holes, let me know I'm happy to move them.
I also included both the STEP and the F360 files because I really appreciate when others include the design files.

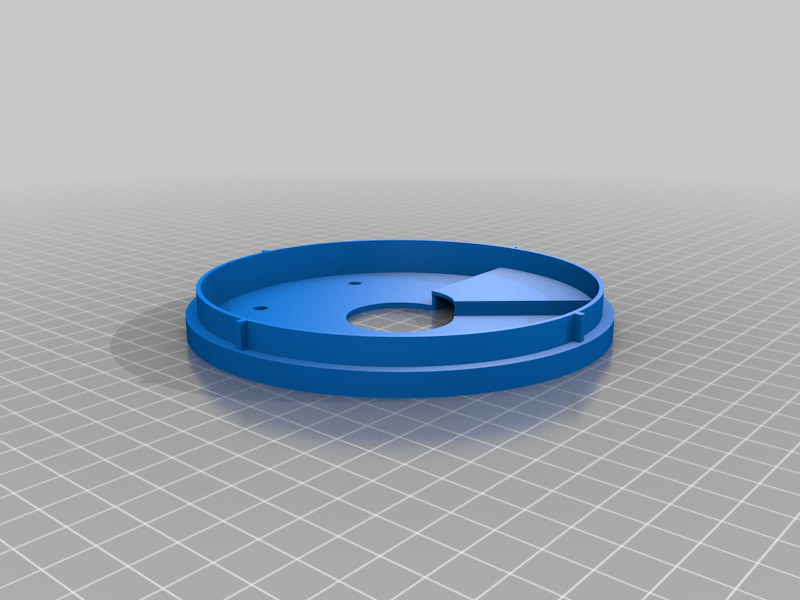

Edit 2024-08-05: Added a low profile box (2.5cm/25mm instead of the original 4cm/40mm) from a user request.
Print Settings
Printer Brand:
Anycubic
Printer:
Kobra 2
Rafts:
Doesn't Matter
Supports:
Yes
Resolution:
.2 mm
Infill:
20%
Filament: Kingroon PETG White
Notes
You'll want/need supports for the lid cutout, shouldn't need supports anywhere else.
The lid and box should be printed in PETG or ABS if you're going to use them outside.
The gaskets should be printed in TPU to create seals for weatherproofing. I highly recommend the midGasket, the topGasket and bottomGasket are optional.
How I Designed This
Fully designed in Fusion 360
I have a purchased D20 that I spec'd this off of. Figured I could print my own more economically than buying from Reolink.
Category: Camera
Design and description by withanHdammit , licensed CC-BY.
