Reolink E1 mount - new and old model - adapted for my tilt mount

Obs:

This mount was primarily designed to be used with my tilt, both for desk and wall mounting, which can be found at this link: https://www.printables.com/model/1073632-reolink-e1-mount-magnet-wall-and-table-mount

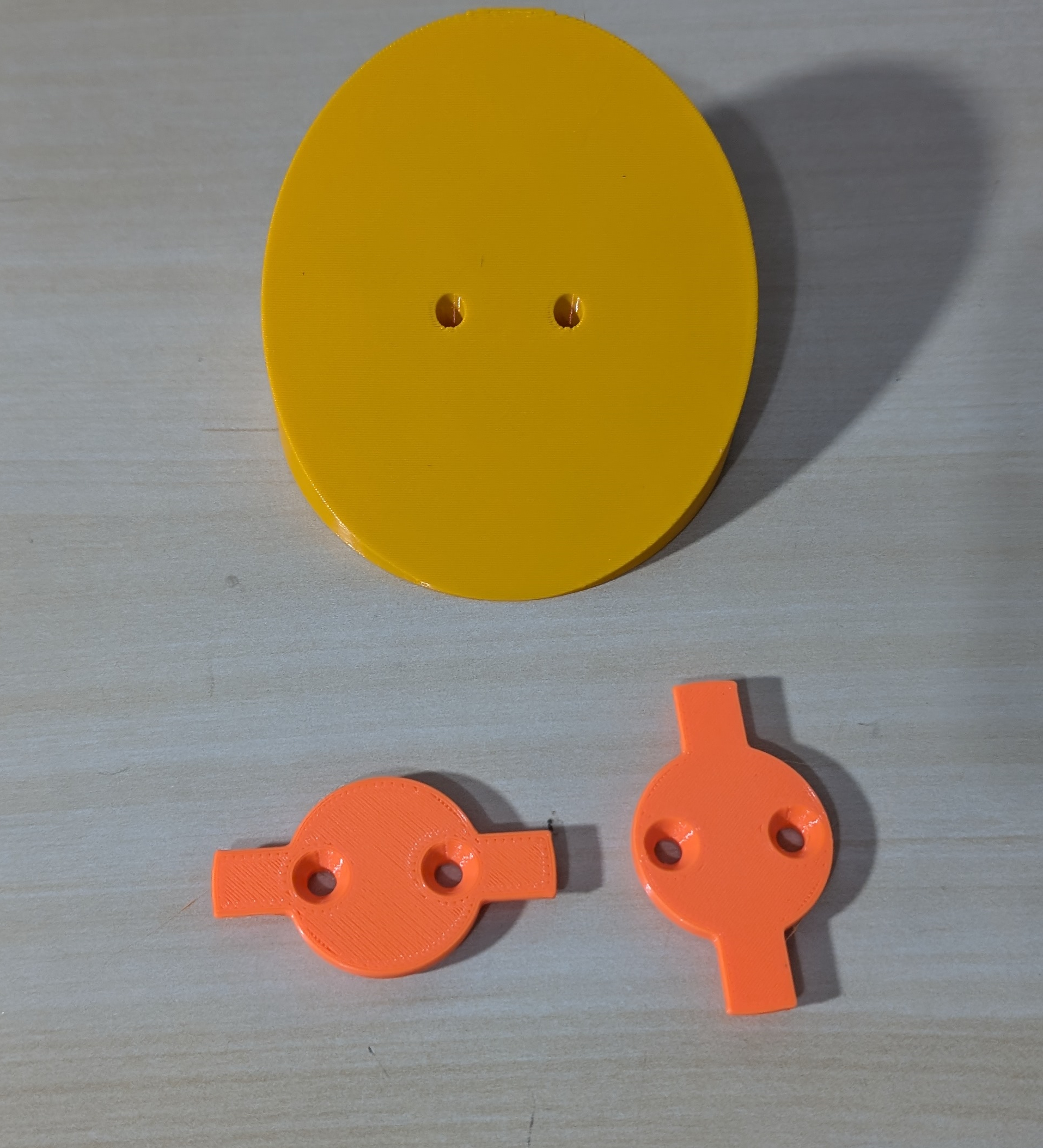

I have Reolink cameras, and sometimes you might lose the adapter. In that case, I recommend using this model—it is very well designed. However, it did not initially suit my needs for two reasons. First, I noticed that over time, Reolink changed the screw positions on the mount.

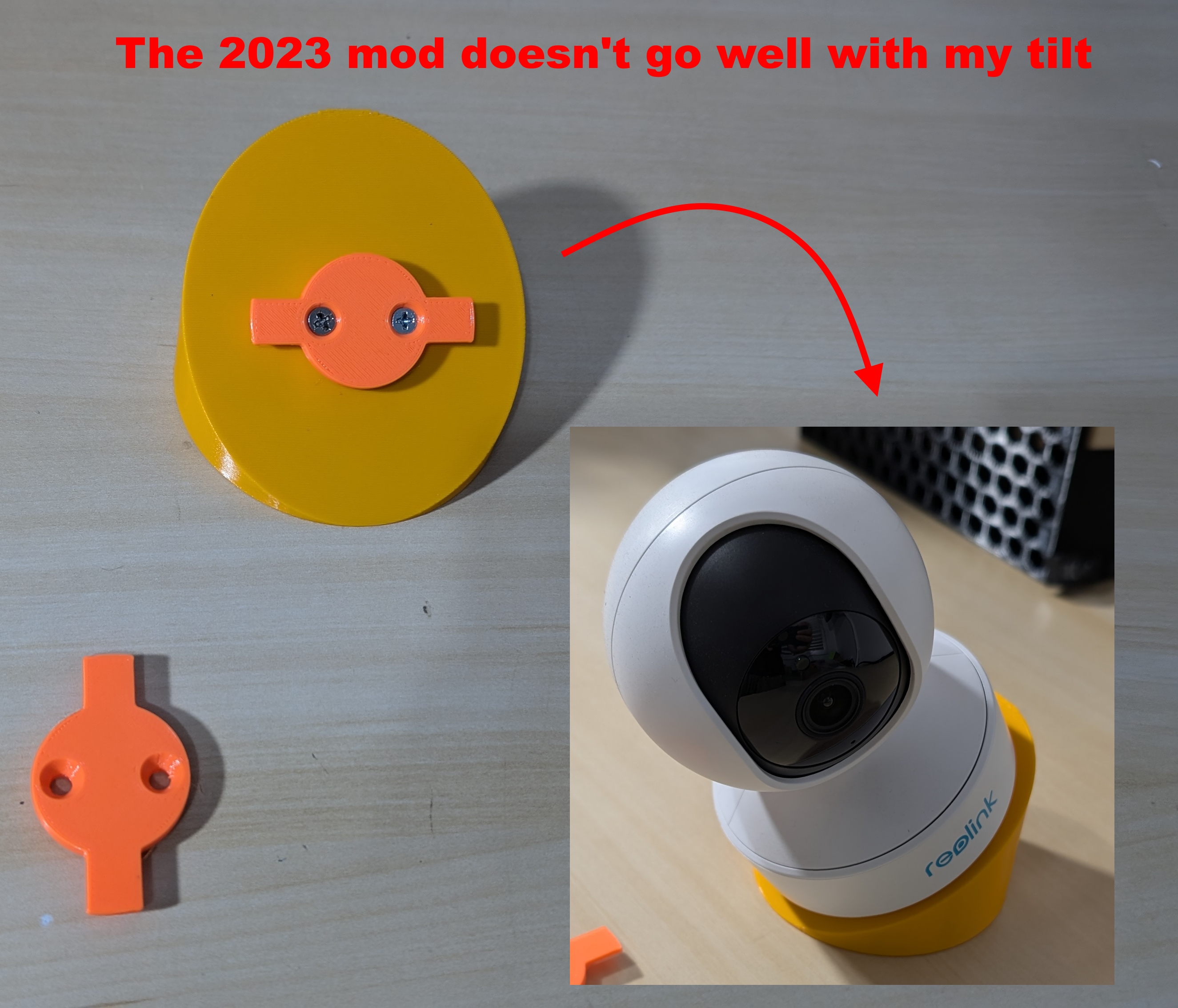

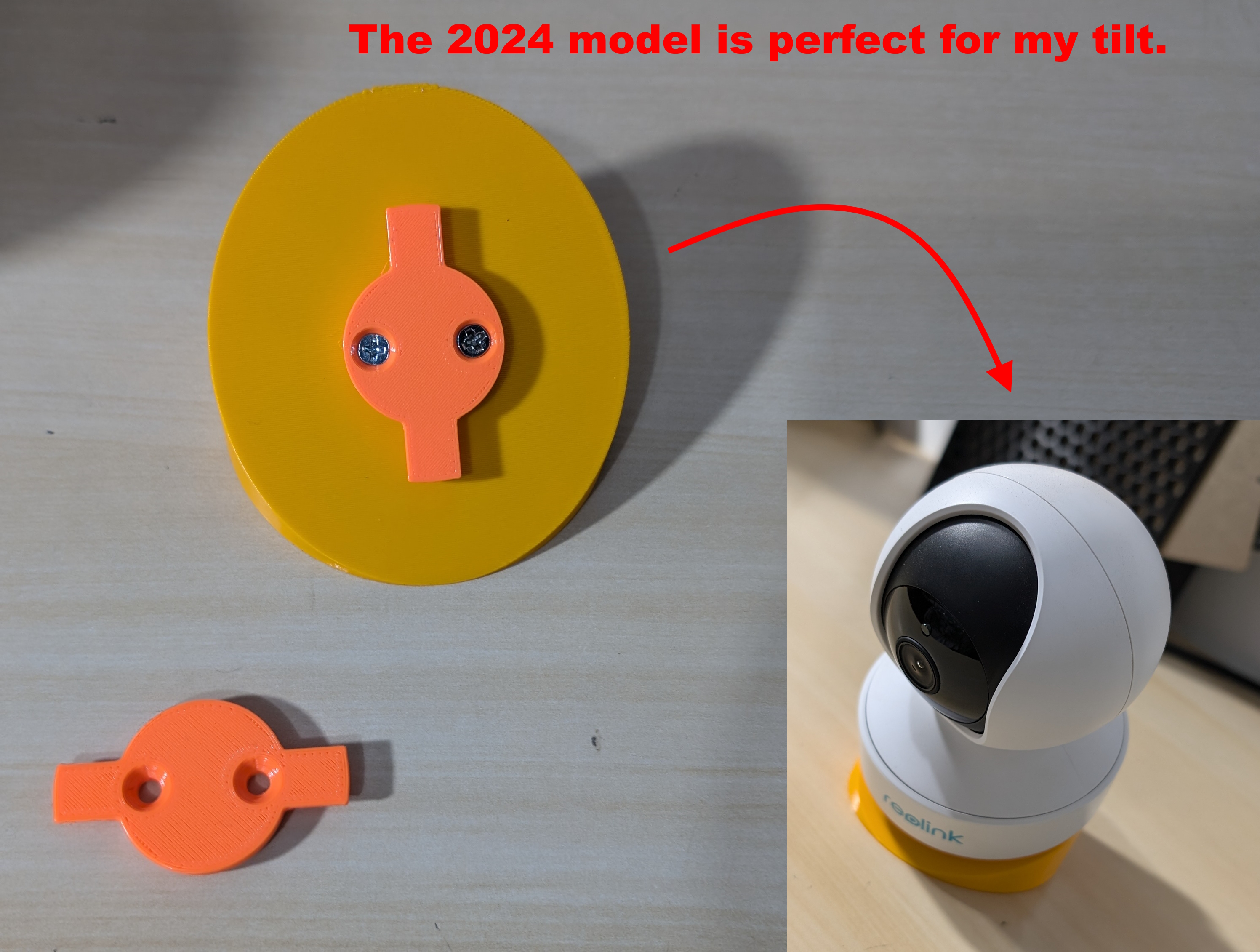

This difference may not matter if you're mounting it on a wall, but since I use my adapters to fix the cameras on tilt mounts to position them exactly where I want, this created some issues, as shown in the photos below.

Another adaptation I made was enlarging the holes to fit the screws I prefer to use for plastic mounts. These are typically screws used for computer coolers, specifically M5x10 screws. Additionally, these screws have a thread pitch that provides a good grip in plastic.

Design and description by edmar , licensed CC-BY-SA.
