Resistor Storage Drawers

I slightly changed FerriteGiant's excellent resistor storage solution in order to cut down on print time. These modified parts save about 24 hours of printing for the full set of 4 frames and 24 drawers! None of the important dimensions are different so the parts are interchangeable with the remix source.Note: The drawers are for 0.4mm nozzles

Simple frame*(6 hrs / ~40m)* - Saves 3 hours and ~20m of filament per frame.

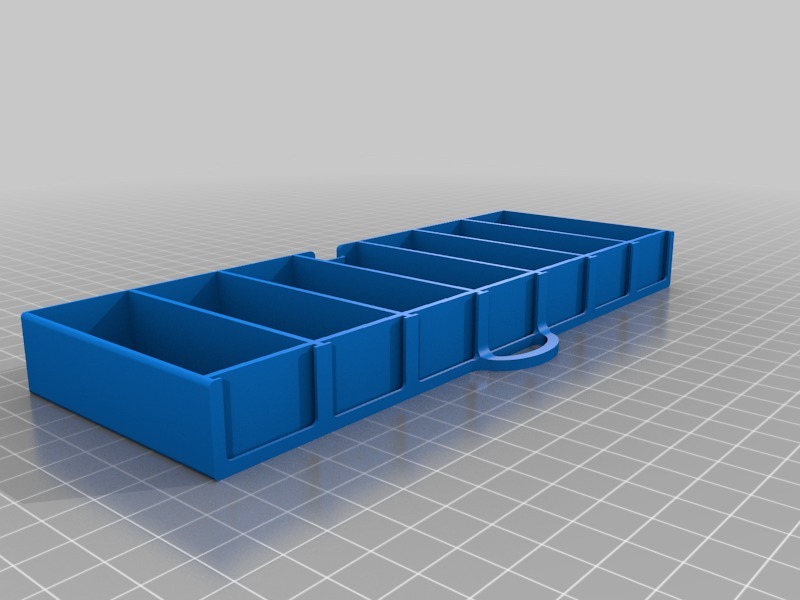

Flat bottom drawer*(3 hrs / ~17m)* - 7 compartments, same as the original but without a rounded floor. (Holds slightly more parts with ~30 min print time reduction per drawer)

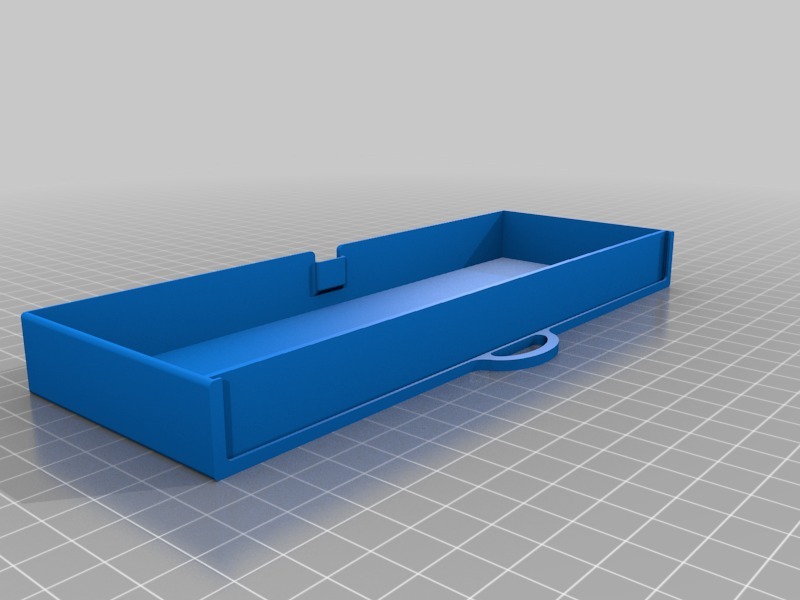

Single large drawer*(2 hrs / ~11.5m)* - 1 compartment. Fits a long single label.

Center label large drawer*(2 hrs / ~11.5m)* - 1 compartment. Fits the regular sized label.

Print Settings

Printer Brand:

Creality

Printer:

Ender 3

Rafts:

No

Supports:

No

Resolution:

0.25mm

Infill:

100%

Filament: Generic PLA

Notes

Frame: Top/Bottom Line Directions: [90, 45, 90, 135] (Not necessary but this stops the short zig zags on the first and third layers which helped me stop knocking the ovals off my glass print surface!)

Drawers: Top/Bottom Line Directions: [0, 90, 0 , 90, 90, 90, 90] (This makes the initial layer lines parallel to the drawer travel which should help it run smoothly if part of the first layer warps or has gaps, also it looks nice) Infill Pattern: Concentric

Design and description by Brauer , licensed CC-BY.
