Rod and connections shelf support
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~63 g
- Print time
- ~3.5 h
- Express shipping
- $20
More information

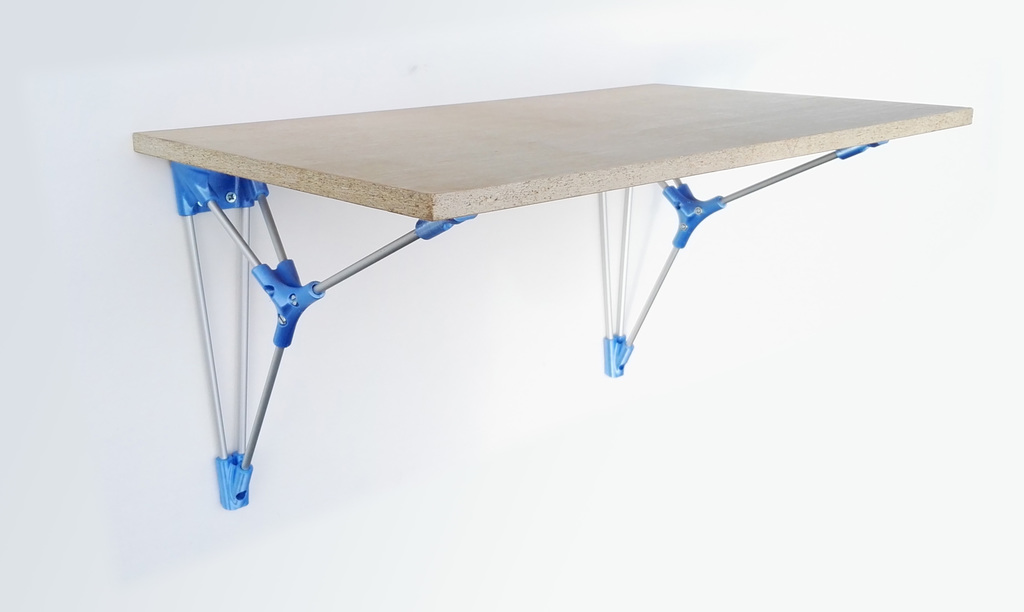

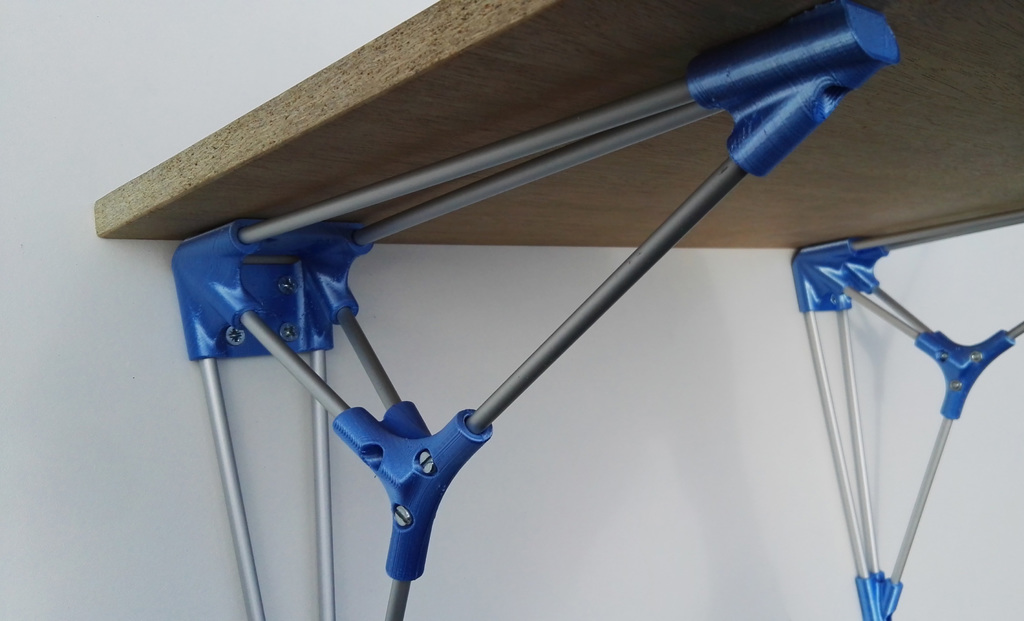

This shelf support is designed for shelves that are at least 25cm deep. The end connection part has to be printed two times. Holes for screws to attach the support to the wall and the shelf are incuded.
The connecting parts are designed for rods with a diameter of 6mm. I used aluminium tube, but you can use anything you want including steel or wood. It could be that the holes are a little tight in which case you can drill them out a little bit.
Lengths of the rods:
[4x] 201mm
[2x] 143mm
[2x] 78mm
Hardware required:
[4x] 10mm (or longer) m4 bolts
[4x] m4 nuts
[10x] 4mm diameter countersunk screws

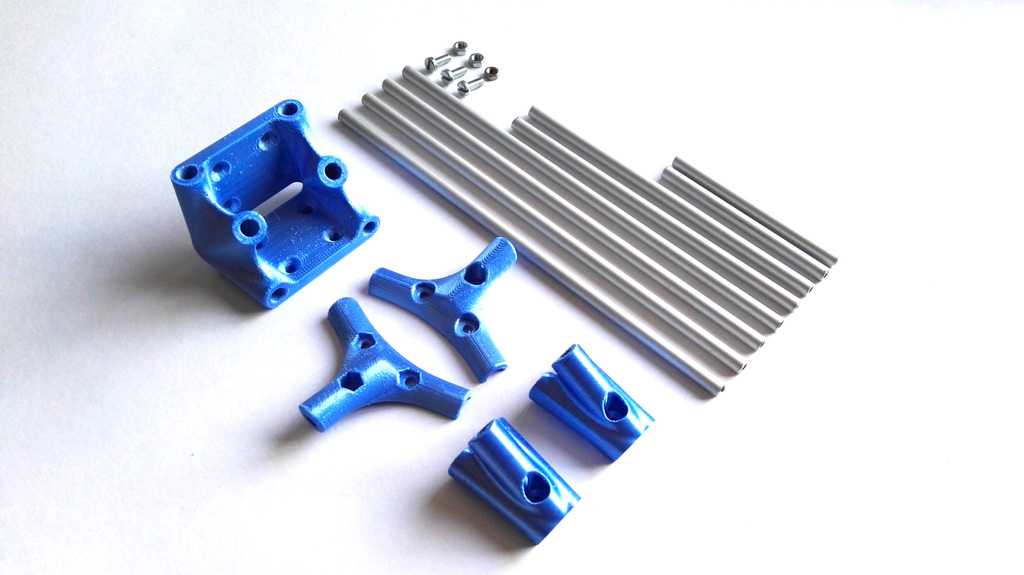

In the pictures you can find the assembly process (it is not too hard).
I would love to see anyone making these! If you have any problems or suggestions, please let me know in the comments. Good luck making!
Print Settings
Printer:
Anet a6
Rafts: No
Supports:
No
Resolution: 0.2
Infill:
40%
Category: Household
Design and description by Victor , licensed CC-BY.
