Rotary Encoder KY-040 (EC11) Housing with Snap-fit and Screw Mount
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~5 g
- Express shipping
- $20
More information

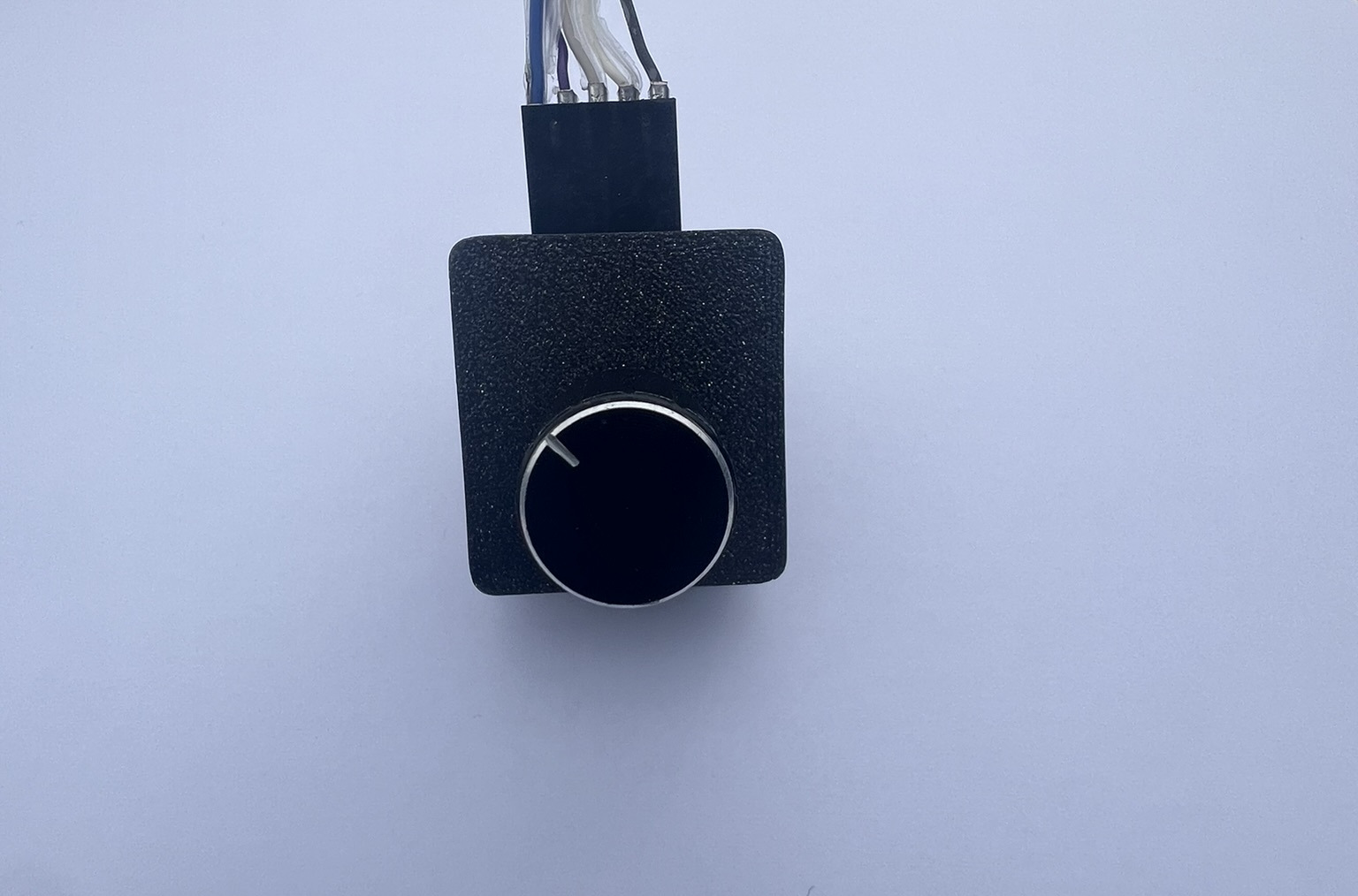

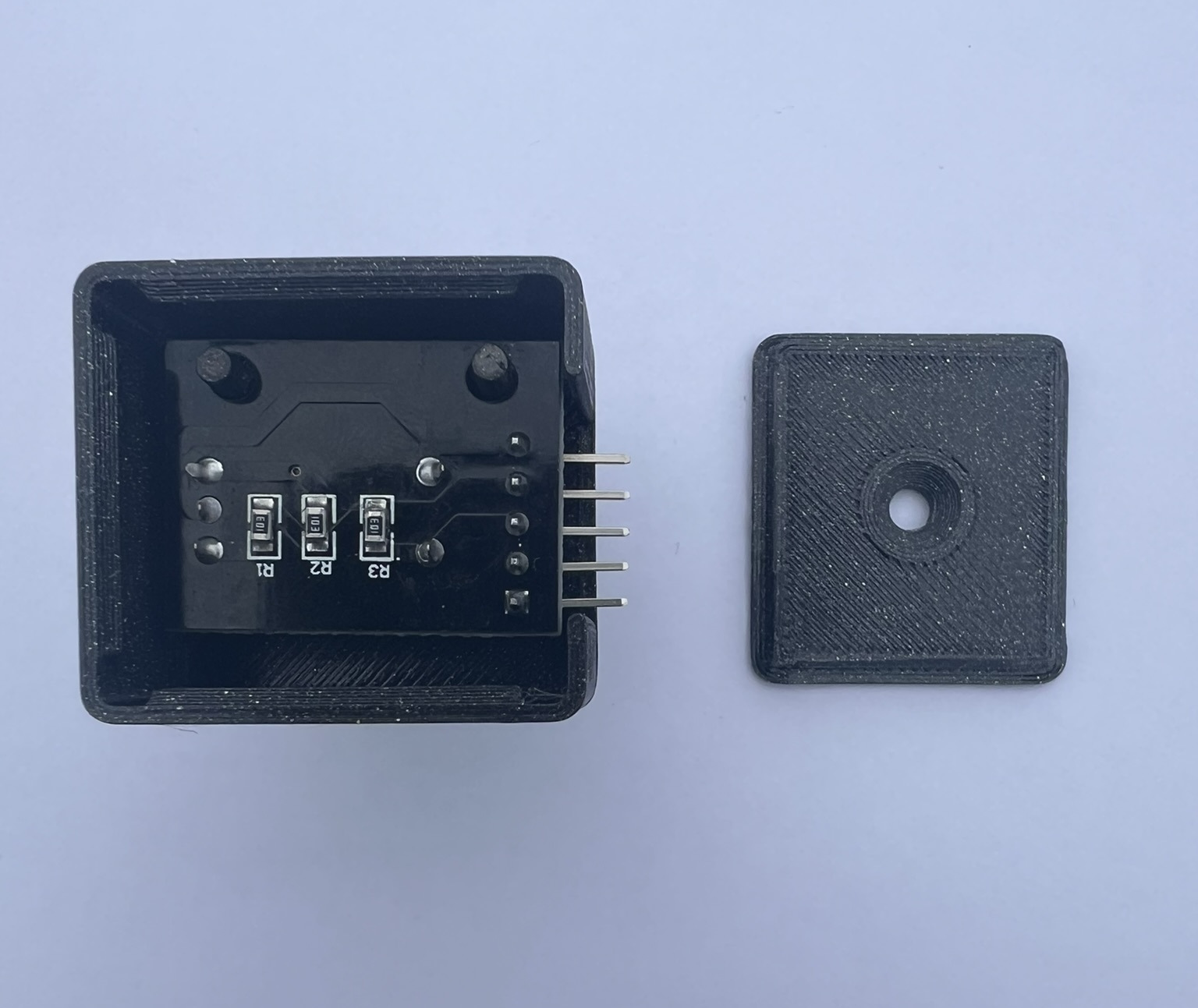

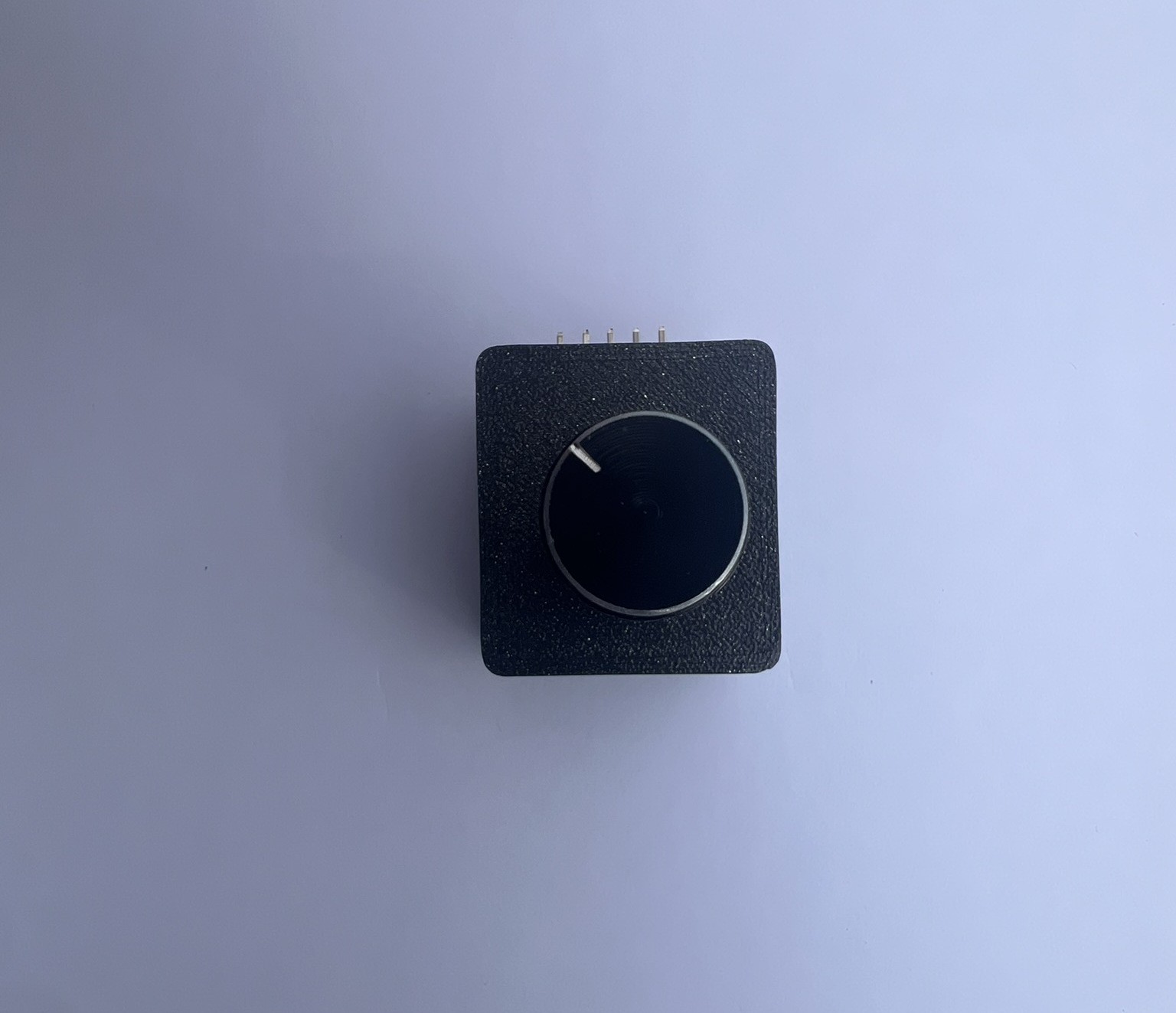

Simple housing case with Snap-fit for KY-040 or similar Rotary Encoder. It has a hole in a cover for easy mounting under a desk or anywhere else with a screw. Easy access to the 5-pin DuPont connector.
KY-040 Rotary Encoder Module Spacing
I had 2 slightly different KY-040 models with different space between mounting holes:
• 11.5mm • 14.5mm
Box Options
There are 2 height options for a box:
• 15mm - default • 17mm - more clearance between the KY-040 and Cover (To make sure the screw doesn't touch the rotary encoder board)

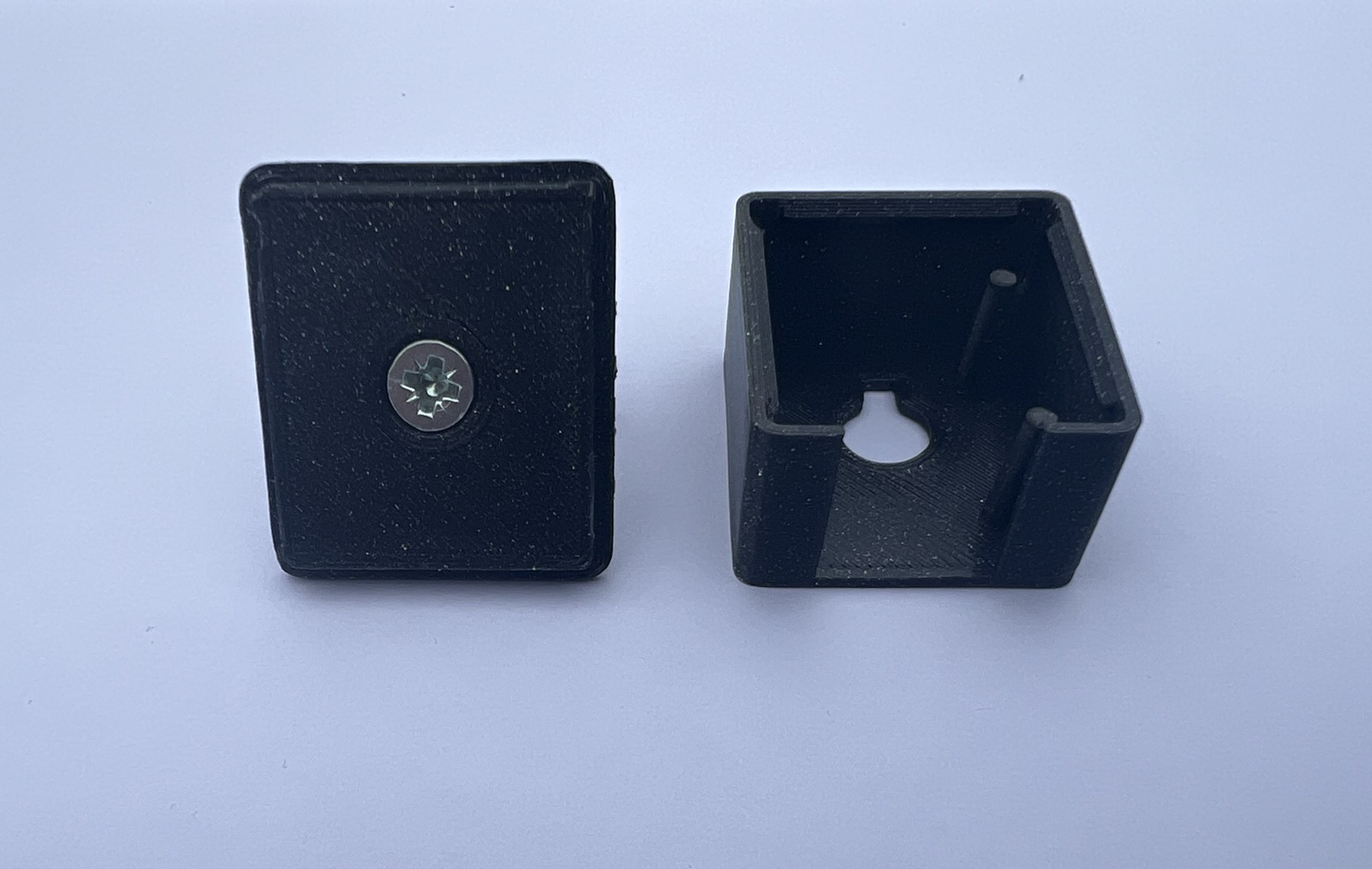

And 6 cover options:
• No screw • M3 • M3.5 • M4 • M5 • M6
Printing Guidelines
• Layer height: 0.2mm • Supports: No • Brim: No • Walls: 3+ • Infill: 15%+
Design and description by ESPBoards , licensed CC-BY.
Frequently asked
How long does shipping take?
Rotary Encoder KY-040 (EC11) Housing with Snap-fit and Screw Mount is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
