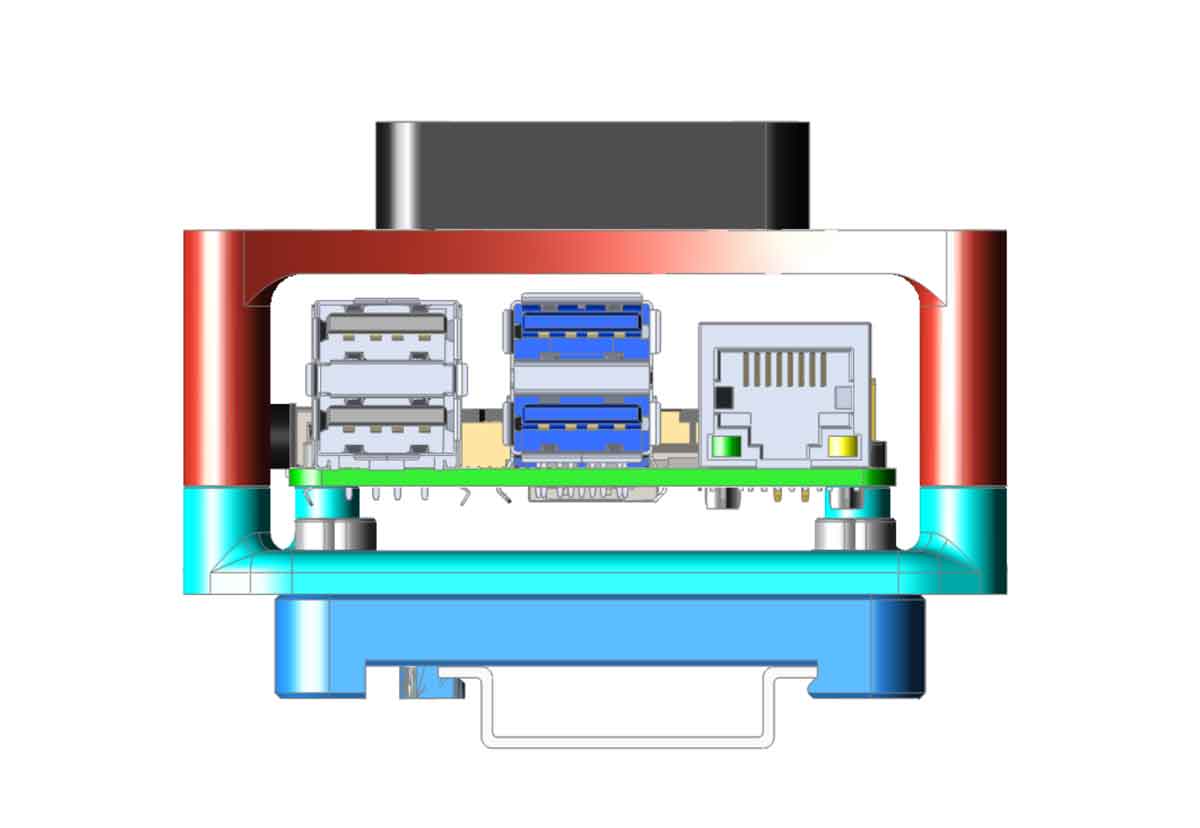

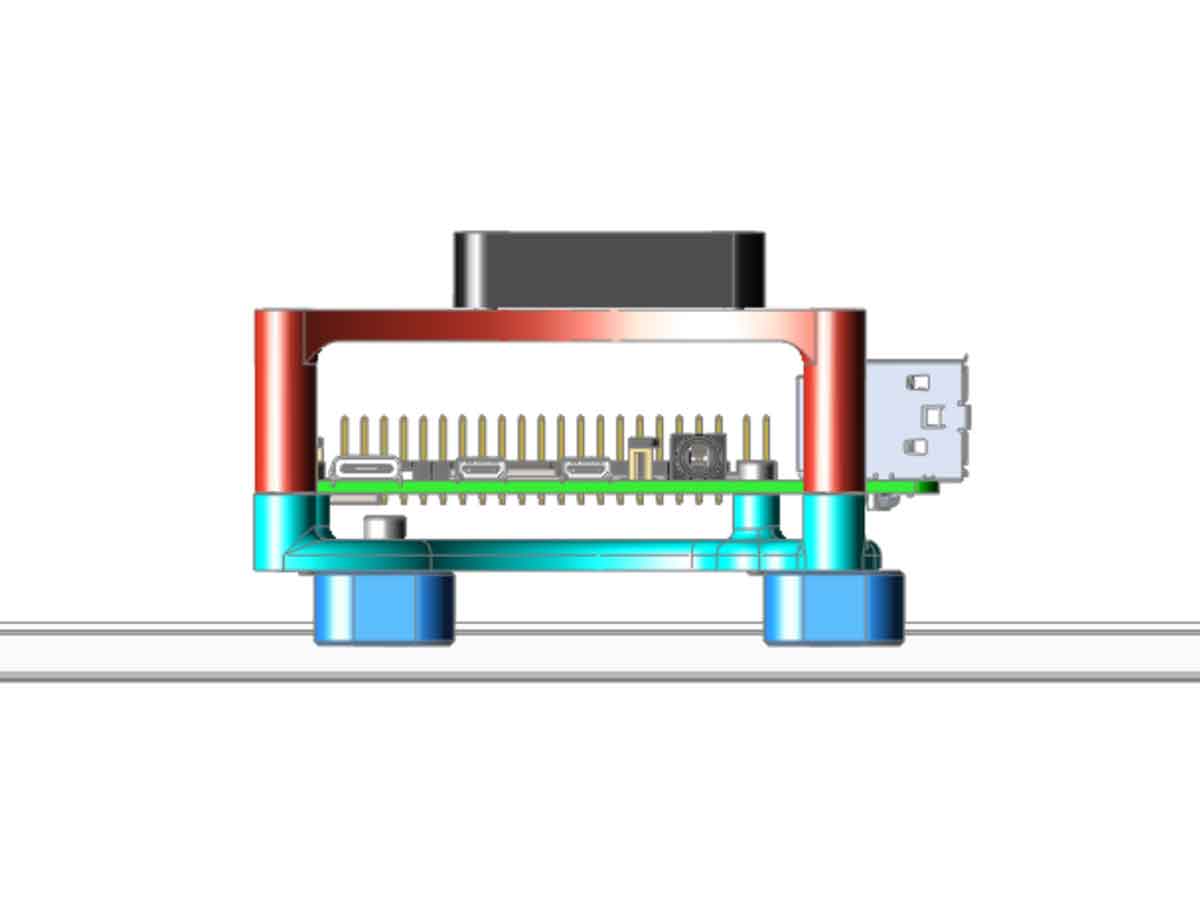

RPI Din Clips Mount 40mm Cooling Fan - REMIX with 50mm or 55mm DIN Clip Holes

Thanks to Steiner-Se for suggesting this model. It is currently untested.

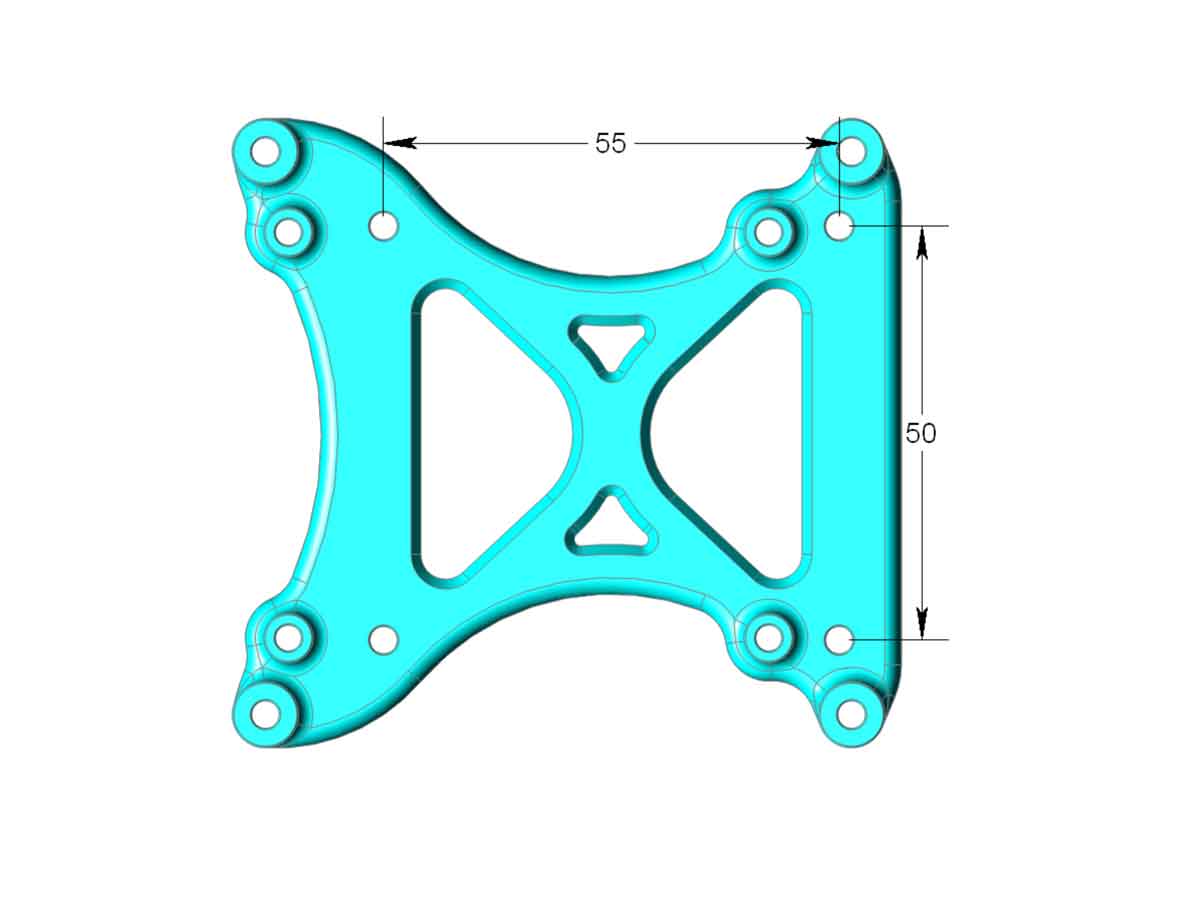

This is a very quick remix to adjust the M3 DIN clip hole spacing to fit clips with a 50mm center to center hole spacing (the original design uses 46mm hole spacing for the DIN clips). The mount can also be rotated 90° and used with clips with 55mm hole spacing (see pics).

This is just the base, the other parts can be found in Drak's original source design here:

https://www.printables.com/model/749982-rpi-din-clips-mount-40mm-cooling-fan

This was designed to be used with a remixed low profile 50mm DIN clip which uses an M3 heat set insert (DIN_CLIPS_REMIX_1D_50MM_INSERT.stl), and is available here:

https://www.printables.com/model/1267457-stiffer-dinmount-50mm-and-55mm-din-clips-remix

The mount can also be rotated 90° and used with the 55mm M3 insert clip at the above link (DIN_CLIPS_REMIX_1D_55MM_INSERT.stl).

I have a number of other Voron related models, including a low profile Pi DIN clip (without a fan) here.

If you find these models useful, please post a like or a comment with some pics of your prints.

You can find the other things I'm working on at my blog here. You can also follow me here on Printables or MakerWorld, to see what new stuff I post. If you would like to support my work, you can Buy Me A Coffee using this link:

https://www.buymeacoffee.com/mystoopidstuff

Thanks for looking!

Changelog

4/17/2025: I moved the holes so it can be rotated 90° to be used with 55mm clips. The current version is 1B.

Design and description by MyStoopidStuff , licensed CC0.
