schuko plug tray

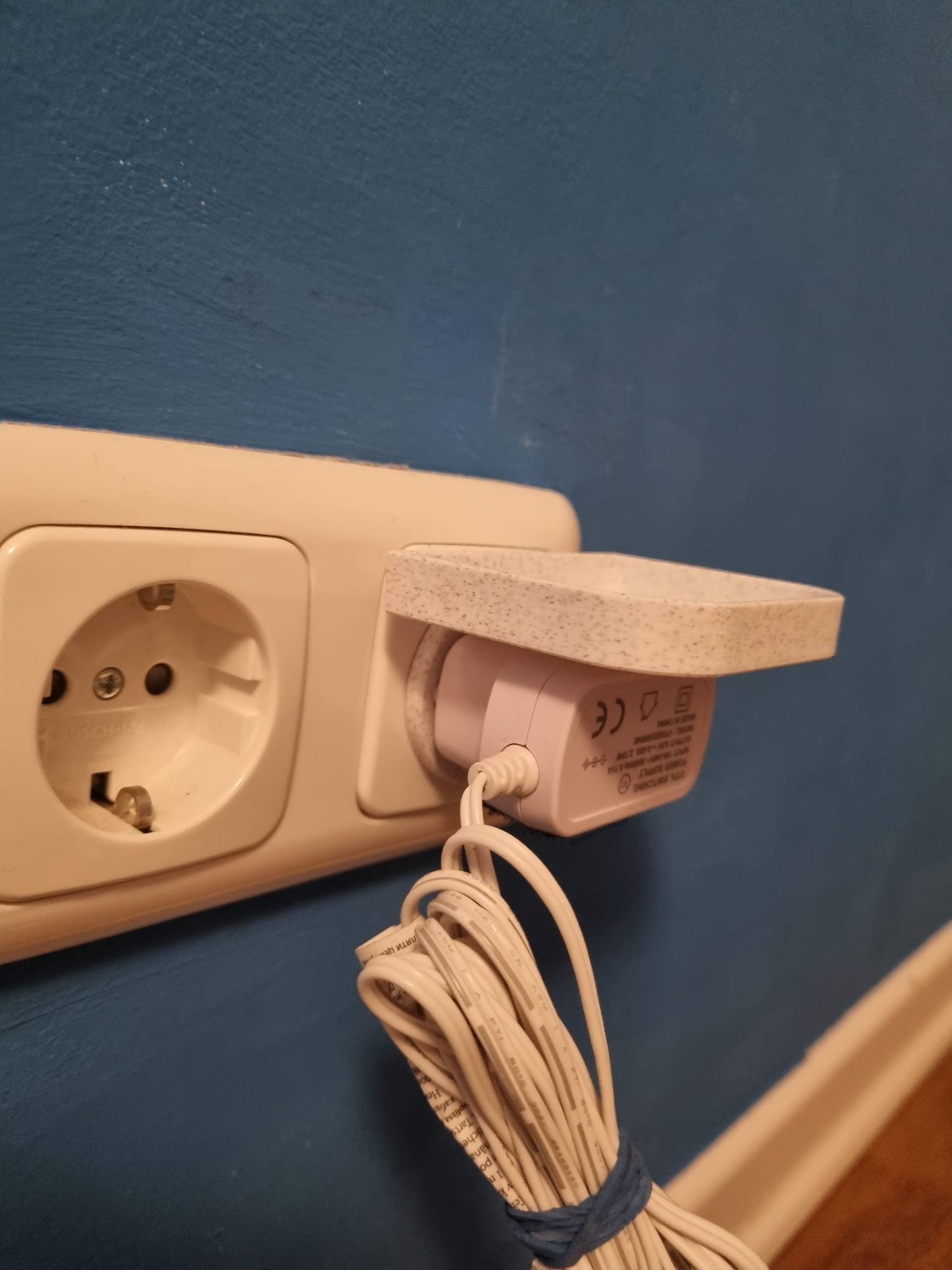

This schuko tray provides a location for a babyphone. The available footprint on the tray is 65x65mm.

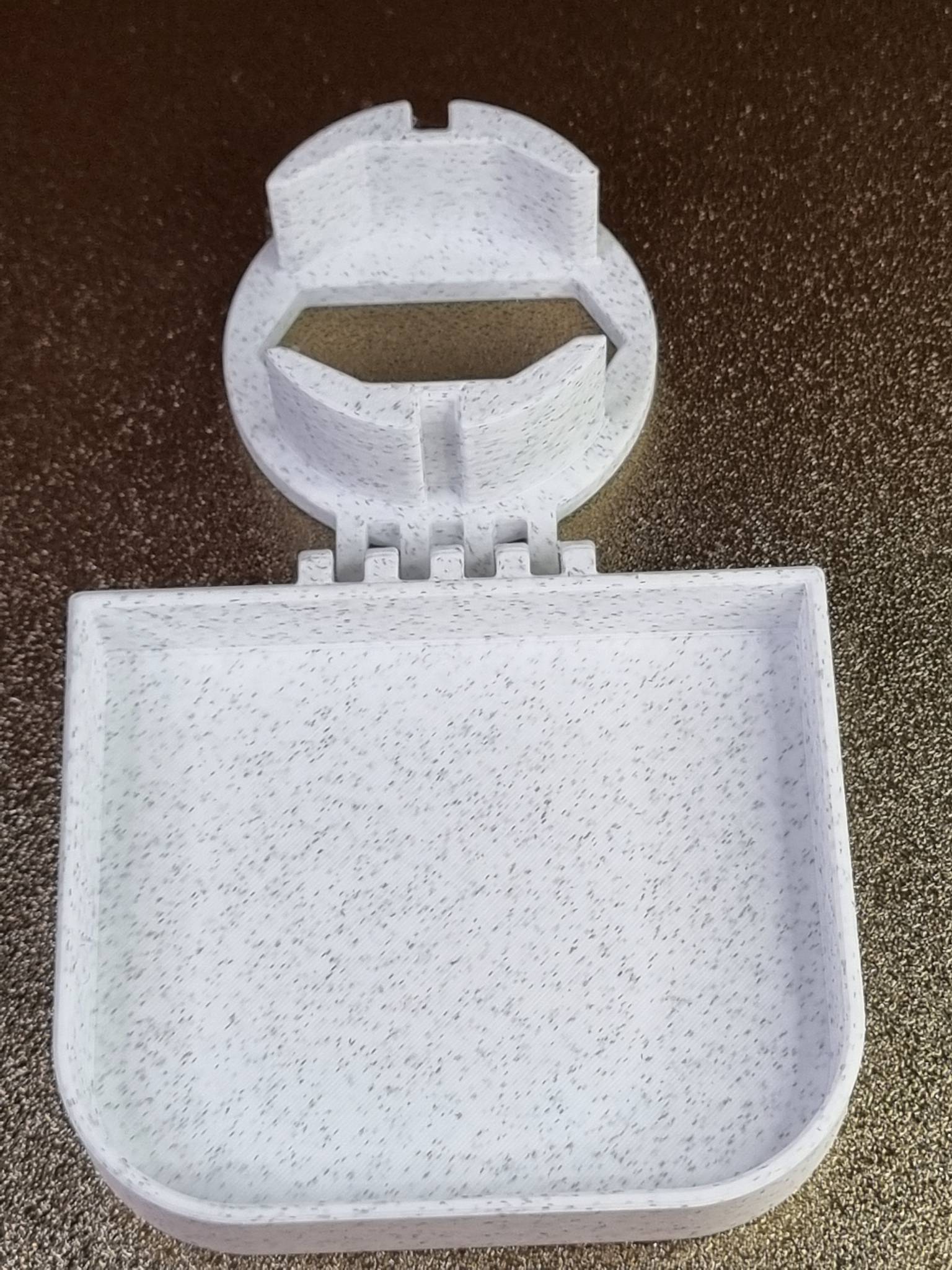

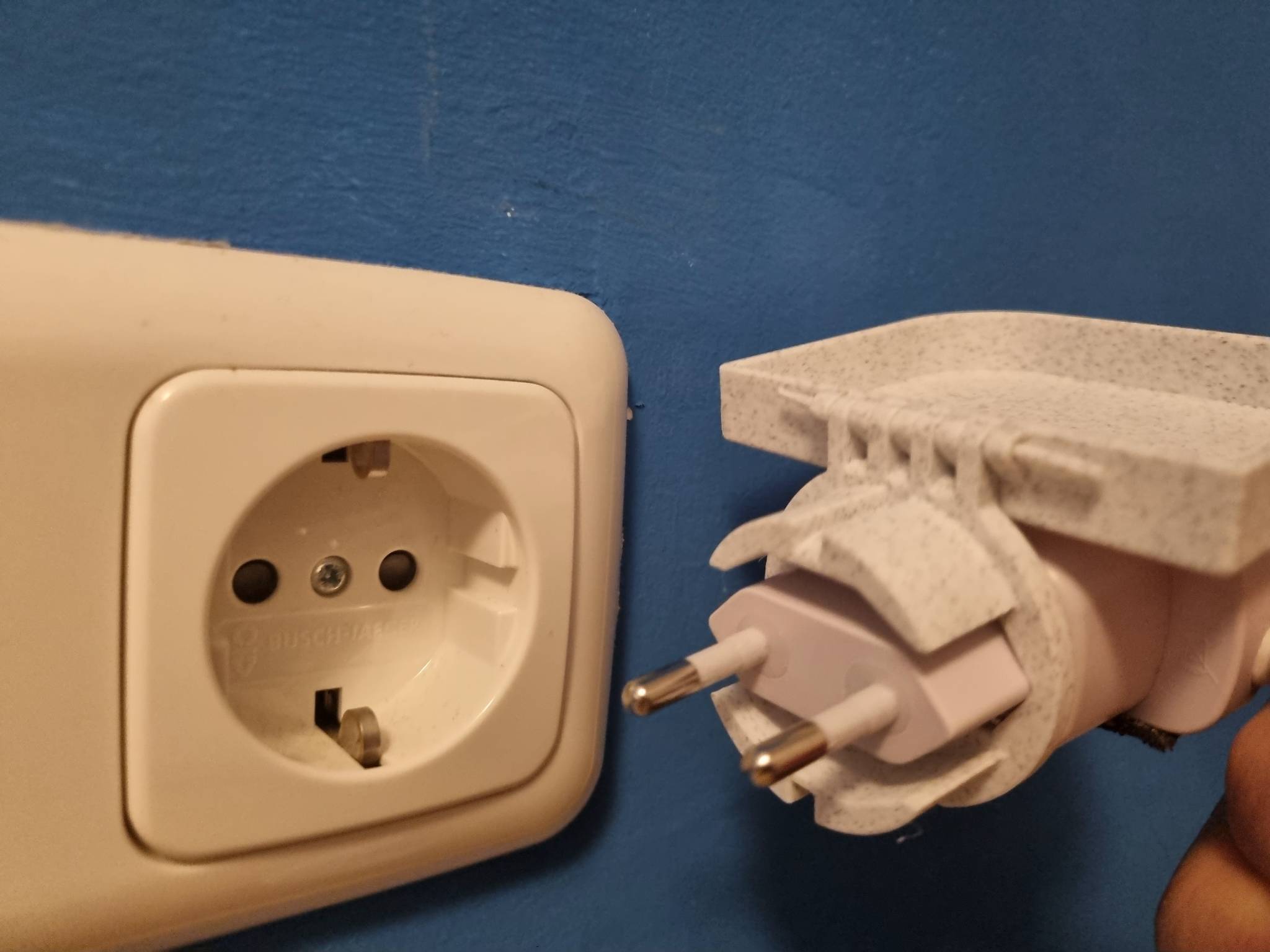

• This only holds securely when a eurostecker ist plugged in at the bottom • Print in the pictured orientations. Then assemble the parts with a piece of filament. If you do not get the filament through the hole, then either drill out the hole (2mm drill) or heat the front part of the filament and pull to mate it thinner. Then thread it through. • The hinge is not intended to be hinged. only for making the print easier as there are no supports needed. • Consider printing the File “Schuko_hinge_Experimental.stl” as it should be more securely in the plug. It contains two elevations that should anchor the part better, where the earthing contacts are. Please give a feedback if this is the case.

A remix could start here: onshape (direct link to this model for remixes)

Enjoy the part :)

Design and description by Nils , licensed CC-BY-SA.
