Screwdriver mount for IKEA Skådis
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~49 g
- Print time
- ~2.7 h
- Express shipping
- $20
More information

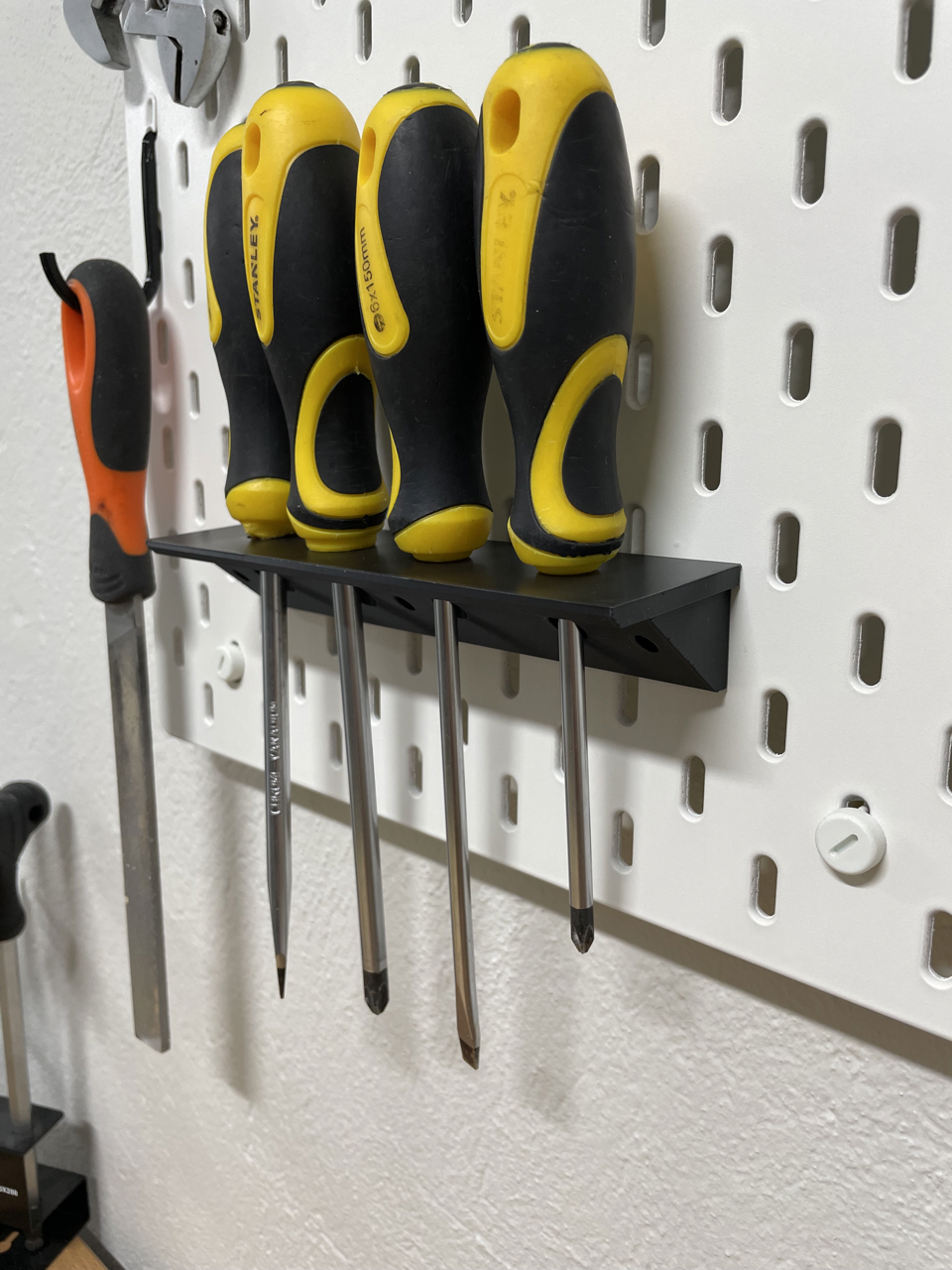

A basic screwdriver mount for IKEA Skådis designed to be mounted with T-Nuts.
The top face is slightly angled (5°) to make it a wee bit easier to grab the screwdrivers, but this has the side effect of limiting the length of the screw driver shaft. I didn't measure exactly but I'm guesstimating a maximum shaft length of 17-20cm (~6.7 - 7.9").
When choosing which mount to print measure the shaft of your screwdriver and make sure it's smaller than the specified hole diameter. Make sure to measure at the thickest part, especially important for flat head screwdrivers which are usually quite wide.
Also measure the handle and consider that the hole spacing should be slightly wider than the width of the screwdrivers if two drivers with equally wide handles will sit next to each other.

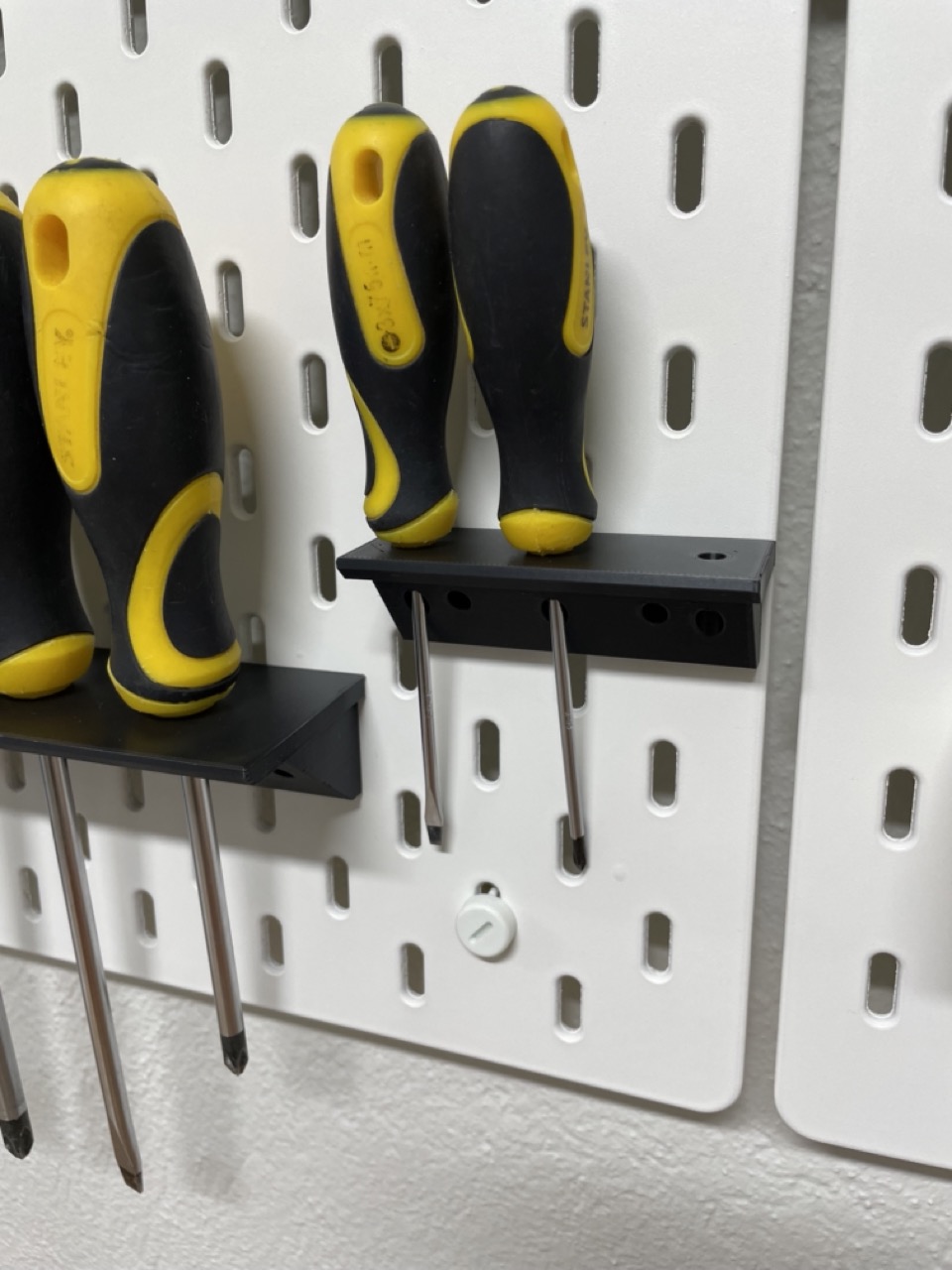

The first variant (A) is slightly different from the others, specifically the mounting holes are located at a different heights which means that the shelfs won't be aligned when placing an A mount and a B mount next to each other. The rest of the mounts doesn't have that problem. The A mount is also 20mm deeper than the other mounts (50mm as opposed to 30mm).

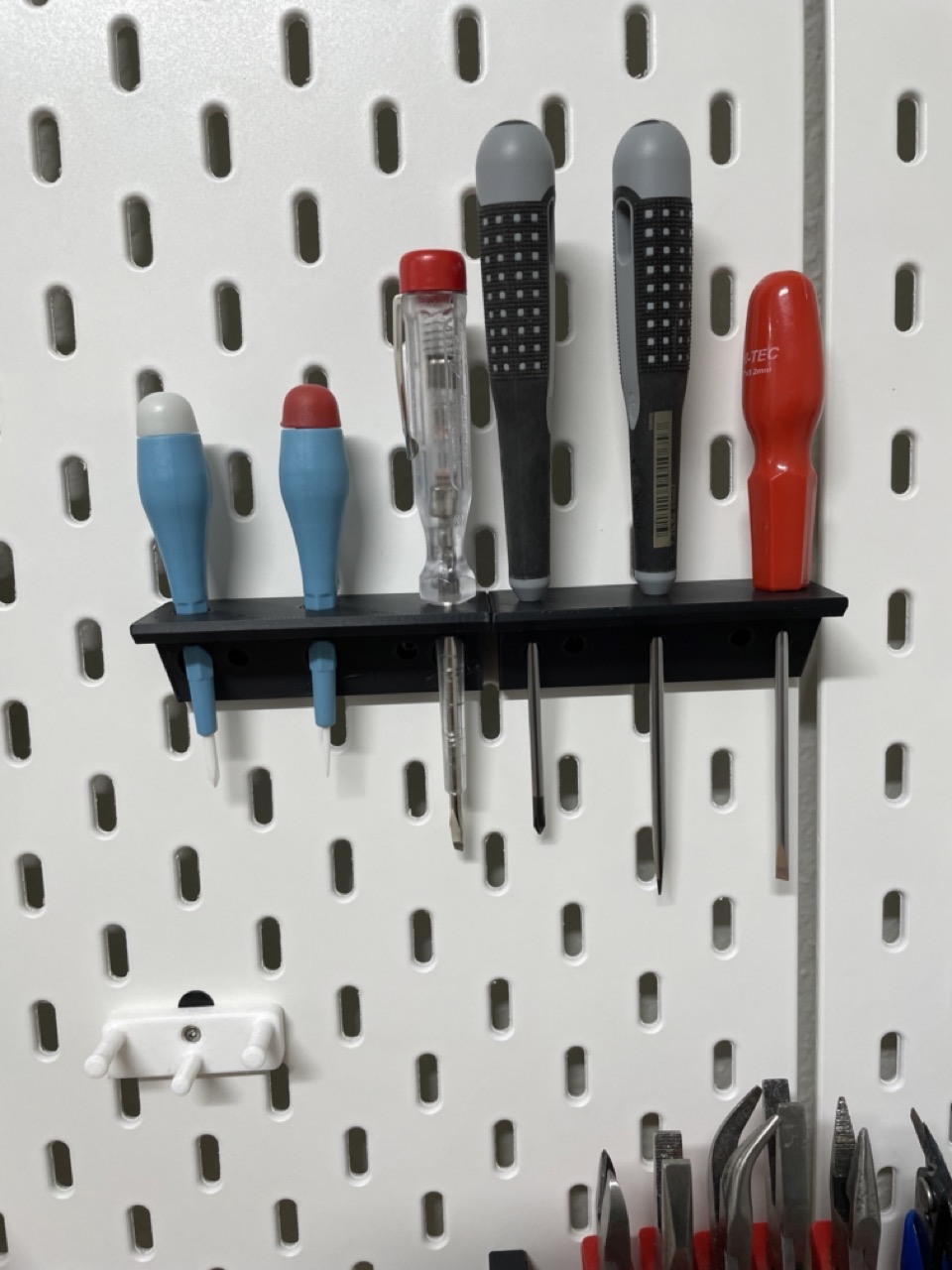

The 80mm mounts will sit flush against each other when mounted side by side (see pictures for example).
Available variants:
MountScrewdriversHole diameterHole spacingDimensionsScrews
A4 large2 x 13mm, 2 x 9mm39.5mm50x180mm3xM2.5x12mm
B3 small4mm30mm30x80mm2xM2.5x12mm
C3 small8mm30mm30x80mm2xM2.5x12mm
D3 small5mm30mm30x80mm2xM2.5x12mm
E4 medium8mm40mm30x160mm2xM2.5x12mm
F3 small2 x 7mm, 1 x 12mm3030x80mm2xM2.5x12mm
Let me know if you are in need of a different variant in the comments and I'll whip it up for you.
Print settings
This is real easy to print and should work on any machine. I used 15% infill but your milage may vary. I printed with the top face against the bed.
No supports are needed. I printed this on a Prusa Mini with the 0.2mm Quality profile.
What you need:
M2.5 T-Nuts, M2.5 nuts and M2.5x12mm screws.
The screw holes are counterbored to fit a M2.5 socket cap head screw with a head diameter of ~4.5mm and a height of 2.5mm.
For easier alignment you can also use the alignment guides from the T-Nuts project (optional).
Design and description by leihog , licensed CC-BY.
