Sewing table hinge router template
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~43 g
- Print time
- ~2.4 h
- Express shipping
- $20
More information

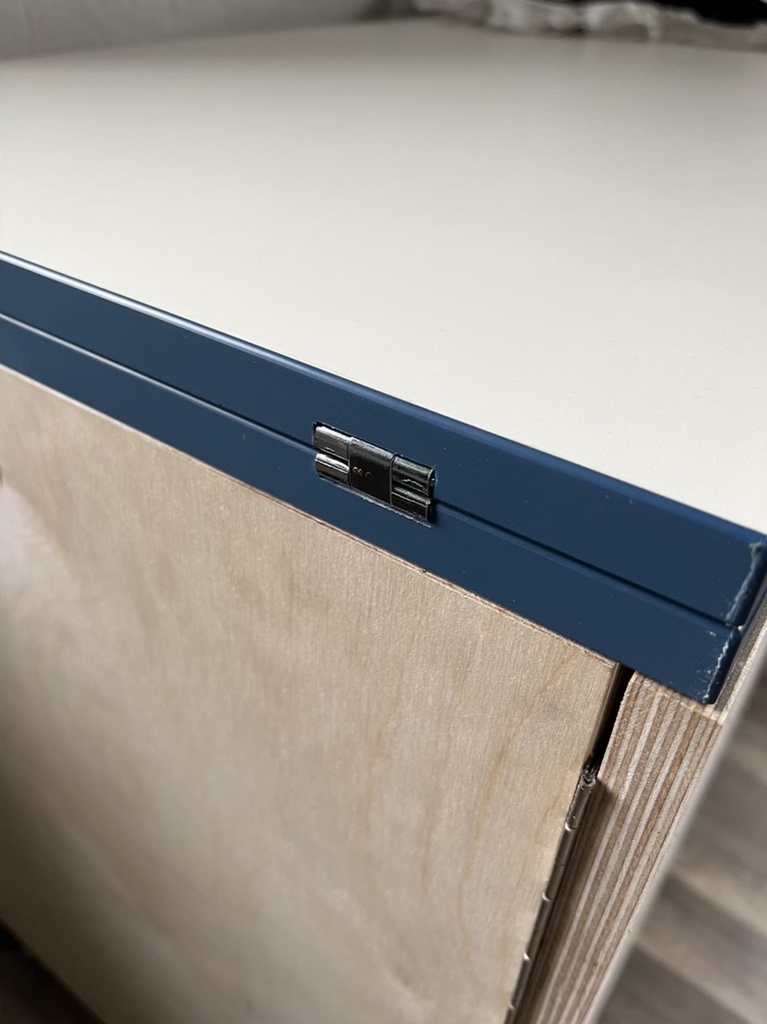

These are router templates for creating the necessary indentations to flush mount sewing table hinges.

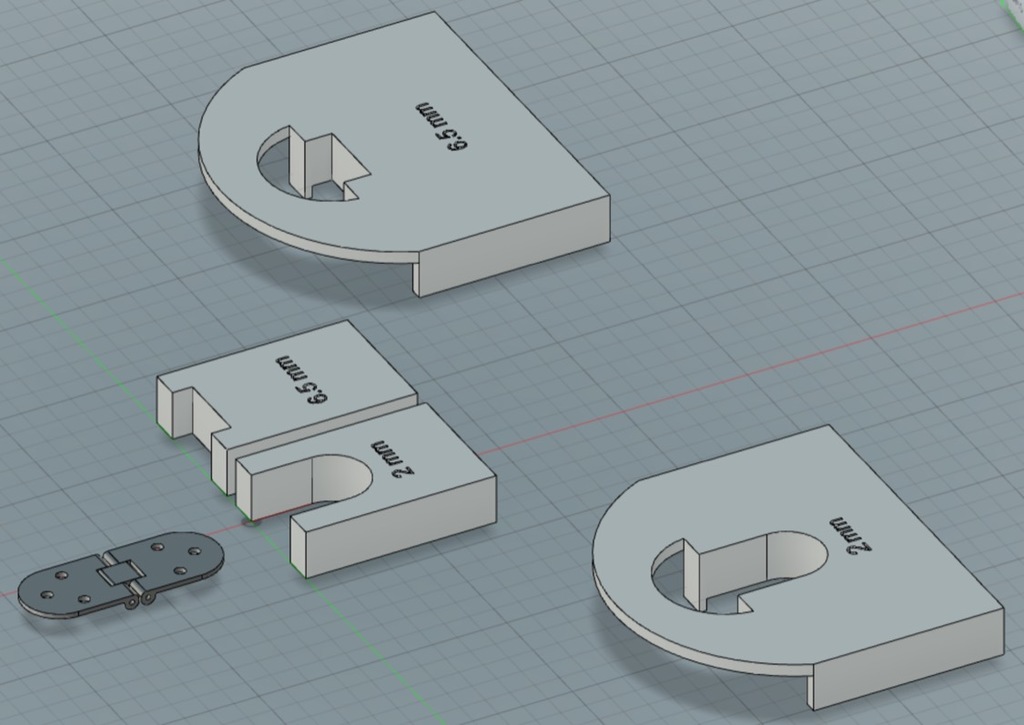

There are two versions:
• "Schablone flach" + "Schablone tief"
• "Schablone flach groß" + "Schablone tief groß"
You need both elements of either version. Hold them down to the table with double sided tape. The necessary depths for my hinge models were 2 and 6.5 and that's why you find those values on the models. This might be different regarding your hinges, so take some decent measurements.
If you have a very heavy and big router, use the bigger ones ;-) - I used the Makita/Katsu trimmer at first and it was totally fine to use the smaller ones.

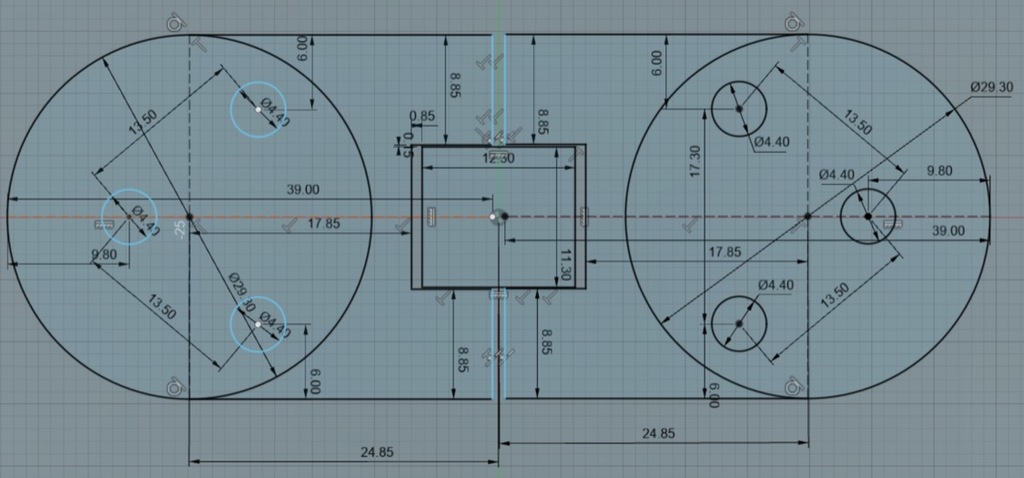

And... I did not print the hinge, the STL is only for reference...
Print Settings
Printer Brand:
Anycubic
Printer: Kossel
Rafts:
No
Supports: No
Resolution:
0.2
Infill: 15
Filament: unknown PLA
Category: DIY
Design and description by pandel , licensed CC-BY.
